Canon 5D Mark IV vs Leica X2

The Canon EOS 5D Mark IV and the Leica X2 are two digital cameras that were officially introduced, respectively, in August 2016 and May 2012. The 5D Mark IV is a DSLR, while the X2 is a fixed lens compact. The cameras are based on a full frame (5D Mark IV) and an APS-C (X2) sensor. The Canon has a resolution of 30.1 megapixels, whereas the Leica provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 5D Mark IV
versus
Leica X2
Canon 5D Mark IV   Leica X2
Digital single lens reflex Fixed lens compact camera
Canon EF mount lenses 36mm f/2.8
30.1 MP – Full Frame sensor 16.1 MP – APS-C sensor
4K/30p Video no Video
ISO 100-32,000 (50 - 102,400) ISO 100-12,500
Optical viewfinder Viewfinder optional
3.2" LCD – 1620k dots 2.7" LCD – 230k dots
Fixed touchscreen Fixed screen (not touch-sensitive)
7 shutter flaps per second 5 shutter flaps per second
Weathersealed bodynot weather sealed
900 shots per battery charge450 shots per battery charge
151 x 116 x 76 mm, 890 g 124 x 69 x 52 mm, 345 g
logo
Check 5D Mark IV price at
amazon.com
logo
Check X2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the Leica X2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Canon 5D Mark IV and the Leica X2 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The X2 can be obtained in two different colors (black, silver), while the 5D Mark IV is only available in black.

Size Canon 5D Mark IV vs Leica X2
Compare 5D Mark IV versus X2 top

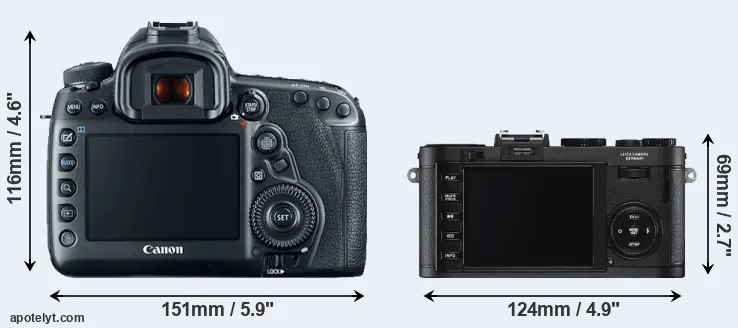

Comparison 5D Mark IV or X2 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica X2 is considerably smaller (51 percent) than the Canon 5D Mark IV. It is worth mentioning in this context that the 5D Mark IV is splash and dust resistant, while the X2 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X2 has a lens built in, whereas the 5D Mark IV is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the 5D Mark IV and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the 5D Mark IV gets 900 shots out of its Canon LP-E6N battery, while the X2 can take 450 images on a single charge of its Leica BP-DC8 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 5D Mark IV 151 mm 116 mm 76 mm 890 g 900 Y Aug 2016 3,499 amazon.com
2.

Leica X2 124 mm 69 mm 52 mm 345 g 450 n May 2012 1,995ebay.com
3.

Canon 6D Mark II 144 mm 111 mm 75 mm 765 g 1200 Y Jun 2017 1,999 amazon.com
4.

Canon 1D X Mark II 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999ebay.com
5.

Canon 80D 139 mm 105 mm 79 mm 730 g 960 Y Feb 2016 1,199ebay.com
6.

Canon 5DS 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699ebay.com
7.

Canon 5DS R 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699ebay.com
8.

Canon 5D Mark III 152 mm 116 mm 76 mm 950 g 950 Y Mar 2012 3,499ebay.com
9.

Canon 6D 145 mm 111 mm 71 mm 770 g 1090 Y Sep 2012 2,099ebay.com
10.

Canon 5D Mark II 152 mm 114 mm 75 mm 850 g 850 Y Sep 2008 3,499ebay.com
11.

Leica TL 134 mm 69 mm 33 mm 384 g 400 n Nov 2016 1,695ebay.com
12.

Leica T 134 mm 69 mm 33 mm 384 g 400 n Apr 2014 1,850ebay.com
13.

Leica X Typ 113 133 mm 73 mm 78 mm 486 g 350 n Sep 2014 2,295ebay.com
14.

Leica X Vario 133 mm 73 mm 95 mm 680 g 450 n Jun 2013 2,850ebay.com
15.

Leica X1 124 mm 60 mm 32 mm 306 g 260 n Sep 2009 1,995ebay.com
16.

Nikon D850 146 mm 124 mm 79 mm 1005 g 1840 Y Jul 2017 3,299 amazon.com
17.

Nikon D810 146 mm 123 mm 82 mm 980 g 1200 Y Jun 2014 3,299ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X2 was launched at a lower price than the 5D Mark IV, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the Leica X2 an APS-C sensor. The sensor area in the X2 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Canon 5D Mark IV and Leica X2 sensor measures

With 30.1MP, the 5D Mark IV offers a higher resolution than the X2 (16.1MP), but the 5D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 4.79μm for the X2) due to its larger sensor. Moreover, the 5D Mark IV is a much more recent model (by 4 years and 3 months) than the X2, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the Leica X2 are 24.6 x 16.3 inches or 62.6 x 41.5 cm for good quality, 19.7 x 13.1 inches or 50.1 x 33.2 cm for very good quality, and 16.4 x 10.9 inches or 41.7 x 27.6 cm for excellent quality prints.

The 5D Mark IV has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the Leica X2 are ISO 100 to ISO 12500 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

5D Mark IV versus X2 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 5D Mark IV Full Frame 30.1 6720 44804K/30p24.813.6299591
2.

Leica X2 APS-C 16.1 4928 3264none23.212.4127574
3.

Canon 6D Mark II Full Frame 26.0 6240 41601080/60p24.411.9286285
4.

Canon 1D X Mark II Full Frame 20.0 5472 36484K/60p24.113.5320788
5.

Canon 80D APS-C 24.0 6000 40001080/60p23.613.2113579
6.

Canon 5DS Full Frame 50.3 8688 57921080/30p24.712.4238187
7.

Canon 5DS R Full Frame 50.3 8688 57921080/30p24.612.4230886
8.

Canon 5D Mark III Full Frame 22.1 5760 38401080/30p24.011.7229381
9.

Canon 6D Full Frame 20.0 5472 36481080/30p23.812.1234082
10.

Canon 5D Mark II Full Frame 21.0 5616 37441080/30p23.711.9181579
11.

Leica TL APS-C 16.1 4928 32641080/30p23.913.2169081
12.

Leica T APS-C 16.2 4944 32781080/30p23.012.7108275
13.

Leica X Typ 113 APS-C 16.1 4928 32641080/30p23.612.8149178
14.

Leica X Vario APS-C 16.1 4928 32721080/30p23.412.7132078
15.

Leica X1 APS-C 12.2 4272 2856none22.611.8103769
16.

Nikon D850 Full Frame 45.4 8256 55044K/30p26.414.82660100
17.

Nikon D810 Full Frame 36.2 7360 49121080/60p25.714.8285397
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras cannot only take still pictures, but also record videos. The 5D Mark IV indeed provides movie recording capabilities, while the X2 does not. The highest resolution format that the 5D Mark IV can use is 4K/30p.

ad

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 5D Mark IV has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X2 relies on live view and the rear LCD for framing. That said, the X2 can be equipped with an optional viewfinder – the EVF 2. The following table reports on some other key feature differences and similarities of the Canon 5D Mark IV, the Leica X2, and comparable cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 5D Mark IVoptical Y3.2 / 1620 fixed Y 1/8000s 7.0/s n n
2.

Leica X2optional n2.7 / 230 fixed n 1/2000s 5.0/s Y n
3.

Canon 6D Mark IIoptical Y3.0 / 1040 swivel Y 1/4000s 6.5/s n n
4.

Canon 1D X Mark IIoptical Y3.2 / 1620 fixed Y 1/8000s 16.0/s n n
5.

Canon 80Doptical Y3.0 / 1040 swivel Y 1/8000s 7.0/s Y n
6.

Canon 5DSoptical Y3.2 / 1040 fixed n 1/8000s 5.0/s n n
7.

Canon 5DS Roptical Y3.2 / 1040 fixed n 1/8000s 5.0/s n n
8.

Canon 5D Mark IIIoptical Y3.2 / 1040 fixed n 1/8000s 6.0/s n n
9.

Canon 6Doptical Y3.0 / 1040 fixed n 1/4000s 4.5/s n n
10.

Canon 5D Mark IIoptical Y3.0 / 920 fixed n 1/8000s 3.9/s n n
11.

Leica TLoptional n3.7 / 1230 fixed Y 1/4000s 5.0/s Y n
12.

Leica Toptional n3.7 / 1230 fixed Y 1/4000s 5.0/s Y n
13.

Leica X Typ 113optional n3.0 / 920 fixed n 1/2000s 5.0/s Y n
14.

Leica X Variooptional n3.0 / 920 fixed n 1/2000s 5.0/s Y n
15.

Leica X1none n2.7 / 230 fixed n 1/2000s 3.0/s Y n
16.

Nikon D850optical Y3.2 / 2359 tilting Y 1/8000s 9.0/s n n
17.

Nikon D810optical Y3.2 / 1229 fixed n 1/8000s 5.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

One feature that is present on the 5D Mark IV, but is missing on the X2 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Canon 5D Mark IV has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the X2 uses SDHC cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the X2 only has one slot. The 5D Mark IV supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the X2 cannot take advantage of Ultra High Speed SD cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and Leica X2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 5D Mark IVYmono / monoYYmini3.0YY-
2.

Leica X2Y- / ---mini2.0---
3.

Canon 6D Mark IIYstereo / monoY-mini2.0YYY
4.

Canon 1D X Mark IIYmono / monoYYmini3.0---
5.

Canon 80DYstereo / monoYYmini2.0YY-
6.

Canon 5DSYmono / monoY-mini3.0---
7.

Canon 5DS RYmono / monoY-mini3.0---
8.

Canon 5D Mark IIIYmono / monoYYmini2.0---
9.

Canon 6DYmono / monoY-mini2.0Y--
10.

Canon 5D Mark IIYmono / monoY-mini2.0---
11.

Leica TLYstereo / mono--micro2.0Y--
12.

Leica TYstereo / mono---2.0Y--
13.

Leica X Typ 113Ystereo / mono--mini2.0---
14.

Leica X VarioYstereo / mono--mini2.0---
15.

Leica X1Y- / ---mini2.0---
16.

Nikon D850Ystereo / monoYYmini3.0YYY
17.

Nikon D810Ystereo / monoYYmini3.0Y--
padding

It is notable that the 5D Mark IV offers wifi support, while the X2 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Canon 5D Mark IV (unlike the X2) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The 5D Mark IV is a recent model that features in the current product line-up of Canon. In contrast, the X2 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the X2 from Leica. Further information on the features and operation of the 5D Mark IV and X2 can be found, respectively, in the Canon 5D Mark IV Manual (free pdf) or the online Leica X2 Manual.

ad

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon 5D Mark IV or the Leica X2 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Arguments in favor of the Canon EOS 5D Mark IV:

  • More detail: Offers more megapixels (30.1 vs 16.1MP) with a 37% higher linear resolution.
  • Better image quality: Features a larger and more technologically advanced imaging sensor.
  • Richer colors: The sensor size advantage translates into images with better, more accurate colors.
  • More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
  • Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
  • Broader imaging potential: Can record not only still images but also 4K/30p movies.
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 2.7") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1620k vs 230k dots).
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
  • Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More flexible: Can take a variety of interchangeable lenses, including specialty optics.
  • Longer lasting: Can take more shots (900 versus 450) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Easier geotagging: Features an internal GPS sensor to log localization data.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More modern: Reflects 4 years and 3 months of technical progress since the X2 launch.

ilogo

Reasons to prefer the Leica X2:

  • Ready to shoot: Comes with an integrated lens, while the 5D Mark IV requires a separate lens.
  • More compact: Is smaller (124x69mm vs 151x116mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight even though it has a lens built in (unlike the 5D Mark IV).
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
  • More affordable: Was introduced at a lower price, despite coming with a built-in lens.
  • More heavily discounted: Has been around for much longer (launched in May 2012).

If the number of relative strengths (bullet points above) is taken as a guide, the 5D Mark IV is the clear winner of the match-up (26 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

5D Mark IV 26:07 X2

How about other alternatives? Do the specifications of the Canon 5D Mark IV and the Leica X2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Prime Lens Compact Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the 5D Mark IV or the X2 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 5D Mark IV4.5/5+ +4/587/1004.5/54.5/5 Aug 2016 3,499 amazon.com
2.

Leica X23/5......3/54/5 May 2012 1,995ebay.com
3.

Canon 6D Mark II4/5+4/580/1004.5/54/5 Jun 2017 1,999 amazon.com
4.

Canon 1D X Mark II....4.5/589/1004.5/54.5/5 Feb 2016 5,999ebay.com
5.

Canon 80D4/5+ +4.5/584/1004.5/54.5/5 Feb 2016 1,199ebay.com
6.

Canon 5DS..+..83/1004.5/54.5/5 Feb 2015 3,699ebay.com
7.

Canon 5DS R5/5+..83/1005/54.5/5 Feb 2015 3,699ebay.com
8.

Canon 5D Mark III..+ +..82/1004.5/54.5/5 Mar 2012 3,499ebay.com
9.

Canon 6D5/5+ +..83/1004.5/54.5/5 Sep 2012 2,099ebay.com
10.

Canon 5D Mark II4/591/100..79/1004/5.. Sep 2008 3,499ebay.com
11.

Leica TL..........4/5 Nov 2016 1,695ebay.com
12.

Leica T3/5......4/54/5 Apr 2014 1,850ebay.com
13.

Leica X Typ 1133.5/5......3.5/54/5 Sep 2014 2,295ebay.com
14.

Leica X Vario3/5......4/54/5 Jun 2013 2,850ebay.com
15.

Leica X13/5....+..4/5 Sep 2009 1,995ebay.com
16.

Nikon D8504.5/5+ +5/589/1004.5/55/5 Jul 2017 3,299 amazon.com
17.

Nikon D8105/5..5/586/1005/54.5/5 Jun 2014 3,299ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check 5D Mark IV price at
amazon.com
logo
Check X2 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications: Canon 5D Mark IV vs Leica X2

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 5D Mark IV Leica X2
    Camera Type Digital single lens reflex Fixed lens compact camera
    Camera Lens Canon EF mount lenses 36mm f/2.8
    Launch Date August 2016 May 2012
    Launch Price USD 3,499 USD 1,995
    Sensor Specs Canon 5D Mark IV Leica X2
    Sensor Technology CMOS CMOS
    Sensor Format Full Frame Sensor APS-C Sensor
    Sensor Size 36.0 x 24.0 mm 23.7 x 15.6 mm
    Sensor Area 864 mm2 369.72 mm2
    Sensor Diagonal 43.3 mm 28.4 mm
    Crop Factor 1.0x 1.5x
    Sensor Resolution 30.1 Megapixels 16.1 Megapixels
    Image Resolution 6720 x 4480 pixels 4928 x 3264 pixels
    Pixel Pitch 5.36 μm 4.79 μm
    Pixel Density 3.48 MP/cm2 4.35 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 4K/30p Video no Video
    ISO Setting 100 - 32,000 ISO 100 - 12,500 ISO
    ISO Boost 50 - 102,400 ISO no Enhancement
    DXO Sensor Quality (score) 91 ..
    DXO Color Depth (bits) 24.8 ..
    DXO Dynamic Range (EV) 13.6 ..
    DXO Low Light (ISO) 2995 ..
    Screen Specs Canon 5D Mark IV Leica X2
    Viewfinder Type Optical viewfinder Viewfinder optional
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.71x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View
    Rear LCD Size 3.2inch 2.7inch
    LCD Resolution 1620k dots 230k dots
    LCD Attachment Fixed screen Fixed screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Canon 5D Mark IV Leica X2
    Focus System Phase-detect AF Contrast-detect AF
    Continuous Shooting 7 shutter flaps/s 5 shutter flaps/s
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Fill Flash no On-Board Flash Built-in Flash
    Storage Medium CF or SDXC cards SDHC cards
    Single or Dual Card Slots Dual card slots Single card slot
    UHS card support UHS-I no
    Connectivity Specs Canon 5D Mark IV Leica X2
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support Wifi built-in no Wifi
    Near-Field Communication NFC built-in no NFC
    Geotagging GPS built-in no internal GPS
    Body Specs Canon 5D Mark IV Leica X2
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type Canon LP-E6N Leica BP-DC8
    Battery Life (CIPA)900 shots per charge450 shots per charge
    Body Dimensions 151 x 116 x 76 mm
    (5.9 x 4.6 x 3.0 in)
    124 x 69 x 52 mm
    (4.9 x 2.7 x 2.0 in)
    Camera Weight 890 g (31.4 oz) 345 g (12.2 oz)
    logo
    Check 5D Mark IV price at
    amazon.com
    logo
    Check X2 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 5D Mark IV vs Leica X2
