Canon 50D vs Olympus E-P5
The Canon EOS 50D and the Olympus PEN E-P5 are two enthusiast cameras that were revealed to the public, respectively, in August 2008 and May 2013. The 50D is a DSLR, while the E-P5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (50D) and a Four Thirds (E-P5) sensor. The Canon has a resolution of 15.1 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 50D and the Olympus PEN E-P5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

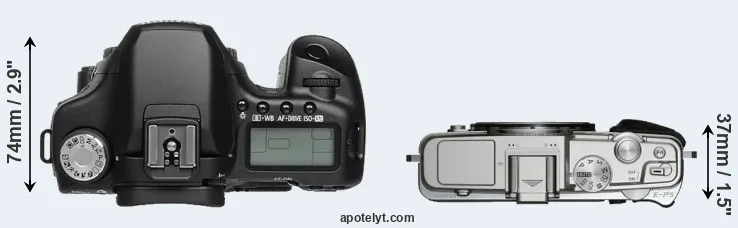

The side-by-side display below illustrates the physical size and weight of the Canon 50D and the Olympus E-P5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The E-P5 can be obtained in three different colors (black, silver, white), while the 50D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P5 is considerably smaller (47 percent) than the Canon 50D. Moreover, the E-P5 is substantially lighter (49 percent) than the 50D. It is worth mentioning in this context that the 50D is splash and dust resistant, while the E-P5 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (50D) and the Micro Four Thirds Lens Catalog (E-P5). Mirrorless cameras, such as the E-P5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|2.||Olympus E-P5||122 mm||69 mm||37 mm||420 g||330||n||May 2013||999|
|3.||Canon 90D||141 mm||105 mm||77 mm||701 g||1300||Y||Aug 2019||1,199|
|4.||Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|5.||Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|6.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|7.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|8.||Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|9.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|10.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|11.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399|
|12.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499|
|13.||Olympus PEN-F||125 mm||72 mm||37 mm||427 g||330||n||Jan 2016||1,199|
|14.||Olympus E-M10 II||120 mm||83 mm||47 mm||390 g||320||n||Aug 2015||649|
|15.||Olympus E-M10||119 mm||82 mm||46 mm||396 g||320||n||Jan 2014||699|
|16.||Olympus E-M1||130 mm||94 mm||63 mm||497 g||350||Y||Sep 2013||1,399|
|17.||Panasonic GX7||123 mm||71 mm||55 mm||402 g||350||n||Aug 2013||999|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-P5 was launched at a somewhat lower price (by 23 percent) than the 50D, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 50D features an APS-C sensor and the Olympus E-P5 a Four Thirds sensor. The sensor area in the E-P5 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 50D has a native 3:2 aspect ratio, while the one in the E-P5 offers a 4:3 aspect.
Despite having a smaller sensor, the E-P5 offers a slightly higher resolution of 15.9 megapixels, compared with 15.1 MP of the 50D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.69μm for the 50D). However, it should be noted that the E-P5 is much more recent (by 4 years and 8 months) than the 50D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The Canon EOS 50D has a native sensitivity range from ISO 100 to ISO 3200, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus PEN E-P5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the E-P5 has a markedly higher DXO score than the 50D (overall score 9 points higher), which will translate into better image quality. The advantage is based on 1 bits higher color depth, 1 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|2.||Olympus E-P5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.4||895||72|
|5.||Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|13.||Olympus PEN-F||Four Thirds||20.2||5184||3888||1080/60p||23.1||12.4||894||74|
|14.||Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73|
|15.||Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72|
|16.||Olympus E-M1||Four Thirds||15.9||4608||3456||1080/30p||23.0||12.7||757||73|
|17.||Panasonic GX7||Four Thirds||15.8||4592||3448||1080/60p||22.6||12.2||718||70|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The E-P5 indeed provides for movie recording, while the 50D does not. The highest resolution format that the E-P5 can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the 50D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-P5 relies on live view and the rear LCD for framing. That said, the E-P5 can be equipped with an optional viewfinder – the VF-4. The table below summarizes some of the other core capabilities of the Canon 50D and Olympus E-P5 in connection with corresponding information for a sample of similar cameras.
|5.||Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
|14.||Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y|
One feature that is present on the 50D, but is missing on the E-P5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Olympus E-P5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 50D writes its imaging data to Compact Flash cards, while the E-P5 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 50D and Olympus PEN E-P5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|5.||Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
|14.||Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-|
It is notable that the E-P5 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 50D does not provide wifi capability.
Studio photographers will appreciate that the Canon 50D (unlike the E-P5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 50D and the E-P5 have been discontinued, but can regularly be found used on eBay. The 50D was replaced by the Canon 60D, while the E-P5 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what is the bottom line? Is there a clear favorite between the Canon 50D and the Olympus E-P5? Which camera is better? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS 50D:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Longer lasting: Can take more shots (800 versus 330) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2008).
Advantages of the Olympus PEN E-P5:
- Better image quality: Scores markedly higher (9 points) in the DXO overall evaluation.
- More dynamic range: Captures a broader range of light and dark details (1 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 920k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (9 vs 6.3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (122x69mm vs 146x108mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 402g or 49 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was released into a lower priced segment (23 percent cheaper at launch).
- More modern: Reflects 4 years and 8 months of technical progress since the 50D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the E-P5 is the clear winner of the contest (16 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 50D and the Olympus E-P5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the 50D and the E-P5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 50D||..||+ +||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|2.||Olympus E-P5||5/5||+ +||78/100||4.5/5||5/5||May 2013||999|
|3.||Canon 90D||4/5||+||85/100||4.5/5||4.5/5||Aug 2019||1,199|
|4.||Canon 80D||4/5||+ +||84/100||4.5/5||4.5/5||Feb 2016||1,199|
|5.||Canon 7D II||4.5/5||+||84/100||4/5||4.5/5||Sep 2014||1,799|
|6.||Canon 70D||5/5||+ +||83/100||4.5/5||5/5||Jul 2013||1,199|
|7.||Canon 60D||5/5||+||79/100||4/5||4.5/5||Aug 2010||1,399|
|8.||Canon 7D||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2009||1,699|
|9.||Canon T1i||..||+ +||74/100||4.5/5||4.5/5||Mar 2009||799|
|10.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|11.||Canon 30D||..||+ +||+ +||o||..||Feb 2006||1,399|
|12.||Canon 20D||..||..||+ +||..||..||Aug 2004||1,499|
|13.||Olympus PEN-F||..||..||82/100||4.5/5||5/5||Jan 2016||1,199|
|14.||Olympus E-M10 II||4.5/5||+ +||80/100||5/5||5/5||Aug 2015||649|
|15.||Olympus E-M10||4/5||..||80/100||5/5||5/5||Jan 2014||699|
|16.||Olympus E-M1||5/5||+ +||84/100||4.5/5||4.5/5||Sep 2013||1,399|
|17.||Panasonic GX7||4/5||+||79/100||5/5||5/5||Aug 2013||999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 50D vs Olympus E-P5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 50D||Olympus E-P5|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||August 2008||May 2013|
|Launch Price||USD 1,299||USD 999|
|Sensor Specs||Canon 50D||Olympus E-P5|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||15.1 Megapixels||15.9 Megapixels|
|Image Resolution||4752 x 3168 pixels||4608 x 3456 pixels|
|Pixel Pitch||4.69 μm||3.76 μm|
|Pixel Density||4.53 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100 - 3,200 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 12,800 ISO||100 - 25,600 ISO|
|Image Processor||DIGIC 4||TruePic VI|
|DXO Sensor Quality (score)||63||72|
|DXO Color Depth (bits)||21.8||22.8|
|DXO Dynamic Range (EV)||11.4||12.4|
|DXO Low Light (ISO)||696||895|
|Screen Specs||Canon 50D||Olympus E-P5|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||920k dots||1037k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 50D||Olympus E-P5|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/8000s|
|Continuous Shooting||6.3 shutter flaps/s||9 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 50D||Olympus E-P5|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 50D||Olympus E-P5|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||800 shots per charge||330 shots per charge|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
122 x 69 x 37 mm
(4.8 x 2.7 x 1.5 in)
|Camera Weight||822 g (29.0 oz)||420 g (14.8 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
