Canon 50D vs Nikon D5
The Canon EOS 50D and the Nikon D5 are two digital cameras that were officially introduced, respectively, in August 2008 and January 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (50D) and a full frame (D5) sensor. The Canon has a resolution of 15.1 megapixels, whereas the Nikon provides 20.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 50D||Nikon D5|
|Digital single lens reflex||Digital single lens reflex|
|Canon EF mount lenses||Nikon F mount lenses|
|15.1 MP, APS-C Sensor||20.7 MP, Full Frame Sensor|
|no Video||4K/30p Video|
|ISO 100-3,200 (100 - 12,800)||ISO 100-102,400 (50 - 3,280,000)|
|Optical viewfinder||Optical viewfinder|
|3.0 LCD, 920k dots||3.2 LCD, 2359k dots|
|Fixed screen (not touch-sensitive)||Fixed touchscreen|
|6.3 shutter flaps per second||14 shutter flaps per second|
|Weathersealed body||Weathersealed body|
|800 shots per battery charge||3780 shots per battery charge|
|146 x 108 x 74 mm, 822 g||160 x 159 x 92 mm, 1415 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 50D and the Nikon D5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

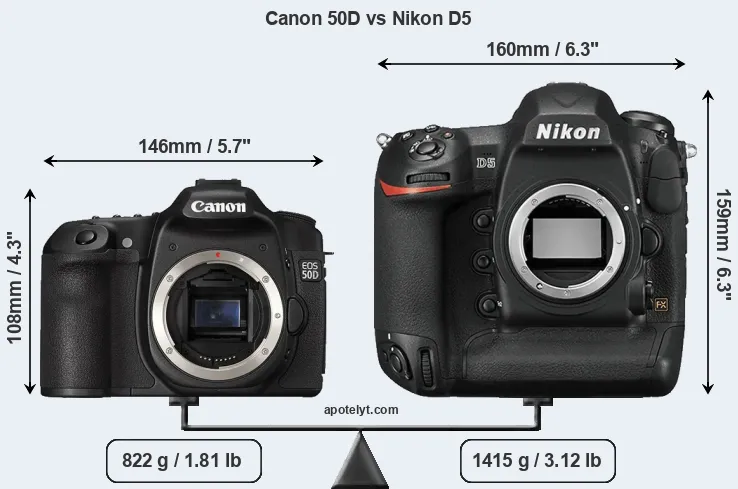

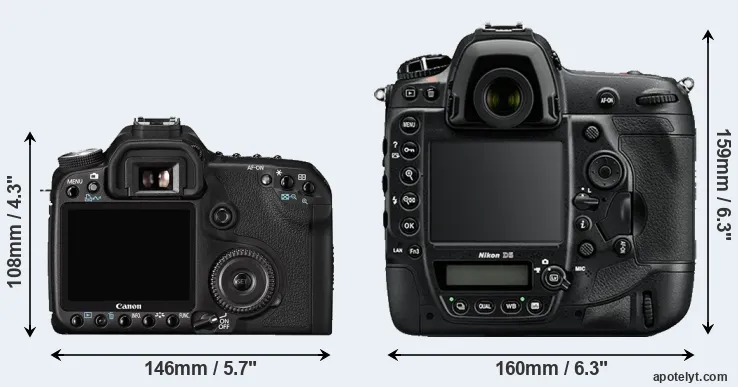

An illustration of the physical size and weight of the Canon 50D and the Nikon D5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5 is considerably larger (61 percent) than the Canon 50D. Moreover, the D5 is substantially heavier (72 percent) than the 50D. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (50D) and the Nikon Lens Catalog (D5).
Concerning battery life, the 50D gets 800 shots out of its BP-511A battery, while the D5 can take 3780 images on a single charge of its EN-EL18a power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the 50D, Canon provides the BG-E2N vertical grip as an optional accessory (see here on eBay).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|Canon 7D II||149 mm||112 mm||78 mm||910 g||670||Y||Sep 2014||1,799|
|Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|Canon 1D Mark IV||156 mm||157 mm||80 mm||1230 g||1500||Y||Oct 2009||4,999|
|Canon 7D||148 mm||111 mm||74 mm||860 g||800||Y||Sep 2009||1,699|
|Canon 500D||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399|
|Canon 5D||152 mm||113 mm||75 mm||895 g||400||Y||Aug 2005||3,299|
|Nikon D6||160 mm||163 mm||92 mm||1270 g||3580||Y||Feb 2020||6,499|
|Nikon D4S||160 mm||157 mm||91 mm||1350 g||3020||Y||Feb 2014||6,499|
|Nikon D4||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999|
|Nikon D3X||160 mm||157 mm||88 mm||1260 g||4400||Y||Dec 2008||7,999|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 50D was launched at a markedly lower price (by 80 percent) than the D5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

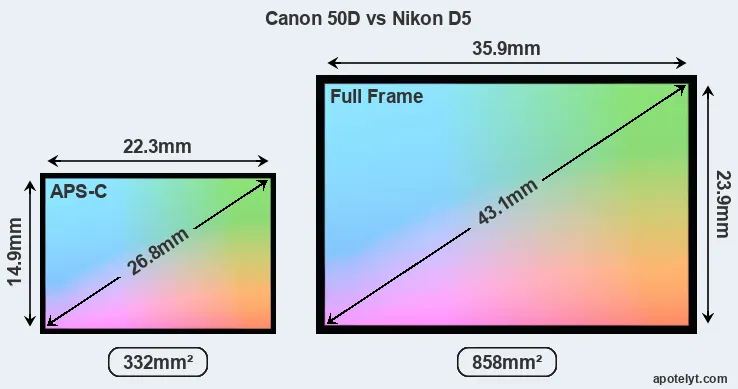

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 50D features an APS-C sensor and the Nikon D5 a full frame sensor. The sensor area in the D5 is 158 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.
With 20.7MP, the D5 offers a higher resolution than the 50D (15.1MP), but the D5 nevertheless has larger individual pixels (pixel pitch of 6.44μm versus 4.69μm for the 50D) due to its larger sensor. Moreover, the D5 is a much more recent model (by 7 years and 4 months) than the 50D, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Nikon D5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5 for good quality output (200 dots per inch) amounts to 27.9 x 18.6 inches or 71 x 47.1 cm, for very good quality (250 dpi) 22.4 x 14.8 inches or 56.8 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.3 x 31.4 cm. The corresponding values for the Canon 50D are 23.8 x 15.8 inches or 60.4 x 40.2 cm for good quality, 19 x 12.7 inches or 48.3 x 32.2 cm for very good quality, and 15.8 x 10.6 inches or 40.2 x 26.8 cm for excellent quality prints.
The Canon EOS 50D has a native sensitivity range from ISO 100 to ISO 3200, which can be extended to ISO 100-12800. The corresponding ISO settings for the Nikon D5 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-3280000.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the D5 offers substantially better image quality than the 50D (overall score 25 points higher). The advantage is based on 3.3 bits higher color depth, 0.9 EV in additional dynamic range, and 1.8 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|Canon 7D II||APS-C||20.0||5472||3648||1080/60p||22.4||11.8||1082||70|
|Canon 1D Mark IV||APS-H||16.0||4896||3264||1080/30p||22.8||12.0||1320||74|
|Canon 5D||Full Frame||12.7||4368||2912||none||22.9||11.1||1368||71|
|Nikon D6||Full Frame||20.7||5568||3712||4K/30p||..||..||..||..|
|Nikon D4S||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89|
|Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
|Nikon D3X||Full Frame||24.4||6048||4032||none||24.7||13.7||1992||88|
Many modern cameras cannot only take still pictures, but also record videos. The D5 indeed provides for movie recording, while the 50D does not. The highest resolution format that the D5 can use is 4K/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The 50D and the D5 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D5 offers a wider field of view (100%) than the one in the 50D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D5 has a higher magnification (0.72x vs 0.59x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon 50D, the Nikon D5, and comparable cameras.
|Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|Canon 7D II||optical||Y||3.0||1040||fixed||n||1/8000s||10.0||Y||n|
|Canon 1D Mark IV||optical||Y||3.0||920||fixed||n||1/8000s||10.0||n||n|
One difference between the cameras concerns the presence of an on-board flash. The 50D has one, while the D5 does not. While the built-in flash of the 50D is not very powerful, it can at times be useful as a fill-in light.
The Nikon D5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 50D writes its imaging data to Compact Flash cards, while the D5 uses Compact Flash or XQD cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 50D only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 50D and Nikon D5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|Canon 7D II||Y||stereo||mono||Y||Y||mini||3.0||-||-||-|
|Canon 1D Mark IV||Y||stereo||-||Y||-||mini||2.0||-||-||-|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the 50D and the D5 have been discontinued, but can regularly be found used on eBay. The 50D was replaced by the Canon 60D, while the D5 was followed by the Nikon D6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Nikon websites.
So what is the bottom line? Is the Canon 50D better than the Nikon D5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Canon EOS 50D:
- More compact: Is smaller (146x108mm vs 160x159mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 593g or 42 percent) and hence easier to carry around.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced into a lower priced category (80 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in August 2008).
Reasons to prefer the Nikon D5:
- More detail: Has more megapixels (20.7 vs 15.1MP), which boosts linear resolution by 17%.
- Better image quality: Scores substantially higher (25 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (3.3 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (0.9 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (1.8 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.72x vs 0.59x).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 920k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (14 vs 6.3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Gets more shots (3780 versus 800) out of a single battery charge.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 7 years and 4 months of technical progress since the 50D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the D5 is the clear winner of the contest (18 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 50D and the Nikon D5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 50D and the D5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 50D||+ +||+ +||4.5/5||5/5||4.5/5||Aug 2008||1,299|
|Nikon D5||..||89/100||4.5/5||5/5||5/5||Jan 2016||6,499|
|Canon 1D X Mark II||..||89/100||4.5/5||5/5||4.5/5||Feb 2016||5,999|
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Canon 7D II||+||84/100||4/5||5/5||4.5/5||Sep 2014||1,799|
|Canon 70D||+ +||83/100||4.5/5||4.5/5||5/5||Jul 2013||1,199|
|Canon 60D||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399|
|Canon 1D Mark IV||..||89/100||..||5/5||..||Oct 2009||4,999|
|Canon 7D||+ +||84/100||4.5/5||5/5||4.5/5||Sep 2009||1,699|
|Canon 500D||+ +||74/100||4.5/5||5/5||4.5/5||Mar 2009||799|
|Canon 40D||+ +||+ +||4.5/5||o||4.5/5||Aug 2007||1,299|
|Canon 30D||+ +||+ +||o||o||..||Feb 2006||1,399|
|Canon 5D||88/100||+ +||o||o||..||Aug 2005||3,299|
|Nikon D6||..||..||4.5/5||..||4.5/5||Feb 2020||6,499|
|Nikon D4S||..||..||4.5/5||5/5||4.5/5||Feb 2014||6,499|
|Nikon D4||..||..||4.5/5||..||4.5/5||Jan 2012||5,999|
|Nikon D3X||..||86/100||4/5||5/5||5/5||Dec 2008||7,999|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 50D vs Nikon D5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 50D||Nikon D5|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Nikon F mount lenses|
|Launch Date||August 2008||January 2016|
|Launch Price||USD 1,299||USD 6,499|
|Sensor Specs||Canon 50D||Nikon D5|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||22.3 x 14.9 mm||35.9 x 23.9 mm|
|Sensor Area||332.27 mm2||858.01 mm2|
|Sensor Diagonal||26.8 mm||43.1 mm|
|Sensor Resolution||15.1 Megapixels||20.7 Megapixels|
|Image Resolution||4752 x 3168 pixels||5588 x 3712 pixels|
|Pixel Pitch||4.69 μm||6.44 μm|
|Pixel Density||4.53 MP/cm2||2.42 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 3,200 ISO||100 - 102,400 ISO|
|ISO Boost||100 - 12,800 ISO||50 - 3,280,000 ISO|
|Image Processor||DIGIC 4||EXPEED 5|
|DXO Sensor Quality (score)||63||88|
|DXO Color Depth (bits)||21.8||25.1|
|DXO Dynamic Range (EV)||11.4||12.3|
|DXO Low Light (ISO)||696||2343|
|Screen Specs||Canon 50D||Nikon D5|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||100%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||920k dots||2359k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 50D||Nikon D5|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||6.3 shutter flaps/s||14 shutter flaps/s|
|Shutter Life Expectancy||100 000 actuations||400 000 actuations|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||CF cards||CF or XQD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon 50D||Nikon D5|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 2.0||USB 3.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 50D||Nikon D5|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||800 shots per charge||3780 shots per charge|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
160 x 159 x 92 mm
(6.3 x 6.3 x 3.6 in)
|Camera Weight||822 g (29.0 oz)||1415 g (49.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
