Canon 450D vs Olympus E-1

The Canon EOS 450D (called Canon XSi in some regions) and the Olympus E-1 are two digital cameras that were revealed to the public, respectively, in January 2008 and June 2003. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (450D) and a Four Thirds (E-1) sensor. The Canon has a resolution of 12.2 megapixels, whereas the Olympus provides 4.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 450D		Olympus E-1
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Four Thirds lenses
12.2 MP – APS-C sensor		4.9 MP – Four Thirds sensor
no Video		no Video
ISO 100-1,600		ISO 100-800 (100 - 3,200)
Optical viewfinder		Optical viewfinder
3.0" LCD – 230k dots		1.8" LCD – 134k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3.5 shutter flaps per second		3 shutter flaps per second
not weather sealed		Weathersealed body
500 shots per battery charge		750 shots per battery charge
129 x 98 x 62 mm, 524 g		141 x 104 x 81 mm, 738 g

Check 450D offers at
ebay.com
Check E-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 450D and the Olympus E-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

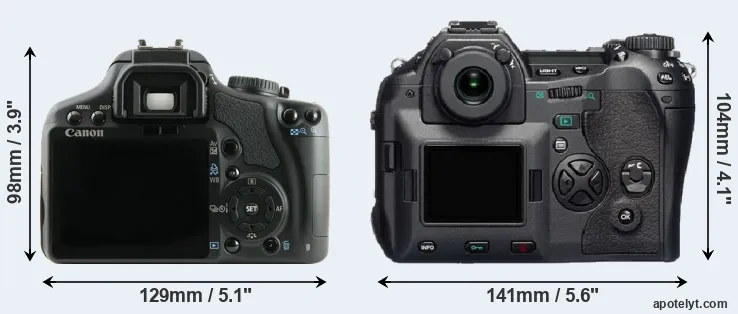

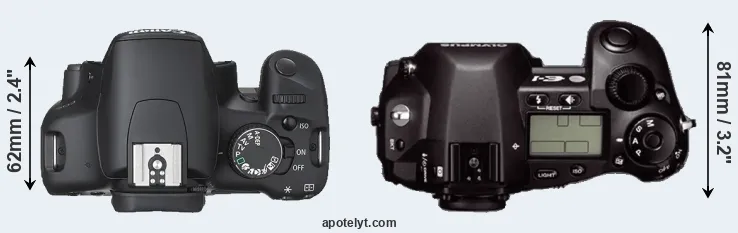

An illustration of the physical size and weight of the Canon 450D and the Olympus E-1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-1 is notably larger (16 percent) than the Canon 450D. Moreover, the E-1 is substantially heavier (41 percent) than the 450D. It is noteworthy in this context that the E-1 is splash and dust-proof, while the 450D does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (450D) and the Four Thirds Lens Catalog (E-1).

Concerning battery life, the 450D gets 500 shots out of its Canon LP-E5 battery, while the E-1 can take 750 images on a single charge of its Olympus BLM-1 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 450D	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	EUR 699	ebay.com
2.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	EUR 1 999	ebay.com
3.		Canon 400D	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	EUR 799	ebay.com
4.		Canon 500D	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	EUR 699	ebay.com
5.		Canon 650D	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	EUR 799	ebay.com
6.		Canon 750D	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	EUR 699	ebay.com
7.		Canon 760D	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	EUR 749	ebay.com
8.		Canon 1000D	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	EUR 399	ebay.com
9.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	EUR 399	ebay.com
10.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	EUR 749	ebay.com
11.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	EUR 849	ebay.com
12.		Leica Digilux 3	146 mm	87 mm	77 mm	606 g	750	n	Sep 2006	EUR 1 499	ebay.com
13.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	EUR 699	ebay.com
14.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	EUR 1 749	ebay.com
15.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	EUR 1 499	ebay.com
16.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	EUR 799	ebay.com
17.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	EUR 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 450D was launched at a markedly lower price (by 53 percent) than the E-1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 450D features an APS-C sensor and the Olympus E-1 a Four Thirds sensor. The sensor area in the E-1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 450D has a native 3:2 aspect ratio, while the one in the E-1 offers a 4:3 aspect.

With 12.2MP, the 450D offers a higher resolution than the E-1 (4.9MP), but the 450D has smaller individual pixels (pixel pitch of 5.19μm versus 6.78μm for the E-1). However, the 450D is a much more recent model (by 4 years and 7 months) than the E-1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon 450D implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 450D for good quality output (200 dots per inch) amounts to 21.4 x 14.2 inches or 54.3 x 36.2 cm, for very good quality (250 dpi) 17.1 x 11.4 inches or 43.4 x 28.9 cm, and for excellent quality (300 dpi) 14.2 x 9.5 inches or 36.2 x 24.1 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.

The Canon EOS 450D has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus E-1 are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-3200.

In terms of underlying technology, the 450D is build around a CMOS sensor, while the E-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 450D	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
2.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
3.		Canon 400D	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
4.		Canon 500D	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
5.		Canon 650D	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
6.		Canon 750D	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
7.		Canon 760D	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
8.		Canon 1000D	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
9.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
10.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
11.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
12.		Leica Digilux 3	Four Thirds	7.4	3136	2352	none	21.0	10.6	127	53
13.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
14.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
15.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
16.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
17.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
Note: DXO values in italics represent estimates based on sensor size and age.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The 450D and the E-1 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the E-1 offers a wider field of view (100%) than the one in the 450D (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 450D has a higher magnification (0.54x vs 0.48x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 450D and Olympus E-1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 450D	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
2.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
3.		Canon 400D	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 500D	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
5.		Canon 650D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Canon 750D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
7.		Canon 760D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon 1000D	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
9.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
11.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
12.		Leica Digilux 3	optical	n	2.5 / 207	fixed	n	1/4000s	3.0/s	Y	n
13.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
14.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
15.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
16.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
17.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The 450D has one, while the E-1 does not. While the built-in flash of the 450D is not very powerful, it can at times be useful as a fill-in light.

The 450D writes its imaging data to SDHC cards, while the E-1 uses Compact Flash or xD Picture cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the 450D only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 450D and Olympus E-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 450D	Y	- / -	-	-	mini	2.0	-	-	-
2.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 400D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon 500D	Y	mono / mono	-	-	mini	2.0	-	-	-
5.		Canon 650D	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Canon 750D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
7.		Canon 760D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Canon 1000D	Y	- / -	-	-	-	2.0	-	-	-
9.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
12.		Leica Digilux 3	Y	stereo / mono	-	-	-	2.0	-	-	-
13.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
14.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
15.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
17.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-

Studio photographers will appreciate that the Olympus E-1 (unlike the 450D) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 450D and the E-1 have been discontinued, but can regularly be found used on ebay. The E-1 was replaced by the Olympus E-3, while the 450D was followed by the Canon 500D. Further information on the features and operation of the 450D and E-1 can be found, respectively, in the Canon 450D Manual (free pdf) or the online Olympus E-1 Manual.

Review summary

So how do things add up? Which of the two cameras – the Canon 450D or the Olympus E-1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS 450D:

• More detail: Offers more megapixels (12.2 vs 4.9MP) with a 60% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.54x vs 0.48x).
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (230k vs 134k dots).
• Faster burst: Shoots at higher frequency (3.5 vs 3 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (129x98mm vs 141x104mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 214g or 29 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (53 percent cheaper at launch).
• More modern: Reflects 4 years and 7 months of technical progress since the E-1 launch.

Arguments in favor of the Olympus E-1:

• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Longer lasting: Gets more shots (750 versus 500) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in June 2003).

If the number of relative strengths (bullet points above) is taken as a guide, the 450D is the clear winner of the match-up (14 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 450D and the Olympus E-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 450D and the E-1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 450D	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	EUR 699	ebay.com
2.		Olympus E-1	..	..	..	+	o	..	Jun 2003	EUR 1 999	ebay.com
3.		Canon 400D	..	+ +	..	+ +	o	4/5	Aug 2006	EUR 799	ebay.com
4.		Canon 500D	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	EUR 699	ebay.com
5.		Canon 650D	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	EUR 799	ebay.com
6.		Canon 750D	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	EUR 699	ebay.com
7.		Canon 760D	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	EUR 749	ebay.com
8.		Canon 1000D	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	EUR 399	ebay.com
9.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	EUR 399	ebay.com
10.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	EUR 749	ebay.com
11.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	EUR 849	ebay.com
12.		Leica Digilux 3	..	..	..	..	..	..	Sep 2006	EUR 1 499	ebay.com
13.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	EUR 699	ebay.com
14.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	EUR 1 749	ebay.com
15.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	EUR 1 499	ebay.com
16.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	EUR 799	ebay.com
17.		Olympus E-330	..	..	..	+	o	..	Jan 2006	EUR 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
