Leica T vs Olympus E-1
The Leica T (Typ 701) and the Olympus E-1 are two digital cameras that were officially introduced, respectively, in April 2014 and June 2003. The T Typ 701 is a mirrorless interchangeable lens camera, while the E-1 is a DSLR. The cameras are based on an APS-C (T Typ 701) and a Four Thirds (E-1) sensor. The Leica has a resolution of 16.2 megapixels, whereas the Olympus provides 4.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Leica T||Olympus E-1|
|Mirrorless system camera||Digital single lens reflex|
|Leica T mount lenses||Four Thirds lenses|
|16.2 MP, APS-C Sensor||4.9 MP, Four Thirds Sensor|
|1080/30p Video||no Video|
|ISO 100-12500||ISO 100-800 (100-3200)|
|Viewfinder optional||Optical viewfinder|
|3.7" LCD, 1300k dots||1.8" LCD, 134k dots|
|Fixed touchscreen||Fixed screen (not touch-sensitive)|
|5 shutter flaps per second||3 shutter flaps per second|
|Not weather sealed||Weathersealed body|
|400 shots per battery charge||750 shots per battery charge|
|134 x 69 x 33 mm, 384 g||141 x 104 x 81 mm, 738 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica T (Typ 701) and the Olympus E-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

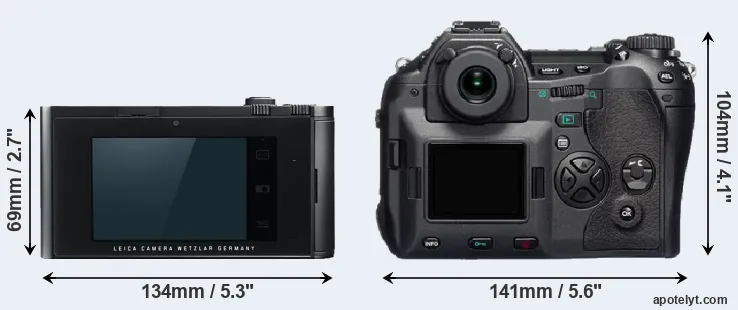

The side-by-side display below illustrates the physical size and weight of the Leica T and the Olympus E-1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The T Typ 701 can be obtained in two different colors (black, silver), while the E-1 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-1 is considerably larger (59 percent) than the Leica T. Moreover, the E-1 is substantially heavier (92 percent) than the T Typ 701. It is noteworthy in this context that the E-1 is splash and dust-proof, while the T Typ 701 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The power pack in the T Typ 701 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Leica T»||5.3 in||2.7 in||1.3 in||13.5 oz||400||n||Apr 2014||1,850||Leica T|
|Olympus E-1«||5.6 in||4.1 in||3.2 in||26.0 oz||750||Y||Jun 2003||1,699||Olympus E-1|
|Canon SL1« »||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549||Canon SL1|
|Fujifilm X-A2« »||4.6 in||2.6 in||1.6 in||12.3 oz||410||n||Jan 2015||399||Fujifilm X-A2|
|Fujifilm X-T10« »||4.6 in||3.3 in||1.6 in||13.4 oz||350||n||May 2015||799||Fujifilm X-T10|
|Leica CL« »||5.2 in||3.1 in||1.8 in||14.2 oz||220||n||Nov 2017||2,795||Leica CL|
|Leica TL2« »||5.3 in||2.7 in||1.3 in||14.1 oz||250||n||Jul 2017||1,950||Leica TL2|
|Leica TL« »||5.3 in||2.7 in||1.3 in||13.5 oz||400||n||Nov 2016||1,695||Leica TL|
|Leica X Vario« »||5.2 in||2.9 in||3.7 in||24.0 oz||450||n||Jun 2013||2,850||Leica X Vario|
|Leica X2« »||4.9 in||2.7 in||2.0 in||12.2 oz||450||n||May 2012||1,995||Leica X2|
|Leica Digilux 3« »||5.7 in||3.4 in||3.0 in||21.4 oz||750||n||Sep 2006||1,499||Leica Digilux 3|
|Olympus E-5« »||5.6 in||4.6 in||3.0 in||30.8 oz||750||Y||Sep 2010||1,699||Olympus E-5|
|Olympus E-3« »||5.6 in||4.6 in||3.0 in||30.9 oz||750||Y||Oct 2007||1,699||Olympus E-3|
|Olympus E-330« »||5.5 in||3.4 in||2.8 in||22.5 oz||750||n||Jan 2006||999||Olympus E-330|
|Olympus E-300« »||5.8 in||3.3 in||2.5 in||22.0 oz||750||n||Sep 2004||799||Olympus E-300|
|Ricoh GR II« »||4.6 in||2.5 in||1.4 in||8.9 oz||320||n||Jun 2015||699||Ricoh GR II|
|Sony A6000« »||4.7 in||2.6 in||1.8 in||12.1 oz||360||n||Feb 2014||599||Sony A6000|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-1 was somewhat cheaper (by 8 percent) than the T Typ 701 at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Leica T features an APS-C sensor and the Olympus E-1 a Four Thirds sensor. The sensor area in the E-1 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the T Typ 701 has a native 3:2 aspect ratio, while the one in the E-1 offers a 4:3 aspect.
With 16.2MP, the T Typ 701 offers a higher resolution than the E-1 (4.9MP), but the T Typ 701 has smaller individual pixels (pixel pitch of 4.79μm versus 6.78μm for the E-1). However, the T Typ 701 is a much more recent model (by 10 years and 10 months) than the E-1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the T Typ 701 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica T implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T Typ 701 for good quality output (200 dots per inch) amounts to 24.7 x 16.4 inch or 62.8 x 41.6 cm, for very good quality (250 dpi) 19.8 x 13.1 inch or 50.2 x 33.3 cm, and for excellent quality (300 dpi) 16.5 x 10.9 inch or 41.9 x 27.8 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inch or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inch or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inch or 21.7 x 16.3 cm for excellent quality prints.
The Leica T (Typ 701) has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Olympus E-1 are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-3200.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Leica T||APS-C||16.2||4944||3278||1080/30p||23.0||12.7||1082||75||Leica T|
|Olympus E-1||Four Thirds||4.9||2560||1920||none||..||..||..||..||Olympus E-1|
|Canon SL1||APS-C||17.9||5184||3456||1080/30p||21.8||11.3||843||63||Canon SL1|
|Fujifilm X-A2||APS-C||16.0||4896||3264||1080/30p||..||..||..||..||Fujifilm X-A2|
|Fujifilm X-T10||APS-C||16.0||4896||3264||1080/60p||..||..||..||..||Fujifilm X-T10|
|Leica CL||APS-C||24.1||6014||4014||4K/30p||..||..||..||..||Leica CL|
|Leica TL2||APS-C||24.1||6014||4014||4K/30p||..||..||..||..||Leica TL2|
|Leica TL||APS-C||16.1||4928||3264||1080/30p||..||..||..||..||Leica TL|
|Leica X Vario||APS-C||16.1||4928||3272||1080/30p||23.4||12.7||1320||78||Leica X Vario|
|Leica X2||APS-C||16.1||4928||3264||none||..||..||..||..||Leica X2|
|Leica Digilux 3||Four Thirds||7.4||3136||2352||none||..||..||..||..||Leica Digilux 3|
|Olympus E-5||Four Thirds||12.2||4032||3024||720/30p||21.6||10.5||519||56||Olympus E-5|
|Olympus E-3||Four Thirds||10.0||3648||2736||none||21.6||10.5||571||56||Olympus E-3|
|Olympus E-330||Four Thirds||7.4||3136||2352||none||..||..||..||..||Olympus E-330|
|Olympus E-300||Four Thirds||8.0||3264||2448||none||..||..||..||..||Olympus E-300|
|Ricoh GR II||APS-C||16.1||4928||3264||1080/30p||23.6||13.7||1078||80||Ricoh GR II|
|Sony A6000||APS-C||24.0||6000||4000||1080/60p||24.1||13.1||1347||82||Sony A6000|
Many modern cameras are not only capable of taking still images, but can also record movies. The T Typ 701 indeed provides movie recording capabilities, while the E-1 does not. The highest resolution format that the T Typ 701 can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the T Typ 701 relies on live view and the rear LCD for framing. That said, the T Typ 701 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The table below summarizes some of the other core capabilities of the Leica T and Olympus E-1 in connection with corresponding information for a sample of similar cameras.
|Leica T||optional||n||3.7||1300||fixed||Y||1/4000s||5.0||Y||n||Leica T|
|Olympus E-1||optical||Y||1.8||134||fixed||n||1/4000s||3.0||n||n||Olympus E-1|
|Canon SL1||optical||n||3.0||1040||fixed||Y||1/4000s||4.9||Y||n||Canon SL1|
|Fujifilm X-A2||none||n||3.0||920||tilting||n||1/4000s||5.6||Y||n||Fujifilm X-A2|
|Fujifilm X-T10||2360||n||3.0||920||tilting||n||1/4000s||8.0||Y||n||Fujifilm X-T10|
|Leica CL||2360||Y||3.0||1040||fixed||Y||1/8000s||10.0||n||n||Leica CL|
|Leica TL2||optional||n||3.7||1230||fixed||Y||1/4000s||7.0||n||n||Leica TL2|
|Leica TL||optional||n||3.7||1230||fixed||Y||1/4000s||5.0||Y||n||Leica TL|
|Leica X Vario||optional||n||3.0||920||fixed||n||1/2000s||5.0||Y||n||Leica X Vario|
|Leica X2||optional||n||2.7||230||fixed||n||1/2000s||5.0||Y||n||Leica X2|
|Leica Digilux 3||optical||n||2.5||207||fixed||n||1/4000s||3.0||Y||n||Leica Digilux 3|
|Olympus E-5||optical||Y||3.0||920||swivel||n||1/8000s||5.0||Y||Y||Olympus E-5|
|Olympus E-3||optical||Y||2.5||230||swivel||n||1/8000s||5.0||Y||Y||Olympus E-3|
|Olympus E-330||optical||n||2.5||215||tilting||n||1/4000s||3.0||Y||n||Olympus E-330|
|Olympus E-300||optical||n||1.8||134||fixed||n||1/4000s||2.5||Y||n||Olympus E-300|
|Ricoh GR II||optional||n||3.0||1230||fixed||n||1/4000s||4.0||Y||n||Ricoh GR II|
|Sony A6000||1440||n||3.0||922||tilting||n||1/4000s||11.0||Y||n||Sony A6000|
One difference between the cameras concerns the presence of an on-board flash. The T Typ 701 has one, while the E-1 does not. While the built-in flash of the T Typ 701 is not very powerful, it can at times be useful as a fill-in light.
The T Typ 701 writes its imaging data to SDXC cards, while the E-1 uses Compact Flash or xD Picture cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the T Typ 701 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica T (Typ 701) and Olympus E-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Leica T||Y||stereo||mono||-||-||none||2.0||Y||-||-||Leica T|
|Olympus E-1||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-1|
|Canon SL1||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon SL1|
|Fujifilm X-A2||Y||stereo||mono||-||-||mini||2.0||Y||-||-||Fujifilm X-A2|
|Fujifilm X-T10||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Fujifilm X-T10|
|Leica CL||Y||stereo||mono||-||-||none||none||Y||-||-||Leica CL|
|Leica TL2||Y||stereo||mono||-||-||micro||3.0||Y||-||-||Leica TL2|
|Leica TL||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Leica TL|
|Leica X Vario||Y||stereo||mono||-||-||mini||2.0||-||-||-||Leica X Vario|
|Leica X2||Y||none||none||-||-||mini||2.0||-||-||-||Leica X2|
|Leica Digilux 3||Y||stereo||mono||-||-||none||2.0||-||-||-||Leica Digilux 3|
|Olympus E-5||Y||stereo||none||-||-||mini||2.0||-||-||-||Olympus E-5|
|Olympus E-3||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-3|
|Olympus E-330||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-330|
|Olympus E-300||Y||none||none||-||-||none||2.0||-||-||-||Olympus E-300|
|Ricoh GR II||Y||stereo||mono||-||-||micro||2.0||Y||Y||-||Ricoh GR II|
|Sony A6000||Y||stereo||mono||-||-||micro||2.0||Y||Y||-||Sony A6000|
It is notable that the T Typ 701 offers wifi support, while the E-1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Studio photographers will appreciate that the Olympus E-1 (unlike the T Typ 701) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the T Typ 701 and the E-1 have been discontinued, but can regularly be found used on eBay. The E-1 was replaced by the Olympus E-3, while the T Typ 701 was followed by the Leica TL. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Olympus websites.
So how do things add up? Is the Leica T better than the Olympus E-1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Leica T (Typ 701):
- More detail: Offers more megapixels (16.2 vs 4.9MP) with a 85% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Larger screen: Has a bigger rear LCD (3.7" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1300k vs 134k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (134x69mm vs 141x104mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 354g or 48 percent) and hence easier to carry around.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More modern: Reflects 10 years and 10 months of technical progress since the E-1 launch.
Advantages of the Olympus E-1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Longer lasting: Gets more shots (750 versus 400) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in June 2003).
If the count of individual advantages (bullet points above) is taken as a guide, the T Typ 701 is the clear winner of the match-up (18 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica T and the Olympus E-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the T Typ 701 or the E-1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 2000D vs Leica T
- Canon 30D vs Olympus E-1
- Canon 7D II vs Olympus E-1
- Canon SX540 vs Leica T
- Canon SX610 vs Leica T
- Fujifilm GFX 50R vs Olympus E-1
- Leica T vs Nikon D100
- Leica T vs Olympus XZ-2
- Leica V-LUX 1 vs Olympus E-1
- Leica V-LUX Typ 114 vs Olympus E-1
- Olympus E-1 vs Panasonic TZ200
- Olympus E-1 vs Sony RX100 VII
Specifications: Leica T vs Olympus E-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica T||Olympus E-1|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Leica T mount lenses||Four Thirds lenses|
|Launch Date||April 2014||June 2003|
|Launch Price||USD 1850||USD 1699|
|Sensor Specs||Leica T||Olympus E-1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.7 mm||17.3 x 13.0 mm|
|Sensor Area||370.52 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||16.2 Megapixels||4.9 Megapixels|
|Image Resolution||4944 x 3278 pixels||2560 x 1920 pixels|
|Pixel Pitch||4.79 μm||6.78 μm|
|Pixel Density||4.37 MP/cm2||2.19 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100-12500 ISO||100-800 ISO|
|ISO Boost||no Enhancement||100-3200 ISO|
|DXO Sensor Quality (score)||75||..|
|DXO Color Depth (bits)||23.0||..|
|DXO Dynamic Range (EV)||12.7||..|
|DXO Low Light (ISO)||1082||..|
|Screen Specs||Leica T||Olympus E-1|
|Viewfinder Type||Viewfinder optional||Optical viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||3.7 inch||1.8 inch|
|LCD Resolution||1300k dots||134k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Leica T||Olympus E-1|
|Autofocus System||Contrast-detect AF||Phase-detect AF|
|Continuous Shooting||5 shutter flaps/s||3 shutter flaps/s|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Leica T||Olympus E-1|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Leica T||Olympus E-1|
|Environmental Sealing||Not weather sealed||Weathersealed body|
|Battery Life (CIPA)||400 shots per charge||750 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
134 x 69 x 33 mm
(5.3 x 2.7 x 1.3 in)
141 x 104 x 81 mm
(5.6 x 4.1 x 3.2 in)
|Camera Weight||384 g (13.5 oz)||738 g (26.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
