Canon 40D vs Sony NEX-5R
The Canon EOS 40D and the Sony Alpha NEX-5R are two digital cameras that were officially introduced, respectively, in August 2007 and August 2012. The 40D is a DSLR, while the NEX-5R is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 10.1 megapixels, whereas the Sony provides 16 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Sony Alpha NEX-5R? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

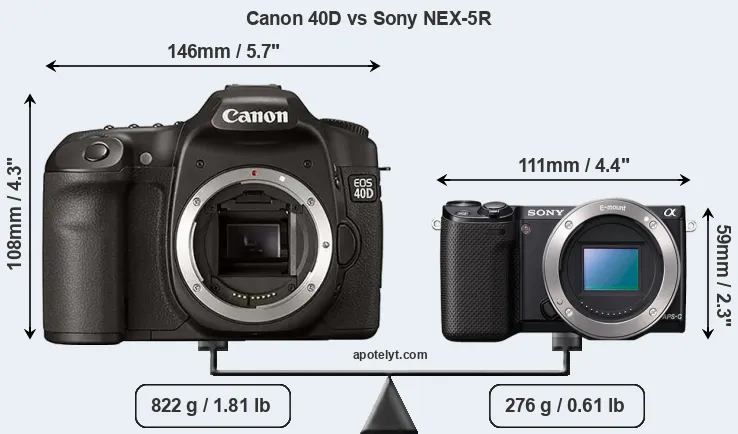

An illustration of the physical size and weight of the Canon 40D and the Sony NEX-5R is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
The NEX-5R can be obtained in two different colors (black, silver), while the 40D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5R is considerably smaller (58 percent) than the Canon 40D. Moreover, the NEX-5R is substantially lighter (66 percent) than the 40D. In this context, it is worth noting that neither the 40D nor the NEX-5R are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (40D) and the Sony E-Mount Lens Catalog (NEX-5R). Mirrorless cameras, such as the NEX-5R, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon 40D||146 mm||108 mm||74 mm||822 g||750||n||Aug 2007||1,299|
|2.||Sony NEX-5R||111 mm||59 mm||39 mm||276 g||330||n||Aug 2012||749|
|3.||Canon 70D||139 mm||104 mm||79 mm||755 g||920||Y||Jul 2013||1,199|
|4.||Canon 1100D||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|5.||Canon 60D||145 mm||106 mm||79 mm||755 g||1100||Y||Aug 2010||1,399|
|6.||Canon 50D||146 mm||108 mm||74 mm||822 g||800||Y||Aug 2008||1,299|
|7.||Canon 450D||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|8.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399|
|9.||Canon 400D||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|10.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499|
|11.||Nikon D90||132 mm||103 mm||77 mm||703 g||850||n||Aug 2008||1,299|
|12.||Olympus E-30||142 mm||108 mm||75 mm||701 g||750||n||Nov 2008||1,299|
|13.||Sony NEX-3N||110 mm||62 mm||35 mm||269 g||480||n||Feb 2013||499|
|14.||Sony NEX-5T||111 mm||59 mm||39 mm||276 g||330||n||Aug 2013||699|
|15.||Sony NEX-F3||117 mm||67 mm||42 mm||314 g||470||n||May 2012||599|
|16.||Sony NEX-5N||111 mm||59 mm||38 mm||269 g||460||n||Aug 2011||699|
|17.||Sony NEX-5||111 mm||59 mm||38 mm||287 g||330||n||May 2010||699|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The NEX-5R was launched at a markedly lower price (by 42 percent) than the 40D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NEX-5R is 10 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (40D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

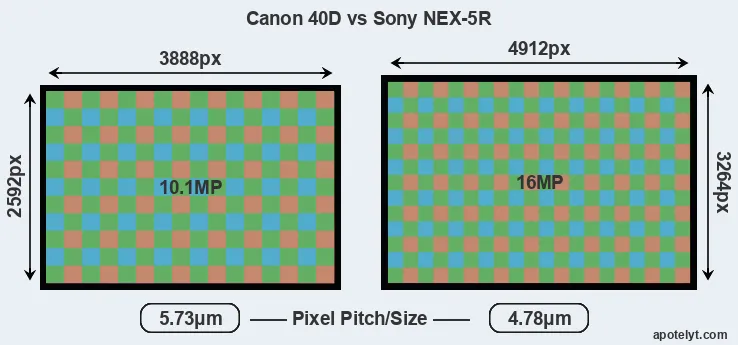

With 16MP, the NEX-5R offers a higher resolution than the 40D (10.1MP), but the NEX-5R has smaller individual pixels (pixel pitch of 4.78μm versus 5.73μm for the 40D). Yet, the NEX-5R is a much more recent model (by 5 years) than the 40D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Sony NEX-5R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NEX-5R for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.4 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.9 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.6 x 27.6 cm. The corresponding values for the Canon 40D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Sony Alpha NEX-5R are ISO 100 to ISO 25600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the NEX-5R offers substantially better image quality than the 40D (overall score 14 points higher). The advantage is based on 1.6 bits higher color depth, 1.8 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
| DXO |
|12.||Olympus E-30||Four Thirds||12.2||4032||3024||none||21.3||10.4||530||55|
Many modern cameras are not only capable of taking still images, but can also record movies. The NEX-5R indeed provides for movie recording, while the 40D does not. The highest resolution format that the NEX-5R can use is 1080/60i.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 40D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-5R relies on live view and the rear LCD for framing. That said, the NEX-5R can be equipped with an optional viewfinder – the FDA-EV1S. The adjacent table lists some of the other core features of the Canon 40D and Sony NEX-5R along with similar information for a selection of comparators.
One difference between the cameras concerns the presence of an on-board flash. The 40D has one, while the NEX-5R does not. While the built-in flash of the 40D is not very powerful, it can at times be useful as a fill-in light.The NEX-5R has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 40D does not have a selfie-screen.
The 40D writes its imaging data to Compact Flash cards, while the NEX-5R uses SDXC or Memory Stick PRO Duo cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Sony Alpha NEX-5R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
It is notable that the NEX-5R offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 40D does not provide wifi capability.
Studio photographers will appreciate that the Canon 40D (unlike the NEX-5R) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 40D and the NEX-5R have been discontinued, but can regularly be found used on eBay. The 40D was replaced by the Canon 50D, while the NEX-5R was followed by the Sony NEX-5T. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Sony websites.
So what is the bottom line? Is the Canon 40D better than the Sony NEX-5R or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Canon EOS 40D:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (750 versus 330) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2007).
Advantages of the Sony Alpha NEX-5R:
- More detail: Has more megapixels (16 vs 10.1MP), which boosts linear resolution by 26%.
- Better image quality: Scores substantially higher (14 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (1.6 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.8 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 1080/60i video.
- More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (10 vs 6.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (111x59mm vs 146x108mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 546g or 66 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (42 percent cheaper at launch).
- More modern: Reflects 5 years of technical progress since the 40D launch.
If the number of relative strengths (bullet points above) is taken as a guide, the NEX-5R is the clear winner of the contest (17 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 40D and the Sony NEX-5R place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 40D or the NEX-5R perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon 40D||..||+ +||+ +||4.5/5||4.5/5||Aug 2007||1,299|
|2.||Sony NEX-5R||..||..||..||4.5/5||4.5/5||Aug 2012||749|
|3.||Canon 70D||5/5||+ +||83/100||4.5/5||5/5||Jul 2013||1,199|
|4.||Canon 1100D||..||80/100||69/100||4/5||4.5/5||Feb 2011||449|
|5.||Canon 60D||5/5||+||79/100||4/5||4.5/5||Aug 2010||1,399|
|6.||Canon 50D||..||+ +||+ +||4.5/5||4.5/5||Aug 2008||1,299|
|7.||Canon 450D||..||+ +||+ +||4/5||4.5/5||Jan 2008||799|
|8.||Canon 30D||..||+ +||+ +||o||..||Feb 2006||1,399|
|9.||Canon 400D||..||+ +||+ +||o||4/5||Aug 2006||799|
|10.||Canon 20D||..||..||+ +||..||..||Aug 2004||1,499|
|11.||Nikon D90||..||+ +||+ +||4/5||4.5/5||Aug 2008||1,299|
|12.||Olympus E-30||..||..||71/100||4.5/5||4/5||Nov 2008||1,299|
|13.||Sony NEX-3N||3/5||..||..||4.5/5||4.5/5||Feb 2013||499|
|14.||Sony NEX-5T||..||..||..||4.5/5||4.5/5||Aug 2013||699|
|15.||Sony NEX-F3||4/5||..||74/100||4.5/5||4.5/5||May 2012||599|
|16.||Sony NEX-5N||3/5||+ +||79/100||4.5/5||4.5/5||Aug 2011||699|
|17.||Sony NEX-5||3/5||+ +||71/100||4.5/5||4/5||May 2010||699|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Canon 40D vs Sony NEX-5R
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 40D||Sony NEX-5R|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Sony E mount lenses|
|Launch Date||August 2007||August 2012|
|Launch Price||USD 1,299||USD 749|
|Sensor Specs||Canon 40D||Sony NEX-5R|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.4 x 15.6 mm|
|Sensor Area||332.27 mm2||365.04 mm2|
|Sensor Diagonal||26.8 mm||28.1 mm|
|Sensor Resolution||10.1 Megapixels||16 Megapixels|
|Image Resolution||3888 x 2592 pixels||4912 x 3264 pixels|
|Pixel Pitch||5.73 μm||4.78 μm|
|Pixel Density||3.03 MP/cm2||4.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60i Video|
|ISO Setting||100 - 1,600 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 3,200 ISO||no Enhancement|
|Image Processor||DIGIC 3||BIONZ|
|DXO Sensor Quality (score)||64||78|
|DXO Color Depth (bits)||22.1||23.7|
|DXO Dynamic Range (EV)||11.3||13.1|
|DXO Low Light (ISO)||703||910|
|Screen Specs||Canon 40D||Sony NEX-5R|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||230k dots||920k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 40D||Sony NEX-5R|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||6.5 shutter flaps/s||10 shutter flaps/s|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||CF cards||MS or SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 40D||Sony NEX-5R|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 40D||Sony NEX-5R|
|Battery Life (CIPA)||750 shots per charge||330 shots per charge|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
111 x 59 x 39 mm
(4.4 x 2.3 x 1.5 in)
|Camera Weight||822 g (29.0 oz)||276 g (9.7 oz)|
