Canon 40D vs Fujifilm X-E2S
The Canon EOS 40D and the Fujifilm X-E2S are two digital cameras that were revealed to the public, respectively, in August 2007 and January 2016. The 40D is a DSLR, while the X-E2S is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 10.1 megapixels, whereas the Fujifilm provides 16 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 40D and the Fujifilm X-E2S? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

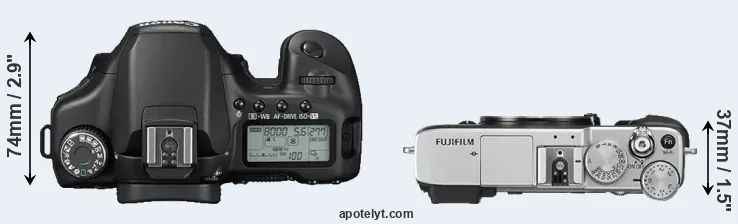

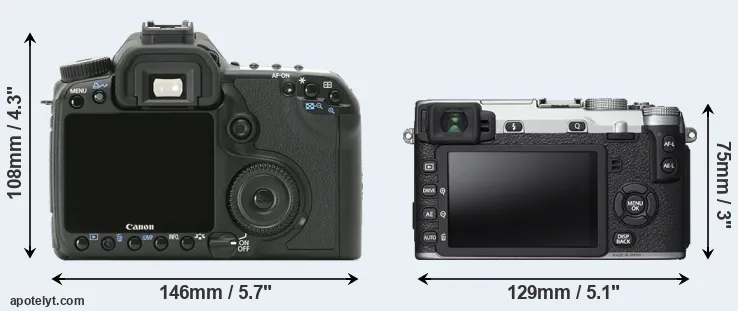

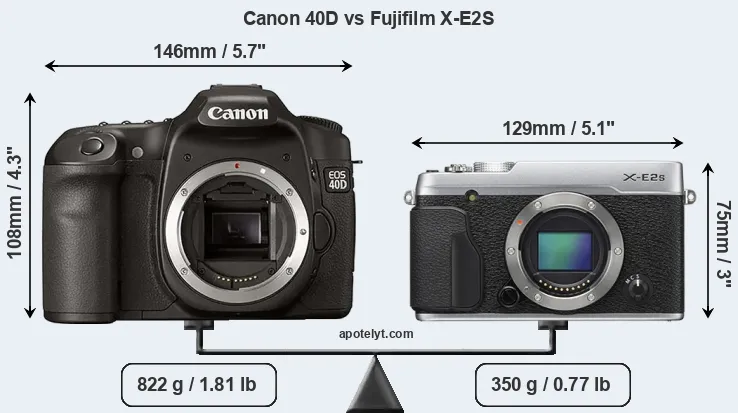

An illustration of the physical size and weight of the Canon 40D and the Fujifilm X-E2S is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The X-E2S can be obtained in two different colors (black, silver), while the 40D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-E2S is considerably smaller (39 percent) than the Canon 40D. Moreover, the X-E2S is substantially lighter (57 percent) than the 40D. In this context, it is worth noting that neither the 40D nor the X-E2S are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (40D) and the Fujinon X Lens Catalog (X-E2S). Mirrorless cameras, such as the X-E2S, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 40D||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299|
|Fujifilm X-E2S||5.1 in||3.0 in||1.5 in||12.3 oz||350||n||Jan 2016||699|
|Canon T3||5.1 in||3.9 in||3.1 in||17.5 oz||700||n||Feb 2011||449|
|Canon 60D||5.7 in||4.2 in||3.1 in||26.6 oz||1100||Y||Aug 2010||1,399|
|Canon 50D||5.7 in||4.3 in||2.9 in||29.0 oz||800||Y||Aug 2008||1,299|
|Canon XS||5.0 in||3.9 in||2.6 in||17.7 oz||500||n||Jun 2008||449|
|Canon XSi||5.1 in||3.9 in||2.4 in||18.5 oz||500||n||Jan 2008||799|
|Canon 30D||5.7 in||4.2 in||2.9 in||27.7 oz||750||n||Feb 2006||1,399|
|Canon XTi||5.0 in||3.3 in||2.6 in||19.6 oz||370||n||Aug 2006||799|
|Canon 20D||5.7 in||4.2 in||2.8 in||27.2 oz||700||n||Aug 2004||1,499|
|Canon 10D||5.9 in||4.2 in||3.0 in||30.0 oz||500||n||Feb 2003||1,999|
|Fujifilm X-E3||4.8 in||2.9 in||1.7 in||11.9 oz||350||n||Sep 2017||899|
|Fujifilm X70||4.4 in||2.5 in||1.7 in||12.0 oz||330||n||Jan 2016||799|
|Fujifilm X-T10||4.6 in||3.3 in||1.6 in||13.4 oz||350||n||May 2015||799|
|Fujifilm X-E2||5.1 in||3.0 in||1.5 in||12.3 oz||350||n||Oct 2013||999|
|Fujifilm X-M1||4.6 in||2.6 in||1.5 in||11.6 oz||350||n||Jun 2013||699|
|Nikon D90||5.2 in||4.1 in||3.0 in||24.8 oz||850||n||Aug 2008||1,299|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The X-E2S was launched at a markedly lower price (by 46 percent) than the 40D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the X-E2S is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (40D) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of underlying technology, both cameras are build around CMOS sensors.

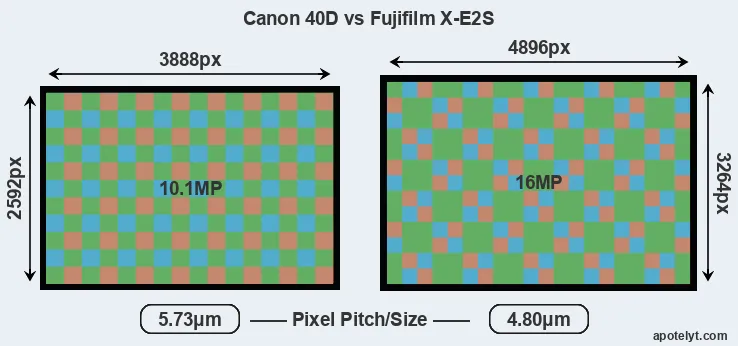

With 16MP, the X-E2S offers a higher resolution than the 40D (10.1MP), but the X-E2S has smaller individual pixels (pixel pitch of 4.80μm versus 5.73μm for the 40D). Yet, the X-E2S is a much more recent model (by 8 years and 4 months) than the 40D, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the X-E2S has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Fujifilm X-E2S implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-E2S for good quality output (200 dots per inch) amounts to 24.5 x 16.3 inches or 62.2 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.7 x 33.2 cm, and for excellent quality (300 dpi) 16.3 x 10.9 inches or 41.5 x 27.6 cm. The corresponding values for the Canon 40D are 19.4 x 13 inches or 49.4 x 32.9 cm for good quality, 15.6 x 10.4 inches or 39.5 x 26.3 cm for very good quality, and 13 x 8.6 inches or 32.9 x 21.9 cm for excellent quality prints.
The X-E2S has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Canon EOS 40D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Fujifilm X-E2S are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-51200.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
Many modern cameras are not only capable of taking still images, but can also record movies. The X-E2S indeed provides for movie recording, while the 40D does not. The highest resolution format that the X-E2S can use is 1080/60p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the X-E2S has an electronic viewfinder (2360k dots), while the 40D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the X-E2S offers a wider field of view (100%) than the one in the 40D (95%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the 40D has a higher magnification (0.59x vs 0.41x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 40D and Fujifilm X-E2S along with similar information for a selection of comparators.
One feature that is present on the 40D, but is missing on the X-E2S is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-E2S is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-E2S has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 40D writes its imaging data to Compact Flash cards, while the X-E2S uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 40D and Fujifilm X-E2S and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
It is notable that the X-E2S offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 40D does not provide wifi capability.
Studio photographers will appreciate that the Canon 40D (unlike the X-E2S) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 40D and the X-E2S have been discontinued, but can regularly be found used on eBay. The 40D was replaced by the Canon 50D, while the X-E2S was followed by the Fujifilm X-E3. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.
So what is the bottom line? Which of the two cameras – the Canon 40D or the Fujifilm X-E2S – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Canon EOS 40D:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.59x vs 0.41x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Longer lasting: Can take more shots (750 versus 350) on a single battery charge.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in August 2007).
Arguments in favor of the Fujifilm X-E2S:
- More detail: Has more megapixels (16 vs 10.1MP), which boosts linear resolution by 26%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Broader imaging potential: Can capture not only stills but also 1080/60p video.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (129x75mm vs 146x108mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 472g or 57 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced into a lower priced category (46 percent cheaper at launch).
- More modern: Reflects 8 years and 4 months of technical progress since the 40D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the X-E2S is the clear winner of the contest (15 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 40D and the Fujifilm X-E2S place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 40D or the X-E2S. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 40D||+ +||+ +||4.5/5||o||4.5/5||Aug 2007||1,299|
|Fujifilm X-E2S||..||77/100||4.5/5||..||4.5/5||Jan 2016||699|
|Canon T3||80/100||69/100||4/5||4/5||4.5/5||Feb 2011||449|
|Canon 60D||+||79/100||4/5||5/5||4.5/5||Aug 2010||1,399|
|Canon 50D||+ +||+ +||4.5/5||5/5||4.5/5||Aug 2008||1,299|
|Canon XS||82/100||+ +||3.5/5||4/5||4.5/5||Jun 2008||449|
|Canon XSi||+ +||+ +||4/5||5/5||4.5/5||Jan 2008||799|
|Canon 30D||+ +||+ +||o||o||..||Feb 2006||1,399|
|Canon XTi||+ +||+ +||o||4.5/5||4/5||Aug 2006||799|
|Canon 20D||..||+ +||..||o||..||Aug 2004||1,499|
|Canon 10D||..||+ +||..||o||..||Feb 2003||1,999|
|Fujifilm X-E3||+||84/100||4.5/5||4.5/5||4.5/5||Sep 2017||899|
|Fujifilm X70||..||76/100||4.5/5||4/5||4.5/5||Jan 2016||799|
|Fujifilm X-T10||+ +||80/100||5/5||4/5||5/5||May 2015||799|
|Fujifilm X-E2||..||80/100||4.5/5||..||5/5||Oct 2013||999|
|Fujifilm X-M1||+||77/100||4.5/5||..||4.5/5||Jun 2013||699|
|Nikon D90||+ +||+ +||4/5||5/5||4.5/5||Aug 2008||1,299|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1D Mark IV vs Fujifilm X-E2S
- Canon 40D vs Fujifilm X-S10
- Canon 40D vs Fujifilm X-T10
- Canon 40D vs Nikon 1 V3
- Canon 40D vs Olympus E-PM1
- Canon 40D vs Panasonic LF1
- Canon 40D vs Sony A7R II
- Canon SL2 vs Fujifilm X-E2S
- Fujifilm X-E2S vs Leica D-LUX 7
- Fujifilm X-E2S vs Panasonic ZS80
- Fujifilm X-E2S vs Samsung NX500
- Fujifilm X-E2S vs Sony A900
Specifications: Canon 40D vs Fujifilm X-E2S
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 40D||Fujifilm X-E2S|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Fujifilm X mount lenses|
|Launch Date||August 2007||January 2016|
|Launch Price||USD 1,299||USD 699|
|Sensor Specs||Canon 40D||Fujifilm X-E2S|
|Sensor Format||APS-C Sensor||APS-C Sensor|
|Sensor Size||22.3 x 14.9 mm||23.6 x 15.6 mm|
|Sensor Area||332.27 mm2||368.16 mm2|
|Sensor Diagonal||26.8 mm||28.3 mm|
|Sensor Resolution||10.1 Megapixels||16 Megapixels|
|Image Resolution||3888 x 2592 pixels||4896 x 3264 pixels|
|Pixel Pitch||5.73 μm||4.80 μm|
|Pixel Density||3.03 MP/cm2||4.34 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||1080/60p Video|
|ISO Setting||100 - 1,600 ISO||200 - 6,400 ISO|
|ISO Boost||100 - 3,200 ISO||100 - 51,200 ISO|
|Image Processor||DIGIC 3||EXR Processor II|
|DXO Sensor Quality (score)||64||..|
|DXO Color Depth (bits)||22.1||..|
|DXO Dynamic Range (EV)||11.3||..|
|DXO Low Light (ISO)||703||..|
|Screen Specs||Canon 40D||Fujifilm X-E2S|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||230k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon 40D||Fujifilm X-E2S|
|Focus System||Phase-detect AF||On-Sensor Phase-detect|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||6.5 shutter flaps/s||7 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/32000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 40D||Fujifilm X-E2S|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Canon 40D||Fujifilm X-E2S|
|Battery Life (CIPA)||750 shots per charge||350 shots per charge|
146 x 108 x 74 mm
(5.7 x 4.3 x 2.9 in)
129 x 75 x 37 mm
(5.1 x 3.0 x 1.5 in)
|Camera Weight||822 g (29.0 oz)||350 g (12.3 oz)|
