Canon 20D vs Olympus E-M10

The Canon EOS 20D and the Olympus OM-D E-M10 are two digital cameras that were announced, respectively, in August 2004 and January 2014. The 20D is a DSLR, while the E-M10 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (20D) and a Four Thirds (E-M10) sensor. The Canon has a resolution of 8.2 megapixels, whereas the Olympus provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon 20D
versus
Olympus E-M10
Canon 20D   Olympus E-M10
Digital single lens reflex Mirrorless system camera
Canon EF mount lenses Micro Four Thirds lenses
8.2 MP – APS-C sensor 15.9 MP – Four Thirds sensor
no Video 1080/30p Video
ISO 100-1,600 (100 - 3,200) ISO 200-25,600
Optical viewfinder Electronic viewfinder (1440k dots)
1.8" LCD – 118k dots 3.0" LCD – 1037k dots
Fixed screen (not touch-sensitive) Tilting touchscreen
5 shutter flaps per second 8 shutter flaps per second
Lens stabilization onlyIn-body stabilization
700 shots per battery charge320 shots per battery charge
144 x 106 x 72 mm, 770 g 119 x 82 x 46 mm, 396 g
logo
Check 20D offers at
ebay.com
logo
Check E-M10 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 20D and the Olympus OM-D E-M10? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon 20D and the Olympus E-M10. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-M10 can be obtained in two different colors (black, silver), while the 20D is only available in black.

Size Canon 20D vs Olympus E-M10

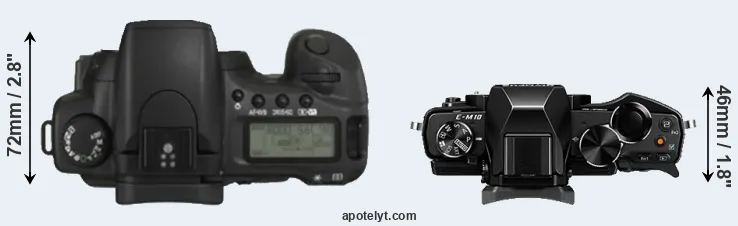

Compare 20D versus E-M10 top

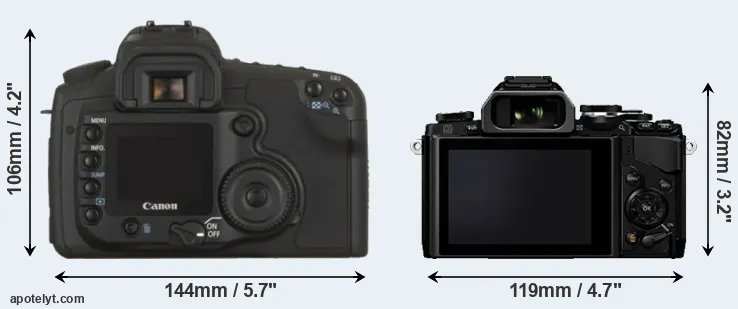

Comparison 20D or E-M10 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 is considerably smaller (36 percent) than the Canon 20D. Moreover, the E-M10 is substantially lighter (49 percent) than the 20D. In this context, it is worth noting that neither the 20D nor the E-M10 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (20D) and the Micro Four Thirds Lens Catalog (E-M10). Mirrorless cameras, such as the E-M10, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the 20D gets 700 shots out of its BP-511A battery, while the E-M10 can take 320 images on a single charge of its BLS-5 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 20D 144 mm 106 mm 72 mm 770 g 700 n Aug 2004 1,499ebay.com
2.

Olympus E-M10 119 mm 82 mm 46 mm 396 g 320 n Jan 2014 699ebay.com
3.

Canon 7D II 149 mm 112 mm 78 mm 910 g 670 Y Sep 2014 1,799ebay.com
4.

Canon 60D 145 mm 106 mm 79 mm 755 g 1100 Y Aug 2010 1,399ebay.com
5.

Canon 7D 148 mm 111 mm 74 mm 860 g 800 Y Sep 2009 1,699ebay.com
6.

Canon 50D 146 mm 108 mm 74 mm 822 g 800 Y Aug 2008 1,299ebay.com
7.

Canon 40D 146 mm 108 mm 74 mm 822 g 750 n Aug 2007 1,299ebay.com
8.

Canon 30D 144 mm 106 mm 74 mm 785 g 750 n Feb 2006 1,399ebay.com
9.

Canon XT 127 mm 94 mm 64 mm 540 g 400 n Feb 2005 899ebay.com
10.

Canon 10D 150 mm 107 mm 75 mm 850 g 500 n Feb 2003 1,999ebay.com
11.

Canon Rebel 142 mm 99 mm 72 mm 649 g 400 n Aug 2003 899ebay.com
12.

Nikon D200 147 mm 113 mm 74 mm 920 g 400 Y Nov 2005 1,699ebay.com
13.

Olympus E-M10 II 120 mm 83 mm 47 mm 390 g 320 n Aug 2015 649ebay.com
14.

Olympus E-PL7 115 mm 67 mm 38 mm 357 g 350 n Aug 2014 599ebay.com
15.

Olympus E-P5 122 mm 69 mm 37 mm 420 g 330 n May 2013 999ebay.com
16.

Panasonic G6 122 mm 85 mm 71 mm 390 g 340 n Apr 2013 599ebay.com
17.

Panasonic GX7 123 mm 71 mm 55 mm 402 g 350 n Aug 2013 999ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-M10 was launched at a markedly lower price (by 53 percent) than the 20D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 20D features an APS-C sensor and the Olympus E-M10 a Four Thirds sensor. The sensor area in the E-M10 is 33 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 20D has a native 3:2 aspect ratio, while the one in the E-M10 offers a 4:3 aspect.

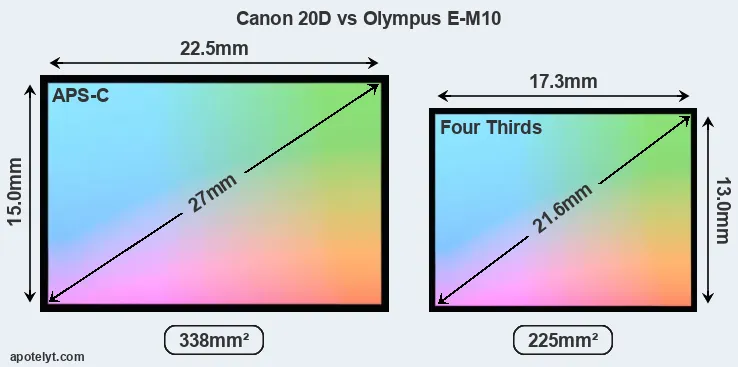

Canon 20D and Olympus E-M10 sensor measures

Despite having a smaller sensor, the E-M10 offers a higher resolution of 15.9 megapixels, compared with 8.2 MP of the 20D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 6.42μm for the 20D). However, it should be noted that the E-M10 is much more recent (by 9 years and 5 months) than the 20D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the E-M10 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Olympus E-M10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M10 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Canon 20D are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.

The Canon EOS 20D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Olympus OM-D E-M10 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

20D versus E-M10 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the E-M10 has a markedly higher DXO score than the 20D (overall score 10 points higher), which will translate into better image quality. The advantage is based on 0.9 bits higher color depth, 1.3 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon 20D APS-C 8.2 3504 2336none21.911.072162
2.

Olympus E-M10 Four Thirds 15.9 4608 34561080/30p22.812.388472
3.

Canon 7D II APS-C 20.0 5472 36481080/60p22.411.8108270
4.

Canon 60D APS-C 17.9 5184 34561080/30p22.211.581366
5.

Canon 7D APS-C 17.9 5184 34561080/30p22.011.785466
6.

Canon 50D APS-C 15.1 4752 3168none21.811.469663
7.

Canon 40D APS-C 10.1 3888 2592none22.111.370364
8.

Canon 30D APS-C 8.2 3504 2336none21.510.873659
9.

Canon XT APS-C 8.0 3456 2304none21.810.863760
10.

Canon 10D APS-C 6.3 3072 2048none21.110.957157
11.

Canon Rebel APS-C 6.3 3072 2048none21.010.854455
12.

Nikon D200 APS-C 10.0 3872 2592none22.311.558364
13.

Olympus E-M10 II Four Thirds 15.9 4608 34561080/60p23.112.584273
14.

Olympus E-PL7 Four Thirds 15.9 4608 34561080/30p22.712.487372
15.

Olympus E-P5 Four Thirds 15.9 4608 34561080/30p22.812.489572
16.

Panasonic G6 Four Thirds 15.9 4608 34561080/60p21.311.563961
17.

Panasonic GX7 Four Thirds 15.8 4592 34481080/60p22.612.271870

Many modern cameras cannot only take still pictures, but also record videos. The E-M10 indeed provides for movie recording, while the 20D does not. The highest resolution format that the E-M10 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-M10 has an electronic viewfinder (1440k dots), while the 20D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M10 offers a wider field of view (100%) than the one in the 20D (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M10 has a higher magnification (0.58x vs 0.56x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Canon 20D and Olympus E-M10 along with similar information for a selection of comparators.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon 20Doptical Y1.8 / 118 fixed n 1/8000s 5.0/s Y n
2.

Olympus E-M101440 n3.0 / 1037 tilting Y 1/4000s 8.0/s Y Y
3.

Canon 7D IIoptical Y3.0 / 1040 fixed n 1/8000s 10.0/s Y n
4.

Canon 60Doptical Y3.0 / 1040 swivel n 1/8000s 5.3/s Y n
5.

Canon 7Doptical Y3.0 / 920 fixed n 1/8000s 8.0/s Y n
6.

Canon 50Doptical Y3.0 / 920 fixed n 1/8000s 6.3/s Y n
7.

Canon 40Doptical Y3.0 / 230 fixed n 1/8000s 6.5/s Y n
8.

Canon 30Doptical Y2.5 / 230 fixed n 1/8000s 5.0/s Y n
9.

Canon XToptical n1.8 / 115 fixed n 1/4000s 3.0/s Y n
10.

Canon 10Doptical Y1.8 / 118 fixed n 1/4000s 3.0/s Y n
11.

Canon Rebeloptical n1.8 / 118 fixed n 1/4000s 2.5/s Y n
12.

Nikon D200optical Y2.5 / 230 fixed n 1/8000s 5.0/s Y n
13.

Olympus E-M10 II2360 n3.0 / 1040 tilting Y 1/4000s 8.0/s Y Y
14.

Olympus E-PL7optional n3.0 / 1037 tilting Y 1/4000s 8.0/s n Y
15.

Olympus E-P5optional n3.0 / 1037 tilting Y 1/8000s 9.0/s Y Y
16.

Panasonic G61440 n3.0 / 1036 swivel Y 1/4000s 7.0/s Y n
17.

Panasonic GX72760 n3.0 / 1040 tilting Y 1/8000s 5.0/s Y Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 20D, but is missing on the E-M10 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Olympus E-M10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 20D writes its imaging data to Compact Flash cards, while the E-M10 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 20D and Olympus OM-D E-M10 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon 20DY- / ----1.1---
2.

Olympus E-M10Ystereo / mono--micro2.0Y--
3.

Canon 7D IIYstereo / monoYYmini3.0---
4.

Canon 60DYmono / monoY-mini2.0---
5.

Canon 7DYmono / -Y-mini2.0---
6.

Canon 50DY- / ---mini2.0---
7.

Canon 40DY- / ----2.0---
8.

Canon 30DY- / ----2.0---
9.

Canon XTY- / ----2.0---
10.

Canon 10DY- / ----1.1---
11.

Canon RebelY- / ----1.1---
12.

Nikon D200Y- / ----2.0---
13.

Olympus E-M10 IIYstereo / mono--micro2.0Y--
14.

Olympus E-PL7Ystereo / mono--micro2.0Y--
15.

Olympus E-P5Ystereo / mono--micro2.0Y--
16.

Panasonic G6Ystereo / monoY-mini2.0YY-
17.

Panasonic GX7Ystereo / mono--mini2.0YY-

It is notable that the E-M10 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the 20D does not provide wifi capability.

Studio photographers will appreciate that the Canon 20D (unlike the E-M10) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 20D and the E-M10 have been discontinued, but can regularly be found used on ebay. The 20D was replaced by the Canon 30D, while the E-M10 was followed by the Olympus E-M10 II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.

Review summary

So how do things add up? Which of the two cameras – the Canon 20D or the Olympus E-M10 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Arguments in favor of the Canon EOS 20D:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Brighter framing: Features an optical viewfinder for clear, lag-free composition.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Longer lasting: Can take more shots (700 versus 320) on a single battery charge.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • More heavily discounted: Has been available for much longer (launched in August 2004).

ilogo

Advantages of the Olympus OM-D E-M10:

  • More detail: Has more megapixels (15.9 vs 8.2MP), which boosts linear resolution by 37%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores markedly higher (10 points) in the DXO overall evaluation.
  • More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
  • Broader imaging potential: Can capture not only stills but also 1080/30p video.
  • More framing info: Has an electronic viewfinder that displays shooting data.
  • More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.56x).
  • Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (1037k vs 118k dots).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • More compact: Is smaller (119x82mm vs 144x106mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 374g or 49 percent) and is thus easier to take along.
  • Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • More affordable: Was introduced into a lower priced category (53 percent cheaper at launch).
  • More modern: Reflects 9 years and 5 months of technical progress since the 20D launch.

If the count of individual advantages (bullet points above) is taken as a guide, the E-M10 is the clear winner of the contest (22 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

20D 07:22 E-M10

How about other alternatives? Do the specifications of the Canon 20D and the Olympus E-M10 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the 20D and the E-M10 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon 20D......+ +.... Aug 2004 1,499ebay.com
2.

Olympus E-M104/5....80/1005/55/5 Jan 2014 699ebay.com
3.

Canon 7D II4.5/5+3.5/584/1004/54.5/5 Sep 2014 1,799ebay.com
4.

Canon 60D5/5+..79/1004/54.5/5 Aug 2010 1,399ebay.com
5.

Canon 7D5/5+ +..84/1004.5/54.5/5 Sep 2009 1,699ebay.com
6.

Canon 50D..+ +..+ +4.5/54.5/5 Aug 2008 1,299ebay.com
7.

Canon 40D..+ +..+ +4.5/54.5/5 Aug 2007 1,299ebay.com
8.

Canon 30D..+ +..+ +o.. Feb 2006 1,399ebay.com
9.

Canon XT..80/100..+ +o.. Feb 2005 899ebay.com
10.

Canon 10D......+ +.... Feb 2003 1,999ebay.com
11.

Canon Rebel......+ +.... Aug 2003 899ebay.com
12.

Nikon D200..+ +..+ +o.. Nov 2005 1,699ebay.com
13.

Olympus E-M10 II4.5/5+ +..80/1005/55/5 Aug 2015 649ebay.com
14.

Olympus E-PL74/5+....5/54/5 Aug 2014 599ebay.com
15.

Olympus E-P55/5+ +..78/1004.5/55/5 May 2013 999ebay.com
16.

Panasonic G64/5+ +....5/54.5/5 Apr 2013 599ebay.com
17.

Panasonic GX74/5+..79/1005/55/5 Aug 2013 999ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check 20D offers at
ebay.com
logo
Check E-M10 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader

    Specifications: Canon 20D vs Olympus E-M10

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon 20D Olympus E-M10
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Canon EF mount lenses Micro Four Thirds lenses
    Launch Date August 2004 January 2014
    Launch Price USD 1,499 USD 699
    Sensor Specs Canon 20D Olympus E-M10
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor Four Thirds Sensor
    Sensor Size 22.5 x 15.0 mm 17.3 x 13.0 mm
    Sensor Area 337.5 mm2 224.9 mm2
    Sensor Diagonal 27 mm 21.6 mm
    Crop Factor 1.6x 2.0x
    Sensor Resolution 8.2 Megapixels 15.9 Megapixels
    Image Resolution 3504 x 2336 pixels 4608 x 3456 pixels
    Pixel Pitch 6.42 μm 3.76 μm
    Pixel Density 2.43 MP/cm2 7.08 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability no Video 1080/30p Video
    ISO Setting 100 - 1,600 ISO 200 - 25,600 ISO
    ISO Boost 100 - 3,200 ISO 100 - 25,600 ISO
    Image Processor DIGIC 2 TruePic VII
    DXO Sensor Quality (score) 62 72
    DXO Color Depth (bits) 21.9 22.8
    DXO Dynamic Range (EV) 11.0 12.3
    DXO Low Light (ISO) 721 884
    Screen Specs Canon 20D Olympus E-M10
    Viewfinder Type Optical viewfinder Electronic viewfinder
    Viewfinder Field of View 95% 100%
    Viewfinder Magnification 0.56x 0.58x
    Viewfinder Resolution 1440k dots
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View
    Rear LCD Size 1.8inch 3.0inch
    LCD Resolution 118k dots 1037k dots
    LCD Attachment Fixed screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Canon 20D Olympus E-M10
    Focus System Phase-detect AF Contrast-detect AF
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/4000s
    Continuous Shooting 5 shutter flaps/s 8 shutter flaps/s
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationLens stabilization onlyIn-body stabilization
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium CF cards SDXC cards
    Second Storage Option Single card slot Single card slot
    Connectivity Specs Canon 20D Olympus E-M10
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 1.1 USB 2.0
    HDMI Port no HDMI micro HDMI
    Wifi Support no Wifi Wifi built-in
    Body Specs Canon 20D Olympus E-M10
    Battery Type BP-511A BLS-5
    Battery Life (CIPA)700 shots per charge320 shots per charge
    Body Dimensions 144 x 106 x 72 mm
    (5.7 x 4.2 x 2.8 in)
    119 x 82 x 46 mm
    (4.7 x 3.2 x 1.8 in)
    Camera Weight 770 g (27.2 oz) 396 g (14.0 oz)
    logo
    Check 20D offers at
    ebay.com
    logo
    Check E-M10 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon 20D vs Olympus E-M10
