Canon 20D vs Nikon 1 V2

The Canon EOS 20D and the Nikon 1 V2 are two digital cameras that were announced, respectively, in August 2004 and October 2012. The 20D is a DSLR, while the V2 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (20D) and an one-inch (V2) sensor. The Canon has a resolution of 8.2 megapixels, whereas the Nikon provides 14.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon 20D		Nikon 1 V2
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Nikon 1 mount lenses
8.2 MP – APS-C sensor		14.2 MP – 1" sensor
no Video		1080/60p Video
ISO 100-1,600 (100 - 3,200)		ISO 160-12,800
Optical viewfinder		Electronic viewfinder (1440k dots)
1.8" LCD – 118k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		15 shutter flaps per second
700 shots per battery charge		310 shots per battery charge
144 x 106 x 72 mm, 770 g		109 x 82 x 46 mm, 278 g

Check 20D offers at
ebay.com
Check V2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 20D and the Nikon 1 V2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon 20D and the Nikon 1 V2 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The V2 can be obtained in two different colors (black, white), while the 20D is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon 1 V2 is considerably smaller (41 percent) than the Canon 20D. Moreover, the V2 is substantially lighter (64 percent) than the 20D. In this context, it is worth noting that neither the 20D nor the V2 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	US$ 1 499	ebay.com
2.		Nikon 1 V2	109 mm	82 mm	46 mm	278 g	310	n	Oct 2012	US$ 799	ebay.com
3.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
4.		Canon 7D II	149 mm	112 mm	78 mm	910 g	670	Y	Sep 2014	US$ 1 799	ebay.com
5.		Canon 10D	150 mm	107 mm	75 mm	850 g	500	n	Feb 2003	US$ 1 999	ebay.com
6.		Canon 30D	144 mm	106 mm	74 mm	785 g	750	n	Feb 2006	US$ 1 399	ebay.com
7.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
8.		Canon 50D	146 mm	108 mm	74 mm	822 g	800	Y	Aug 2008	US$ 1 299	ebay.com
9.		Canon 60D	145 mm	106 mm	79 mm	755 g	1100	Y	Aug 2010	US$ 1 399	ebay.com
10.		Canon 300D	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
11.		Canon 350D	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
12.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
13.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	US$ 699	ebay.com
14.		Nikon 1 V1	113 mm	76 mm	44 mm	383 g	350	n	Sep 2011	US$ 799	ebay.com
15.		Nikon 1 V3	111 mm	65 mm	33 mm	381 g	310	n	Mar 2014	US$ 799	ebay.com
16.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	US$ 1 699	ebay.com
17.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The V2 was launched at a markedly lower price (by 47 percent) than the 20D, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Canon 20D features an APS-C sensor and the Nikon 1 V2 an one-inch sensor. The sensor area in the V2 is 66 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

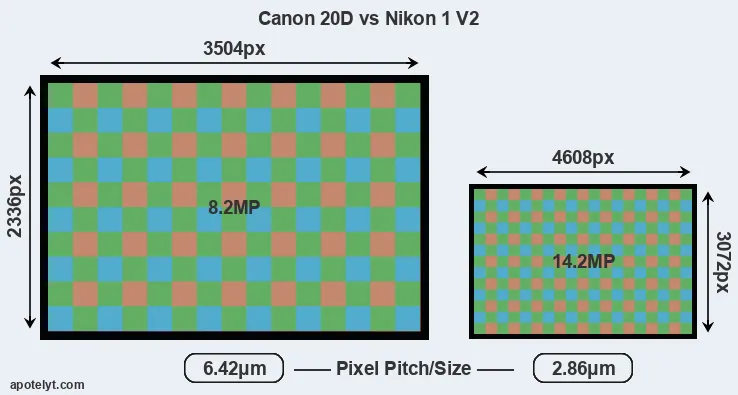

Despite having a smaller sensor, the V2 offers a higher resolution of 14.2 megapixels, compared with 8.2 MP of the 20D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.86μm versus 6.42μm for the 20D). However, it should be noted that the V2 is much more recent (by 8 years and 2 months) than the 20D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Nikon 1 V2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the V2 for good quality output (200 dots per inch) amounts to 23 x 15.4 inches or 58.5 x 39 cm, for very good quality (250 dpi) 18.4 x 12.3 inches or 46.8 x 31.2 cm, and for excellent quality (300 dpi) 15.4 x 10.2 inches or 39 x 26 cm. The corresponding values for the Canon 20D are 17.5 x 11.7 inches or 44.5 x 29.7 cm for good quality, 14 x 9.3 inches or 35.6 x 23.7 cm for very good quality, and 11.7 x 7.8 inches or 29.7 x 19.8 cm for excellent quality prints.

The V2 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS 20D has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Nikon 1 V2 are ISO 160 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the 20D provides substantially higher image quality than the V2, with an overall score that is 12 points higher. This advantage is based on 1.7 bits higher color depth, 0.2 EV in additional dynamic range, and 0.8 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
2.		Nikon 1 V2	1-inch	14.2	4608	3072	1080/60p	20.2	10.8	403	50
3.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
4.		Canon 7D II	APS-C	20.0	5472	3648	1080/60p	22.4	11.8	1082	70
5.		Canon 10D	APS-C	6.3	3072	2048	none	21.1	10.9	571	57
6.		Canon 30D	APS-C	8.2	3504	2336	none	21.5	10.8	736	59
7.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
8.		Canon 50D	APS-C	15.1	4752	3168	none	21.8	11.4	696	63
9.		Canon 60D	APS-C	17.9	5184	3456	1080/30p	22.2	11.5	813	66
10.		Canon 300D	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
11.		Canon 350D	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
12.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
13.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
14.		Nikon 1 V1	1-inch	10.0	3872	2592	1080/60i	21.3	11.0	346	54
15.		Nikon 1 V3	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	384	52
16.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
17.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The V2 indeed provides for movie recording, while the 20D does not. The highest resolution format that the V2 can use is 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the V2 has an electronic viewfinder (1440k dots), while the 20D has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Canon 20D and Nikon 1 V2 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
2.		Nikon 1 V2	1440	n	3.0 / 921	fixed	n	1/4000s	15.0/s	Y	n
3.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
4.		Canon 7D II	optical	Y	3.0 / 1040	fixed	n	1/8000s	10.0/s	Y	n
5.		Canon 10D	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon 30D	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
7.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
8.		Canon 50D	optical	Y	3.0 / 920	fixed	n	1/8000s	6.3/s	Y	n
9.		Canon 60D	optical	Y	3.0 / 1040	swivel	n	1/8000s	5.3/s	Y	n
10.		Canon 300D	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
11.		Canon 350D	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
13.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
14.		Nikon 1 V1	1440	n	3.0 / 921	fixed	n	1/4000s	10.0/s	n	n
15.		Nikon 1 V3	optional	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
16.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
17.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 20D, but is missing on the V2 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the V2 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon 1 V2 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The 20D writes its imaging data to Compact Flash cards, while the V2 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 20D and Nikon 1 V2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
2.		Nikon 1 V2	-	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
4.		Canon 7D II	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
5.		Canon 10D	Y	- / -	-	-	-	1.1	-	-	-
6.		Canon 30D	Y	- / -	-	-	-	2.0	-	-	-
7.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
8.		Canon 50D	Y	- / -	-	-	mini	2.0	-	-	-
9.		Canon 60D	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Canon 300D	Y	- / -	-	-	-	1.1	-	-	-
11.		Canon 350D	Y	- / -	-	-	-	2.0	-	-	-
12.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	-
14.		Nikon 1 V1	-	stereo / mono	-	-	mini	2.0	-	-	-
15.		Nikon 1 V3	-	stereo / mono	Y	-	mini	2.0	Y	-	-
16.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-
17.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the 20D has a hotshoe, while the V2 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Canon 20D (unlike the V2) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the 20D and the V2 have been discontinued, but can regularly be found used on ebay. The 20D was replaced by the Canon 30D, while the V2 was followed by the Nikon 1 V3. Further information on the features and operation of the 20D and V2 can be found, respectively, in the Canon 20D Manual (free pdf) or the online Nikon 1 V2 Manual.

Review summary

So what conclusions can be drawn? Is the Canon 20D better than the Nikon 1 V2 or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS 20D:

• Better image quality: Scores substantially higher (12 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (1.7 bits more color depth).
• Better low-light sensitivity: Requires less light for good images (0.8 stops ISO advantage).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Longer lasting: Can take more shots (700 versus 310) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in August 2004).

Advantages of the Nikon 1 V2:

• More detail: Has more megapixels (14.2 vs 8.2MP), which boosts linear resolution by 32%.
• Broader imaging potential: Can capture not only stills but also 1080/60p video.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 118k dots).
• Faster burst: Shoots at higher frequency (15 vs 5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (109x82mm vs 144x106mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 492g or 64 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
• More affordable: Was introduced into a lower priced category (47 percent cheaper at launch).
• More modern: Reflects 8 years and 2 months of technical progress since the 20D launch.

If the count of individual advantages (bullet points above) is taken as a guide, the V2 is the clear winner of the contest (15 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon 20D and the Nikon 1 V2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 20D or the V2. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	US$ 1 499	ebay.com
2.		Nikon 1 V2	3/5	..	..	..	4.5/5	4/5	Oct 2012	US$ 799	ebay.com
3.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
4.		Canon 7D II	4.5/5	+	3.5/5	84/100	4/5	4.5/5	Sep 2014	US$ 1 799	ebay.com
5.		Canon 10D	..	..	..	+ +	..	..	Feb 2003	US$ 1 999	ebay.com
6.		Canon 30D	..	+ +	..	+ +	o	..	Feb 2006	US$ 1 399	ebay.com
7.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
8.		Canon 50D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2008	US$ 1 299	ebay.com
9.		Canon 60D	5/5	+	..	79/100	4/5	4.5/5	Aug 2010	US$ 1 399	ebay.com
10.		Canon 300D	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
11.		Canon 350D	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
12.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
13.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	US$ 699	ebay.com
14.		Nikon 1 V1	..	+	..	69/100	4.5/5	4/5	Sep 2011	US$ 799	ebay.com
15.		Nikon 1 V3	3/5	..	..	76/100	4.5/5	4/5	Mar 2014	US$ 799	ebay.com
16.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	US$ 1 699	ebay.com
17.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
