Nikon 1 V2 PDF User Manual

Did you lose or misplace the instruction manual that came with your Nikon 1 V2? It happens all too easily, but fortunately Nikon makes a soft copy available that you can browse through online, print out, or download (see the pdf file below). It is certainly good practice to carefully familiarize oneself with the many different functionalities and options that the V2 offers, and the official user manual is without doubt an authoritative and comprehensive source of respective information.

That said, the instruction booklet can be a dry read, so that a dedicated camera guide book from a professional photographer that illustrates the camera's core functions in a real life photography context can be a very helpful complement. Yes, getting one of these camera guides (see here at amazon) would involve an additional expense, but if that book helps to exploit the camera's potential to the full, the (small) additional investment may well be worth it.

Also, you might want to check out the video tutorial on the Nikon 1 V2 below.

camera

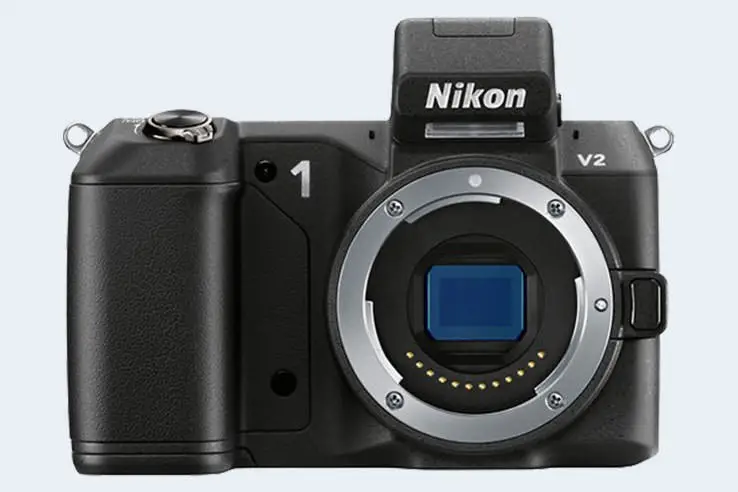

In any case, the V2 is an advanced imaging tool, whose many features merit serious attention. This mirrorless interchangeable lens camera was revealed to the public on October 24th, 2012, which means that, as of today, the camera is 4173 days old (young?). The camera has meanwhile been discontinued and was succeeded by the Nikon 1 V3 as a replacement in the same line of cameras.

ad

Nikon's reference manual for the V2

The camera's reference manual is 236 pages long. The pdf version is embedded below. As you browse through, you will hopefully find the information you are looking for. You can also print out a hard copy by right clicking on the manual and then choosing the respective menu option. For convenience, a summary of the key specs of the V2 is included towards the bottom of this webpage.

Don't forget to bookmark this page for future reference (Ctrl-Shift-D on a Windows PC; Cmd-Shift-D on a Mac). Happy browsing!

Click on the button below to download the pdf version of the Nikon 1 V2 manual to your computer. The file will open in a new browser window.

Download the Manual

If you prefer to read the user guide in another language, please check the respective availability on Nikon's support site. That site also provides complementary online resources, such as information on the compatibility of various camera accessories or the availability of firmware updates that are not necessarily comprehensively covered in the instruction manual.

Printed, hardcopy versions of the Nikon 1 V2 manual can sometimes be found online. You can check the availability on amazon and ebay via the buttons below.

amazon.com ebay.com

ad

Video tutorial for the Nikon 1 V2

Perhaps instead of reading through a manual or operations guide, you might prefer to better familiarize yourself with your V2 by watching a video tutorial. It can notably help to quickly get to know the key functions and to set up your camera according to your particular preferences and needs.

Once again, the Nikon 1 V2 is a sophisticated imaging tool and not exploiting its capabilities to the full would be a pity. Hence, taking the time to study online information material or to read through a well-written camera guide book is highly recommended to make the most of your purchase.

Find V2 guide book at
amazon.com

Nikon 1 V2 FAQ

Below are some additional questions and answers concerning some particular features of the V2.

What type of imaging sensor is used in the Nikon 1 V2?

The camera features a CMOS (Complementary Metal–Oxide–Semiconductor) sensor.

Which image processing chip is used in the Nikon 1 V2 to convert the raw signal into an image file and perform noise reduction and image sharpening?

Nikon equipped the V2 with the EXPEED 3 image processor.

What is the ISO sensitivity range of the Nikon 1 V2?

The camera has a native sensitivity range from ISO 160 to ISO 12800.

What is the life expectancy of the shutter in the Nikon 1 V2?

Nikon does not publish a shutter rating for the V2. Yet, shutters in comparable cameras from other manufacturers are said to be good for at least 100 000 actuations. It should be noted, though, that this number represents a Mean Time before Failure. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust an expected shutter life of 100 000 shots over, say, three years, one would have to take about 100 pictures each and every day.

How do I find the shutter count on my Nikon 1 V2?

Nikon embeds the number of shutter actuations in image metadata. You can check the number of shots that your V2 has taken up to now by uploading a recent image to the free online shutter count finder app.

Is completely silent shooting possible with the Nikon 1 V2?

The camera has an electronic shutter option, so that it is indeed feasible to capture images without any shutter noise.

Do I need to purchase an external camera trigger to shoot time-lapse sequences with the Nikon 1 V2?

No, the Nikon 1 V2 has an intervalometer built-in, so that low frequency shooting (for example, flower blooming, sunset, moon rise) can be undertaken without the need to purchase a separate external intervalometer and related software.

Does the Nikon 1 V2 feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with the Nikon 1 V2 for flash photography?

The V2's flash sync speed is 1/250 sec.

Does the Nikon 1 V2 support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-I cards (data transfer speed of up to 104 MB/s).

Which battery does the Nikon 1 V2 use?

The camera gets its power from the Nikon EN-EL21, which is a rechargeable Lithium-Ion power pack.

ad

Further reading

How does the V2 stack up against available alternatives? In case you would like to check on the differences and similarities with other camera models, just make a corresponding selection in the search boxes below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Core camera specifications

    Here is a list of the main features and technical characteristics of the Nikon 1 V2.

    Specifications Summary
    Camera Model Nikon 1 V2
    Camera Type Mirrorless system camera
    Camera Lens Nikon 1 mount lenses
    Launch Date October 2012
    Launch Price USD 799
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format 1" Sensor
    Sensor Size 13.2 x 8.8 mm
    Sensor Area 116 mm2
    Sensor Diagonal 15.9 mm
    Crop Factor 2.7x
    Sensor Resolution 14.2 Megapixels
    Image Resolution 4 608 x 3 072 pixels
    Pixel Pitch 2.86 μm
    Pixel Density 12.19 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 1080/60p Video
    ISO Setting 160 - 12 800 ISO
    Image Processor EXPEED 3
    DXO Sensor Quality (score) 50
    DXO Color Depth (bits) 20.2
    DXO Dynamic Range (EV) 10.8
    DXO Low Light (ISO) 403
    Screen Specs
    Viewfinder Type Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Resolution 1440k dots
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 921k dots
    LCD Attachment Fixed screen
    Touch Input No touchscreen
    Shooting Specs
    Focus System On-Sensor Phase-detect
    Manual Focusing Aidno Peaking Feature
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 15 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent ShootingElectronic Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Fill Flash Built-in Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash no Hotshoe
    USB Connector USB 2.0
    HDMI Port mini HDMI
    Wifi Support no Wifi
    Body Specs
    Battery Type Nikon EN-EL21 power pack
    Battery Life (CIPA)310 shots per charge
    Body Dimensions 109 x 82 x 46 mm
    (4.3 x 3.2 x 1.8 in)
    Camera Weight 278 g (9.8 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
