Canon 1D Mark II vs Nikon D5

The Canon EOS-1D Mark II and the Nikon D5 are two professional cameras that were officially introduced, respectively, in January 2004 and January 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-H (1D Mark II) and a full frame (D5) sensor. The Canon has a resolution of 8.2 megapixels, whereas the Nikon provides 20.7 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.


Headline Specifications
Canon 1D Mark II   Nikon D5
Canon 1D Mark II Nikon D5
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Nikon F mount lenses
8.2 MP, APS-H Sensor 20.7 MP, Full Frame Sensor
no Video 4K/30p Video
ISO 100-1600 (50-3200) ISO 100-102400 (50-3280000)
Optical viewfinder Optical viewfinder
2.0" LCD, 230k dots 3.2" LCD, 2359k dots
Fixed screen (not touch-sensitive) Fixed touchscreen
8.3 shutter flaps per second 14 shutter flaps per second
Weathersealed bodyWeathersealed body
1200 shots per battery charge3780 shots per battery charge
156 x 158 x 80 mm, 1535 g 160 x 159 x 92 mm, 1415 g

Body comparison: Canon 1D Mark II vs Nikon D5

An illustration of the physical size and weight of the Canon 1D Mark II and the Nikon D5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter. If you prefer, you can also use the toggle button to switch to a comparison in percentage terms (in this case, the camera on the left side – the 1D Mark II – represents the basis for the calculations across all the size and weight measures).

Compare Canon 1D Mark II and Nikon D5
Compare 1D Mark II versus D5 top
Compare 1D Mark II or D5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5 is somewhat larger (3 percent) than the Canon 1D Mark II. However, the D5 is markedly lighter (8 percent) than the 1D Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1D Mark II) and the Nikon Lens Catalog (D5).

Concerning battery life, the 1D Mark II gets 1200 shots out of its NP-E3 battery, while the D5 can take 3780 images on a single charge of its EN-EL18a power pack. As can be seen in the images above, both cameras have a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Camera Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(yes/no)
Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D Mark II» 156 mm 158 mm 80 mm 1535 g 1200 Y Jan 2004 4,499- i Canon 1D Mark II
Nikon D5« 160 mm 159 mm 92 mm 1415 g 3780 Y Jan 2016 6,499 i i Nikon D5
Canon 1D X Mark II« » 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999 i i Canon 1D X Mark II
Canon 5DS« » 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699 i i Canon 5DS
Canon 5DS R« » 152 mm 116 mm 76 mm 930 g 700 Y Feb 2015 3,699 i i Canon 5DS R
Canon 1D Mark IV« » 156 mm 157 mm 80 mm 1230 g 1500 Y Oct 2009 4,999- i Canon 1D Mark IV
Canon 1D Mark III« » 156 mm 156.6 mm 80 mm 1155 g 2200 Y Feb 2007 4,499- i Canon 1D Mark III
Canon 1Ds Mark III« » 150 mm 160 mm 80 mm 1385 g 1800 Y Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1D Mark II N« » 156 mm 158 mm 80 mm 1565 g 1200 Y Aug 2005 3,999- i Canon 1D Mark II N
Canon 5D« » 152 mm 113 mm 75 mm 895 g 400 Y Aug 2005 3,299- i Canon 5D
Canon 1Ds Mark II« » 156 mm 157.6 mm 80 mm 1215 g 1200 Y Sep 2004 7,999- i Canon 1Ds Mark II
Canon 1Ds« » 156 mm 157.6 mm 80 mm 1265 g 600 Y Sep 2002 8,999- i Canon 1Ds
Canon 1D« » 156 mm 158 mm 80 mm 1585 g 500 Y Sep 2001 6,499- i Canon 1D
Nikon D7500« » 136 mm 104 mm 73 mm 720 g 950 Y Apr 2017 1,299 i i Nikon D7500
Nikon D4S« » 160 mm 157 mm 91 mm 1350 g 3020 Y Feb 2014 6,499- i Nikon D4S
Nikon D4« » 160 mm 157 mm 91 mm 1340 g 2600 Y Jan 2012 5,999- i Nikon D4
Nikon D3X« » 160 mm 157 mm 88 mm 1260 g 4400 Y Dec 2008 7,999- i Nikon D3X

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The 1D Mark II was launched at a markedly lower price (by 31 percent) than the D5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.



Sensor comparison: Canon 1D Mark II vs Nikon D5

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon 1D Mark II features an APS-H sensor and the Nikon D5 a full frame sensor. The sensor area in the D5 is 57 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of underlying technology, both cameras are build around CMOS sensors.

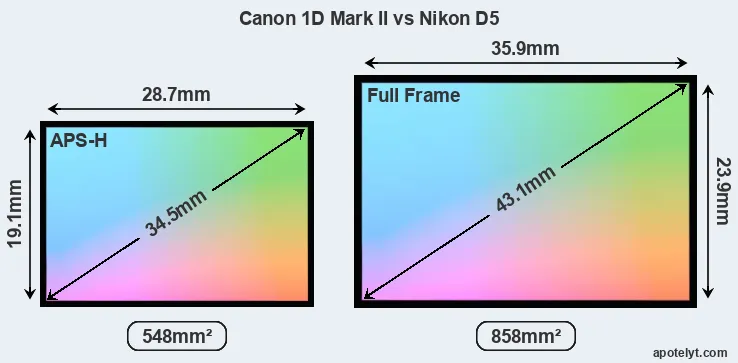

Canon 1D Mark II and Nikon D5 sensor measures

With 20.7MP, the D5 offers a higher resolution than the 1D Mark II (8.2MP), but the D5 has smaller individual pixels (pixel pitch of 6.44μm versus 8.17μm for the 1D Mark II). Yet, the D5 is a much more recent model (by 11 years and 11 months) than the 1D Mark II, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The Canon EOS-1D Mark II has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 50-3200. The corresponding ISO settings for the Nikon D5 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-3280000..

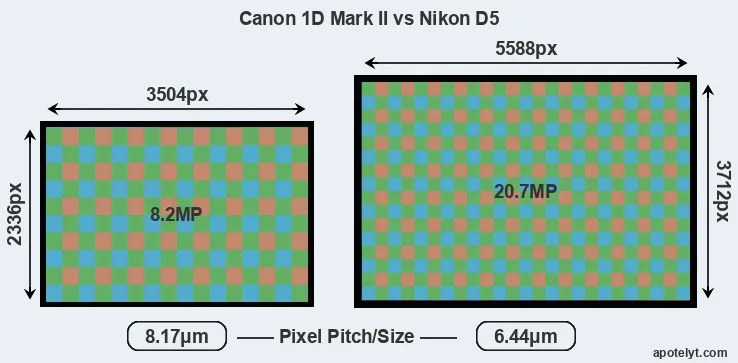

1D Mark II versus D5 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the D5 offers substantially better image quality than the 1D Mark II (overall score 22 points higher). The advantage is based on 2.8 bits higher color depth, 1.2 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Camera
Model
Canon 1D Mark II» APS-H 8.2 3504 2336-22.311.1100366Canon 1D Mark II
Nikon D5« Full Frame 20.7 5588 37124K/30p25.112.3234388Nikon D5
Canon 1D X Mark II« » Full Frame 20.0 5472 36484K/60p24.113.5320788Canon 1D X Mark II
Canon 5DS« » Full Frame 50.3 8688 57921080/60p24.712.4238187Canon 5DS
Canon 5DS R« » Full Frame 50.3 8688 57921080/60p24.612.4230886Canon 5DS R
Canon 1D Mark IV« » APS-H 16.0 4896 32641080/30p22.812.0132074Canon 1D Mark IV
Canon 1D Mark III« » APS-H 10.1 3888 2592-22.711.7107871Canon 1D Mark III
Canon 1Ds Mark III« » Full Frame 21.0 5616 3744-24.012.0166380Canon 1Ds Mark III
Canon 1D Mark II N« » APS-H 8.2 3504 2336-22.311.297566Canon 1D Mark II N
Canon 5D« » Full Frame 12.7 4368 2912-22.911.1136871Canon 5D
Canon 1Ds Mark II« » Full Frame 16.6 4992 3328-23.311.3148074Canon 1Ds Mark II
Canon 1Ds« » Full Frame 11.0 4064 2704-21.811.095463Canon 1Ds
Canon 1D« » APS-H 4.1 2496 1662-----Canon 1D
Nikon D7500« » APS-C 20.7 5568 37124K/30p24.314.0148386Nikon D7500
Nikon D4S« » Full Frame 16.2 4928 32801080/60p24.413.3307489Nikon D4S
Nikon D4« » Full Frame 16.2 4928 32801080/30p24.713.1296589Nikon D4
Nikon D3X« » Full Frame 24.4 6048 4032-24.713.7199288Nikon D3X

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The D5 indeed provides for movie recording, while the 1D Mark II does not. The highest resolution format that the D5 can use is 4K/30p.



Feature comparison: Canon 1D Mark II vs Nikon D5

Apart from body and sensor, cameras can and do differ across a range of features. The 1D Mark II and the D5 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The adjacent table lists some of the other core features of the Canon 1D Mark II and Nikon D5 along with similar information for a selection of comparators.

Core Features
  Camera
Model
Viewfinder
(Type or
'000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
Camera
Model
Canon 1D Mark II»optical Y 2.0 230 fixed n 8000 8.3 n n Canon 1D Mark II
Nikon D5«optical Y 3.2 2359 fixed Y 8000 14.0 n n Nikon D5
Canon 1D X Mark II« »optical Y 3.2 1620 fixed Y 8000 16.0 n n Canon 1D X Mark II
Canon 5DS« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS
Canon 5DS R« »optical Y 3.2 1040 fixed n 8000 5.0 n n Canon 5DS R
Canon 1D Mark IV« »optical Y 3.0 920 fixed n 8000 10.0 n n Canon 1D Mark IV
Canon 1D Mark III« »optical Y 3.0 230 fixed n 8000 10.0 n n Canon 1D Mark III
Canon 1Ds Mark III« »optical Y 3.0 230 fixed n 8000 5.0 n n Canon 1Ds Mark III
Canon 1D Mark II N« »optical Y 2.5 230 fixed n 8000 8.5 n n Canon 1D Mark II N
Canon 5D« »optical Y 2.5 230 fixed n 8000 3.0 n n Canon 5D
Canon 1Ds Mark II« »optical Y 2.0 230 fixed n 8000 4.0 n n Canon 1Ds Mark II
Canon 1Ds« »optical Y 2.0 120 fixed n 8000 3.0 n n Canon 1Ds
Canon 1D« »optical Y 2.0 120 fixed n 16000 8.0 n n Canon 1D
Nikon D7500« »optical Y 3.2 922 tilting Y 8000 8.0 Y n Nikon D7500
Nikon D4S« »optical Y 3.2 921 fixed n 8000 11.0 n n Nikon D4S
Nikon D4« »optical Y 3.2 921 fixed n 8000 11.0 n n Nikon D4
Nikon D3X« »optical Y 3.0 922 fixed n 8000 5.0 n n Nikon D3X

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D5 has a touchscreen, while the 1D Mark II has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The 1D Mark II writes its imaging data to Compact Flash or SD cards, while the D5 uses Compact Flash or XQD cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

Connectivity comparison: Canon 1D Mark II vs Nikon D5

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS-1D Mark II and Nikon D5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Type
WiFi
Support
NFC
Support
Bluetooth
Support
Camera
Model
Canon 1D Mark II»Y-----1.1---Canon 1D Mark II
Nikon D5«YstereomonoYYmini3.0---Nikon D5
Canon 1D X Mark II« »YmonomonoYYmini3.0---Canon 1D X Mark II
Canon 5DS« »YmonomonoY-mini3.0---Canon 5DS
Canon 5DS R« »YmonomonoY-mini3.0---Canon 5DS R
Canon 1D Mark IV« »Ystereo-Y-mini2.0---Canon 1D Mark IV
Canon 1D Mark III« »Y-----2.0---Canon 1D Mark III
Canon 1Ds Mark III« »Y-----2.0---Canon 1Ds Mark III
Canon 1D Mark II N« »Y-----1.1---Canon 1D Mark II N
Canon 5D« »Y-----2.0---Canon 5D
Canon 1Ds Mark II« »Y-----2.0---Canon 1Ds Mark II
Canon 1Ds« »Y-----FW---Canon 1Ds
Canon 1D« »Y-----FW---Canon 1D
Nikon D7500« »YstereomonoYYmini2.0Y-YNikon D7500
Nikon D4S« »YmonomonoYYmini2.0---Nikon D4S
Nikon D4« »Ymonomono--micro2.0---Nikon D4
Nikon D3X« »Y----mini2.0---Nikon D3X

The D5 is a recent model that features in the current product line-up of Nikon. In contrast, the 1D Mark II has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1D Mark II was succeeded by the Canon 1D Mark II N.


Review summary: Canon 1D Mark II vs Nikon D5

So what is the bottom line? Is the Canon 1D Mark II better than the Nikon D5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Arguments in favor of the Canon EOS-1D Mark II:

  • More affordable: Was introduced into a lower priced category (31 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in January 2004).

ilogo

Advantages of the Nikon D5:

  • More detail: Has more megapixels (20.7 vs 8.2MP), which boosts linear resolution by 59%.
  • Better image quality: Scores substantially higher (22 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (2.8 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (1.2 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (1.2 stops ISO advantage).
  • Broader imaging potential: Can capture not only stills but also 4K/30p video.
  • Larger screen: Has a bigger rear LCD (3.2" vs 2.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2359k vs 230k dots).
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster burst: Shoots at higher frequency (14 vs 8.3 flaps/sec) to capture the decisive moment.
  • Longer lasting: Gets more shots (3780 versus 1200) out of a single battery charge.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 1.1).
  • More modern: Reflects 11 years and 11 months of technical progress since the 1D Mark II launch.

If the number of relative strengths (bullet points above) is taken as a guide, the D5 is the clear winner of the contest (13 : 2 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera.

1D Mark II 02:13 D5

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the 1D Mark II or the D5 handle or perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews: Canon 1D Mark II vs Nikon D5

This is why expert reviews are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog). The full reviews are available by clicking on the site logo in the table header.

Review Scores
  Camera
Model
cameralabs dpreview ephotozine imaging-resource photographyblog Camera
Launch
(announced)
Launch
Price
(USD)
Street
Price
(USD)
Used
Price
(USD)
Camera
Model
Canon 1D Mark II»-HiRec-rev- Jan 2004 4,499- i Canon 1D Mark II
Nikon D5«-89/1004.5/55/55/5 Jan 2016 6,499 i i Nikon D5
Canon 1D X Mark II« »-89/1004.5/55/54.5/5 Feb 2016 5,999 i i Canon 1D X Mark II
Canon 5DS« »Rec83/1004.5/55/54.5/5 Feb 2015 3,699 i i Canon 5DS
Canon 5DS R« »Rec83/1005/55/54.5/5 Feb 2015 3,699 i i Canon 5DS R
Canon 1D Mark IV« »-89/100-5/5- Oct 2009 4,999- i Canon 1D Mark IV
Canon 1D Mark III« »---rev- Feb 2007 4,499- i Canon 1D Mark III
Canon 1Ds Mark III« »-HiRec4.5/5-- Aug 2007 7,999- i Canon 1Ds Mark III
Canon 1D Mark II N« »----- Aug 2005 3,999- i Canon 1D Mark II N
Canon 5D« »88/100HiRecrevrev- Aug 2005 3,299- i Canon 5D
Canon 1Ds Mark II« »-HiRec--- Sep 2004 7,999- i Canon 1Ds Mark II
Canon 1Ds« »-HiRec--- Sep 2002 8,999- i Canon 1Ds
Canon 1D« »-HiRec--- Sep 2001 6,499- i Canon 1D
Nikon D7500« »HiRec86/1005/54.5/54.5/5 Apr 2017 1,299 i i Nikon D7500
Nikon D4S« »--4.5/55/54.5/5 Feb 2014 6,499- i Nikon D4S
Nikon D4« »--4.5/5-4.5/5 Jan 2012 5,999- i Nikon D4
Nikon D3X« »-86/1004/55/55/5 Dec 2008 7,999- i Nikon D3X

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.



Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Canon 1D Mark II vs Nikon D5

    Camera Specifications
    Camera Model Canon 1D Mark II Nikon D5
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Nikon F mount lenses
    Launch Date January 2004 January 2016
    Launch Price USD 4499 USD 6499
    Sensor Specs
    Sensor Technology CMOS CMOS
    Sensor Format APS-H Sensor Full Frame Sensor
    Sensor Size 28.7 x 19.1 mm 35.9 x 19.1 mm
    Sensor Area 548.17 mm2 858.01 mm2
    Sensor Diagonal 34.5 mm 43.1 mm
    Crop Factor 1.3 1.0
    Sensor Resolution 8.2 Megapixels 20.7 Megapixels
    Image Resolution 3504 x 2336 pixels 5588 x 3712 pixels
    Pixel Pitch 8.17 μm 6.44 μm
    Pixel Density 1.49 MP/cm2 2.42 MP/cm2
    Movie Capability no Video 4K/30p Video
    ISO Setting 100-1600 ISO 100-102400 ISO
    ISO Boost 50-3200 ISO 50-3280000 ISO
    Image Processor DIGIC II EXPEED 5
    Screen Specs
    Viewfinder Type Optical viewfinder Optical viewfinder
    Top-Level Screen Control Panel Control Panel
    Rear LCD Size 2.0 inch 3.2 inch
    LCD Resolution 230k dots 2359k dots
    LCD Attachment Fixed screen Fixed screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs
    Maximum Shutter Speed 1/8000s 1/8000s
    Continuous Shooting 8.3 shutter flaps/s 14 shutter flaps/s
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium CF or SD cards CF or XQD cards
    Connectivity Specs
    USB Connector USB 1.1 USB 3.0
    HDMI Port no HDMI mini HDMI
    Microphone Port no MIC socket External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support no Wifi no Wifi
    Body Specs
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type NP-E3 power pack EN-EL18a power pack
    Battery Life1200 shots per charge3780 shots per charge
    Body Dimensions 156 x 158 x 80 mm
    (6.1 x 6.2 x 3.1 in)
    160 x 159 x 92 mm
    (6.3 x 6.3 x 3.6 in)
    Camera Weight 1535 g (54.1 oz) 1415 g (49.9 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here  »   »
