Nikon D2Xs vs D5
The Nikon D2Xs and the Nikon D5 are two professional cameras that were revealed to the public, respectively, in June 2006 and January 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D2Xs) and a full frame (D5) sensor. The D2Xs has a resolution of 12.2 megapixels, whereas the D5 provides 20.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D2Xs and the Nikon D5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

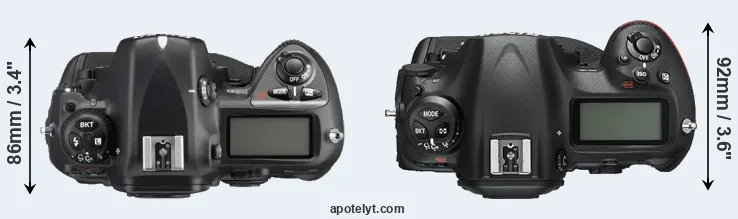

An illustration of the physical size and weight of the Nikon D2Xs and the Nikon D5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5 is notably larger (7 percent) than the Nikon D2Xs. Moreover, the D5 is markedly heavier (13 percent) than the D2Xs. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the D5) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (D2Xs). You can compare the optics available in the Nikon Lens Catalog.
Concerning battery life, the D2Xs gets 3800 shots out of its EN-EL4a battery, while the D5 can take 3780 images on a single charge of its EN-EL18a power pack. As can be seen in the images above, both cameras have a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
# | Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Nikon D2Xs | 158 mm | 150 mm | 86 mm | 1252 g | 3800 | Y | Jun 2006 | 4,699 | ebay.com | |
2. | Nikon D5 | 160 mm | 159 mm | 92 mm | 1415 g | 3780 | Y | Jan 2016 | 6,499 | ebay.com | |
3. | Canon 1D X Mark II | 158 mm | 168 mm | 83 mm | 1530 g | 1210 | Y | Feb 2016 | 5,999 | ebay.com | |
4. | Canon 1D Mark III | 156 mm | 157 mm | 80 mm | 1155 g | 2200 | Y | Feb 2007 | 4,499 | ebay.com | |
5. | Nikon D6 | 160 mm | 163 mm | 92 mm | 1270 g | 3580 | Y | Feb 2020 | 6,499 | amazon.com | |
6. | Nikon D4S | 160 mm | 157 mm | 91 mm | 1350 g | 3020 | Y | Feb 2014 | 6,499 | ebay.com | |
7. | Nikon D750 | 141 mm | 113 mm | 78 mm | 750 g | 1230 | Y | Sep 2014 | 2,299 | ebay.com | |
8. | Nikon D610 | 141 mm | 113 mm | 82 mm | 850 g | 900 | Y | Oct 2013 | 1,999 | ebay.com | |
9. | Nikon D300S | 147 mm | 115 mm | 81 mm | 938 g | 950 | Y | Jul 2009 | 1,799 | ebay.com | |
10. | Nikon D3 | 160 mm | 157 mm | 88 mm | 1300 g | 4300 | Y | Aug 2007 | 4,999 | ebay.com | |
11. | Nikon D40X | 124 mm | 94 mm | 64 mm | 522 g | 520 | n | Mar 2007 | 729 | ebay.com | |
12. | Nikon D300 | 147 mm | 114 mm | 74 mm | 925 g | 1000 | Y | Aug 2007 | 1,799 | ebay.com | |
13. | Nikon D80 | 132 mm | 103 mm | 77 mm | 668 g | 600 | n | Aug 2006 | 999 | ebay.com | |
14. | Nikon D200 | 147 mm | 113 mm | 74 mm | 920 g | 400 | Y | Nov 2005 | 1,699 | ebay.com | |
15. | Nikon D2X | 158 mm | 150 mm | 86 mm | 1252 g | 3800 | Y | Sep 2004 | 4,999 | ebay.com | |
16. | Nikon D1H | 157 mm | 153 mm | 85 mm | 1100 g | 1200 | Y | Feb 2001 | 4,499 | ebay.com | |
17. | Nikon D1 | 157 mm | 153 mm | 85 mm | 1100 g | .. | Y | Jun 1999 | 5,499 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D2Xs was launched at a markedly lower price (by 28 percent) than the D5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D2Xs features an APS-C sensor and the Nikon D5 a full frame sensor. The sensor area in the D5 is 131 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
With 20.7MP, the D5 offers a higher resolution than the D2Xs (12.2MP), but the D5 nevertheless has larger individual pixels (pixel pitch of 6.44μm versus 5.52μm for the D2Xs) due to its larger sensor. Moreover, the D5 is a much more recent model (by 9 years and 7 months) than the D2Xs, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Nikon D5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5 for good quality output (200 dots per inch) amounts to 27.9 x 18.6 inches or 71 x 47.1 cm, for very good quality (250 dpi) 22.4 x 14.8 inches or 56.8 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.3 x 31.4 cm. The corresponding values for the Nikon D2Xs are 21.4 x 14.2 inches or 54.5 x 36.2 cm for good quality, 17.2 x 11.4 inches or 43.6 x 28.9 cm for very good quality, and 14.3 x 9.5 inches or 36.3 x 24.1 cm for excellent quality prints.
The Nikon D2Xs has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 800-3200. The corresponding ISO settings for the Nikon D5 are ISO 100 to ISO 102400, with the possibility to increase the ISO range to 50-3280000.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the D5 offers substantially better image quality than the D2Xs (overall score 29 points higher). The advantage is based on 2.9 bits higher color depth, 1.4 EV in additional dynamic range, and 2.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
# | Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Nikon D2Xs | APS-C | 12.2 | 4288 | 2848 | none | 22.2 | 10.9 | 489 | 59 | |
2. | Nikon D5 | Full Frame | 20.7 | 5588 | 3712 | 4K/30p | 25.1 | 12.3 | 2343 | 88 | |
3. | Canon 1D X Mark II | Full Frame | 20.0 | 5472 | 3648 | 4K/60p | 24.1 | 13.5 | 3207 | 88 | |
4. | Canon 1D Mark III | APS-H | 10.1 | 3888 | 2592 | none | 22.7 | 11.7 | 1078 | 71 | |
5. | Nikon D6 | Full Frame | 20.7 | 5568 | 3712 | 4K/30p | 25.3 | 14.3 | 2886 | 95 | |
6. | Nikon D4S | Full Frame | 16.2 | 4928 | 3280 | 1080/60p | 24.4 | 13.3 | 3074 | 89 | |
7. | Nikon D750 | Full Frame | 24.2 | 6016 | 4016 | 1080/60p | 24.8 | 14.5 | 2956 | 93 | |
8. | Nikon D610 | Full Frame | 24.2 | 6016 | 4016 | 1080/30p | 25.1 | 14.4 | 2925 | 94 | |
9. | Nikon D300S | APS-C | 12.2 | 4288 | 2848 | 720/24p | 22.5 | 12.2 | 787 | 70 | |
10. | Nikon D3 | Full Frame | 12.1 | 4256 | 2832 | none | 23.5 | 12.2 | 2290 | 81 | |
11. | Nikon D40X | APS-C | 10.0 | 3872 | 2592 | none | 22.4 | 11.4 | 516 | 63 | |
12. | Nikon D300 | APS-C | 12.2 | 4288 | 2848 | none | 22.1 | 12.0 | 679 | 67 | |
13. | Nikon D80 | APS-C | 10.0 | 3872 | 2592 | none | 22.1 | 11.2 | 524 | 61 | |
14. | Nikon D200 | APS-C | 10.0 | 3872 | 2592 | none | 22.3 | 11.5 | 583 | 64 | |
15. | Nikon D2X | APS-C | 12.2 | 4288 | 2848 | none | 22.1 | 10.9 | 476 | 59 | |
16. | Nikon D1H | APS-C | 2.6 | 2000 | 1312 | none | .. | .. | .. | .. | |
17. | Nikon D1 | APS-C | 2.6 | 2000 | 1312 | none | .. | .. | .. | .. | |
Note: DXO values in italics represent estimates based on sensor size and age. |
Many modern cameras cannot only take still pictures, but also record videos. The D5 indeed provides for movie recording, while the D2Xs does not. The highest resolution format that the D5 can use is 4K/30p.
Feature comparison
Apart from body and sensor, cameras can and do differ across a range of features. The D2Xs and the D5 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D5 has a higher magnification than the one of the D2Xs (0.72x vs 0.57x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D2Xs, the Nikon D5, and comparable cameras.
# | Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Nikon D2Xs | optical | Y | 2.5 / 230 | fixed | n | 1/8000s | 5.0/s | n | n | |
2. | Nikon D5 | optical | Y | 3.2 / 2359 | fixed | Y | 1/8000s | 14.0/s | n | n | |
3. | Canon 1D X Mark II | optical | Y | 3.2 / 1620 | fixed | Y | 1/8000s | 16.0/s | n | n | |
4. | Canon 1D Mark III | optical | Y | 3.0 / 230 | fixed | n | 1/8000s | 10.0/s | n | n | |
5. | Nikon D6 | optical | Y | 3.2 / 2359 | fixed | Y | 1/8000s | 14.0/s | n | n | |
6. | Nikon D4S | optical | Y | 3.2 / 921 | fixed | n | 1/8000s | 11.0/s | n | n | |
7. | Nikon D750 | optical | Y | 3.2 / 1229 | tilting | n | 1/4000s | 6.0/s | Y | n | |
8. | Nikon D610 | optical | Y | 3.2 / 921 | fixed | n | 1/4000s | 6.0/s | Y | n | |
9. | Nikon D300S | optical | Y | 3.0 / 920 | fixed | n | 1/8000s | 7.0/s | Y | n | |
10. | Nikon D3 | optical | Y | 3.0 / 922 | fixed | n | 1/8000s | 11.0/s | n | n | |
11. | Nikon D40X | optical | n | 2.5 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
12. | Nikon D300 | optical | Y | 3.0 / 922 | fixed | n | 1/8000s | 6.0/s | Y | n | |
13. | Nikon D80 | optical | n | 2.5 / 230 | fixed | n | 1/4000s | 3.0/s | Y | n | |
14. | Nikon D200 | optical | Y | 2.5 / 230 | fixed | n | 1/8000s | 5.0/s | Y | n | |
15. | Nikon D2X | optical | Y | 2.5 / 235 | fixed | n | 1/8000s | 5.0/s | n | n | |
16. | Nikon D1H | optical | Y | 2.0 / 120 | fixed | n | 1/16000s | 5.0/s | n | n | |
17. | Nikon D1 | optical | Y | 2.0 / 120 | fixed | n | 1/16000s | 4.5/s | n | n | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D5 has a touchscreen, while the D2Xs has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.
The Nikon D5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D2Xs writes its imaging data to Compact Flash cards, while the D5 uses Compact Flash or XQD cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the D2Xs only has one slot.
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D2Xs and Nikon D5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
# | Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Nikon D2Xs | Y | - / - | - | - | - | 2.0 | - | - | - | |
2. | Nikon D5 | Y | stereo / mono | Y | Y | mini | 3.0 | - | - | - | |
3. | Canon 1D X Mark II | Y | mono / mono | Y | Y | mini | 3.0 | - | - | - | |
4. | Canon 1D Mark III | Y | - / - | - | - | - | 2.0 | - | - | - | |
5. | Nikon D6 | Y | stereo / mono | Y | Y | mini | 3.1 | Y | - | Y | |
6. | Nikon D4S | Y | mono / mono | Y | Y | mini | 2.0 | - | - | - | |
7. | Nikon D750 | Y | stereo / mono | Y | Y | mini | 2.0 | Y | - | - | |
8. | Nikon D610 | Y | mono / mono | Y | Y | mini | 2.0 | - | - | - | |
9. | Nikon D300S | Y | stereo / mono | Y | - | mini | 2.0 | - | - | - | |
10. | Nikon D3 | Y | - / - | - | - | mini | 2.0 | - | - | - | |
11. | Nikon D40X | Y | - / - | - | - | - | 2.0 | - | - | - | |
12. | Nikon D300 | Y | - / - | - | - | mini | 2.0 | - | - | - | |
13. | Nikon D80 | Y | - / - | - | - | - | 2.0 | - | - | - | |
14. | Nikon D200 | Y | - / - | - | - | - | 2.0 | - | - | - | |
15. | Nikon D2X | Y | - / - | - | - | - | 2.0 | - | - | - | |
16. | Nikon D1H | Y | - / - | - | - | - | FW | - | - | - | |
17. | Nikon D1 | Y | - / - | - | - | - | FW | - | - | - |
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the D2Xs and the D5 have been discontinued, but can regularly be found used on ebay. The D2Xs was replaced by the Nikon D3X, while the D5 was followed by the Nikon D6. Further information on the features and operation of the D2Xs and D5 can be found, respectively, in the Nikon D2Xs Manual (free pdf) or the online Nikon D5 Manual.
Review summary
So how do things add up? Is the Nikon D2Xs better than the Nikon D5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Nikon D2Xs:
- Less heavy: Is lighter (by 163g or 12 percent) and hence easier to carry around.
- More affordable: Was introduced into a lower priced category (28 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in June 2006).
Reasons to prefer the Nikon D5:
- More detail: Has more megapixels (20.7 vs 12.2MP), which boosts linear resolution by 30%.
- Better image quality: Scores substantially higher (29 points) in the DXO overall evaluation.
- Richer colors: Generates noticeably more natural colors (2.9 bits more color depth).
- More dynamic range: Captures a broader range of light and dark details (1.4 EV of extra DR).
- Better low-light sensitivity: Can shoot in dim conditions (2.3 stops ISO advantage).
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.72x vs 0.57x).
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 230k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (14 vs 5 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 9 years and 7 months of technical progress since the D2Xs launch.
If the number of relative strengths (bullet points above) is taken as a guide, the D5 is the clear winner of the contest (15 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D2Xs and the Nikon D5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D2Xs and the D5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
Expert reviews
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
# | Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price (USD) |
Street Price |
|
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Nikon D2Xs | .. | .. | .. | .. | .. | .. | Jun 2006 | 4,699 | ebay.com | |
2. | Nikon D5 | .. | .. | 4/5 | 89/100 | 4.5/5 | 5/5 | Jan 2016 | 6,499 | ebay.com | |
3. | Canon 1D X Mark II | .. | .. | 4.5/5 | 89/100 | 4.5/5 | 4.5/5 | Feb 2016 | 5,999 | ebay.com | |
4. | Canon 1D Mark III | .. | .. | .. | .. | .. | .. | Feb 2007 | 4,499 | ebay.com | |
5. | Nikon D6 | .. | .. | 4/5 | .. | 4.5/5 | 4.5/5 | Feb 2020 | 6,499 | amazon.com | |
6. | Nikon D4S | 5/5 | .. | .. | .. | 4.5/5 | 4.5/5 | Feb 2014 | 6,499 | ebay.com | |
7. | Nikon D750 | 5/5 | + + | 4/5 | 90/100 | 4.5/5 | 4.5/5 | Sep 2014 | 2,299 | ebay.com | |
8. | Nikon D610 | 4/5 | + + | .. | 87/100 | 4.5/5 | 4.5/5 | Oct 2013 | 1,999 | ebay.com | |
9. | Nikon D300S | 5/5 | + + | .. | 82/100 | 4/5 | 4.5/5 | Jul 2009 | 1,799 | ebay.com | |
10. | Nikon D3 | .. | .. | .. | + + | 5/5 | 4.5/5 | Aug 2007 | 4,999 | ebay.com | |
11. | Nikon D40X | .. | 79/100 | .. | + + | 4/5 | 4/5 | Mar 2007 | 729 | ebay.com | |
12. | Nikon D300 | .. | + + | .. | + + | 5/5 | 4.5/5 | Aug 2007 | 1,799 | ebay.com | |
13. | Nikon D80 | .. | + | .. | + + | o | 4.5/5 | Aug 2006 | 999 | ebay.com | |
14. | Nikon D200 | .. | + + | .. | + + | o | .. | Nov 2005 | 1,699 | ebay.com | |
15. | Nikon D2X | .. | .. | .. | + + | .. | .. | Sep 2004 | 4,999 | ebay.com | |
16. | Nikon D1H | .. | .. | .. | + + | .. | .. | Feb 2001 | 4,499 | ebay.com | |
17. | Nikon D1 | .. | .. | .. | + + | .. | .. | Jun 1999 | 5,499 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Nikon D2Xs vs Nikon D5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
Camera Model | Nikon D2Xs | Nikon D5 |
---|---|---|
Camera Type | Digital single lens reflex | Digital single lens reflex |
Camera Lens | Nikon F mount lenses | Nikon F mount lenses |
Launch Date | June 2006 | January 2016 |
Launch Price | USD 4,699 | USD 6,499 |
Sensor Specs | Nikon D2Xs | Nikon D5 |
Sensor Technology | CMOS | CMOS |
Sensor Format | APS-C Sensor | Full Frame Sensor |
Sensor Size | 23.7 x 15.7 mm | 35.9 x 23.9 mm |
Sensor Area | 372.09 mm2 | 858.01 mm2 |
Sensor Diagonal | 28.4 mm | 43.1 mm |
Crop Factor | 1.5x | 1.0x |
Sensor Resolution | 12.2 Megapixels | 20.7 Megapixels |
Image Resolution | 4288 x 2848 pixels | 5588 x 3712 pixels |
Pixel Pitch | 5.52 μm | 6.44 μm |
Pixel Density | 3.28 MP/cm2 | 2.42 MP/cm2 |
Moiré control | Anti-Alias filter | Anti-Alias filter |
Movie Capability | no Video | 4K/30p Video |
ISO Setting | 100 - 800 ISO | 100 - 102,400 ISO |
ISO Boost | 800 - 3,200 ISO | 50 - 3,280,000 ISO |
DXO Sensor Quality (score) | 59 | 88 |
DXO Color Depth (bits) | 22.2 | 25.1 |
DXO Dynamic Range (EV) | 10.9 | 12.3 |
DXO Low Light (ISO) | 489 | 2343 |
Screen Specs | Nikon D2Xs | Nikon D5 |
Viewfinder Type | Optical viewfinder | Optical viewfinder |
Viewfinder Field of View | 100% | 100% |
Viewfinder Magnification | 0.57x | 0.72x |
Top-Level Screen | Control Panel | Control Panel |
LCD Framing | Live View | |
Rear LCD Size | 2.5inch | 3.2inch |
LCD Resolution | 230k dots | 2359k dots |
LCD Attachment | Fixed screen | Fixed screen |
Touch Input | no Touchscreen | Touchscreen |
Shooting Specs | Nikon D2Xs | Nikon D5 |
Focus System | Phase-detect AF | Phase-detect AF |
Continuous Shooting | 5 shutter flaps/s | 14 shutter flaps/s |
Shutter Life Expectancy | 150 000 actuations | 400 000 actuations |
Time-Lapse Photography | no Intervalometer | Intervalometer built-in |
Fill Flash | no On-Board Flash | no On-Board Flash |
Storage Medium | CF cards | CF or XQD cards |
Single or Dual Card Slots | Single card slot | Dual card slots |
Connectivity Specs | Nikon D2Xs | Nikon D5 |
External Flash | Hotshoe | Hotshoe |
Studio Flash | PC Sync socket | PC Sync socket |
USB Connector | USB 2.0 | USB 3.0 |
HDMI Port | no HDMI | mini HDMI |
Microphone Port | no MIC socket | External MIC port |
Headphone Socket | no Headphone port | Headphone port |
Wifi Support | no Wifi | no Wifi |
Body Specs | Nikon D2Xs | Nikon D5 |
Environmental Sealing | Weathersealed body | Weathersealed body |
Battery Type | EN-EL4a | EN-EL18a |
Battery Life (CIPA) | 3800 shots per charge | 3780 shots per charge |
Body Dimensions |
158 x 150 x 86 mm (6.2 x 5.9 x 3.4 in) |
160 x 159 x 92 mm (6.3 x 6.3 x 3.6 in) |
Camera Weight | 1252 g (44.2 oz) | 1415 g (49.9 oz) |
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
