Nikon D5 vs Panasonic FZ330
The Nikon D5 and the Panasonic Lumix DMC-FZ330 (labelled Panasonic FZ300 in some countries) are two digital cameras that were announced, respectively, in January 2016 and July 2015. The D5 is a DSLR, while the FZ330 is a fixed lens compact. The cameras are based on a full frame (D5) and a 1/2.3-inch (FZ330) sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Panasonic provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D5 and the Panasonic Lumix DMC-FZ330? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

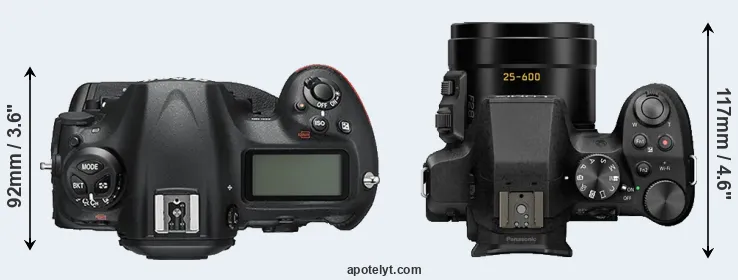

An illustration of the physical size and weight of the Nikon D5 and the Panasonic FZ330 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic FZ330 is considerably smaller (52 percent) than the Nikon D5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the FZ330 has a lens built in, whereas the D5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D5 and their specifications in the Nikon Lens Catalog.
Concerning battery life, the D5 gets 3780 shots out of its EN-EL18a battery, while the FZ330 can take 380 images on a single charge of its DMW-BLC12 power pack. As can be seen in the images above, the D5 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|2.||Panasonic FZ330||132 mm||92 mm||117 mm||691 g||380||Y||Jul 2015||599|
|3.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999|
|4.||Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|5.||Canon SX60||128 mm||93 mm||114 mm||650 g||340||n||Sep 2014||549|
|6.||Nikon D6||160 mm||163 mm||92 mm||1270 g||3580||Y||Feb 2020||6,499|
|7.||Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299|
|8.||Nikon D4S||160 mm||157 mm||91 mm||1350 g||3020||Y||Feb 2014||6,499|
|9.||Nikon D750||141 mm||113 mm||78 mm||750 g||1230||Y||Sep 2014||2,299|
|10.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|11.||Nikon D4||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999|
|12.||Nikon D600||141 mm||113 mm||82 mm||850 g||900||Y||Sep 2012||2,099|
|13.||Nikon D3S||160 mm||157 mm||88 mm||1240 g||4200||Y||Oct 2009||5,199|
|14.||Nikon D3X||160 mm||157 mm||88 mm||1260 g||4400||Y||Dec 2008||7,999|
|15.||Panasonic FZ200||125 mm||87 mm||110 mm||588 g||540||n||Jul 2012||599|
|16.||Panasonic FZ150||124 mm||82 mm||92 mm||528 g||410||n||Aug 2011||499|
|17.||Panasonic LX5||110 mm||65 mm||43 mm||271 g||400||n||Jul 2010||499|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The FZ330 was launched at a lower price than the D5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D5 features a full frame sensor and the Panasonic FZ330 a 1/2.3-inch sensor. The sensor area in the FZ330 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the D5 has a native 3:2 aspect ratio, while the one in the FZ330 offers a 4:3 aspect.
With 20.7MP, the D5 offers a higher resolution than the FZ330 (12MP), but the D5 nevertheless has larger individual pixels (pixel pitch of 6.44μm versus 1.53μm for the FZ330) due to its larger sensor. Moreover, the D5 is a somewhat more recent model (by 5 months) than the FZ330, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the FZ330 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5 for good quality output (200 dots per inch) amounts to 27.9 x 18.6 inches or 71 x 47.1 cm, for very good quality (250 dpi) 22.4 x 14.8 inches or 56.8 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.3 x 31.4 cm. The corresponding values for the Panasonic FZ330 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Nikon D5 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 50-3280000. The corresponding ISO settings for the Panasonic Lumix DMC-FZ330 are ISO 100 to ISO 6400 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the D5 provides substantially higher image quality than the FZ330, with an overall score that is 50 points higher. This advantage is based on 5.8 bits higher color depth, 1.3 EV in additional dynamic range, and 4.6 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|1.||Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|3.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|4.||Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|6.||Nikon D6||Full Frame||20.7||5568||3712||4K/30p||..||..||..||..|
|7.||Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|8.||Nikon D4S||Full Frame||16.2||4928||3280||1080/60p||24.4||13.3||3074||89|
|9.||Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
|10.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|11.||Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
|12.||Nikon D600||Full Frame||24.2||6016||4016||1080/30p||25.1||14.2||2980||94|
|13.||Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
|14.||Nikon D3X||Full Frame||24.4||6048||4032||none||24.7||13.7||1992||88|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (4K/30p).
Beyond body and sensor, cameras can and do differ across a range of features. For example, the FZ330 has an electronic viewfinder (1440k dots), while the D5 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D5 has a higher magnification than the one of the FZ330 (0.72x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Nikon D5, the Panasonic FZ330, and comparable cameras.
|3.||Canon 1D X Mark II||optical||Y||3.2||1620||fixed||Y||1/8000s||16.0||n||n|
|4.||Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
One feature that is present on the D5, but is missing on the FZ330 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The FZ330 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D5 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the FZ330 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Nikon D5 and the Panasonic FZ330 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D5 writes its imaging data to Compact Flash or XQD cards, while the FZ330 uses SDXC cards. The D5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the FZ330 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D5 and Panasonic Lumix DMC-FZ330 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|3.||Canon 1D X Mark II||Y||mono||mono||Y||Y||mini||3.0||-||-||-|
|4.||Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
It is notable that the FZ330 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D5 does not provide wifi capability.
Studio photographers will appreciate that the Nikon D5 (unlike the FZ330) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The FZ330 is a recent model that features in the current product line-up of Panasonic. In contrast, the D5 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D5 was succeeded by the Nikon D6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Panasonic websites.
So what conclusions can be drawn? Which of the two cameras – the Nikon D5 or the Panasonic FZ330 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.
Arguments in favor of the Nikon D5:
- More detail: Offers more megapixels (20.7 vs 12MP) with a 34% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better image quality: Scores substantially higher (50 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (5.8 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (1.3 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (4.6 stops ISO advantage).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.72x vs 0.70x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (2359k vs 1040k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (14 vs 12 flaps/sec) to capture the decisive moment.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (3780 versus 380) on a single battery charge.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Is somewhat more recent (announced 5 months after the FZ330).
Reasons to prefer the Panasonic Lumix DMC-FZ330:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Ready to shoot: Comes with an integrated lens, while the D5 requires a separate lens.
- More compact: Is smaller (132x92mm vs 160x159mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the D5).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been on the market for longer (launched in July 2015).
If the number of relative strengths (bullet points above) is taken as a guide, the D5 is the clear winner of the match-up (21 : 13 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D5 and the Panasonic FZ330 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D5 and the FZ330 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D5||..||..||89/100||4.5/5||5/5||Jan 2016||6,499|
|2.||Panasonic FZ330||..||+ +||..||4.5/5||4.5/5||Jul 2015||599|
|3.||Canon 1D X Mark II||..||..||89/100||4.5/5||4.5/5||Feb 2016||5,999|
|4.||Canon G3 X||3.5/5||+||..||4.5/5||4/5||Jun 2015||999|
|5.||Canon SX60||3/5||+ +||75/100||4/5||4.5/5||Sep 2014||549|
|6.||Nikon D6||..||..||..||4.5/5||4.5/5||Feb 2020||6,499|
|7.||Nikon D850||4.5/5||+ +||89/100||4.5/5||5/5||Jul 2017||3,299|
|8.||Nikon D4S||5/5||..||..||4.5/5||4.5/5||Feb 2014||6,499|
|9.||Nikon D750||5/5||+ +||90/100||4.5/5||4.5/5||Sep 2014||2,299|
|10.||Nikon D610||4/5||+ +||87/100||4.5/5||4.5/5||Oct 2013||1,999|
|11.||Nikon D4||..||..||..||4.5/5||4.5/5||Jan 2012||5,999|
|12.||Nikon D600||4/5||+ +||87/100||5/5||4.5/5||Sep 2012||2,099|
|13.||Nikon D3S||5/5||..||89/100||4.5/5||5/5||Oct 2009||5,199|
|14.||Nikon D3X||..||..||86/100||4/5||5/5||Dec 2008||7,999|
|15.||Panasonic FZ200||3/5||+ +||80/100||4.5/5||4.5/5||Jul 2012||599|
|16.||Panasonic FZ150||3/5||+ +||76/100||4/5||4.5/5||Aug 2011||499|
|17.||Panasonic LX5||4/5||+||73/100||4.5/5||4.5/5||Jul 2010||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
Specifications: Nikon D5 vs Panasonic FZ330
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D5||Panasonic FZ330|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Nikon F mount lenses||25-600mm f/2.8|
|Launch Date||January 2016||July 2015|
|Launch Price||USD 6,499||USD 599|
|Sensor Specs||Nikon D5||Panasonic FZ330|
|Sensor Format||Full Frame Sensor||1/2.3" Sensor|
|Sensor Size||35.9 x 23.9 mm||6.17 x 4.55 mm|
|Sensor Area||858.01 mm2||28.0735 mm2|
|Sensor Diagonal||43.1 mm||7.7 mm|
|Sensor Resolution||20.7 Megapixels||12 Megapixels|
|Image Resolution||5588 x 3712 pixels||4000 x 3000 pixels|
|Pixel Pitch||6.44 μm||1.53 μm|
|Pixel Density||2.42 MP/cm2||42.74 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||100 - 102,400 ISO||100 - 6,400 ISO|
|ISO Boost||50 - 3,280,000 ISO||no Enhancement|
|Image Processor||EXPEED 5||Venus|
|DXO Sensor Quality (score)||88||38|
|DXO Color Depth (bits)||25.1||19.3|
|DXO Dynamic Range (EV)||12.3||11.0|
|DXO Low Light (ISO)||2343||97|
|Screen Specs||Nikon D5||Panasonic FZ330|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||1440k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||2359k dots||1040k dots|
|LCD Attachment||Fixed screen||Swivel screen|
|Shooting Specs||Nikon D5||Panasonic FZ330|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||14 shutter flaps/s||12 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Fill Flash||no On-Board Flash||Built-in Flash|
|Storage Medium||CF or XQD cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|Connectivity Specs||Nikon D5||Panasonic FZ330|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Body Specs||Nikon D5||Panasonic FZ330|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||3780 shots per charge||380 shots per charge|
160 x 159 x 92 mm
(6.3 x 6.3 x 3.6 in)
132 x 92 x 117 mm
(5.2 x 3.6 x 4.6 in)
|Camera Weight||1415 g (49.9 oz)||691 g (24.4 oz)|
