Canon 1300D vs YI M1
The Canon EOS 1300D (called Canon T6 in some regions) and the YI M1 are two digital cameras that were officially introduced, respectively, in March 2016 and September 2016. The 1300D is a DSLR, while the M1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (1300D) and a Four Thirds (M1) sensor. The Canon has a resolution of 17.9 megapixels, whereas the YI provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 1300D||YI M1|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Micro Four Thirds lenses|
|17.9 MP, APS-C Sensor||20.2 MP, Four Thirds Sensor|
|1080/30p Video||4K/30p Video|
|ISO 100-12800 (100-25600)||ISO 100-25600|
|Optical viewfinder||No viewfinder, LCD framing|
|3.0" LCD, 920k dots||3.0" LCD, 1040k dots|
|Fixed screen (not touch-sensitive)||Fixed touchscreen|
|3 shutter flaps per second||5 shutter flaps per second|
|500 shots per battery charge||450 shots per battery charge|
|129 x 101 x 78 mm, 485 g||114 x 64 x 34 mm, 281 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 1300D and the YI M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

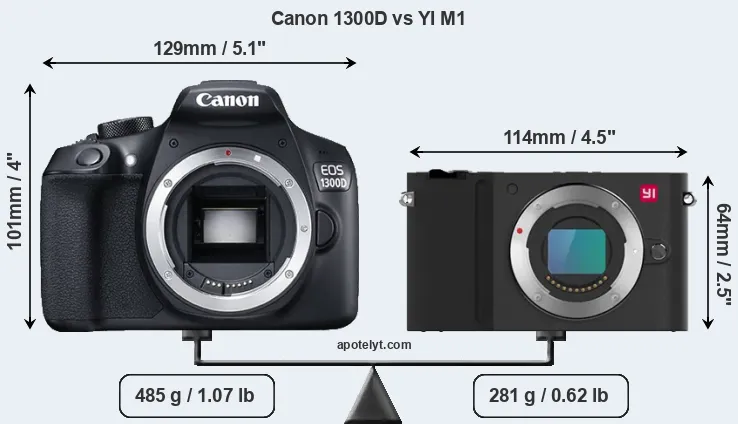

The side-by-side display below illustrates the physical size and weight of the Canon 1300D and the YI M1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
The M1 can be obtained in two different colors (black, silver), while the 1300D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the YI M1 is considerably smaller (44 percent) than the Canon 1300D. Moreover, the M1 is substantially lighter (42 percent) than the 1300D. In this context, it is worth noting that neither the 1300D nor the M1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (1300D) and the Micro Four Thirds Lens Catalog (M1). Mirrorless cameras, such as the M1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The power pack in the M1 can be charged via the USB port, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 1300D»||129 mm||101 mm||78 mm||485 g||500||n||Mar 2016||449||-||Canon 1300D|
|YI M1«||114 mm||64 mm||34 mm||281 g||450||n||Sep 2016||349||YI M1|
|Canon 2000D« »||129 mm||101 mm||78 mm||475 g||500||n||Feb 2018||449||Canon 2000D|
|Canon 4000D« »||129 mm||102 mm||77 mm||436 g||500||n||Feb 2018||399||Canon 4000D|
|Canon 77D« »||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899||Canon 77D|
|Canon 200D« »||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549||-||Canon 200D|
|Canon G9 X Mark II« »||98 mm||58 mm||31 mm||206 g||235||n||Jan 2017||529||Canon G9 X Mark II|
|Canon SX730« »||110 mm||64 mm||40 mm||300 g||250||n||Apr 2017||399||-||Canon SX730|
|Canon SX540« »||120 mm||82 mm||92 mm||442 g||205||n||Jan 2016||399||Canon SX540|
|Canon 750D« »||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749||-||Canon 750D|
|Canon G9 X« »||98 mm||58 mm||31 mm||209 g||220||n||Oct 2015||529||-||Canon G9 X|
|Canon SX530« »||120 mm||82 mm||92 mm||442 g||210||n||Jan 2015||429||-||Canon SX530|
|Canon 1200D« »||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449||-||Canon 1200D|
|Fujifilm X-A3« »||117 mm||67 mm||40 mm||339 g||410||n||Aug 2016||399||-||Fujifilm X-A3|
|Nikon 1 J5« »||98 mm||60 mm||32 mm||231 g||250||n||Apr 2015||399||-||Nikon 1 J5|
|Panasonic GX850« »||107 mm||65 mm||33 mm||269 g||210||n||Jan 2017||549||Panasonic GX850|
|Panasonic GF7« »||107 mm||65 mm||33 mm||266 g||230||n||Jan 2015||499||-||Panasonic GF7|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M1 was launched at a somewhat lower price (by 22 percent) than the 1300D, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

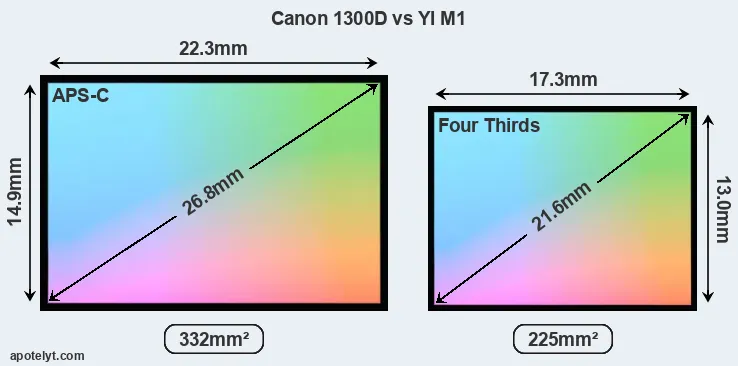

Of the two cameras under consideration, the Canon 1300D features an APS-C sensor and the YI M1 a Four Thirds sensor. The sensor area in the M1 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 1300D has a native 3:2 aspect ratio, while the one in the M1 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.
Despite having a smaller sensor, the M1 offers a higher resolution of 20.2 megapixels, compared with 17.9 MP of the 1300D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 4.31μm for the 1300D). However, it should be noted that the M1 is a somewhat more recent model (by 6 months) than the 1300D, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage.
The Canon EOS 1300D has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the YI M1 are ISO 100 to ISO 25600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|Canon 1300D»||APS-C||17.9||5184||3456||1080/30p||-||-||-||-||Canon 1300D|
|YI M1«||Four Thirds||20.2||5184||3888||4K/30p||-||-||-||-||YI M1|
|Canon 2000D« »||APS-C||24.0||6000||4000||1080/30p||22.6||11.9||1009||71||Canon 2000D|
|Canon 4000D« »||APS-C||17.9||5184||3456||1080/30p||21.9||11.4||695||63||Canon 4000D|
|Canon 77D« »||APS-C||24.0||6000||4000||1080/60p||23.6||13.3||971||78||Canon 77D|
|Canon 200D« »||APS-C||24.0||6000||4000||1080/60p||23.6||13.4||1041||79||Canon 200D|
|Canon G9 X Mark II« »||1-inch||20.0||5472||3648||1080/60p||21.9||12.5||522||65||Canon G9 X Mark II|
|Canon SX730« »||1/2.3||20.2||5184||3888||1080/60p||-||-||-||-||Canon SX730|
|Canon SX540« »||1/2.3||20.2||5184||3888||1080/60p||-||-||-||-||Canon SX540|
|Canon 750D« »||APS-C||24.0||6000||4000||1080/60p||22.7||12.0||919||71||Canon 750D|
|Canon G9 X« »||1-inch||20.0||5472||3648||1080/60p||21.5||12.3||495||63||Canon G9 X|
|Canon SX530« »||1/2.3||15.9||4608||3456||1080/30p||-||-||-||-||Canon SX530|
|Canon 1200D« »||APS-C||17.9||5184||3456||1080/30p||21.9||11.3||724||63||Canon 1200D|
|Fujifilm X-A3« »||APS-C||24.0||6000||4000||1080/60p||-||-||-||-||Fujifilm X-A3|
|Nikon 1 J5« »||1-inch||20.7||5568||3712||4K/15p||21.1||12.0||479||65||Nikon 1 J5|
|Panasonic GX850« »||Four Thirds||15.8||4592||3448||4K/30p||23.2||13.3||586||73||Panasonic GX850|
|Panasonic GF7« »||Four Thirds||15.8||4592||3448||1080/60p||-||-||-||-||Panasonic GF7|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the M1 provides a better video resolution than the 1300D. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the 1300D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M1 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon 1300D, the YI M1, and comparable cameras.
|Canon 1300D»||optical||n||3.0||920||fixed||n||1/4000s||3.0||Y||n||Canon 1300D|
|YI M1«||-||n||3.0||1040||fixed||Y||1/4000s||5.0||n||n||YI M1|
|Canon 2000D« »||optical||n||3.0||920||fixed||n||1/4000s||3.0||Y||n||Canon 2000D|
|Canon 4000D« »||optical||n||2.7||230||fixed||n||1/4000s||3.0||Y||n||Canon 4000D|
|Canon 77D« »||optical||Y||3.0||1040||swivel||Y||1/4000s||6.0||Y||n||Canon 77D|
|Canon 200D« »||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 200D|
|Canon G9 X Mark II« »||-||n||3.0||1040||fixed||Y||1/2000s||8.2||Y||Y||Canon G9 X Mark II|
|Canon SX730« »||-||n||3.0||922||tilting||n||1/3200s||5.9||Y||Y||Canon SX730|
|Canon SX540« »||-||n||3.0||461||fixed||n||1/2000s||5.9||Y||Y||Canon SX540|
|Canon 750D« »||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon 750D|
|Canon G9 X« »||-||n||3.0||1040||fixed||Y||1/2000s||6.0||Y||Y||Canon G9 X|
|Canon SX530« »||-||n||3.0||461||fixed||n||1/2000s||1.6||Y||Y||Canon SX530|
|Canon 1200D« »||optical||n||3.0||460||fixed||n||1/4000s||3.0||Y||n||Canon 1200D|
|Fujifilm X-A3« »||-||n||3.0||1040||tilting||Y||1/4000s||6.0||Y||n||Fujifilm X-A3|
|Nikon 1 J5« »||-||n||3.0||1037||tilting||Y||1/4000s||60.0||Y||n||Nikon 1 J5|
|Panasonic GX850« »||-||n||3.0||1040||tilting||Y||1/500s||10.0||Y||n||Panasonic GX850|
|Panasonic GF7« »||-||n||3.0||1040||tilting||Y||1/500s||5.8||Y||n||Panasonic GF7|
One difference between the cameras concerns the presence of an on-board flash. The 1300D has one, while the M1 does not. While the built-in flash of the 1300D is not very powerful, it can at times be useful as a fill-in light.
The YI M1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the 1300D and the M1 write their files to SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 1300D and YI M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 1300D»||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon 1300D|
|YI M1«||Y||stereo||mono||-||-||micro||2.0||Y||-||Y||YI M1|
|Canon 2000D« »||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon 2000D|
|Canon 4000D« »||Y||mono||mono||-||-||mini||2.0||Y||Y||-||Canon 4000D|
|Canon 77D« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 77D|
|Canon 200D« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Canon 200D|
|Canon G9 X Mark II« »||-||stereo||mono||-||-||micro||2.0||Y||Y||Y||Canon G9 X Mark II|
|Canon SX730« »||-||stereo||mono||-||-||micro||2.0||Y||Y||Y||Canon SX730|
|Canon SX540« »||-||stereo||mono||-||-||mini||2.0||Y||Y||-||Canon SX540|
|Canon 750D« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||-||Canon 750D|
|Canon G9 X« »||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Canon G9 X|
|Canon SX530« »||-||stereo||mono||-||-||mini||2.0||Y||Y||-||Canon SX530|
|Canon 1200D« »||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon 1200D|
|Fujifilm X-A3« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Fujifilm X-A3|
|Nikon 1 J5« »||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Nikon 1 J5|
|Panasonic GX850« »||-||stereo||mono||-||-||micro||2.0||Y||-||-||Panasonic GX850|
|Panasonic GF7« »||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Panasonic GF7|
The M1 is a recent model that features in the current product line-up of YI. In contrast, the 1300D has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the 1300D was succeeded by the Canon 2000D. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and YI websites.
So what conclusions can be drawn? Which of the two cameras – the Canon 1300D or the YI M1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS 1300D:
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Can take more shots (500 versus 450) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More heavily discounted: Has been on the market for longer (launched in March 2016).
Arguments in favor of the YI M1:
- Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
- More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (114x64mm vs 129x101mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 204g or 42 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was released into a lower priced segment (22 percent cheaper at launch).
- More modern: Was introduced somewhat (6 months) more recently.
If the number of relative strengths (bullet points above) is taken as a guide, the M1 emerges as the winner of the match-up (11 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 1300D and the YI M1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 1300D or the M1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Canon 1300D»||o||73/100||4/5||3.5/5||4/5||Mar 2016||449||-||Canon 1300D|
|YI M1«||-||69/100||-||2.5/5||-||Sep 2016||349||YI M1|
|Canon 2000D« »||o||-||3.5/5||-||3.5/5||Feb 2018||449||Canon 2000D|
|Canon 4000D« »||o||-||3.5/5||-||3.5/5||Feb 2018||399||Canon 4000D|
|Canon 77D« »||-||82/100||4.5/5||4.5/5||4/5||Feb 2017||899||Canon 77D|
|Canon 200D« »||+ +||78/100||4.5/5||4.5/5||4.5/5||Jun 2017||549||-||Canon 200D|
|Canon G9 X Mark II« »||-||75/100||4.5/5||4.5/5||4.5/5||Jan 2017||529||Canon G9 X Mark II|
|Canon SX730« »||+||-||4/5||-||4/5||Apr 2017||399||-||Canon SX730|
|Canon SX540« »||-||-||-||-||-||Jan 2016||399||Canon SX540|
|Canon 750D« »||-||75/100||4.5/5||4.5/5||4.5/5||Feb 2015||749||-||Canon 750D|
|Canon G9 X« »||+ +||-||4.5/5||4/5||4.5/5||Oct 2015||529||-||Canon G9 X|
|Canon SX530« »||+ +||-||4/5||-||4/5||Jan 2015||429||-||Canon SX530|
|Canon 1200D« »||+||-||4/5||4/5||4.5/5||Feb 2014||449||-||Canon 1200D|
|Fujifilm X-A3« »||-||74/100||4.5/5||-||4/5||Aug 2016||399||-||Fujifilm X-A3|
|Nikon 1 J5« »||-||-||4.5/5||4/5||4.5/5||Apr 2015||399||-||Nikon 1 J5|
|Panasonic GX850« »||+||76/100||4.5/5||4/5||4.5/5||Jan 2017||549||Panasonic GX850|
|Panasonic GF7« »||+||-||4.5/5||4.5/5||4.5/5||Jan 2015||499||-||Panasonic GF7|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Canon 1300D vs YI M1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 1300D||YI M1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||March 2016||September 2016|
|Launch Price||USD 449||USD 349|
|Sensor Specs||Canon 1300D||YI M1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||20.2 Megapixels|
|Image Resolution||5184 x 3456 pixels||5184 x 3888 pixels|
|Pixel Pitch||4.31 μm||3.34 μm|
|Pixel Density||5.39 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||4K/30p Video|
|ISO Setting||100-12800 ISO||100-25600 ISO|
|ISO Boost||100-25600 ISO||no Enhancement|
|Screen Specs||Canon 1300D||YI M1|
|Viewfinder Type||Optical viewfinder||No viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0 inch||3.0 inch|
|LCD Resolution||920k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 1300D||YI M1|
|Autofocus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000/s||1/4000/s|
|Continuous Shooting||3 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||no|
|Connectivity Specs||Canon 1300D||YI M1|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Near-Field Communication||NFC built-in||no NFC|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Canon 1300D||YI M1|
|Battery Life (CIPA)||500 shots per charge||450 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
129 x 101 x 78 mm
(5.1 x 4.0 x 3.1 in)
114 x 64 x 34 mm
(4.5 x 2.5 x 1.3 in)
|Camera Weight||485 g (17.1 oz)||281 g (9.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
