Canon 10D vs Olympus E-PL6
The Canon EOS 10D and the Olympus PEN E-PL6 are two digital cameras that were revealed to the public, respectively, in February 2003 and May 2013. The 10D is a DSLR, while the E-PL6 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (10D) and a Four Thirds (E-PL6) sensor. The Canon has a resolution of 6.3 megapixels, whereas the Olympus provides 15.9 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Canon 10D||Olympus E-PL6|
|Digital single lens reflex||Mirrorless system camera|
|Canon EF mount lenses||Micro Four Thirds lenses|
|6.3 MP, APS-C Sensor||15.9 MP, Four Thirds Sensor|
|no Video||1080/30p Video|
|ISO 100-3200||ISO 200-25600|
|Optical viewfinder||Viewfinder optional|
|1.8" LCD, 118k dots||3.0" LCD, 460k dots|
|Fixed screen (not touch-sensitive)||Tilting touchscreen|
|3 shutter flaps per second||8 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|500 shots per battery charge||360 shots per battery charge|
|150 x 107 x 75 mm, 850 g||111 x 64 x 38 mm, 325 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 10D and the Olympus PEN E-PL6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

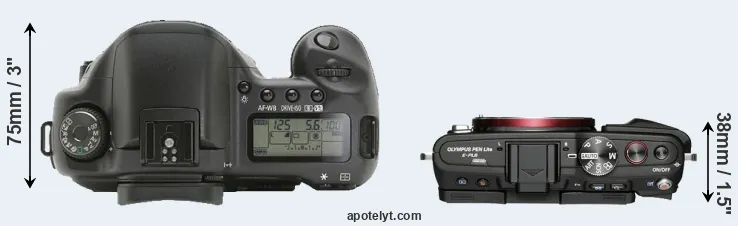

The physical size and weight of the Canon 10D and the Olympus E-PL6 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The E-PL6 can be obtained in four different colors (black, silver, red, white), while the 10D is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL6 is considerably smaller (56 percent) than the Canon 10D. Moreover, the E-PL6 is substantially lighter (62 percent) than the 10D. In this context, it is worth noting that neither the 10D nor the E-PL6 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (10D) and the Micro Four Thirds Lens Catalog (E-PL6). Mirrorless cameras, such as the E-PL6, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Canon 10D»||5.9 in||4.2 in||3.0 in||30.0 oz||500||n||Feb 2003||1,999||Canon 10D|
|Olympus E-PL6«||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||May 2013||599||Olympus E-PL6|
|Canon T5« »||5.1 in||3.9 in||3.1 in||16.9 oz||500||n||Feb 2014||449||Canon T5|
|Canon SL1« »||4.6 in||3.6 in||2.7 in||14.4 oz||380||n||Mar 2013||549||Canon SL1|
|Canon T4i« »||5.2 in||3.9 in||3.1 in||20.3 oz||440||n||Jun 2012||849||Canon T4i|
|Canon 7D« »||5.8 in||4.4 in||2.9 in||30.3 oz||800||Y||Sep 2009||1,699||Canon 7D|
|Canon 40D« »||5.7 in||4.3 in||2.9 in||29.0 oz||750||n||Aug 2007||1,299||Canon 40D|
|Canon 30D« »||5.7 in||4.2 in||2.9 in||27.7 oz||750||n||Feb 2006||1,399||Canon 30D|
|Canon 20D« »||5.7 in||4.2 in||2.8 in||27.2 oz||700||n||Aug 2004||1,499||Canon 20D|
|Canon Rebel« »||5.6 in||3.9 in||2.8 in||22.9 oz||400||n||Aug 2003||899||Canon Rebel|
|Canon D60« »||5.9 in||4.2 in||3.0 in||30.2 oz||620||n||Feb 2002||2,999||Canon D60|
|Nikon D100« »||5.7 in||4.6 in||3.2 in||27.5 oz||370||n||Feb 2002||1,999||Nikon D100|
|Olympus E-M10 II« »||4.7 in||3.3 in||1.9 in||13.8 oz||320||n||Aug 2015||649||Olympus E-M10 II|
|Olympus E-M10« »||4.7 in||3.2 in||1.8 in||14.0 oz||320||n||Jan 2014||699||Olympus E-M10|
|Olympus E-PL7« »||4.5 in||2.6 in||1.5 in||12.6 oz||350||n||Aug 2014||599||Olympus E-PL7|
|Olympus E-PL5« »||4.4 in||2.5 in||1.5 in||11.5 oz||360||n||Sep 2012||599||Olympus E-PL5|
|Olympus E-PM2« »||4.3 in||2.5 in||1.3 in||9.5 oz||360||n||Sep 2012||499||Olympus E-PM2|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL6 was launched at a markedly lower price (by 70 percent) than the 10D, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon 10D features an APS-C sensor and the Olympus E-PL6 a Four Thirds sensor. The sensor area in the E-PL6 is 34 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the 10D has a native 3:2 aspect ratio, while the one in the E-PL6 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.

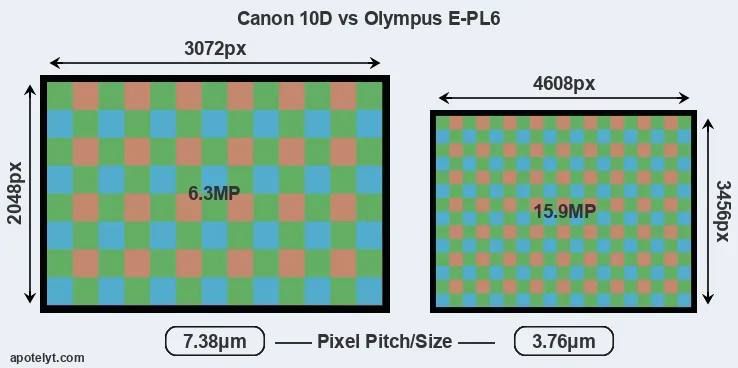

Despite having a smaller sensor, the E-PL6 offers a higher resolution of 15.9 megapixels, compared with 6.3 MP of the 10D. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 7.38μm for the 10D). However, it should be noted that the E-PL6 is much more recent (by 10 years and 2 months) than the 10D, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Olympus E-PL6 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-PL6 for good quality output (200 dots per inch) amounts to 23 x 17.3 inch or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inch or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inch or 39 x 29.3 cm. The corresponding values for the Canon 10D are 15.4 x 10.2 inch or 39 x 26 cm for good quality, 12.3 x 8.2 inch or 31.2 x 20.8 cm for very good quality, and 10.2 x 6.8 inch or 26 x 17.3 cm for excellent quality prints.
The Canon EOS 10D has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Olympus PEN E-PL6 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Canon 10D||APS-C||6.3||3072||2048||none||21.1||10.9||571||57||Canon 10D|
|Olympus E-PL6||Four Thirds||15.9||4608||3456||1080/30p||..||..||..||..||Olympus E-PL6|
|Canon T5||APS-C||17.9||5184||3456||1080/30p||21.9||11.3||724||63||Canon T5|
|Canon SL1||APS-C||17.9||5184||3456||1080/30p||21.8||11.3||843||63||Canon SL1|
|Canon T4i||APS-C||17.9||5184||3456||1080/30p||21.7||11.2||722||62||Canon T4i|
|Canon 7D||APS-C||17.9||5184||3456||1080/30p||22.0||11.7||854||66||Canon 7D|
|Canon 40D||APS-C||10.1||3888||2592||none||22.1||11.3||703||64||Canon 40D|
|Canon 30D||APS-C||8.2||3504||2336||none||21.5||10.8||736||59||Canon 30D|
|Canon 20D||APS-C||8.2||3504||2336||none||21.9||11.0||721||62||Canon 20D|
|Canon Rebel||APS-C||6.3||3072||2048||none||21.0||10.8||544||55||Canon Rebel|
|Canon D60||APS-C||6.3||3072||2048||none||..||..||..||..||Canon D60|
|Nikon D100||APS-C||6.0||3008||2000||none||..||..||..||..||Nikon D100|
|Olympus E-M10 II||Four Thirds||15.9||4608||3456||1080/60p||23.1||12.5||842||73||Olympus E-M10 II|
|Olympus E-M10||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||884||72||Olympus E-M10|
|Olympus E-PL7||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.4||873||72||Olympus E-PL7|
|Olympus E-PL5||Four Thirds||15.9||4608||3456||1080/30p||22.8||12.3||889||72||Olympus E-PL5|
|Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72||Olympus E-PM2|
Many modern cameras cannot only take still pictures, but also record videos. The E-PL6 indeed provides for movie recording, while the 10D does not. The highest resolution format that the E-PL6 can use is 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. For example, the 10D has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL6 relies on live view and the rear LCD for framing. That said, the E-PL6 can be equipped with an optional viewfinder – the VF-3. The table below summarizes some of the other core capabilities of the Canon 10D and Olympus E-PL6 in connection with corresponding information for a sample of similar cameras.
|Canon 10D||optical||Y||1.8||118||fixed||n||1/4000s||3.0||Y||n||Canon 10D|
|Olympus E-PL6||optional||n||3.0||460||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL6|
|Canon T5||optical||n||3.0||460||fixed||n||1/4000s||3.0||Y||n||Canon T5|
|Canon SL1||optical||n||3.0||1040||fixed||Y||1/4000s||4.9||Y||n||Canon SL1|
|Canon T4i||optical||n||3.0||1040||swivel||Y||1/4000s||5.0||Y||n||Canon T4i|
|Canon 7D||optical||Y||3.0||920||fixed||n||1/8000s||8.0||Y||n||Canon 7D|
|Canon 40D||optical||Y||3.0||230||fixed||n||1/8000s||6.5||Y||n||Canon 40D|
|Canon 30D||optical||Y||2.5||230||fixed||n||1/8000s||5.0||Y||n||Canon 30D|
|Canon 20D||optical||Y||1.8||118||fixed||n||1/8000s||5.0||Y||n||Canon 20D|
|Canon Rebel||optical||n||1.8||118||fixed||n||1/4000s||2.5||Y||n||Canon Rebel|
|Canon D60||optical||Y||1.8||114||fixed||n||1/4000s||3.0||Y||n||Canon D60|
|Nikon D100||optical||Y||1.8||118||fixed||n||1/4000s||3.0||Y||n||Nikon D100|
|Olympus E-M10 II||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10 II|
|Olympus E-M10||1440||n||3.0||1037||tilting||Y||1/4000s||8.0||Y||Y||Olympus E-M10|
|Olympus E-PL7||optional||n||3.0||1037||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL7|
|Olympus E-PL5||optional||n||3.0||460||tilting||Y||1/4000s||8.0||n||Y||Olympus E-PL5|
|Olympus E-PM2||optional||n||3.0||460||fixed||Y||1/4000s||8.0||n||Y||Olympus E-PM2|
One difference between the cameras concerns the presence of an on-board flash. The 10D has one, while the E-PL6 does not. While the built-in flash of the 10D is not very powerful, it can at times be useful as a fill-in light.The E-PL6 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 10D does not have a selfie-screen.
The Olympus E-PL6 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 10D writes its imaging data to Compact Flash cards, while the E-PL6 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 10D and Olympus PEN E-PL6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Canon 10D||Y||none||none||-||-||none||1.1||-||-||-||Canon 10D|
|Olympus E-PL6||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PL6|
|Canon T5||Y||mono||mono||-||-||mini||2.0||-||-||-||Canon T5|
|Canon SL1||Y||mono||mono||Y||-||mini||2.0||-||-||-||Canon SL1|
|Canon T4i||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Canon T4i|
|Canon 7D||Y||mono||none||Y||-||mini||2.0||-||-||-||Canon 7D|
|Canon 40D||Y||none||none||-||-||none||2.0||-||-||-||Canon 40D|
|Canon 30D||Y||none||none||-||-||none||2.0||-||-||-||Canon 30D|
|Canon 20D||Y||none||none||-||-||none||1.1||-||-||-||Canon 20D|
|Canon Rebel||Y||none||none||-||-||none||1.1||-||-||-||Canon Rebel|
|Canon D60||Y||none||none||-||-||none||1.1||-||-||-||Canon D60|
|Nikon D100||Y||none||none||-||-||none||1.1||-||-||-||Nikon D100|
|Olympus E-M10 II||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10 II|
|Olympus E-M10||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-M10|
|Olympus E-PL7||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Olympus E-PL7|
|Olympus E-PL5||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PL5|
|Olympus E-PM2||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PM2|
Studio photographers will appreciate that the Canon 10D (unlike the E-PL6) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the 10D and the E-PL6 have been discontinued, but can regularly be found used on eBay. The 10D was replaced by the Canon 20D, while the E-PL6 was followed by the Olympus E-PL7. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Is the Canon 10D better than the Olympus E-PL6 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS 10D:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Longer lasting: Can take more shots (500 versus 360) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in February 2003).
Advantages of the Olympus PEN E-PL6:
- More detail: Has more megapixels (15.9 vs 6.3MP), which boosts linear resolution by 56%.
- Broader imaging potential: Can capture not only stills but also 1080/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (460k vs 118k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (111x64mm vs 150x107mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 525g or 62 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Faster data transfer: Supports a more advanced USB protocol (2.0 vs 1.1).
- More affordable: Was introduced into a lower priced category (70 percent cheaper at launch).
- More modern: Reflects 10 years and 2 months of technical progress since the 10D launch.
If the count of individual advantages (bullet points above) is taken as a guide, the E-PL6 is the clear winner of the contest (16 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 10D and the Olympus E-PL6 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the 10D or the E-PL6. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 10D vs Canon G1 X
- Canon 10D vs Canon RP
- Canon 10D vs Fujifilm X-A3
- Canon 10D vs Fujifilm X-T1
- Canon 10D vs Leica S-E Typ 006
- Canon 10D vs Sony HX90V
- Canon 10D vs Sony RX0
- Canon G7 X Mark II vs Olympus E-PL6
- Kodak AZ901 vs Olympus E-PL6
- Nikon D60 vs Olympus E-PL6
- Olympus E-PL6 vs Ricoh WG-6
- Olympus E-PL6 vs Sony HX95
Specifications: Canon 10D vs Olympus E-PL6
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon 10D||Olympus E-PL6|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Canon EF mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2003||May 2013|
|Launch Price||USD 1999||USD 599|
|Sensor Specs||Canon 10D||Olympus E-PL6|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.7 x 15.1 mm||17.3 x 13.0 mm|
|Sensor Area||342.77 mm2||224.9 mm2|
|Sensor Diagonal||27.3 mm||21.6 mm|
|Sensor Resolution||6.3 Megapixels||15.9 Megapixels|
|Image Resolution||3072 x 2048 pixels||4608 x 3456 pixels|
|Pixel Pitch||7.38 μm||3.76 μm|
|Pixel Density||1.84 MP/cm2||7.08 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/30p Video|
|ISO Setting||100-3200 ISO||200-25600 ISO|
|ISO Boost||no Enhancement||100-25600 ISO|
|Image Processor||DIGIC||TruePic VI|
|DXO Sensor Quality (score)||57||..|
|DXO Color Depth (bits)||21.1||..|
|DXO Dynamic Range (EV)||10.9||..|
|DXO Low Light (ISO)||571||..|
|Screen Specs||Canon 10D||Olympus E-PL6|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||1.8 inch||3.0 inch|
|LCD Resolution||118k dots||460k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Canon 10D||Olympus E-PL6|
|Autofocus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3 shutter flaps/s||8 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon 10D||Olympus E-PL6|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 1.1||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon 10D||Olympus E-PL6|
|Battery Life (CIPA)||500 shots per charge||360 shots per charge|
150 x 107 x 75 mm
(5.9 x 4.2 x 3.0 in)
111 x 64 x 38 mm
(4.4 x 2.5 x 1.5 in)
|Camera Weight||850 g (30.0 oz)||325 g (11.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
