Samsung NX1 vs Sigma fp

The Samsung NX1 and the Sigma fp are two digital cameras that were revealed to the public, respectively, in September 2014 and July 2019. Both the NX1 and the fp are mirrorless interchangeable lens cameras that are based on an APS-C (NX1) and a full frame (fp) sensor. The Samsung has a resolution of 28 megapixels, whereas the Sigma provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Samsung NX1		Sigma fp
Mirrorless system camera		Mirrorless system camera
Samsung NX mount lenses		Leica L mount lenses
28 MP – APS-C sensor		24 MP – Full Frame sensor
4K/30p Video		4K/30p Video
ISO 100-25,600 (100 - 51,200)		ISO 100-25,600 (6 - 102,400)
Electronic viewfinder (2360k dots)		Viewfinder optional
3.0" LCD – 1036k dots		3.2" LCD – 2100k dots
Tilting touchscreen		Fixed touchscreen
15 shutter flaps per second		12 shutter flaps per second
Weathersealed body		Weathersealed body
500 shots per battery charge		280 shots per battery charge
139 x 102 x 66 mm, 550 g		113 x 70 x 45 mm, 422 g

Check NX1 offers at
ebay.com
Check fp price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Samsung NX1 and the Sigma fp? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

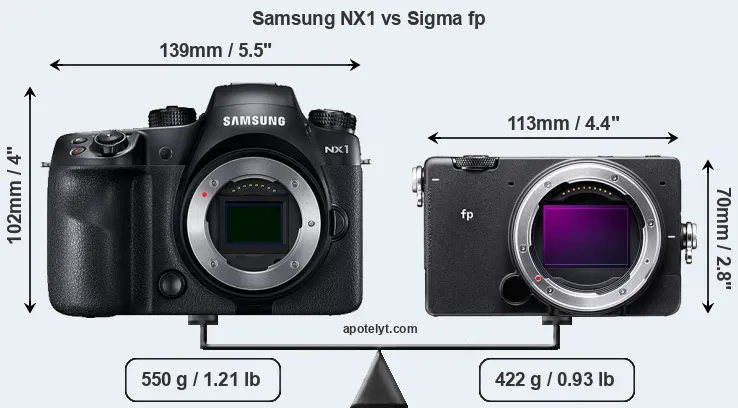

Body comparison

The physical size and weight of the Samsung NX1 and the Sigma fp are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sigma fp is considerably smaller (44 percent) than the Samsung NX1. Moreover, the fp is markedly lighter (23 percent) than the NX1. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Samsung NX1	139 mm	102 mm	66 mm	550 g	500	Y	Sep 2014	EUR 1 499	ebay.com
2.		Sigma fp	113 mm	70 mm	45 mm	422 g	280	Y	Jul 2019	EUR 1 999	amazon.com
3.		Fujifilm X-Pro2	141 mm	83 mm	46 mm	495 g	350	Y	Jan 2016	EUR 1 799	ebay.com
4.		Fujifilm X-T2	133 mm	92 mm	49 mm	507 g	340	Y	Jul 2016	EUR 1 699	ebay.com
5.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	EUR 3 999	ebay.com
6.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	EUR 6 899	ebay.com
7.		Nikon D7200	136 mm	107 mm	76 mm	765 g	1110	Y	Mar 2015	EUR 1 179	ebay.com
8.		Panasonic FT7	117 mm	76 mm	37 mm	319 g	300	Y	May 2018	EUR 429	ebay.com
9.		Panasonic GH4	133 mm	93 mm	84 mm	560 g	500	Y	Feb 2014	EUR 1 499	ebay.com
10.		Panasonic S1	149 mm	110 mm	97 mm	1017 g	400	Y	Feb 2019	EUR 2 499	amazon.com
11.		Samsung NX500	120 mm	64 mm	43 mm	287 g	370	n	Feb 2015	EUR 749	ebay.com
12.		Sony A7	127 mm	94 mm	48 mm	474 g	340	Y	Oct 2013	EUR 1 499	ebay.com
13.		Sony A6500	120 mm	67 mm	53 mm	453 g	350	Y	Oct 2016	EUR 1 699	ebay.com
14.		Sony RX10 II	129 mm	88 mm	102 mm	813 g	400	Y	Jun 2015	EUR 1 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The NX1 was launched at a somewhat lower price (by 21 percent) than the fp, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

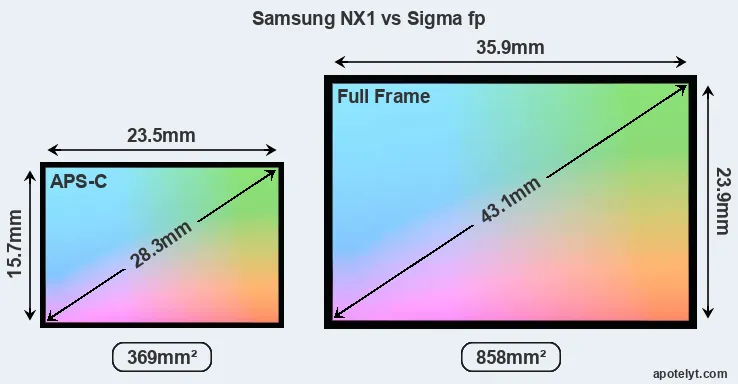

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Samsung NX1 features an APS-C sensor and the Sigma fp a full frame sensor. The sensor area in the fp is 133 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

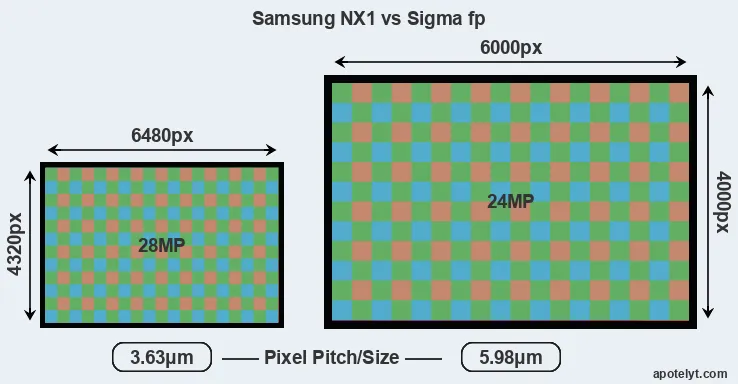

Despite having a smaller sensor, the Samsung NX1 offers a higher resolution of 28 megapixels, compared with 24 MP of the Sigma fp. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.63μm versus 5.98μm for the fp). Moreover, it should be noted that the fp is much more recent (by 4 years and 9 months) than the NX1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Samsung NX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX1 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Sigma fp are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.

The NX1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Samsung NX1 has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Sigma fp are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 6-102400.

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Samsung NX1	APS-C	28.0	6480	4320	4K/30p	24.2	13.2	1363	83
2.		Sigma fp	Full Frame	24.0	6000	4000	4K/30p	25.2	14.2	2829	94
3.		Fujifilm X-Pro2	APS-C	24.0	6000	4000	1080/60p	23.7	13.0	1608	80
4.		Fujifilm X-T2	APS-C	24.0	6000	4000	4K/30p	23.8	13.1	1653	81
5.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
6.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
7.		Nikon D7200	APS-C	24.0	6000	4000	1080/60p	24.5	14.6	1333	87
8.		Panasonic FT7	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1028	51
9.		Panasonic GH4	Four Thirds	15.9	4608	3456	4K/30p	23.2	12.8	791	74
10.		Panasonic S1	Full Frame	24.0	6000	4000	4K/60p	25.2	14.5	3333	95
11.		Samsung NX500	APS-C	28.0	6480	4320	4K/30p	24.8	13.9	1379	87
12.		Sony A7	Full Frame	24.0	6000	4000	1080/60p	24.8	14.2	2248	90
13.		Sony A6500	APS-C	24.0	6000	4000	4K/30p	24.5	13.7	1405	85
14.		Sony RX10 II	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	531	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (4K/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the NX1 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the fp relies on live view and the rear LCD for framing. That said, the fp can be equipped with an optional viewfinder – the EVF-11. The following table reports on some other key feature differences and similarities of the Samsung NX1, the Sigma fp, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Samsung NX1	2360	Y	3.0 / 1036	tilting	Y	1/8000s	15.0/s	Y	n
2.		Sigma fp	optional	n	3.2 / 2100	fixed	Y	1/8000s	12.0/s	n	n
3.		Fujifilm X-Pro2	2360	n	3.0 / 1620	fixed	n	1/8000s	8.0/s	n	n
4.		Fujifilm X-T2	2360	n	3.0 / 1040	full-flex	n	1/8000s	8.0/s	n	n
5.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
6.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
7.		Nikon D7200	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
8.		Panasonic FT7	1170	n	3.0 / 1040	fixed	n	1/1300s	10.0/s	Y	Y
9.		Panasonic GH4	2359	n	3.0 / 1036	swivel	Y	1/8000s	12.0/s	Y	n
10.		Panasonic S1	5760	Y	3.2 / 2100	full-flex	Y	1/8000s	9.0/s	n	Y
11.		Samsung NX500	none	n	3.0 / 1036	tilting	Y	1/6000s	9.0/s	Y	n
12.		Sony A7	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	n
13.		Sony A6500	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	Y
14.		Sony RX10 II	2359	Y	3.0 / 1229	tilting	n	1/3200s	14.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The NX1 has one, while the fp does not. While the built-in flash of the NX1 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Samsung NX1 and the Sigma fp both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the NX1 and the fp write their files to SDXC cards. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s (the second slot of the NX1 supports only UHS-I, though).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Samsung NX1 and Sigma fp and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Samsung NX1	Y	stereo / mono	Y	Y	micro	3.0	Y	Y	Y
2.		Sigma fp	Y	stereo / mono	Y	-	micro	3.1	-	-	-
3.		Fujifilm X-Pro2	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
4.		Fujifilm X-T2	Y	stereo / mono	Y	-	micro	3.0	Y	-	-
5.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
7.		Nikon D7200	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
8.		Panasonic FT7	-	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Panasonic GH4	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
10.		Panasonic S1	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
11.		Samsung NX500	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
12.		Sony A7	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
13.		Sony A6500	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
14.		Sony RX10 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

It is notable that the NX1 has a headphone jack, which is not present on the fp This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

The fp is a recent model that features in the current product line-up of Sigma. In contrast, the NX1 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the NX1 from Samsung. Further information on the features and operation of the NX1 and fp can be found, respectively, in the Samsung NX1 Manual (free pdf) or the online Sigma fp Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Samsung NX1 or the Sigma fp – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Samsung NX1:

• More detail: Offers more megapixels (28 vs 24MP) with a 8% higher linear resolution.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster burst: Shoots at higher frequency (15 vs 12 flaps/sec) to capture the decisive moment.
• Longer lasting: Can take more shots (500 versus 280) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced segment (21 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in September 2014).

Reasons to prefer the Sigma fp:

• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2100k vs 1036k dots).
• More compact: Is smaller (113x70mm vs 139x102mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 128g or 23 percent) and is thus easier to take along.
• More modern: Reflects 4 years and 9 months of technical progress since the NX1 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the NX1 is the clear winner of the match-up (14 : 9 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Samsung NX1 and the Sigma fp place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the NX1 or the fp perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Samsung NX1	5/5	..	..	87/100	5/5	5/5	Sep 2014	EUR 1 499	ebay.com
2.		Sigma fp	4/5	..	4/5	..	4/5	4.5/5	Jul 2019	EUR 1 999	amazon.com
3.		Fujifilm X-Pro2	..	+	..	83/100	4.5/5	4.5/5	Jan 2016	EUR 1 799	ebay.com
4.		Fujifilm X-T2	5/5	+ +	..	86/100	4.5/5	5/5	Jul 2016	EUR 1 699	ebay.com
5.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	EUR 3 999	ebay.com
6.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	EUR 6 899	ebay.com
7.		Nikon D7200	4/5	+ +	..	84/100	4.5/5	4.5/5	Mar 2015	EUR 1 179	ebay.com
8.		Panasonic FT7	..	+	..	..	3.5/5	3.5/5	May 2018	EUR 429	ebay.com
9.		Panasonic GH4	5/5	+ +	..	85/100	5/5	5/5	Feb 2014	EUR 1 499	ebay.com
10.		Panasonic S1	4.5/5	+ +	4.5/5	88/100	4.5/5	4/5	Feb 2019	EUR 2 499	amazon.com
11.		Samsung NX500	4.5/5	..	..	81/100	5/5	4.5/5	Feb 2015	EUR 749	ebay.com
12.		Sony A7	5/5	+ +	..	80/100	5/5	5/5	Oct 2013	EUR 1 499	ebay.com
13.		Sony A6500	5/5	+ +	3.5/5	85/100	4.5/5	4.5/5	Oct 2016	EUR 1 699	ebay.com
14.		Sony RX10 II	5/5	+ +	..	82/100	4.5/5	4/5	Jun 2015	EUR 1 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
