Pentax MX-1 vs YI M1

The Pentax MX-1 and the YI M1 are two digital cameras that were announced, respectively, in January 2013 and September 2016. The MX-1 is a fixed lens compact, while the M1 is a mirrorless interchangeable lens camera. The cameras are based on a 1/1.7-inch (MX-1) and a Four Thirds (M1) sensor. The Pentax has a resolution of 12 megapixels, whereas the YI provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Pentax MX-1		YI M1
Fixed lens compact camera		Mirrorless system camera
28-112mm f/1.8-2.5		Micro Four Thirds lenses
12 MP – 1/1.7" sensor		20.2 MP – Four Thirds sensor
1080/30p Video		4K/30p Video
ISO 100-12,800		ISO 100-25,600
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 920k dots		3.0" LCD – 1040k dots
Tilting screen (no touchscreen)		Fixed touchscreen
1 shutter flaps per second		5 shutter flaps per second
In-body stabilization		Lens stabilization only
290 shots per battery charge		450 shots per battery charge
122 x 61 x 51 mm, 391 g		114 x 64 x 34 mm, 281 g

Check MX-1 offers at
ebay.com
Check M1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax MX-1 and the YI M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

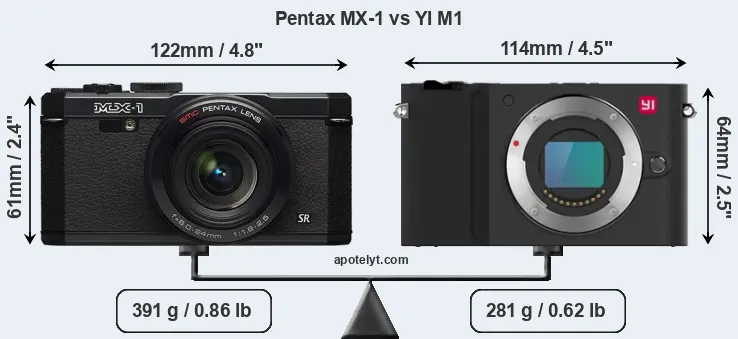

The side-by-side display below illustrates the physical size and weight of the Pentax MX-1 and the YI M1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The M1 can be obtained in two different colors (black, silver), while the MX-1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the YI M1 is somewhat smaller (2 percent) than the Pentax MX-1. In this context, it is worth noting that neither the MX-1 nor the M1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the MX-1 has a lens built in, whereas the M1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the M1 and their specifications in the Micro Four Thirds Lens Catalog.

The power pack in the M1 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	EUR 499	ebay.com
2.		YI M1	114 mm	64 mm	34 mm	281 g	450	n	Sep 2016	EUR 349	ebay.com
3.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	EUR 579	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	EUR 599	ebay.com
5.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	EUR 529	ebay.com
6.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	EUR 299	ebay.com
7.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	EUR 299	ebay.com
8.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	EUR 399	ebay.com
9.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	EUR 449	ebay.com
10.		Fujifilm X10	117 mm	70 mm	57 mm	350 g	270	n	Sep 2011	EUR 529	ebay.com
11.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	EUR 549	ebay.com
12.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	EUR 549	ebay.com
13.		Nikon 1 J5	98 mm	60 mm	32 mm	231 g	250	n	Apr 2015	EUR 449	ebay.com
14.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	EUR 549	ebay.com
15.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	EUR 599	ebay.com
16.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	EUR 599	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	EUR 529	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Pentax MX-1 features a 1/1.7-inch sensor and the YI M1 a Four Thirds sensor. The sensor area in the M1 is 423 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.5 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

With 20.2MP, the M1 offers a higher resolution than the MX-1 (12MP), but the M1 nevertheless has larger individual pixels (pixel pitch of 3.34μm versus 1.89μm for the MX-1) due to its larger sensor. Moreover, the M1 is a much more recent model (by 3 years and 8 months) than the MX-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the YI M1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M1 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Pentax MX-1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Pentax MX-1 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the YI M1 are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
2.		YI M1	Four Thirds	20.2	5184	3888	4K/30p	23.0	12.6	1030	73
3.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
6.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
7.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
8.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
9.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1664	81
10.		Fujifilm X10	2/3	12.0	4000	3000	1080/30p	20.5	11.3	245	50
11.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
12.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
13.		Nikon 1 J5	1-inch	20.7	5568	3712	4K/15p	21.1	12.0	479	65
14.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
15.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
16.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the M1 provides a better video resolution than the MX-1. It can shoot movie footage at 4K/30p, while the Pentax is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The MX-1 and the M1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The table below summarizes some of the other core capabilities of the Pentax MX-1 and YI M1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
2.		YI M1	none	n	3.0 / 1040	fixed	Y	1/4000s	5.0/s	n	n
3.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
6.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
8.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
9.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
10.		Fujifilm X10	optical	n	2.8 / 460	fixed	n	1/4000s	10.0/s	Y	Y
11.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
12.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
13.		Nikon 1 J5	none	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
14.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
15.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
16.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The MX-1 has one, while the M1 does not. While the built-in flash of the MX-1 is not very powerful, it can at times be useful as a fill-in light.

The YI M1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the MX-1 and the M1 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax MX-1 and YI M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-
2.		YI M1	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
3.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
7.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Fujifilm X10	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
12.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Nikon 1 J5	-	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
16.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the M1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the MX-1 does not provide wifi capability.

Both the MX-1 and the M1 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Pentax and YI. Further information on the features and operation of the MX-1 and M1 can be found, respectively, in the Pentax MX-1 Manual (free pdf) or the online YI M1 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Pentax MX-1 and the YI M1? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Pentax MX-1:

• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Ready to shoot: Has a lens built-in, whereas the M1 requires a separate lens.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More heavily discounted: Has been available for much longer (launched in January 2013).

Advantages of the YI M1:

• More detail: Has more megapixels (20.2 vs 12MP), which boosts linear resolution by 30%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (5 vs 1 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (450 versus 290) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 3 years and 8 months of technical progress since the MX-1 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the M1 is the clear winner of the contest (17 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Pentax MX-1 and the YI M1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the MX-1 or the M1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	EUR 499	ebay.com
2.		YI M1	..	..	..	69/100	..	..	Sep 2016	EUR 349	ebay.com
3.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	EUR 579	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	EUR 599	ebay.com
5.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	EUR 529	ebay.com
6.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	EUR 299	ebay.com
7.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	EUR 299	ebay.com
8.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	EUR 399	ebay.com
9.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	EUR 449	ebay.com
10.		Fujifilm X10	..	..	..	76/100	4/5	4.5/5	Sep 2011	EUR 529	ebay.com
11.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	EUR 549	ebay.com
12.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	EUR 549	ebay.com
13.		Nikon 1 J5	..	..	..	..	4.5/5	4.5/5	Apr 2015	EUR 449	ebay.com
14.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	EUR 549	ebay.com
15.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	EUR 599	ebay.com
16.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	EUR 599	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	EUR 529	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
