Panasonic GX8 vs S5

The Panasonic Lumix DMC-GX8 and the Panasonic Lumix DC-S5 are two enthusiast cameras that were officially introduced, respectively, in July 2015 and September 2020. Both the GX8 and the S5 are mirrorless interchangeable lens cameras that are based on a Four Thirds (GX8) and a full frame (S5) sensor. The GX8 has a resolution of 20.2 megapixels, whereas the S5 provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Panasonic GX8
versus
Panasonic S5
Panasonic GX8   Panasonic S5
Mirrorless system camera Mirrorless system camera
Micro Four Thirds lenses Leica L mount lenses
20.2 MP – Four Thirds sensor 24 MP – Full Frame sensor
4K/30p Video 4K/60p Video
ISO 200-25,600 ISO 100-51,200 (50 - 204,800)
Electronic viewfinder (2360k dots) Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots 3.0" LCD – 1840k dots
Swivel touchscreen Swivel touchscreen
10 shutter flaps per second 7 shutter flaps per second
In-body stabilizationIn-body stabilization
Weathersealed bodyWeathersealed body
330 shots per battery charge440 shots per battery charge
133 x 78 x 63 mm, 487 g 133 x 98 x 82 mm, 714 g
logo
Check GX8 offers at
ebay.com
logo
Check S5 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-GX8 and the Panasonic Lumix DC-S5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Panasonic GX8 and the Panasonic S5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The GX8 can be obtained in two different colors (black, silver), while the S5 is only available in black.

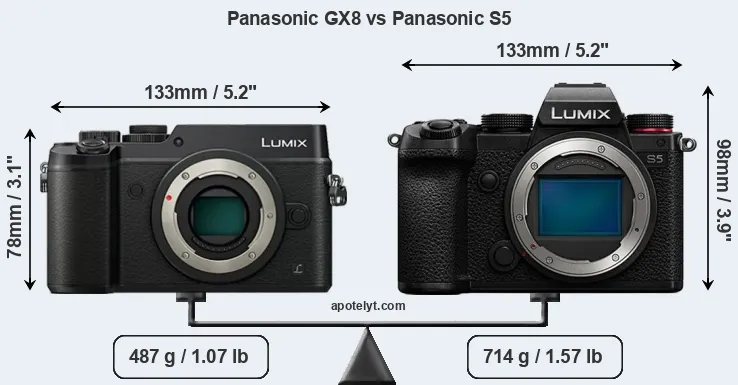

Size Panasonic GX8 vs Panasonic S5

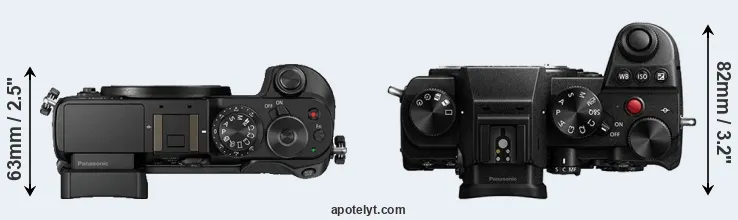

Compare GX8 versus S5 top

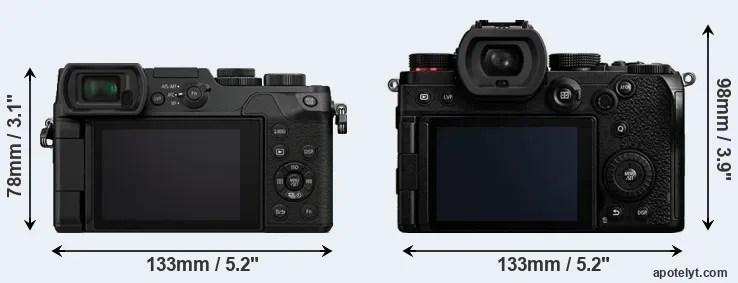

Comparison GX8 or S5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S5 is notably larger (26 percent) than the Panasonic GX8. Moreover, the S5 is substantially heavier (47 percent) than the GX8. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the GX8 gets 330 shots out of its Panasonic DMW-BLC12 battery, while the S5 can take 440 images on a single charge of its Panasonic DMW-BLK22 power pack. The power pack in the S5 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Panasonic GX8 133 mm 78 mm 63 mm 487 g 330 Y Jul 2015 1,199ebay.com
2.

Panasonic S5 133 mm 98 mm 82 mm 714 g 440 Y Sep 2020 1,999 amazon.com
3.

Nikon Z6 II 134 mm 101 mm 70 mm 705 g 410 Y Oct 2020 1,999 amazon.com
4.

Olympus E-M1 II 134 mm 91 mm 67 mm 574 g 440 Y Sep 2016 1,999ebay.com
5.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 1,199ebay.com
6.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 1,099ebay.com
7.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
8.

Panasonic S5 II 134 mm 102 mm 90 mm 740 g 370 Y Jan 2023 1,999 amazon.com
9.

Panasonic GH5 II 139 mm 98 mm 87 mm 727 g 400 Y May 2021 1,699 amazon.com
10.

Panasonic G95 130 mm 94 mm 77 mm 536 g 290 Y Apr 2019 999ebay.com
11.

Panasonic GX9 124 mm 72 mm 47 mm 407 g 260 n Feb 2018 849ebay.com
12.

Panasonic GH5 139 mm 98 mm 87 mm 725 g 410 Y Jan 2017 1,999ebay.com
13.

Panasonic G85 128 mm 89 mm 74 mm 505 g 330 Y Sep 2016 899ebay.com
14.

Panasonic GH4 133 mm 93 mm 84 mm 560 g 500 Y Feb 2014 1,499ebay.com
15.

Panasonic GX7 123 mm 71 mm 55 mm 402 g 350 n Aug 2013 999ebay.com
16.

Sony A6500 120 mm 67 mm 53 mm 453 g 350 Y Oct 2016 1,399ebay.com
17.

Sony A7 II 127 mm 96 mm 60 mm 599 g 350 Y Nov 2014 1,999ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The GX8 was launched at a markedly lower price (by 40 percent) than the S5, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Panasonic GX8 features a Four Thirds sensor and the Panasonic S5 a full frame sensor. The sensor area in the S5 is 276 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the GX8 has a native 4:3 aspect ratio, while the one in the S5 offers a 3:2 aspect.

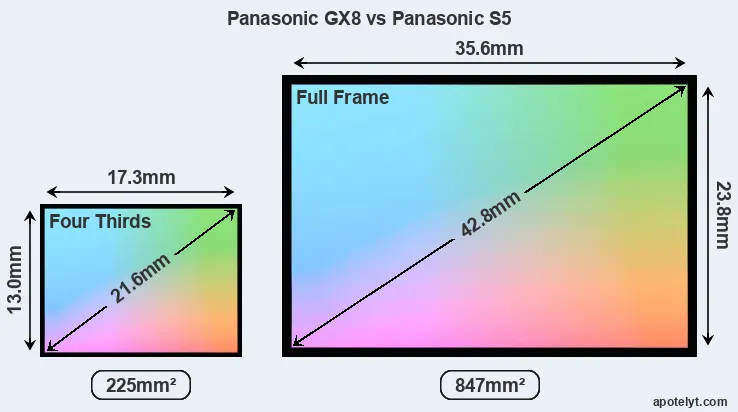

Panasonic GX8 and Panasonic S5 sensor measures

With 24MP, the S5 offers a higher resolution than the GX8 (20.2MP), but the S5 nevertheless has larger individual pixels (pixel pitch of 5.94μm versus 3.34μm for the GX8) due to its larger sensor. Moreover, the S5 is a much more recent model (by 5 years and 1 month) than the GX8, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the S5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Panasonic S5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GX8 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

Unlike the GX8, the S5 has the capacity to capture high quality composite images (96MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Panasonic Lumix DMC-GX8 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DC-S5 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

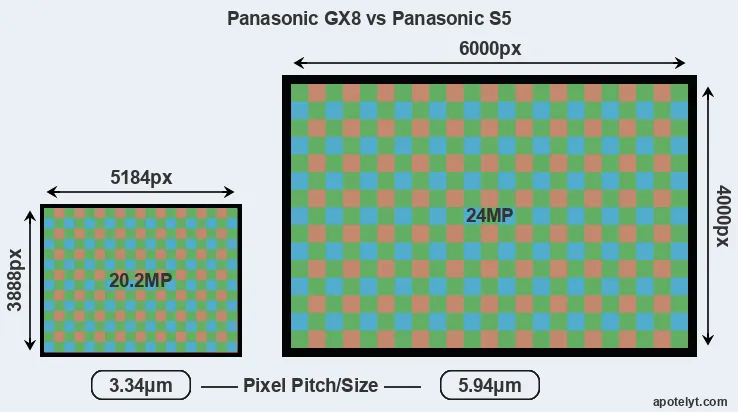

GX8 versus S5 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the S5 offers substantially better image quality than the GX8 (overall score 19 points higher). The advantage is based on 1.6 bits higher color depth, 1.9 EV in additional dynamic range, and 1.7 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Panasonic GX8 Four Thirds 20.2 5184 38884K/30p23.512.680675
2.

Panasonic S5 Full Frame 24.0 6000 40004K/60p25.114.5269794
3.

Nikon Z6 II Full Frame 24.3 6048 40244K/60p25.014.4330394
4.

Olympus E-M1 II Four Thirds 20.2 5184 38884K/30p23.712.8131280
5.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
6.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
7.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
8.

Panasonic S5 II Full Frame 24.0 6000 40006K/30p25.414.6315896
9.

Panasonic GH5 II Four Thirds 20.2 5184 38884K/60p23.713.1113679
10.

Panasonic G95 Four Thirds 20.2 5184 38884K/30p23.213.0127375
11.

Panasonic GX9 Four Thirds 20.2 5184 38884K/30p23.112.8116374
12.

Panasonic GH5 Four Thirds 20.2 5184 38884K/60p23.913.080777
13.

Panasonic G85 Four Thirds 15.8 4592 34484K/30p22.812.565671
14.

Panasonic GH4 Four Thirds 15.9 4608 34564K/30p23.212.879174
15.

Panasonic GX7 Four Thirds 15.8 4592 34481080/60p22.612.271870
16.

Sony A6500 APS-C 24.0 6000 40004K/30p24.513.7140585
17.

Sony A7 II Full Frame 24.0 6000 40001080/60p24.913.6244990
Note: DXO values in italics represent estimates based on sensor size and age.
padding

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the S5 provides a faster frame rate than the GX8. It can shoot movie footage at 4K/60p, while the GX8 is limited to 4K/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The GX8 and the S5 are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The adjacent table lists some of the other core features of the Panasonic GX8 and Panasonic S5 along with similar information for a selection of comparators.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Panasonic GX82360 n3.0 / 1040 swivel Y 1/8000s 10.0/s n Y
2.

Panasonic S52360 n3.0 / 1840 swivel Y 1/8000s 7.0/s n Y
3.

Nikon Z6 II3690 Y3.2 / 2100 tilting Y 1/8000s 14.0/s n Y
4.

Olympus E-M1 II2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
5.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
6.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
7.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
8.

Panasonic S5 II3680 n3.0 / 1840 swivel Y 1/8000s 9.0/s n Y
9.

Panasonic GH5 II3680 n3.0 / 1840 swivel Y 1/8000s 12.0/s n Y
10.

Panasonic G952360 n3.0 / 1240 swivel Y 1/4000s 9.0/s Y Y
11.

Panasonic GX92760 n3.0 / 1240 tilting Y 1/4000s 9.0/s Y Y
12.

Panasonic GH53680 n3.2 / 1620 swivel Y 1/8000s 12.0/s n Y
13.

Panasonic G852360 n3.0 / 1040 swivel Y 1/4000s 9.0/s Y Y
14.

Panasonic GH42359 n3.0 / 1036 swivel Y 1/8000s 12.0/s Y n
15.

Panasonic GX72760 n3.0 / 1040 tilting Y 1/8000s 5.0/s Y Y
16.

Sony A65002359 n3.0 / 922 tilting Y 1/4000s 11.0/s Y Y
17.

Sony A7 II2400 n3.0 / 1230 tilting n 1/8000s 5.0/s n Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding
Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GX8 and the Panasonic S5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the GX8 and the S5 write their files to SDXC cards. The S5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the GX8 only has one slot. The S5 supports UHS-II cards (on its first slot), while the GX8 can use UHS-I cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-GX8 and Panasonic Lumix DC-S5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Panasonic GX8Ystereo / monoY-micro2.0YY-
2.

Panasonic S5Ystereo / monoYYmicro3.2Y-Y
3.

Nikon Z6 IIYstereo / monoYYmicro3.2Y-Y
4.

Olympus E-M1 IIYstereo / monoYYmicro3.0Y--
5.

Olympus PEN-FYstereo / mono--micro2.0Y--
6.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
7.

Olympus E-M1Ystereo / monoY-micro2.0Y--
8.

Panasonic S5 IIYstereo / monoYYfull3.2Y-Y
9.

Panasonic GH5 IIYstereo / monoYYfull3.2Y-Y
10.

Panasonic G95Ystereo / monoYYmicro2.0Y-Y
11.

Panasonic GX9Ystereo / mono--micro2.0Y-Y
12.

Panasonic GH5Ystereo / monoYYfull3.1Y-Y
13.

Panasonic G85Ystereo / monoY-micro2.0Y--
14.

Panasonic GH4Ystereo / monoYYmicro2.0YY-
15.

Panasonic GX7Ystereo / mono--mini2.0YY-
16.

Sony A6500Ystereo / monoY-micro2.0YY-
17.

Sony A7 IIYstereo / monoYYmicro2.0YY-
padding

It is notable that the S5 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The GX8 lacks such a headphone port.

The S5 is a recent model that features in the current product line-up of Panasonic. In contrast, the GX8 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the GX8 was succeeded by the Panasonic GX9. Further information on the features and operation of the GX8 and S5 can be found, respectively, in the Panasonic GX8 Manual (free pdf) or the online Panasonic S5 Manual.

ad

Review summary

So how do things add up? Which of the two cameras – the Panasonic GX8 or the Panasonic S5 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.


Arguments in favor of the Panasonic Lumix DMC-GX8:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.77x vs 0.74x).
  • Faster burst: Shoots at higher frequency (10 vs 7 flaps/sec) to capture the decisive moment.
  • More compact: Is smaller (133x78mm vs 133x98mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 227g or 32 percent) and hence easier to carry around.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • More affordable: Was introduced into a lower priced category (40 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in July 2015).


Advantages of the Panasonic Lumix DC-S5:

  • More detail: Has more megapixels (24 vs 20.2MP), which boosts linear resolution by 11%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Better image quality: Scores substantially higher (19 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (1.6 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (1.9 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (1.7 stops ISO advantage).
  • Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • More detailed LCD: Has a higher resolution rear screen (1840k vs 1040k dots).
  • Longer lasting: Gets more shots (440 versus 330) out of a single battery charge.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
  • More modern: Reflects 5 years and 1 month of technical progress since the GX8 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the S5 is the clear winner of the contest (17 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

GX8 08:17 S5

How about other alternatives? Do the specifications of the Panasonic GX8 and the Panasonic S5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the GX8 or the S5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Panasonic GX85/5+..82/1004.5/54.5/5 Jul 2015 1,199ebay.com
2.

Panasonic S54.5/5+ +4.5/588/1004.5/54.5/5 Sep 2020 1,999 amazon.com
3.

Nikon Z6 II4.5/5..4/589/1004.5/54.5/5 Oct 2020 1,999 amazon.com
4.

Olympus E-M1 II5/5+ +5/585/1004.5/54.5/5 Sep 2016 1,999ebay.com
5.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 1,199ebay.com
6.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 1,099ebay.com
7.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
8.

Panasonic S5 II4.5/5+ +5/590/1004.5/55/5 Jan 2023 1,999 amazon.com
9.

Panasonic GH5 II4.5/5..4.5/585/1004.5/55/5 May 2021 1,699 amazon.com
10.

Panasonic G954.5/5+4.5/583/1004.5/54.5/5 Apr 2019 999ebay.com
11.

Panasonic GX94/5+4/584/1004.5/54.5/5 Feb 2018 849ebay.com
12.

Panasonic GH54.5/5+ +..85/1004.5/55/5 Jan 2017 1,999ebay.com
13.

Panasonic G85..+ +..84/1005/54.5/5 Sep 2016 899ebay.com
14.

Panasonic GH45/5+ +..85/1005/55/5 Feb 2014 1,499ebay.com
15.

Panasonic GX74/5+..79/1005/55/5 Aug 2013 999ebay.com
16.

Sony A65005/5+ +3.5/585/1004.5/54.5/5 Oct 2016 1,399ebay.com
17.

Sony A7 II5/5+4/582/1004.5/55/5 Nov 2014 1,999ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check GX8 offers at
ebay.com
logo
Check S5 price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Panasonic GX8 vs Panasonic S5

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Panasonic GX8 Panasonic S5
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Micro Four Thirds lenses Leica L mount lenses
    Launch Date July 2015 September 2020
    Launch Price USD 1,199 USD 1,999
    Sensor Specs Panasonic GX8 Panasonic S5
    Sensor Technology CMOS CMOS
    Sensor Format Four Thirds Sensor Full Frame Sensor
    Sensor Size 17.3 x 13.0 mm 35.6 x 23.8 mm
    Sensor Area 224.9 mm2 847.28 mm2
    Sensor Diagonal 21.6 mm 42.8 mm
    Crop Factor 2.0x 1.0x
    Sensor Resolution 20.2 Megapixels 24 Megapixels
    Image Resolution 5184 x 3888 pixels 6000 x 4000 pixels
    Pixel Pitch 3.34 μm 5.94 μm
    Pixel Density 8.96 MP/cm2 2.83 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 4K/30p Video 4K/60p Video
    ISO Setting 200 - 25,600 ISO 100 - 51,200 ISO
    ISO Boost 100 - 25,600 ISO 50 - 204,800 ISO
    Image Processor Venus Venus
    DXO Sensor Quality (score) 75 94
    DXO Color Depth (bits) 23.5 25.1
    DXO Dynamic Range (EV) 12.6 14.5
    DXO Low Light (ISO) 806 2697
    Screen Specs Panasonic GX8 Panasonic S5
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.77x 0.74x
    Viewfinder Resolution 2360k dots 2360k dots
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1840k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Panasonic GX8 Panasonic S5
    Focus System Contrast-detect AF Contrast-detect AF
    Manual Focusing AidFocus PeakingFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 10 shutter flaps/s 7 shutter flaps/s
    Electronic Shutterup to 1/16000sup to 1/8000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationIn-body stabilizationIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Dual card slots
    UHS card support UHS-I Single UHS-II
    Connectivity Specs Panasonic GX8 Panasonic S5
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 3.2
    HDMI Port micro HDMI micro HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Near-Field Communication NFC built-in no NFC
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Panasonic GX8 Panasonic S5
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type Panasonic DMW-BLC12 Panasonic DMW-BLK22
    Battery Life (CIPA)330 shots per charge440 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 133 x 78 x 63 mm
    (5.2 x 3.1 x 2.5 in)
    133 x 98 x 82 mm
    (5.2 x 3.9 x 3.2 in)
    Camera Weight 487 g (17.2 oz) 714 g (25.2 oz)
    logo
    Check GX8 offers at
    ebay.com
    logo
    Check S5 price at
    amazon.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Panasonic GX8 vs Panasonic S5
