Panasonic G9 vs S5

The Panasonic Lumix DC-G9 and the Panasonic Lumix DC-S5 are two enthusiast cameras that were revealed to the public, respectively, in November 2017 and September 2020. Both the G9 and the S5 are mirrorless interchangeable lens cameras that are based on a Four Thirds (G9) and a full frame (S5) sensor. The G9 has a resolution of 20.2 megapixels, whereas the S5 provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic G9		Panasonic S5
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Leica L mount lenses
20.2 MP – Four Thirds sensor		24 MP – Full Frame sensor
4K/60p Video		4K/60p Video
ISO 200-25,600		ISO 100-51,200 (50 - 204,800)
Electronic viewfinder (3680k dots)		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1840k dots
Swivel touchscreen		Swivel touchscreen
20 shutter flaps per second		7 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
400 shots per battery charge		440 shots per battery charge
137 x 97 x 92 mm, 658 g		133 x 98 x 82 mm, 714 g

Check G9 offers at
ebay.com
Check S5 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DC-G9 and the Panasonic Lumix DC-S5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

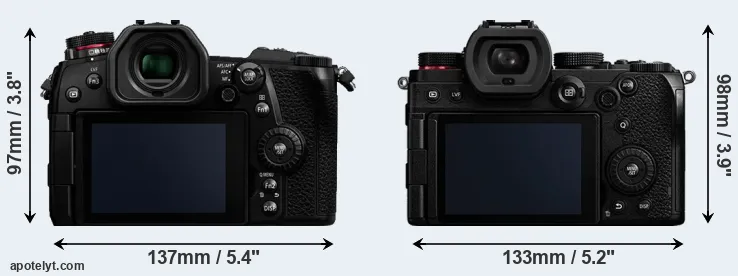

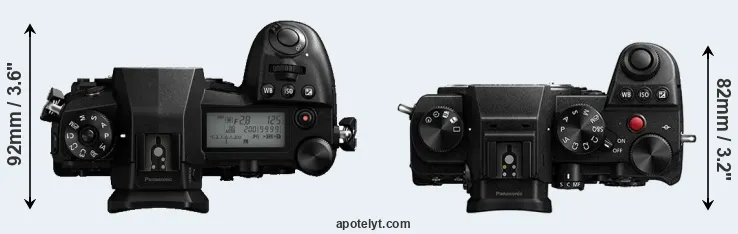

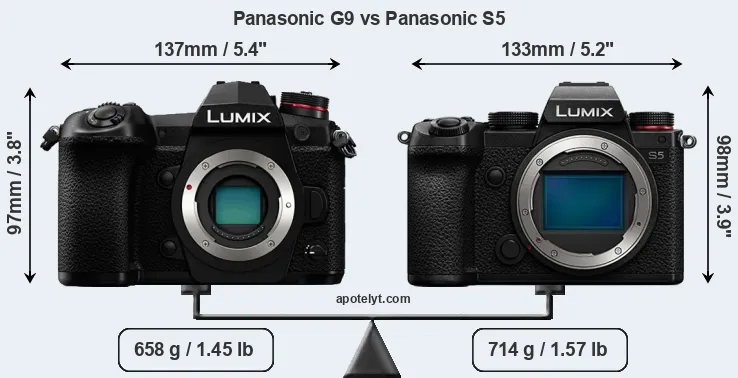

The side-by-side display below illustrates the physical size and weight of the Panasonic G9 and the Panasonic S5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S5 is somewhat smaller (2 percent) than the Panasonic G9. However, the S5 is markedly heavier (9 percent) than the G9. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the G9 gets 400 shots out of its Panasonic DMW-BLF19 battery, while the S5 can take 440 images on a single charge of its Panasonic DMW-BLK22 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Panasonic G9	137 mm	97 mm	92 mm	658 g	400	Y	Nov 2017	1,699	ebay.com
2.		Panasonic S5	133 mm	98 mm	82 mm	714 g	440	Y	Sep 2020	1,999	amazon.com
3.		Nikon Z6 II	134 mm	101 mm	70 mm	705 g	410	Y	Oct 2020	1,999	amazon.com
4.		Olympus E-M1 II	134 mm	91 mm	67 mm	574 g	440	Y	Sep 2016	1,999	ebay.com
5.		Olympus E-M1 III	134 mm	91 mm	69 mm	580 g	420	Y	Feb 2020	1,799	ebay.com
6.		Panasonic G9 II	134 mm	102 mm	90 mm	658 g	390	Y	Sep 2023	1,899	amazon.com
7.		Panasonic G85	128 mm	89 mm	74 mm	505 g	330	Y	Sep 2016	899	ebay.com
8.		Panasonic GH4	133 mm	93 mm	84 mm	560 g	500	Y	Feb 2014	1,499	ebay.com
9.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	1,999	ebay.com
10.		Panasonic GH5 II	139 mm	98 mm	87 mm	727 g	400	Y	May 2021	1,699	amazon.com
11.		Panasonic GH5s	139 mm	98 mm	87 mm	660 g	440	Y	Jan 2018	2,499	amazon.com
12.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	1,199	ebay.com
13.		Panasonic GX9	124 mm	72 mm	47 mm	407 g	260	n	Feb 2018	849	ebay.com
14.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	1,999	amazon.com
15.		Sony A7 II	127 mm	96 mm	60 mm	599 g	350	Y	Nov 2014	1,999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The G9 was launched at a somewhat lower price (by 15 percent) than the S5, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

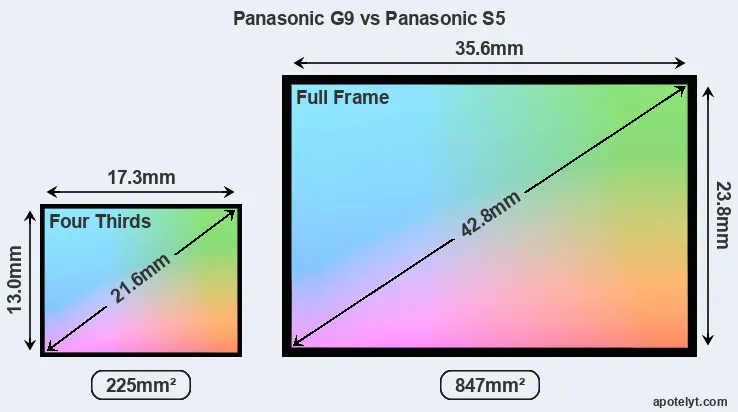

Of the two cameras under consideration, the Panasonic G9 features a Four Thirds sensor and the Panasonic S5 a full frame sensor. The sensor area in the S5 is 276 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the G9 has a native 4:3 aspect ratio, while the one in the S5 offers a 3:2 aspect.

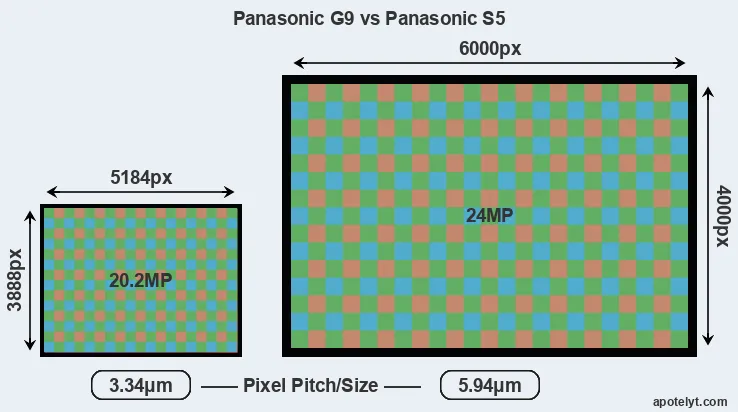

With 24MP, the S5 offers a higher resolution than the G9 (20.2MP), but the S5 nevertheless has larger individual pixels (pixel pitch of 5.94μm versus 3.34μm for the G9) due to its larger sensor. Moreover, the S5 is a much more recent model (by 2 years and 9 months) than the G9, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Panasonic S5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic G9 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

Both cameras have the capacity to capture high quality composite images by combining multiple shots after shifting the sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Panasonic Lumix DC-G9 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DC-S5 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic G9	Four Thirds	20.2	5184	3888	4K/60p	23.1	12.8	1138	74
2.		Panasonic S5	Full Frame	24.0	6000	4000	4K/60p	25.1	14.5	2697	94
3.		Nikon Z6 II	Full Frame	24.3	6048	4024	4K/60p	25.0	14.4	3303	94
4.		Olympus E-M1 II	Four Thirds	20.2	5184	3888	4K/30p	23.7	12.8	1312	80
5.		Olympus E-M1 III	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.1	1356	76
6.		Panasonic G9 II	Four Thirds	25.0	5776	4336	5.7K/60p	23.4	13.5	1710	78
7.		Panasonic G85	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.5	656	71
8.		Panasonic GH4	Four Thirds	15.9	4608	3456	4K/30p	23.2	12.8	791	74
9.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
10.		Panasonic GH5 II	Four Thirds	20.2	5184	3888	4K/60p	23.7	13.1	1136	79
11.		Panasonic GH5s	Four Thirds	9.9	3680	2700	4K/60p	23.1	12.8	1154	74
12.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
13.		Panasonic GX9	Four Thirds	20.2	5184	3888	4K/30p	23.1	12.8	1163	74
14.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
15.		Sony A7 II	Full Frame	24.0	6000	4000	1080/60p	24.9	13.6	2449	90
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (4K/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the G9 offers a substantially higher resolution than the one in the S5 (3680k vs 2360k dots). The following table reports on some other key feature differences and similarities of the Panasonic G9, the Panasonic S5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic G9	3680	Y	3.0 / 1040	swivel	Y	1/8000s	20.0/s	n	Y
2.		Panasonic S5	2360	n	3.0 / 1840	swivel	Y	1/8000s	7.0/s	n	Y
3.		Nikon Z6 II	3690	Y	3.2 / 2100	tilting	Y	1/8000s	14.0/s	n	Y
4.		Olympus E-M1 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
5.		Olympus E-M1 III	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
6.		Panasonic G9 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	10.0/s	n	Y
7.		Panasonic G85	2360	n	3.0 / 1040	swivel	Y	1/4000s	9.0/s	Y	Y
8.		Panasonic GH4	2359	n	3.0 / 1036	swivel	Y	1/8000s	12.0/s	Y	n
9.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
10.		Panasonic GH5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	12.0/s	n	Y
11.		Panasonic GH5s	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	n
12.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
13.		Panasonic GX9	2760	n	3.0 / 1240	tilting	Y	1/4000s	9.0/s	Y	Y
14.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
15.		Sony A7 II	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the G9, but is missing on the S5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic G9 and the Panasonic S5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the G9 and the S5 write their files to SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. However, while the G9 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s) on both slots, the S5 supports UHS-II only on its first slot and UHS-I (data transfer speed up to 104 MB/s) on the second one.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DC-G9 and Panasonic Lumix DC-S5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic G9	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
2.		Panasonic S5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Nikon Z6 II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
4.		Olympus E-M1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	-
5.		Olympus E-M1 III	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
6.		Panasonic G9 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
7.		Panasonic G85	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Panasonic GH4	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
9.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
10.		Panasonic GH5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
11.		Panasonic GH5s	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
12.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
13.		Panasonic GX9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
14.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
15.		Sony A7 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-

Studio photographers will appreciate that the Panasonic G9 (unlike the S5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The S5 is a recent model that features in the current product line-up of Panasonic. In contrast, the G9 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the G9 was succeeded by the Panasonic G9 II. Further information on the features and operation of the G9 and S5 can be found, respectively, in the Panasonic G9 Manual (free pdf) or the online Panasonic S5 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Panasonic G9 and the Panasonic S5? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Panasonic Lumix DC-G9:

• More detailed viewfinder: Has higher resolution electronic viewfinder (3680k vs 2360k dots).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.83x vs 0.74x).
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster burst: Shoots at higher frequency (20 vs 7 flaps/sec) to capture the decisive moment.
• More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More affordable: Was introduced into a lower priced segment (15 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in November 2017).

Reasons to prefer the Panasonic Lumix DC-S5:

• More detail: Has more megapixels (24 vs 20.2MP), which boosts linear resolution by 11%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• More detailed LCD: Has a higher resolution rear screen (1840k vs 1040k dots).
• More modern: Reflects 2 years and 9 months of technical progress since the G9 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the G9 comes out slightly ahead of the S5 (8 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic G9 and the Panasonic S5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the G9 and the S5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Panasonic G9	..	+ +	5/5	85/100	5/5	5/5	Nov 2017	1,699	ebay.com
2.		Panasonic S5	4.5/5	+ +	4.5/5	88/100	4.5/5	4.5/5	Sep 2020	1,999	amazon.com
3.		Nikon Z6 II	4.5/5	..	4/5	89/100	4.5/5	4.5/5	Oct 2020	1,999	amazon.com
4.		Olympus E-M1 II	5/5	+ +	5/5	85/100	4.5/5	4.5/5	Sep 2016	1,999	ebay.com
5.		Olympus E-M1 III	5/5	..	5/5	83/100	4.5/5	4/5	Feb 2020	1,799	ebay.com
6.		Panasonic G9 II	5/5	..	4.5/5	87/100	..	4.5/5	Sep 2023	1,899	amazon.com
7.		Panasonic G85	..	+ +	..	84/100	5/5	4.5/5	Sep 2016	899	ebay.com
8.		Panasonic GH4	5/5	+ +	..	85/100	5/5	5/5	Feb 2014	1,499	ebay.com
9.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	1,999	ebay.com
10.		Panasonic GH5 II	4.5/5	..	4.5/5	85/100	4.5/5	5/5	May 2021	1,699	amazon.com
11.		Panasonic GH5s	..	..	4.5/5	84/100	4.5/5	4.5/5	Jan 2018	2,499	amazon.com
12.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	1,199	ebay.com
13.		Panasonic GX9	4/5	+	4/5	84/100	4.5/5	4.5/5	Feb 2018	849	ebay.com
14.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	1,999	amazon.com
15.		Sony A7 II	5/5	+	4/5	82/100	4.5/5	5/5	Nov 2014	1,999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
