Panasonic G9 versus Panasonic GX80

The Panasonic Lumix DC-G9 and the Panasonic Lumix DMC-GX80 (labelled Panasonic GX85 in some countries) are two digital cameras that were revealed to the public, respectively, in November 2017 and April 2016. Both the G9 and the GX80 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The G9 has a resolution of 20.2 megapixel, whereas the GX80 provides 15.8 MP.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Panasonic G9 and the Panasonic GX80. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter. If you prefer, you can also use the toggle button to switch to a comparison in percentage terms (in this case, the camera on the left – the G9 – represents the basis or 100 percent across all the size and weight measures).

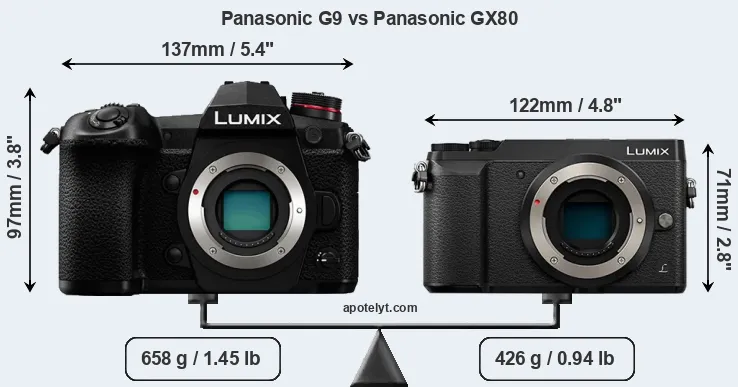

Panasonic G9 vs Panasonic GX80 front

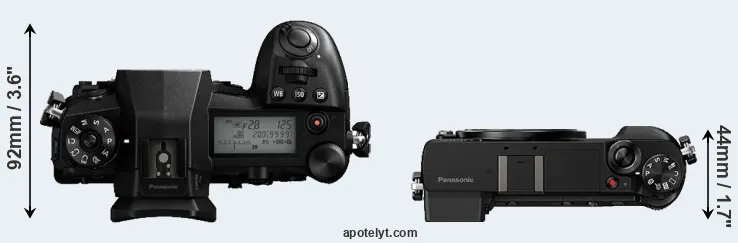

G9 versus GX80 top view

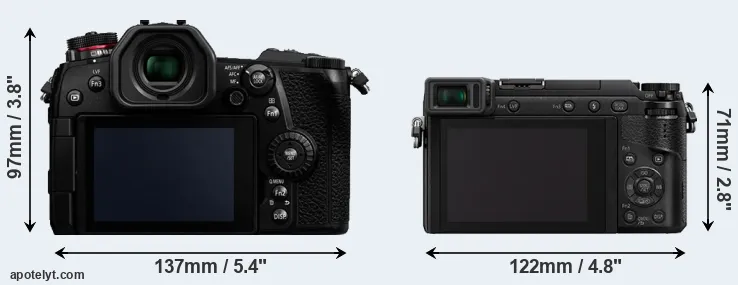

G9 and GX80 rear side
Body view (G9 on the left)

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX80 is considerably smaller (35 percent) than the Panasonic G9. Moreover, the GX80 is substantially lighter (35 percent) than the G9. It is worth mentioning in this context that the G9 is splash and dust resistant, while the GX80 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can find an overview of suitable optics in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

Camera Body Specifications
Camera Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
(CIPA)
Weather
Sealing
(y/n)
Camera
Launch
(year)
Launch
Price
(USD)
Street
Price
(amazon)
Used
Price
(ebay)
Panasonic G9 (⇒ rgt) 137 mm 97 mm 92 mm 658 g 400 YES 2017 1,699 latest check
Panasonic GX80 (⇒ lft) 122 mm 71 mm 44 mm 426 g 290 no 2016 799 latest check
Fujifilm X-Pro2 (⇒ lft | rgt) 141 mm 83 mm 46 mm 495 g 350 YES 2016 1,699 latest check
Fujifilm X-T2 (⇒ lft | rgt) 133 mm 92 mm 49 mm 507 g 340 YES 2016 1,599 latest check
Nikon D500 (⇒ lft | rgt) 147 mm 115 mm 81 mm 860 g 1240 YES 2016 1,999 latest check
Olympus E-M1 II (⇒ lft | rgt) 134 mm 91 mm 67 mm 574 g 440 YES 2016 1,999 latest check
Olympus PEN-F (⇒ lft | rgt) 125 mm 72 mm 37 mm 427 g 330 no 2016 1,199 latest check
Panasonic GH5 (⇒ lft | rgt) 139 mm 98 mm 87 mm 725 g 410 YES 2017 1,999 latest check
Panasonic G85 (⇒ lft | rgt) 128 mm 89 mm 74 mm 505 g 330 YES 2016 899 latest check
Panasonic GX85 (⇒ lft | rgt) 122 mm 71 mm 44 mm 426 g 290 no 2016 799 latest check
Panasonic GX8 (⇒ lft | rgt) 133 mm 78 mm 63 mm 487 g 330 YES 2015 1,199 latest check
Sony A6500 (⇒ lft | rgt) 120 mm 67 mm 53 mm 453 g 350 YES 2016 1,399 latest check

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The GX80 was launched at a markedly lower price (by 53 percent) than the G9, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tent to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

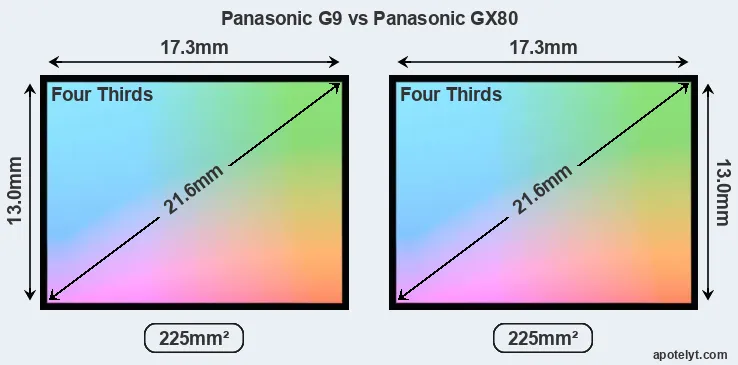

Panasonic G9 and Panasonic GX80 sensor measures
Sensor size
noscript
Sensor size

While the two cameras under review share the same sensor size, the G9 offers a higher resolution of 20.2 megapixel, compared with 15.8 MP of the GX80. This megapixel advantage translates into a 13 percent gain in linear resolution. On the other hand, these sensor specs imply that the G9 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 3.77μm for the GX80). In this context, it should be noted, however, that the G9 is a somewhat more recent model (by 1 year and 7 months) than the GX80, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

Unlike the GX80, the G9 has the capacity to capture high quality composite images (80.6MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

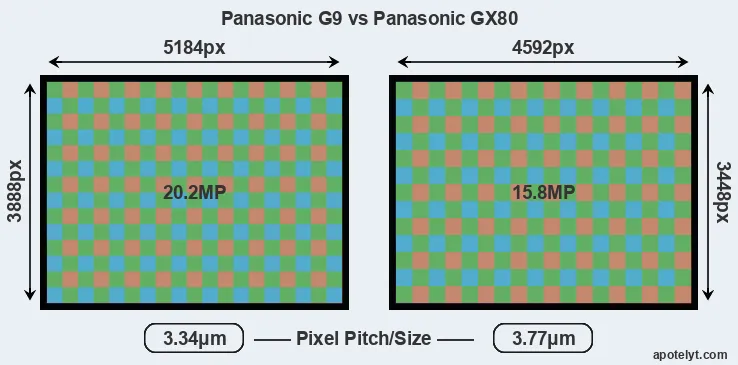

G9 versus GX80 MP
Sensor resolution
noscript
Sensor resolution

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics
Camera Sensor
Class
Resolution
(Megapixel)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
Panasonic G9 (⇒ rgt) Four Thirds 20.2 5184 3888 4K/60p - - - -
Panasonic GX80 (⇒ lft) Four Thirds 15.8 4592 3448 4K/30p 22.9 12.6 662 71
Fujifilm X-Pro2 (⇒ lft | rgt) APS-C 24.0 6000 4000 1080/60p - - - -
Fujifilm X-T2 (⇒ lft | rgt) APS-C 24.0 6000 4000 4K/30p - - - -
Nikon D500 (⇒ lft | rgt) APS-C 20.7 5568 3712 4K/30p 24.0 14.0 1324 83
Olympus E-M1 II (⇒ lft | rgt) Four Thirds 20.2 5184 3888 4K/30p 23.7 12.8 1312 80
Olympus PEN-F (⇒ lft | rgt) Four Thirds 20.2 5184 3888 1080/60p 23.1 12.4 894 74
Panasonic GH5 (⇒ lft | rgt) Four Thirds 20.2 5184 3888 4K/60p 23.9 13.0 807 77
Panasonic G85 (⇒ lft | rgt) Four Thirds 15.8 4592 3448 4K/30p 22.8 12.5 656 71
Panasonic GX85 (⇒ lft | rgt) Four Thirds 15.8 4592 3448 4K/30p 22.9 12.6 662 71
Panasonic GX8 (⇒ lft | rgt) Four Thirds 20.2 5184 3888 4K/30p 23.5 12.6 806 75
Sony A6500 (⇒ lft | rgt) APS-C 24.0 6000 4000 4K/30p 24.5 13.7 1405 85

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the G9 provides a higher frame rate than the GX80. It can shoot video footage at 4K/60p, while the GX80 is limited to 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the G9 offers a substantially higher resolution than the one in the GX80 (3680k vs 2765k dots). The table below summarizes some of the other core capabilities of the Panasonic G9 and Panasonic GX80 in connection with corresponding information for a sample of similar cameras. If needed, the dpreview camera hub, for example, contains further detail on the cameras' specs.

Core Features
Camera Viewfinder
(Type or
'000 dots)
Control
Panel
(Y/n)
LCD
Size
(inch)
LCD
Resolution
('000 dots)
LCD
Attach-
ment
Touch
Screen
(Y/n)
Shutter
speed
(1/sec)
Shutter
flaps
(1/sec))
Build-in
Flash
(GN)
Build-in
Stab
Panasonic G9 (⇒ rgt) 3680 YES 3.0 1040 swivel YES 8000 20.0 no YES
Panasonic GX80 (⇒ lft) 2765 no 3.0 1040 tilting YES 4000 8.0 6 YES
Fujifilm X-Pro2 (⇒ lft | rgt) 2360 no 3.0 1620 fixed no 8000 8.0 no no
Fujifilm X-T2 (⇒ lft | rgt) 2360 no 3.0 1040 tilting no 8000 14.0 no no
Nikon D500 (⇒ lft | rgt) optical YES 3.2 2359 tilting YES 8000 10.0 no no
Olympus E-M1 II (⇒ lft | rgt) 2360 no 3.0 1037 swivel YES 8000 18.0 no YES
Olympus PEN-F (⇒ lft | rgt) 2360 no 3.0 1037 swivel YES 8000 10.0 no YES
Panasonic GH5 (⇒ lft | rgt) 3680 no 3.2 1620 swivel YES 8000 12.0 no YES
Panasonic G85 (⇒ lft | rgt) 2360 no 3.0 1040 swivel YES 4000 9.0 6.2 YES
Panasonic GX85 (⇒ lft | rgt) 2765 no 3.0 1040 tilting YES 4000 8.0 6 YES
Panasonic GX8 (⇒ lft | rgt) 2360 no 3.0 1040 swivel YES 8000 10.0 no YES
Sony A6500 (⇒ lft | rgt) 2300 no 3.0 922 tilting YES 4000 11.0 6 YES

Both the G9 and the GX80 are current models that good online retailers will have in stock. You can check the latest prices, for example, at amazon. The GX80 replaced the earlier Panasonic GX7, while the G9 followed on from the Panasonic G85.

Summary

So what conclusions can be drawn? Is there a clear favorite between the Panasonic G9 and the Panasonic G9? A synthesis of the relative strong points of each of the models is listed below.


Reasons to prefer the Panasonic Lumix DC-G9:

  • More detail: Offers more megapixels (20.2 vs 15.8MP) with a 13% higher linear resolution.
  • High quality composites: Can combine several shots after pixel-shifting its sensor.
  • Better video: Provides higher movie framerates (4K/60p vs 4K/30p).
  • More detailed viewfinder: Has a higher resolution electronic viewfinder (3680k vs 2765k dots).
  • Easier setting verification: Has an LCD display on top to control shooting parameters.
  • More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
  • Faster shutter: Has a higher mechanical shutter speed (8000/sec vs 4000/sec) to freeze action.
  • Faster burst: Shoots at higher frequency (20 vs 8 flaps/sec) to capture the decisive moment.
  • Longer lasting: Can take more shots (400 versus 290) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • More modern: Is somewhat more recent (announced 1 year and 7 months after the GX80).

Arguments in favor of the Panasonic Lumix DMC-GX80:

  • More compact: Is smaller (122x71mm vs 137x97mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 232g or 35 percent) and is thus easier to take along.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • More affordable: Was introduced into a lower priced category (53 percent cheaper at launch).
  • More heavily discounted: Has been on the market for longer (launched in November 2017).

If the count of relative strengths (bullet points above) is taken as a measure, the G9 is the clear winner of the match-up (11 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs.

G9 11:05 GX80

In any case, while the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it says nothing about, for example, the handling, responsiveness, and overall imaging quality of the G9 and the GX80 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable. This is where reviews by experts come in. The table below summarizes the assessments of some of the best known camera review sites. The full reviews are available, respectively, at cameralabs.com, dpreview.com, ephotozine.com, imaging-resource.com, and photographyblog.com.

Review scores
Camera camera
labs
dp
review
ephoto
zine
imaging
resource
photography
blog
Camera
Launch
(year)
Launch
Price
(USD)
Street
Price
(amazon)
Used
Price
(ebay)
Panasonic G9 (⇒ rgt) .. .. .. .. .. 2017 1,699 latest check
Panasonic GX80 (⇒ lft) HiRec 82/100 Silver 5/5 4.5/5 5/5 2016 799 latest check
Fujifilm X-Pro2 (⇒ lft | rgt) Rec 83/100 Silver 4.5/5 4.5/5 4.5/5 2016 1,699 latest check
Fujifilm X-T2 (⇒ lft | rgt) HiRec 86/100 Gold 4.5/5 5/5 5/5 2016 1,599 latest check
Nikon D500 (⇒ lft | rgt) HiRec 91/100 Gold 4.5/5 5/5 5/5 2016 1,999 latest check
Olympus E-M1 II (⇒ lft | rgt) HiRec 85/100 Gold 4.5/5 5/5 4.5/5 2016 1,999 latest check
Olympus PEN-F (⇒ lft | rgt) - 82/100 Silver 4.5/5 4.5/5 5/5 2016 1,199 latest check
Panasonic GH5 (⇒ lft | rgt) HiRec 85/100 Gold 4.5/5 5/5 5/5 2017 1,999 latest check
Panasonic G85 (⇒ lft | rgt) HiRec 84/100 Gold 5/5 4.5/5 4.5/5 2016 899 latest check
Panasonic GX85 (⇒ lft | rgt) HiRec 82/100 Silver 5/5 4.5/5 5/5 2016 799 latest check
Panasonic GX8 (⇒ lft | rgt) Rec 82/100 Silver 4.5/5 5/5 4.5/5 2015 1,199 latest check
Sony A6500 (⇒ lft | rgt) HiRec 85/100 Silver 4.5/5 5/5 4.5/5 2016 1,399 latest check

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
