Olympus E-PL1 vs Pentax K-5

The Olympus PEN E-PL1 and the Pentax K-5 are two digital cameras that were officially introduced, respectively, in February 2010 and September 2010. The E-PL1 is a mirrorless interchangeable lens camera, while the K-5 is a DSLR. The cameras are based on a Four Thirds (E-PL1) and an APS-C (K-5) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Pentax provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PL1		Pentax K-5
Mirrorless system camera		Digital single lens reflex
Micro Four Thirds lenses		Pentax K mount lenses
12.2 MP – Four Thirds sensor		16.1 MP – APS-C sensor
720/30p Video		1080/25p Video
ISO 200-3,200		ISO 100-12,800 (80 - 51,200)
Viewfinder optional		Optical viewfinder
2.7" LCD – 230k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		7 shutter flaps per second
In-body stabilization		In-body stabilization
not weather sealed		Weathersealed body
290 shots per battery charge		740 shots per battery charge
115 x 72 x 42 mm, 334 g		131 x 97 x 73 mm, 760 g

Check E-PL1 offers at
ebay.com
Check K-5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL1 and the Pentax K-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

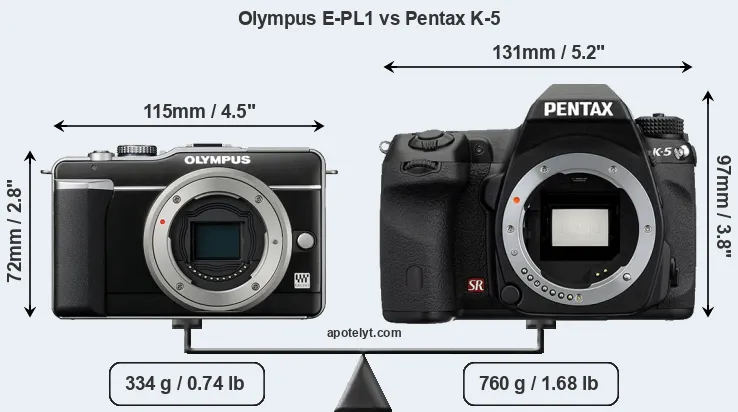

An illustration of the physical size and weight of the Olympus E-PL1 and the Pentax K-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-PL1 can be obtained in four different colors (black, blue, yellow, white), while the K-5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-5 is considerably larger (53 percent) than the Olympus E-PL1. Moreover, the K-5 is substantially heavier (128 percent) than the E-PL1. It is noteworthy in this context that the K-5 is splash and dust-proof, while the E-PL1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the E-PL1 gets 290 shots out of its Olympus BLS-1 battery, while the K-5 can take 740 images on a single charge of its Pentax D-LI90 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
2.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	US$ 1 099	ebay.com
3.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
4.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
5.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	US$ 799	ebay.com
6.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	US$ 799	ebay.com
7.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
8.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
9.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	US$ 599	ebay.com
10.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
11.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
12.		Panasonic GF2	113 mm	68 mm	33 mm	310 g	300	n	Nov 2010	US$ 549	ebay.com
13.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
14.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	US$ 1 099	ebay.com
15.		Pentax K-5 II	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2012	US$ 1 099	ebay.com
16.		Pentax K-30	130 mm	97 mm	71 mm	650 g	410	Y	May 2012	US$ 849	ebay.com
17.		Pentax K-50	130 mm	97 mm	71 mm	650 g	410	Y	Jun 2013	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-PL1 was launched at a markedly lower price (by 45 percent) than the K-5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-PL1 features a Four Thirds sensor and the Pentax K-5 an APS-C sensor. The sensor area in the K-5 is 65 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-PL1 has a native 4:3 aspect ratio, while the one in the K-5 offers a 3:2 aspect.

With 16.1MP, the K-5 offers a higher resolution than the E-PL1 (12.2MP), but the K-5 nevertheless has larger individual pixels (pixel pitch of 4.81μm versus 4.29μm for the E-PL1) due to its larger sensor. Moreover, the K-5 is a somewhat more recent model (by 7 months) than the E-PL1, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Pentax K-5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-5 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Olympus E-PL1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The Olympus PEN E-PL1 has a native sensitivity range from ISO 200 to ISO 3200. The corresponding ISO settings for the Pentax K-5 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 80-51200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the K-5 offers substantially better image quality than the E-PL1 (overall score 28 points higher). The advantage is based on 2.2 bits higher color depth, 4 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
2.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
3.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
4.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
5.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
6.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
7.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
8.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
9.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
10.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
11.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
12.		Panasonic GF2	Four Thirds	12.0	4000	3000	1080/60i	21.2	10.3	506	54
13.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
14.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
15.		Pentax K-5 II	APS-C	16.1	4928	3264	1080/25p	23.8	14.1	1235	82
16.		Pentax K-30	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1129	79
17.		Pentax K-50	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1120	79
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the K-5 provides a better video resolution than the E-PL1. It can shoot movie footage at 1080/25p, while the Olympus is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the K-5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL1 relies on live view and the rear LCD for framing. That said, the E-PL1 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Olympus E-PL1 and Pentax K-5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
2.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
3.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
4.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
5.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
6.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
7.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
8.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
9.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
10.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
11.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
12.		Panasonic GF2	optional	n	3.0 / 460	fixed	Y	1/4000s	2.6/s	Y	n
13.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
14.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
15.		Pentax K-5 II	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
16.		Pentax K-30	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
17.		Pentax K-50	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the K-5, but is missing on the E-PL1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Pentax K-5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-PL1 writes its imaging data to SDHC cards, while the K-5 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL1 and Pentax K-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
2.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
4.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
5.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
6.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
7.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
8.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
9.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
10.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
12.		Panasonic GF2	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
14.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
15.		Pentax K-5 II	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Pentax K-30	Y	mono / mono	-	-	-	2.0	-	-	-
17.		Pentax K-50	Y	mono / mono	-	-	micro	2.0	-	-	-

It is notable that the K-5 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The E-PL1 does not feature such a mic input.

Studio photographers will appreciate that the Pentax K-5 (unlike the E-PL1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the E-PL1 and the K-5 have been discontinued, but can regularly be found used on ebay. The E-PL1 was replaced by the Olympus E-PL2, while the K-5 was followed by the Pentax K-5 II. Further information on the features and operation of the E-PL1 and K-5 can be found, respectively, in the Olympus E-PL1 Manual (free pdf) or the online Pentax K-5 Manual.

Review summary

So what conclusions can be drawn? Is the Olympus E-PL1 better than the Pentax K-5 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Olympus PEN E-PL1:

• More compact: Is smaller (115x72mm vs 131x97mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 426g or 56 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• More affordable: Was introduced into a lower priced category (45 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in February 2010).

Reasons to prefer the Pentax K-5:

• More detail: Has more megapixels (16.1 vs 12.2MP), which boosts linear resolution by 17%.
• Better image quality: Scores substantially higher (28 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (2.2 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (4 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (1.3 stops ISO advantage).
• Better video: Provides higher definition movie capture (1080/25p vs 720/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 230k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (7 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (740 versus 290) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More modern: Was introduced somewhat (7 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the K-5 is the clear winner of the contest (18 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PL1 and the Pentax K-5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the E-PL1 or the K-5 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
2.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	US$ 1 099	ebay.com
3.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
4.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
5.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	US$ 799	ebay.com
6.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	US$ 799	ebay.com
7.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
8.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
9.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	US$ 599	ebay.com
10.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
11.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
12.		Panasonic GF2	3/5	82/100	..	70/100	4.5/5	4.5/5	Nov 2010	US$ 549	ebay.com
13.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
14.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	US$ 1 099	ebay.com
15.		Pentax K-5 II	5/5	..	..	80/100	5/5	4.5/5	Sep 2012	US$ 1 099	ebay.com
16.		Pentax K-30	4/5	..	..	78/100	4.5/5	4.5/5	May 2012	US$ 849	ebay.com
17.		Pentax K-50	5/5	..	..	..	5/5	4.5/5	Jun 2013	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
