Olympus E-P1 vs E-P3

The Olympus PEN E-P1 and the Olympus PEN E-P3 are two enthusiast cameras that were revealed to the public, respectively, in June 2009 and June 2011. Both the E-P1 and the E-P3 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 12.2 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-P1
versus
Olympus E-P3
Olympus E-P1   Olympus E-P3
Mirrorless system camera Mirrorless system camera
Micro Four Thirds lenses Micro Four Thirds lenses
12.2 MP – Four Thirds sensor 12.2 MP – Four Thirds sensor
720/30p Video 1080/60i Video
ISO 100-6,400 ISO 200-12,800
No viewfinder, LCD framing Viewfinder optional
3.0" LCD – 230k dots 3.0" LCD – 614k dots
Fixed screen (not touch-sensitive) Fixed touchscreen
3 shutter flaps per second 3 shutter flaps per second
In-body stabilizationIn-body stabilization
300 shots per battery charge330 shots per battery charge
121 x 70 x 36 mm, 355 g 122 x 69 x 34 mm, 369 g
logo
Check E-P1 offers at
ebay.com
logo
Check E-P3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-P1 and the Olympus PEN E-P3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

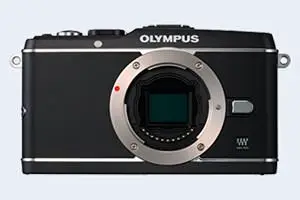

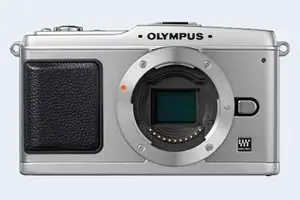

The side-by-side display below illustrates the physical size and weight of the Olympus E-P1 and the Olympus E-P3. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

Both cameras are available in three different colors (black, silver, white).

Size Olympus E-P1 vs Olympus E-P3
Compare E-P1 versus E-P3 top
Comparison E-P1 or E-P3 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-P1 and the Olympus E-P3 are of equal size. However, the E-P3 is slightly heavier (4 percent) than the E-P1. In this context, it is worth noting that neither the E-P1 nor the E-P3 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the E-P1 gets 300 shots out of its Olympus BLS-1 battery, while the E-P3 can take 330 images on a single charge of its Olympus BLS-5 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-P1 121 mm 70 mm 36 mm 355 g 300 i Jun 2009 US$ 799ebay.com
2.

Olympus E-P3 122 mm 69 mm 34 mm 369 g 330 i Jun 2011 US$ 799ebay.com
3.

Olympus E-520 136 mm 92 mm 68 mm 535 g 750 i May 2008 US$ 699ebay.com
4.

Olympus E-620 130 mm 94 mm 60 mm 521 g 500 i Feb 2009 US$ 699ebay.com
5.

Olympus E-P2 121 mm 70 mm 36 mm 355 g 300 i Nov 2009 US$ 799ebay.com
6.

Olympus E-PL1 115 mm 72 mm 42 mm 334 g 290 i Feb 2010 US$ 599ebay.com
7.

Olympus E-PL2 114 mm 72 mm 42 mm 362 g 280 i Jan 2011 US$ 599ebay.com
8.

Olympus E-PL3 110 mm 64 mm 37 mm 313 g 300 i Jun 2011 US$ 599ebay.com
9.

Panasonic G10 124 mm 84 mm 74 mm 388 g 380 i Mar 2010 US$ 499ebay.com
10.

Panasonic GF1 119 mm 71 mm 36 mm 385 g 380 i Sep 2009 US$ 749ebay.com
11.

Panasonic GH1 124 mm 90 mm 45 mm 385 g 300 i Mar 2009 US$ 899ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
  empty Camera
Model

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the E-P3 uses a more advanced image processing engine (TruePic VI) than the E-P1 (TruePic V), with benefits for noise reduction, color accuracy, and processing speed.

Olympus E-P1 and Olympus E-P3 sensor measures

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 12.2 megapixels. This similarity in sensor specs implies that both the E-P1 and the E-P3 have the same pixel density, as well as the same pixel size. It should, however, be noted that the E-P3 is much more recent (by 2 years) than the E-P1, and its sensor will have benefitted from technological advances during this time.

The Olympus PEN E-P1 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Olympus PEN E-P3 are ISO 200 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

E-P1 versus E-P3 MP

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the E-P1 has a notably higher overall DXO score than the E-P3 (overall score 4 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.6 bits higher color depth, 0.3 EV in additional dynamic range, The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-P1 Four Thirds 12.2 4032 3024720/30p21.410.453655
2.

Olympus E-P3 Four Thirds 12.2 4032 30241080/60i20.810.153651
3.

Olympus E-520 Four Thirds 10.0 3648 2736i21.410.454855
4.

Olympus E-620 Four Thirds 12.2 4032 3024i21.310.353655
5.

Olympus E-P2 Four Thirds 12.2 4032 3024720/30p21.510.450556
6.

Olympus E-PL1 Four Thirds 12.2 4032 3024720/30p21.510.148754
7.

Olympus E-PL2 Four Thirds 12.2 4032 3024720/30p21.410.257355
8.

Olympus E-PL3 Four Thirds 12.2 4032 30241080/60i20.910.349952
9.

Panasonic G10 Four Thirds 12.0 4000 3000720/30p21.210.141152
10.

Panasonic GF1 Four Thirds 12.0 4000 3000720/30p21.210.351354
11.

Panasonic GH1 Four Thirds 12.0 4000 30001080/24p21.611.677264
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
  empty Camera
Model

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-P3 provides a better video resolution than the E-P1. It can shoot movie footage at 1080/60i, while the E-P1 is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The E-P1 and the E-P3 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-P3 can be equipped with an optional viewfinder – the VF-3. The adjacent table lists some of the other core features of the Olympus E-P1 and Olympus E-P3 along with similar information for a selection of comparators.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-P1i i3.0 / 230 fixed i 1/4000s 3.0/s i i
2.

Olympus E-P3optional i3.0 / 614 fixed i 1/4000s 3.0/s i i
3.

Olympus E-520optical i2.7 / 215 fixed i 1/4000s 3.5/s i i
4.

Olympus E-620optical i2.7 / 230 swivel i 1/4000s 4.0/s i i
5.

Olympus E-P2optional i3.0 / 230 fixed i 1/4000s 3.0/s i i
6.

Olympus E-PL1optional i2.7 / 230 fixed i 1/2000s 3.0/s i i
7.

Olympus E-PL2optional i3.0 / 460 fixed i 1/4000s 3.0/s i i
8.

Olympus E-PL3optional i3.0 / 460 tilting i 1/4000s 5.5/s i i
9.

Panasonic G10202 i3.0 / 460 fixed i 1/4000s 2.6/s i i
10.

Panasonic GF1optional i3.0 / 460 fixed i 1/4000s 3.0/s i i
11.

Panasonic GH11440 i3.0 / 460 swivel i 1/4000s 3.0/s i i
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
  empty Camera
Model

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-P3 has a touchscreen, while the E-P1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The E-P1 writes its imaging data to SDHC cards, while the E-P3 uses SDXC cards. The E-P3 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-P1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-P1 and Olympus PEN E-P3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-P1istereo / iiimini2.0iii
2.

Olympus E-P3istereo / iiimini2.0iii
3.

Olympus E-520ii / iiii2.0iii
4.

Olympus E-620ii / iiii2.0iii
5.

Olympus E-P2istereo / iiimini2.0iii
6.

Olympus E-PL1istereo / iiimini2.0iii
7.

Olympus E-PL2istereo / iiimini2.0iii
8.

Olympus E-PL3istereo / iiimini2.0iii
9.

Panasonic G10imono / iiimini2.0iii
10.

Panasonic GF1imono / monoiimini2.0iii
11.

Panasonic GH1istereo / iiimini2.0iii
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
  empty Camera
Model

Both the E-P1 and the E-P3 have been discontinued, but can regularly be found used on ebay. The E-P1 was replaced by the Olympus E-P2, while the E-P3 was followed by the Olympus E-P5. Further information on the features and operation of the E-P1 and E-P3 can be found, respectively, in the Olympus E-P1 Manual (free pdf) or the online Olympus E-P3 Manual.

Review summary

So what conclusions can be drawn? Is the Olympus E-P1 better than the Olympus E-P3 or vice versa? A synthesis of the relative strong points of each of the models is listed below.


Advantages of the Olympus PEN E-P1:

  • Better image quality: Scores markedly higher (4 points) in the DXO overall assessment.
  • More heavily discounted: Has been available for much longer (launched in June 2009).


Arguments in favor of the Olympus PEN E-P3:

  • Better jpgs: Has a more modern image processing engine (TruePic VI vs TruePic V).
  • Better video: Provides higher definition movie capture (1080/60i vs 720/30p).
  • More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
  • More detailed LCD: Has a higher resolution rear screen (614k vs 230k dots).
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More modern: Reflects 2 years of technical progress since the E-P1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the E-P3 is the clear winner of the contest (8 : 2 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-P1 02:08 E-P3

How about other alternatives? Do the specifications of the Olympus E-P1 and the Olympus E-P3 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-P1 or the E-P3 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-P1..+..66/1004/54.5/5 Jun 2009 US$ 799ebay.com
2.

Olympus E-P3..83/100..74/1004.5/54.5/5 Jun 2011 US$ 799ebay.com
3.

Olympus E-520..87/100..+ +4.5/54.5/5 May 2008 US$ 699ebay.com
4.

Olympus E-6203/588/100..72/1004.5/55/5 Feb 2009 US$ 699ebay.com
5.

Olympus E-P23/5+..69/1004/54.5/5 Nov 2009 US$ 799ebay.com
6.

Olympus E-PL1..86/100..69/1004/54.5/5 Feb 2010 US$ 599ebay.com
7.

Olympus E-PL23/583/100..71/1004.5/54.5/5 Jan 2011 US$ 599ebay.com
8.

Olympus E-PL33/5+ +..72/1004.5/54/5 Jun 2011 US$ 599ebay.com
9.

Panasonic G103/5....70/1004/54/5 Mar 2010 US$ 499ebay.com
10.

Panasonic GF1..85/100..69/1004.5/54.5/5 Sep 2009 US$ 749ebay.com
11.

Panasonic GH1..+ +..72/1004.5/54.5/5 Mar 2009 US$ 899ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
  empty  Camera
 Model

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check E-P1 offers at
ebay.com
logo
Check E-P3 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
  • Credit Card
  • Canon 1D
  • Canon 1D Mark II
  • Canon 1D Mark II N
  • Canon 1D Mark III
  • Canon 1D Mark IV
  • Canon 1Ds
  • Canon 1Ds Mark II
  • Canon 1Ds Mark III
  • Canon 1D C
  • Canon 1D X
  • Canon 1D X Mark II
  • Canon 1D X Mark III
  • Canon 5D
  • Canon 5D Mark II
  • Canon 5D Mark III
  • Canon 5D Mark IV
  • Canon 5DS
  • Canon 5DS R
  • Canon 6D
  • Canon 6D Mark II
  • Canon 7D
  • Canon 7D II
  • Canon 10D
  • Canon 20D
  • Canon 30D
  • Canon 40D
  • Canon 50D
  • Canon 60D
  • Canon 70D
  • Canon 77D
  • Canon 80D
  • Canon 90D
  • Canon D30
  • Canon D60
  • Canon G1 X
  • Canon G1 X Mark II
  • Canon G1 X Mark III
  • Canon G3 X
  • Canon G5 X
  • Canon G5 X Mark II
  • Canon G7 X
  • Canon G7 X Mark II
  • Canon G7 X Mark III
  • Canon G9 X
  • Canon G9 X Mark II
  • Canon G12
  • Canon G15
  • Canon G16
  • Canon M
  • Canon M3
  • Canon M5
  • Canon M6
  • Canon M6 Mark II
  • Canon M10
  • Canon M50
  • Canon M50 Mark II
  • Canon M100
  • Canon M200
  • Canon R
  • Canon R1
  • Canon R3
  • Canon R5
  • Canon R5 Mark II
  • Canon R5 C
  • Canon R6
  • Canon R6 Mark II
  • Canon R7
  • Canon R8
  • Canon R10
  • Canon R50
  • Canon R50 V
  • Canon R100
  • Canon RP
  • Canon S120
  • Canon SL1
  • Canon SL2
  • Canon SL3
  • Canon SX1
  • Canon SX10
  • Canon SX20
  • Canon SX30
  • Canon SX40
  • Canon SX50
  • Canon SX60
  • Canon SX70
  • Canon SX400
  • Canon SX410
  • Canon SX420
  • Canon SX430
  • Canon SX500
  • Canon SX510
  • Canon SX520
  • Canon SX530
  • Canon SX540
  • Canon SX600
  • Canon SX610
  • Canon SX620
  • Canon SX700
  • Canon SX710
  • Canon SX720
  • Canon SX730
  • Canon SX740
  • Canon Rebel
  • Canon T1i
  • Canon T2i
  • Canon T3
  • Canon T3i
  • Canon T4i
  • Canon T5
  • Canon T5i
  • Canon T6
  • Canon T6i
  • Canon T6s
  • Canon T7
  • Canon T7i
  • Canon T8i
  • Canon T100
  • Canon V1
  • Canon XC10
  • Canon XS
  • Canon XSi
  • Canon XT
  • Canon XTi
  • Contax N Digital
  • Epson R-D1
  • Fujifilm GFX 50R
  • Fujifilm GFX 50S
  • Fujifilm GFX 50S II
  • Fujifilm GFX 100
  • Fujifilm GFX 100 II
  • Fujifilm GFX 100RF
  • Fujifilm GFX 100S
  • Fujifilm GFX 100S II
  • Fujifilm X-A1
  • Fujifilm X-A2
  • Fujifilm X-A3
  • Fujifilm X-A5
  • Fujifilm X-A7
  • Fujifilm X-A10
  • Fujifilm X-E1
  • Fujifilm X-E2
  • Fujifilm X-E2S
  • Fujifilm X-E3
  • Fujifilm X-E4
  • Fujifilm X-E5
  • Fujifilm X-H1
  • Fujifilm X-H2
  • Fujifilm X-H2S
  • Fujifilm X-M1
  • Fujifilm X-M5
  • Fujifilm X-Pro1
  • Fujifilm X-Pro2
  • Fujifilm X-Pro3
  • Fujifilm X-S10
  • Fujifilm X-S20
  • Fujifilm X-T1
  • Fujifilm X-T2
  • Fujifilm X-T3
  • Fujifilm X-T4
  • Fujifilm X-T5
  • Fujifilm X-T10
  • Fujifilm X-T20
  • Fujifilm X-T30
  • Fujifilm X-T30 II
  • Fujifilm X-T50
  • Fujifilm X-T100
  • Fujifilm X-T200
  • Fujifilm X10
  • Fujifilm X20
  • Fujifilm X30
  • Fujifilm X70
  • Fujifilm X100
  • Fujifilm X100S
  • Fujifilm X100T
  • Fujifilm X100F
  • Fujifilm X100V
  • Fujifilm X100VI
  • Fujifilm XF10
  • Fujifilm XQ1
  • Fujifilm XQ2
  • Fujifilm XP120
  • Fujifilm XP130
  • Fujifilm XP140
  • Hasselblad X1D
  • Hasselblad X1D II
  • Hasselblad X2D 100C
  • Kodak AZ901
  • Kodak S-1
  • Leica C-LUX
  • Leica CL
  • Leica D-LUX Typ 109
  • Leica D-LUX 5
  • Leica D-LUX 6
  • Leica D-LUX 7
  • Leica D-LUX 8
  • Leica Digilux 3
  • Leica M Typ 240
  • Leica M-E Typ 240
  • Leica M Typ 262
  • Leica M8
  • Leica M9
  • Leica M10
  • Leica M10-P
  • Leica M10-R
  • Leica M11
  • Leica Q Typ 116
  • Leica Q2
  • Leica Q3
  • Leica S1
  • Leica S2
  • Leica S3
  • Leica S Typ 006
  • Leica S-E Typ 006
  • Leica S Typ 007
  • Leica SL
  • Leica SL2
  • Leica SL2-S
  • Leica SL3
  • Leica SL3-S
  • Leica T
  • Leica TL
  • Leica TL2
  • Leica V-LUX 1
  • Leica V-LUX 2
  • Leica V-LUX 3
  • Leica V-LUX 4
  • Leica V-LUX Typ 114
  • Leica V-LUX 5
  • Leica X1
  • Leica X2
  • Leica X Vario
  • Leica X Typ 113
  • Leica X-U Typ 113
  • Leitz Ur-Leica
  • Nikon 1 J4
  • Nikon 1 J5
  • Nikon 1 V1
  • Nikon 1 V2
  • Nikon 1 V3
  • Nikon Coolpix A
  • Nikon A1000
  • Nikon B500
  • Nikon B600
  • Nikon B700
  • Nikon D1
  • Nikon D1H
  • Nikon D1X
  • Nikon D2H
  • Nikon D2X
  • Nikon D2Xs
  • Nikon D3
  • Nikon D3S
  • Nikon D3X
  • Nikon D4
  • Nikon D4S
  • Nikon D5
  • Nikon D6
  • Nikon D40
  • Nikon D40X
  • Nikon D50
  • Nikon D60
  • Nikon D70
  • Nikon D70s
  • Nikon D80
  • Nikon D90
  • Nikon D100
  • Nikon D200
  • Nikon D300
  • Nikon D300S
  • Nikon D500
  • Nikon D600
  • Nikon D610
  • Nikon D700
  • Nikon D750
  • Nikon D780
  • Nikon D800
  • Nikon D800E
  • Nikon D810
  • Nikon D850
  • Nikon D3000
  • Nikon D3100
  • Nikon D3200
  • Nikon D3300
  • Nikon D3400
  • Nikon D3500
  • Nikon D5000
  • Nikon D5100
  • Nikon D5200
  • Nikon D5300
  • Nikon D5500
  • Nikon D5600
  • Nikon D7000
  • Nikon D7100
  • Nikon D7200
  • Nikon D7500
  • Nikon Df
  • Nikon L840
  • Nikon P900
  • Nikon P950
  • Nikon P1000
  • Nikon P1100
  • Nikon P7800
  • Nikon W150
  • Nikon W300
  • Nikon Z5
  • Nikon Z5 II
  • Nikon Z6
  • Nikon Z6 II
  • Nikon Z6 III
  • Nikon Z7
  • Nikon Z7 II
  • Nikon Z8
  • Nikon Z9
  • Nikon Z30
  • Nikon Z50
  • Nikon Z50 II
  • Nikon Zf
  • Nikon Z fc
  • Olympus E-1
  • Olympus E-3
  • Olympus E-5
  • Olympus E-30
  • Olympus E-300
  • Olympus E-330
  • Olympus E-400
  • Olympus E-410
  • Olympus E-420
  • Olympus E-450
  • Olympus E-500
  • Olympus E-510
  • Olympus E-520
  • Olympus E-600
  • Olympus E-620
  • Olympus E-M1
  • Olympus E-M1 II
  • Olympus E-M1 III
  • Olympus E-M1X
  • Olympus E-M5
  • Olympus E-M5 II
  • Olympus E-M5 III
  • Olympus E-M10
  • Olympus E-M10 II
  • Olympus E-M10 III
  • Olympus E-M10 IV
  • Olympus E-P1
  • Olympus E-P2
  • Olympus E-P3
  • Olympus E-P5
  • Olympus E-P7
  • Olympus E-PL1
  • Olympus E-PL2
  • Olympus E-PL3
  • Olympus E-PL5
  • Olympus E-PL6
  • Olympus E-PL7
  • Olympus E-PL8
  • Olympus E-PL9
  • Olympus E-PL10
  • Olympus E-PM1
  • Olympus E-PM2
  • Olympus PEN-F
  • Olympus Stylus 1
  • Olympus Stylus 1s
  • Olympus TG-4
  • Olympus TG-5
  • Olympus TG-6
  • Olympus XZ-1
  • Olympus XZ-2
  • OM System OM-1
  • OM System OM-1 II
  • OM System OM-3
  • OM System OM-5
  • OM System OM-5 II
  • OM System TG-7
  • Panasonic FZ80
  • Panasonic FZ80D
  • Panasonic FZ100
  • Panasonic FZ150
  • Panasonic FZ200
  • Panasonic FZ300
  • Panasonic FZ1000
  • Panasonic FZ1000 II
  • Panasonic FZ2500
  • Panasonic G1
  • Panasonic G2
  • Panasonic G3
  • Panasonic G5
  • Panasonic G6
  • Panasonic G7
  • Panasonic G9
  • Panasonic G9 II
  • Panasonic G10
  • Panasonic G85
  • Panasonic G97
  • Panasonic G95
  • Panasonic G100
  • Panasonic GF1
  • Panasonic GF2
  • Panasonic GF3
  • Panasonic GF5
  • Panasonic GF6
  • Panasonic GF7
  • Panasonic GH1
  • Panasonic GH2
  • Panasonic GH3
  • Panasonic GH4
  • Panasonic GH5
  • Panasonic GH5 II
  • Panasonic GH5s
  • Panasonic GH6
  • Panasonic GH7
  • Panasonic GM1
  • Panasonic GM5
  • Panasonic GX1
  • Panasonic GX7
  • Panasonic GX8
  • Panasonic GX9
  • Panasonic GX85
  • Panasonic GX850
  • Panasonic L1
  • Panasonic L10
  • Panasonic LF1
  • Panasonic LX5
  • Panasonic LX7
  • Panasonic LX10
  • Panasonic LX100
  • Panasonic LX100 II
  • Panasonic S1
  • Panasonic S1 II
  • Panasonic S1H
  • Panasonic S1R
  • Panasonic S1R II
  • Panasonic S5
  • Panasonic S5 II
  • Panasonic S9
  • Panasonic TS7
  • Panasonic ZS70
  • Panasonic ZS80
  • Panasonic ZS100
  • Panasonic ZS200
  • Pentax 645D
  • Pentax 645Z
  • Pentax K-1
  • Pentax K-1 II
  • Pentax K-3
  • Pentax K-3 II
  • Pentax K-3 III
  • Pentax K-5
  • Pentax K-5 II
  • Pentax K-30
  • Pentax K-50
  • Pentax K-70
  • Pentax K-500
  • Pentax KP
  • Pentax K-S1
  • Pentax K-S2
  • Pentax MX-1
  • Pentax Q
  • Pentax WG-8
  • Pentax WG-90
  • Pentax WG-1000
  • Ricoh GR
  • Ricoh GR II
  • Ricoh GR III
  • Ricoh GR IIIx
  • Ricoh WG-6
  • Ricoh WG-60
  • Samsung NX1
  • Samsung NX30
  • Samsung NX500
  • Sigma fp
  • Sigma fp L
  • Sony A1
  • Sony A1 II
  • Sony A7
  • Sony A7 II
  • Sony A7 III
  • Sony A7 IV
  • Sony A7C
  • Sony A7C II
  • Sony A7C R
  • Sony A7R
  • Sony A7R II
  • Sony A7R III
  • Sony A7R IIIA
  • Sony A7R IV
  • Sony A7R IVA
  • Sony A7R V
  • Sony A7S
  • Sony A7S II
  • Sony A7S III
  • Sony A9
  • Sony A9 II
  • Sony A9 III
  • Sony A58
  • Sony A68
  • Sony A77
  • Sony A77 II
  • Sony A99
  • Sony A99 II
  • Sony A850
  • Sony A900
  • Sony A3000
  • Sony A5000
  • Sony A5100
  • Sony A6000
  • Sony A6100
  • Sony A6300
  • Sony A6400
  • Sony A6500
  • Sony A6600
  • Sony A6700
  • Sony H200
  • Sony H300
  • Sony H400
  • Sony HX80
  • Sony HX90V
  • Sony HX95
  • Sony HX99
  • Sony HX350
  • Sony HX400V
  • Sony NEX-3
  • Sony NEX-3N
  • Sony NEX-5
  • Sony NEX-5N
  • Sony NEX-5R
  • Sony NEX-5T
  • Sony NEX-6
  • Sony NEX-7
  • Sony NEX-C3
  • Sony NEX-F3
  • Sony RX0
  • Sony RX0 II
  • Sony RX1
  • Sony RX1R
  • Sony RX1R II
  • Sony RX1R III
  • Sony RX10
  • Sony RX10 II
  • Sony RX10 III
  • Sony RX10 IV
  • Sony RX100
  • Sony RX100 II
  • Sony RX100 III
  • Sony RX100 IV
  • Sony RX100 V
  • Sony RX100 VI
  • Sony RX100 VII
  • Sony WX800
  • Sony ZV-1
  • Sony ZV-1 II
  • Sony ZV-1F
  • Sony ZV-E1
  • Sony ZV-E10
  • Sony ZV-E10 II
  • YI M1
  • Zeiss ZX1
loader
ad

Specifications: Olympus E-P1 vs Olympus E-P3

Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

Camera Specifications
Camera Model Olympus E-P1 Olympus E-P3
Camera Type Mirrorless system camera Mirrorless system camera
Camera Lens Micro Four Thirds lenses Micro Four Thirds lenses
Launch Date June 2009 June 2011
Launch Price USD 799 USD 799
Sensor Specs Olympus E-P1 Olympus E-P3
Sensor Technology CMOS CMOS
Sensor Format Four Thirds Sensor Four Thirds Sensor
Sensor Size 17.3 x 13.0 mm 17.3 x 13.0 mm
Sensor Area 224.9 mm2 224.9 mm2
Sensor Diagonal 21.6 mm 21.6 mm
Crop Factor 2.0x 2.0x
Sensor Resolution 12.2 Megapixels 12.2 Megapixels
Image Resolution 4032 x 3024 pixels 4032 x 3024 pixels
Pixel Pitch 4.29 μm 4.29 μm
Pixel Density 5.42 MP/cm2 5.42 MP/cm2
Moiré control Anti-Alias filter Anti-Alias filter
Movie Capability 720/30p Video 1080/60i Video
ISO Setting 100 - 6,400 ISO 200 - 12,800 ISO
Image Processor TruePic V TruePic VI
DXO Sensor Quality (score) 55 51
DXO Color Depth (bits) 21.4 20.8
DXO Dynamic Range (EV) 10.4 10.1
DXO Low Light (ISO) 536 536
Screen Specs Olympus E-P1 Olympus E-P3
Viewfinder Type no viewfinder Viewfinder optional
LCD Framing Live View Live View
Rear LCD Size 3.0inch 3.0inch
LCD Resolution 230k dots 614k dots
LCD Attachment Fixed screen Fixed screen
Touch Input no Touchscreen Touchscreen
Shooting Specs Olympus E-P1 Olympus E-P3
Focus System Contrast-detect AF Contrast-detect AF
Continuous Shooting 3 shutter flaps/s 3 shutter flaps/s
Image StabilizationIn-body stabilizationIn-body stabilization
Fill Flash no On-Board Flash Built-in Flash
Storage Medium SDHC cards SDXC cards
Single or Dual Card Slots Single card slot Single card slot
UHS card support no UHS-I
Connectivity Specs Olympus E-P1 Olympus E-P3
External Flash Hotshoe Hotshoe
USB Connector USB 2.0 USB 2.0
HDMI Port mini HDMI mini HDMI
Wifi Support no Wifi no Wifi
Body Specs Olympus E-P1 Olympus E-P3
Battery Type Olympus BLS-1 Olympus BLS-5
Battery Life (CIPA)300 shots per charge330 shots per charge
Body Dimensions 121 x 70 x 36 mm
(4.8 x 2.8 x 1.4 in)
122 x 69 x 34 mm
(4.8 x 2.7 x 1.3 in)
Camera Weight 355 g (12.5 oz) 369 g (13.0 oz)
logo
Check E-P1 offers at
ebay.com
logo
Check E-P3 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

You are here Home  »  CAM-parator  »  Olympus E-P1 vs Olympus E-P3
