Olympus E-M1 II vs Panasonic S1R

The Olympus OM-D E-M1 Mark II and the Panasonic Lumix DC-S1R are two enthusiast cameras that were officially introduced, respectively, in September 2016 and February 2019. Both the E-M1 II and the S1R are mirrorless interchangeable lens cameras that are based on a Four Thirds (E-M1 II) and a full frame (S1R) sensor. The Olympus has a resolution of 20.2 megapixels, whereas the Panasonic provides 46.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-M1 II
versus
Panasonic S1R
Olympus E-M1 II   Panasonic S1R
Mirrorless system camera Mirrorless system camera
Micro Four Thirds lenses Leica L mount lenses
20.2 MP – Four Thirds sensor 46.7 MP – Full Frame sensor
4K/30p Video 4K/60p Video
ISO 200-25,600 ISO 100-25,600 (50 - 51,200)
Electronic viewfinder (2360k dots) Electronic viewfinder (5760k dots)
3.0" LCD – 1037k dots 3.2" LCD – 2100k dots
Swivel touchscreen Fully flexible touchscreen
18 shutter flaps per second 9 shutter flaps per second
In-body stabilizationIn-body stabilization
Weathersealed bodyWeathersealed body
440 shots per battery charge380 shots per battery charge
134 x 91 x 67 mm, 574 g 149 x 110 x 97 mm, 1016 g
logo
Check E-M1 II offers at
ebay.com
logo
Check S1R price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M1 Mark II and the Panasonic Lumix DC-S1R? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Olympus E-M1 II and the Panasonic S1R. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Size Olympus E-M1 II vs Panasonic S1R
Compare E-M1 II versus S1R top
Comparison E-M1 II or S1R rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S1R is notably larger (34 percent) than the Olympus E-M1 II. Moreover, the S1R is substantially heavier (77 percent) than the E-M1 II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the E-M1 II gets 440 shots out of its BLH-1 battery, while the S1R can take 380 images on a single charge of its DMW-BLJ31 power pack. The power pack in the S1R can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-M1 II 134 mm 91 mm 67 mm 574 g 440 Y Sep 2016 1,999ebay.com
2.

Panasonic S1R 149 mm 110 mm 97 mm 1016 g 380 Y Feb 2019 3,699 amazon.com
3.

Canon R5 138 mm 98 mm 88 mm 738 g 320 Y Jul 2020 3,899 amazon.com
4.

Leica SL2 146 mm 107 mm 42 mm 953 g 370 Y Nov 2019 5,999 amazon.com
5.

Nikon Z7 134 mm 101 mm 67 mm 675 g 330 Y Aug 2018 3,399ebay.com
6.

Olympus E-M1 III 134 mm 91 mm 69 mm 580 g 420 Y Feb 2020 1,799 amazon.com
7.

Olympus PEN-F 125 mm 72 mm 37 mm 427 g 330 n Jan 2016 1,199ebay.com
8.

Olympus E-M5 II 124 mm 85 mm 45 mm 469 g 310 Y Feb 2015 1,099ebay.com
9.

Olympus E-M1 130 mm 94 mm 63 mm 497 g 350 Y Sep 2013 1,399ebay.com
10.

OM System OM-1 135 mm 92 mm 73 mm 599 g 520 Y Feb 2022 2,199 amazon.com
11.

Panasonic GH5 II 139 mm 98 mm 87 mm 727 g 400 Y May 2021 1,699 amazon.com
12.

Panasonic S1 149 mm 110 mm 97 mm 1017 g 400 Y Feb 2019 2,499 amazon.com
13.

Panasonic S1H 151 mm 114 mm 110 mm 1052 g 400 Y May 2019 3,999 amazon.com
14.

Panasonic G9 137 mm 97 mm 92 mm 658 g 400 Y Nov 2017 1,699 amazon.com
15.

Panasonic GH5 139 mm 98 mm 87 mm 725 g 410 Y Jan 2017 1,999ebay.com
16.

Panasonic G85 128 mm 89 mm 74 mm 505 g 330 Y Sep 2016 899ebay.com
17.

Panasonic GX8 133 mm 78 mm 63 mm 487 g 330 Y Jul 2015 1,199ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-M1 II was launched at a markedly lower price (by 46 percent) than the S1R, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-M1 II features a Four Thirds sensor and the Panasonic S1R a full frame sensor. The sensor area in the S1R is 284 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the E-M1 II has a native 4:3 aspect ratio, while the one in the S1R offers a 3:2 aspect.

Olympus E-M1 II and Panasonic S1R sensor measures

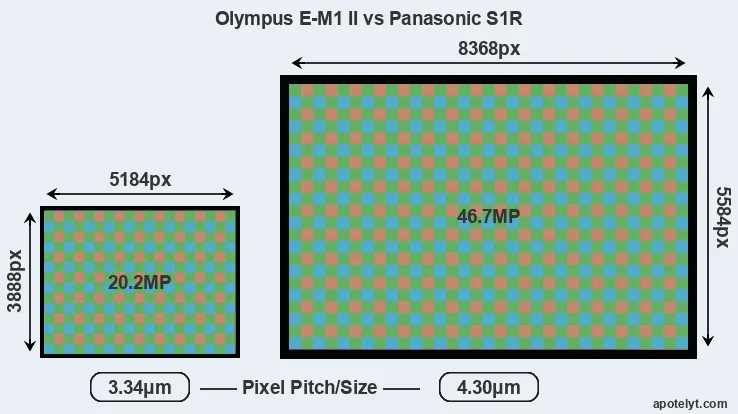

With 46.7MP, the S1R offers a higher resolution than the E-M1 II (20.2MP), but the S1R nevertheless has larger individual pixels (pixel pitch of 4.30μm versus 3.34μm for the E-M1 II) due to its larger sensor. Moreover, the S1R is a much more recent model (by 2 years and 4 months) than the E-M1 II, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Panasonic S1R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S1R for good quality output (200 dots per inch) amounts to 41.8 x 27.9 inches or 106.3 x 70.9 cm, for very good quality (250 dpi) 33.5 x 22.3 inches or 85 x 56.7 cm, and for excellent quality (300 dpi) 27.9 x 18.6 inches or 70.8 x 47.3 cm. The corresponding values for the Olympus E-M1 II are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The E-M1 II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

Both cameras have the capacity to capture high quality composite images by combining multiple shots after shifting the sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Olympus OM-D E-M1 Mark II has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 64-25600. The corresponding ISO settings for the Panasonic Lumix DC-S1R are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-51200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

E-M1 II versus S1R MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the S1R offers substantially better image quality than the E-M1 II (overall score 20 points higher). The advantage is based on 2.7 bits higher color depth, 1.3 EV in additional dynamic range, and 1.4 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-M1 II Four Thirds 20.2 5184 38884K/30p23.712.8131280
2.

Panasonic S1R Full Frame 46.7 8368 55844K/60p26.414.13525100
3.

Canon R5 Full Frame 44.8 8192 54648K/30p25.314.6304295
4.

Leica SL2 Full Frame 46.7 8368 55844K/60p25.314.3286695
5.

Nikon Z7 Full Frame 45.4 8256 55044K/30p26.314.6266899
6.

Olympus E-M1 III Four Thirds 20.2 5184 38884K/30p23.313.1135676
7.

Olympus PEN-F Four Thirds 20.2 5184 38881080/60p23.112.489474
8.

Olympus E-M5 II Four Thirds 15.9 4608 34561080/60p23.012.584273
9.

Olympus E-M1 Four Thirds 15.9 4608 34561080/30p23.012.775773
10.

OM System OM-1 Four Thirds 20.2 5184 38884K/60p23.413.4155377
11.

Panasonic GH5 II Four Thirds 20.2 5184 38884K/60p23.713.1113679
12.

Panasonic S1 Full Frame 24.0 6000 40004K/60p25.214.5333395
13.

Panasonic S1H Full Frame 24.0 6000 40006K/30p25.214.2280594
14.

Panasonic G9 Four Thirds 20.2 5184 38884K/60p23.112.8113874
15.

Panasonic GH5 Four Thirds 20.2 5184 38884K/60p23.913.080777
16.

Panasonic G85 Four Thirds 15.8 4592 34484K/30p22.812.565671
17.

Panasonic GX8 Four Thirds 20.2 5184 38884K/30p23.512.680675
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the S1R provides a faster frame rate than the E-M1 II. It can shoot movie footage at 4K/60p, while the Olympus is limited to 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the S1R offers a substantially higher resolution than the one in the E-M1 II (5760k vs 2360k dots). The adjacent table lists some of the other core features of the Olympus E-M1 II and Panasonic S1R along with similar information for a selection of comparators.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-M1 II2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
2.

Panasonic S1R5760 Y3.2 / 2100 full-flex Y 1/8000s 9.0/s n Y
3.

Canon R55760 Y3.2 / 2100 swivel Y 1/8000s 12.0/s n Y
4.

Leica SL25760 Y3.2 / 2100 fixed Y 1/8000s 10.0/s n Y
5.

Nikon Z73690 Y3.2 / 2100 tilting Y 1/8000s 9.0/s n Y
6.

Olympus E-M1 III2360 n3.0 / 1037 swivel Y 1/8000s 18.0/s n Y
7.

Olympus PEN-F2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
8.

Olympus E-M5 II2360 n3.0 / 1037 swivel Y 1/8000s 10.0/s n Y
9.

Olympus E-M12360 n3.0 / 1037 tilting Y 1/8000s 10.0/s n Y
10.

OM System OM-15760 n3.0 / 1640 swivel Y 1/8000s 10.0/s n Y
11.

Panasonic GH5 II3680 n3.0 / 1840 swivel Y 1/8000s 12.0/s n Y
12.

Panasonic S15760 Y3.2 / 2100 full-flex Y 1/8000s 9.0/s n Y
13.

Panasonic S1H5760 Y3.2 / 2330 swivel Y 1/8000s 9.0/s n Y
14.

Panasonic G93680 Y3.0 / 1040 swivel Y 1/8000s 20.0/s n Y
15.

Panasonic GH53680 n3.2 / 1620 swivel Y 1/8000s 12.0/s n Y
16.

Panasonic G852360 n3.0 / 1040 swivel Y 1/4000s 9.0/s Y Y
17.

Panasonic GX82360 n3.0 / 1040 swivel Y 1/8000s 10.0/s n Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the S1R, but is missing on the E-M1 II is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The E-M1 II has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the S1R does not have a selfie-screen.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M1 II and the Panasonic S1R both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-M1 II writes its imaging data to SDXC cards, while the S1R uses SDXC or XQD cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. However, while the S1R supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s) on both slots, the E-M1 II supports UHS-II only on its first slot and UHS-I (data transfer speed up to 104 MB/s) on the second one.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1 Mark II and Panasonic Lumix DC-S1R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-M1 IIYstereo / monoYYmicro3.0Y--
2.

Panasonic S1RYstereo / monoYYfull3.1Y-Y
3.

Canon R5Ymono / monoYYmicro3.2Y-Y
4.

Leica SL2Ystereo / monoYYfull3.1Y-Y
5.

Nikon Z7Ystereo / monoYYmicro3.1Y-Y
6.

Olympus E-M1 IIIYstereo / monoYYmicro3.1Y-Y
7.

Olympus PEN-FYstereo / mono--micro2.0Y--
8.

Olympus E-M5 IIYstereo / monoY-micro2.0Y--
9.

Olympus E-M1Ystereo / monoY-micro2.0Y--
10.

OM System OM-1Ystereo / monoYYmicro3.0Y-Y
11.

Panasonic GH5 IIYstereo / monoYYfull3.2Y-Y
12.

Panasonic S1Ystereo / monoYYfull3.1Y-Y
13.

Panasonic S1HYstereo / monoYYfull3.1Y-Y
14.

Panasonic G9Ystereo / monoYYfull3.0Y-Y
15.

Panasonic GH5Ystereo / monoYYfull3.1Y-Y
16.

Panasonic G85Ystereo / monoY-micro2.0Y--
17.

Panasonic GX8Ystereo / monoY-micro2.0YY-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

The S1R is a recent model that features in the current product line-up of Panasonic. In contrast, the E-M1 II has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the E-M1 II was succeeded by the Olympus E-M1 III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.

Review summary

So what conclusions can be drawn? Is the Olympus E-M1 II better than the Panasonic S1R or vice versa? Below is a summary of the relative strengths of each of the two contestants.

ilogo

Arguments in favor of the Olympus OM-D E-M1 Mark II:

  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • Faster burst: Shoots at higher frequency (18 vs 9 flaps/sec) to capture the decisive moment.
  • More compact: Is smaller (134x91mm vs 149x110mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 442g or 44 percent) and hence easier to carry around.
  • Longer lasting: Can take more shots (440 versus 380) on a single battery charge.
  • More affordable: Was introduced into a lower priced category (46 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in September 2016).

ilogo

Advantages of the Panasonic Lumix DC-S1R:

  • More detail: Has more megapixels (46.7 vs 20.2MP), which boosts linear resolution by 55%.
  • Better image quality: Scores substantially higher (20 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (2.7 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (1.4 stops ISO advantage).
  • Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
  • More detailed viewfinder: Has higher resolution electronic viewfinder (5760k vs 2360k dots).
  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.78x vs 0.74x).
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2100k vs 1037k dots).
  • Easier travel charging: Can be conveniently charged via its USB port.
  • More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More modern: Reflects 2 years and 4 months of technical progress since the E-M1 II launch.

If the count of individual advantages (bullet points above) is taken as a guide, the S1R is the clear winner of the contest (15 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-M1 II 08:15 S1R

How about other alternatives? Do the specifications of the Olympus E-M1 II and the Panasonic S1R place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-M1 II and the S1R in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Olympus E-M1 II5/5+ +5/585/1004.5/54.5/5 Sep 2016 1,999ebay.com
2.

Panasonic S1R4.5/5..4.6/589/1004.5/54.5/5 Feb 2019 3,699 amazon.com
3.

Canon R54.5/5+4/591/1004.5/54.5/5 Jul 2020 3,899 amazon.com
4.

Leica SL24/5..4.5/5..4.5/54/5 Nov 2019 5,999 amazon.com
5.

Nikon Z75/5+4.8/589/1004.5/55/5 Aug 2018 3,399ebay.com
6.

Olympus E-M1 III5/5..5/583/1004.5/54/5 Feb 2020 1,799 amazon.com
7.

Olympus PEN-F....4/582/1004.5/55/5 Jan 2016 1,199ebay.com
8.

Olympus E-M5 II5/5+ +4.5/581/1005/55/5 Feb 2015 1,099ebay.com
9.

Olympus E-M15/5+ +..84/1004.5/54.5/5 Sep 2013 1,399ebay.com
10.

OM System OM-15/5.......... Feb 2022 2,199 amazon.com
11.

Panasonic GH5 II4.5/5..4.5/585/1004.5/55/5 May 2021 1,699 amazon.com
12.

Panasonic S14.5/5+ +4.5/588/1004.5/54/5 Feb 2019 2,499 amazon.com
13.

Panasonic S1H....4/590/100.... May 2019 3,999 amazon.com
14.

Panasonic G9..+ +5/585/1005/55/5 Nov 2017 1,699 amazon.com
15.

Panasonic GH54.5/5+ +..85/1004.5/55/5 Jan 2017 1,999ebay.com
16.

Panasonic G85..+ +..84/1005/54.5/5 Sep 2016 899ebay.com
17.

Panasonic GX85/5+..82/1004.5/54.5/5 Jul 2015 1,199ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

logo
Check E-M1 II offers at
ebay.com
logo
Check S1R price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader

    Specifications: Olympus E-M1 II vs Panasonic S1R

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-M1 II Panasonic S1R
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Micro Four Thirds lenses Leica L mount lenses
    Launch Date September 2016 February 2019
    Launch Price USD 1,999 USD 3,699
    Sensor Specs Olympus E-M1 II Panasonic S1R
    Sensor Technology CMOS CMOS
    Sensor Format Four Thirds Sensor Full Frame Sensor
    Sensor Size 17.3 x 13.0 mm 36.0 x 24.0 mm
    Sensor Area 224.9 mm2 864 mm2
    Sensor Diagonal 21.6 mm 43.3 mm
    Crop Factor 2.0x 1.0x
    Sensor Resolution 20.2 Megapixels 46.7 Megapixels
    Image Resolution 5184 x 3888 pixels 8368 x 5584 pixels
    Pixel Pitch 3.34 μm 4.30 μm
    Pixel Density 8.96 MP/cm2 5.41 MP/cm2
    Moiré control no AA filter no AA filter
    Movie Capability 4K/30p Video 4K/60p Video
    ISO Setting 200 - 25,600 ISO 100 - 25,600 ISO
    ISO Boost 64 - 25,600 ISO 50 - 51,200 ISO
    Image Processor TruePic VIII Venus
    DXO Sensor Quality (score) 80 100
    DXO Color Depth (bits) 23.7 26.4
    DXO Dynamic Range (EV) 12.8 14.1
    DXO Low Light (ISO) 1312 3525
    Screen Specs Olympus E-M1 II Panasonic S1R
    Viewfinder Type Electronic viewfinder Electronic viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.74x 0.78x
    Viewfinder Resolution 2360k dots 5760k dots
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.2inch
    LCD Resolution 1037k dots 2100k dots
    LCD Attachment Swivel screen Fully flexible screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Olympus E-M1 II Panasonic S1R
    Focus System On-Sensor Phase-detect Contrast-detect AF
    Manual Focusing AidFocus PeakingFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/8000s
    Continuous Shooting 18 shutter flaps/s 9 shutter flaps/s
    Shutter Life Expectancy200 000 actuations400 000 actuations
    Electronic Shutterup to 1/32000sup to 1/8000s
    Time-Lapse PhotographyIntervalometer built-inIntervalometer built-in
    Image StabilizationIn-body stabilizationIn-body stabilization
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards SDXC or XQD cards
    Second Storage Option Dual card slots Dual card slots
    UHS card support Single UHS-II Dual UHS-II
    Connectivity Specs Olympus E-M1 II Panasonic S1R
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket PC Sync socket
    USB Connector USB 3.0 USB 3.1
    HDMI Port micro HDMI full HDMI
    Microphone Port External MIC port External MIC port
    Headphone Socket Headphone port Headphone port
    Wifi Support Wifi built-in Wifi built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Olympus E-M1 II Panasonic S1R
    Environmental SealingWeathersealed bodyWeathersealed body
    Battery Type BLH-1 DMW-BLJ31
    Battery Life (CIPA)440 shots per charge380 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 134 x 91 x 67 mm
    (5.3 x 3.6 x 2.6 in)
    149 x 110 x 97 mm
    (5.9 x 4.3 x 3.8 in)
    Camera Weight 574 g (20.2 oz) 1016 g (35.8 oz)
    logo
    Check E-M1 II offers at
    ebay.com
    logo
    Check S1R price at
    amazon.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Olympus E-M1 II vs Panasonic S1R
