Olympus E-400 vs E-M10

The Olympus E-400 and the Olympus OM-D E-M10 are two digital cameras that were officially introduced, respectively, in September 2006 and January 2014. The E-400 is a DSLR, while the E-M10 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The E-400 has a resolution of 10 megapixels, whereas the E-M10 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-400		Olympus E-M10
Digital single lens reflex		Mirrorless system camera
Four Thirds lenses		Micro Four Thirds lenses
10 MP – Four Thirds sensor		15.9 MP – Four Thirds sensor
no Video		1080/30p Video
ISO 100-1,600		ISO 200-25,600
Optical viewfinder		Electronic viewfinder (1440k dots)
2.5" LCD – 215k dots		3.0" LCD – 1037k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		8 shutter flaps per second
Lens stabilization only		In-body stabilization
500 shots per battery charge		320 shots per battery charge
130 x 91 x 53 mm, 435 g		119 x 82 x 46 mm, 396 g

Check E-400 offers at
ebay.com
Check E-M10 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-400 and the Olympus OM-D E-M10? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Olympus E-400 and the Olympus E-M10. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-M10 can be obtained in two different colors (black, silver), while the E-400 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-M10 is notably smaller (18 percent) than the Olympus E-400. Moreover, the E-M10 is markedly lighter (9 percent) than the E-400. In this context, it is worth noting that neither the E-400 nor the E-M10 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-400) and the Micro Four Thirds Lens Catalog (E-M10). Mirrorless cameras, such as the E-M10, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-400 gets 500 shots out of its Olympus BLS-1 battery, while the E-M10 can take 320 images on a single charge of its Olympus BLS-5 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	EUR 699	ebay.com
2.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	EUR 599	ebay.com
3.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	EUR 699	ebay.com
4.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	EUR 699	ebay.com
5.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	EUR 499	ebay.com
6.		Olympus E-450	130 mm	91 mm	53 mm	440 g	500	n	Mar 2009	EUR 449	ebay.com
7.		Olympus E-500	130 mm	95 mm	66 mm	479 g	750	n	Sep 2005	EUR 599	ebay.com
8.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	EUR 799	ebay.com
9.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	EUR 599	ebay.com
10.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	EUR 599	ebay.com
11.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	EUR 999	ebay.com
12.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	EUR 599	ebay.com
13.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	EUR 599	ebay.com
14.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	EUR 599	ebay.com
15.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	EUR 499	ebay.com
16.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	EUR 499	ebay.com
17.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	EUR 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The two cameras under review were launched at the same price and fall into the same market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

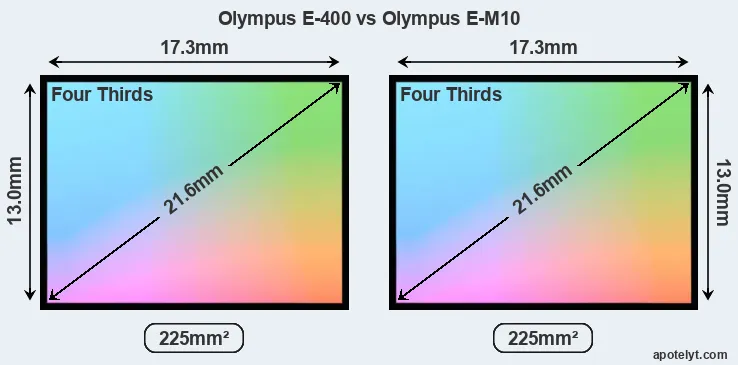

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the E-M10 uses a more advanced image processing engine (TruePic VII) than the E-400 (TruePic), with benefits for noise reduction, color accuracy, and processing speed.

While the two cameras under review share the same sensor size, the E-M10 offers a higher resolution of 15.9 megapixels, compared with 10 MP of the E-400. This megapixels advantage translates into a 26 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-M10 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.74μm for the E-400). However, it should be noted that the E-M10 is much more recent (by 7 years and 4 months) than the E-400, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the E-M10 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Olympus E-M10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M10 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus E-400 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Olympus E-400 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus OM-D E-M10 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
2.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
3.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
4.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
5.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
6.		Olympus E-450	Four Thirds	10.0	3648	2736	none	21.5	10.5	512	56
7.		Olympus E-500	Four Thirds	8.0	3264	2448	none	20.7	10.3	45	51
8.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
9.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
10.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
11.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
12.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
13.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
14.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
15.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
16.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
17.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The E-M10 indeed provides for movie recording, while the E-400 does not. The highest resolution format that the E-M10 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-M10 has an electronic viewfinder (1440k dots), while the E-400 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the E-M10 offers a wider field of view (100%) than the one in the E-400 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the E-M10 has a higher magnification (0.58x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Olympus E-400 and Olympus E-M10 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
2.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
3.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
5.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
6.		Olympus E-450	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
7.		Olympus E-500	optical	n	2.5 / 215	fixed	n	1/4000s	2.5/s	Y	n
8.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
9.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
10.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
11.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
12.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
13.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
14.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
15.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
16.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
17.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-M10 has a touchscreen, while the E-400 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus E-M10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-400 writes its imaging data to Compact Flash or xD Picture cards, while the E-M10 uses SDXC cards. The E-400 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-M10 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-400 and Olympus OM-D E-M10 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
2.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
4.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
5.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-450	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-500	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
9.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the E-M10 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-400 does not provide wifi capability.

Both the E-400 and the E-M10 have been discontinued, but can regularly be found used on ebay. The E-400 was replaced by the Olympus E-410, while the E-M10 was followed by the Olympus E-M10 II. Further information on the features and operation of the E-400 and E-M10 can be found, respectively, in the Olympus E-400 Manual (free pdf) or the online Olympus E-M10 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Olympus E-400 and the Olympus E-M10? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Olympus E-400:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Longer lasting: Can take more shots (500 versus 320) on a single battery charge.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in September 2006).

Arguments in favor of the Olympus OM-D E-M10:

• More detail: Has more megapixels (15.9 vs 10MP), which boosts linear resolution by 26%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better jpgs: Has a more modern image processing engine (TruePic VII vs TruePic).
• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.58x vs 0.46x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 215k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (119x82mm vs 130x91mm) and will fit more readily into a bag.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More modern: Reflects 7 years and 4 months of technical progress since the E-400 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the E-M10 is the clear winner of the contest (18 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-400 and the Olympus E-M10 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-400 or the E-M10. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	EUR 699	ebay.com
2.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	EUR 599	ebay.com
3.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	EUR 699	ebay.com
4.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	EUR 699	ebay.com
5.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	EUR 499	ebay.com
6.		Olympus E-450	..	..	..	..	4/5	4/5	Mar 2009	EUR 449	ebay.com
7.		Olympus E-500	..	76/100	..	+ +	..	..	Sep 2005	EUR 599	ebay.com
8.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	EUR 799	ebay.com
9.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	EUR 599	ebay.com
10.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	EUR 599	ebay.com
11.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	EUR 999	ebay.com
12.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	EUR 599	ebay.com
13.		Olympus E-PL6	..	..	..	..	..	..	May 2013	EUR 599	ebay.com
14.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	EUR 599	ebay.com
15.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	EUR 499	ebay.com
16.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	EUR 499	ebay.com
17.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	EUR 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
