Olympus E-300 vs Sony NEX-5N
The Olympus Evolt E-300 and the Sony Alpha NEX-5N are two digital cameras that were announced, respectively, in September 2004 and August 2011. The E-300 is a DSLR, while the NEX-5N is a mirrorless interchangeable lens camera. The cameras are based on a Four Thirds (E-300) and an APS-C (NEX-5N) sensor. The Olympus has a resolution of 8 megapixels, whereas the Sony provides 16 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Evolt E-300 and the Sony Alpha NEX-5N? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

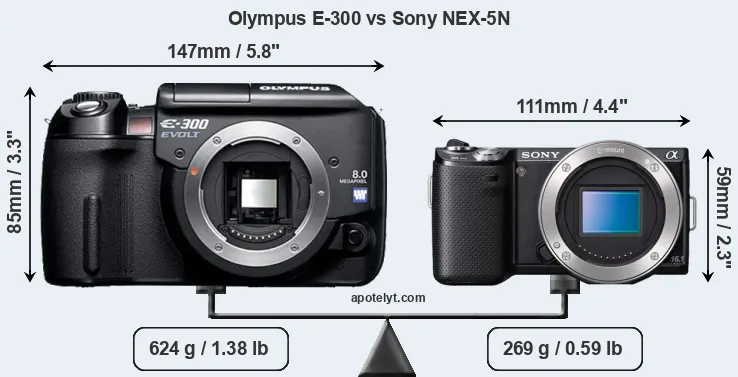

An illustration of the physical size and weight of the Olympus E-300 and the Sony NEX-5N is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The NEX-5N can be obtained in two different colors (black, silver), while the E-300 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5N is considerably smaller (48 percent) than the Olympus E-300. Moreover, the NEX-5N is substantially lighter (57 percent) than the E-300. In this context, it is worth noting that neither the E-300 nor the NEX-5N are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-300) and the Sony E-Mount Lens Catalog (NEX-5N). Mirrorless cameras, such as the NEX-5N, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Olympus E-300||147 mm||85 mm||64 mm||624 g||750||n||Sep 2004||799||ebay.com|
|2.||Sony NEX-5N||111 mm||59 mm||38 mm||269 g||460||n||Aug 2011||699||ebay.com|
|3.||Canon 350D||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899||ebay.com|
|4.||Leica Digilux 3||146 mm||87 mm||77 mm||606 g||750||n||Sep 2006||1,499||ebay.com|
|5.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699||ebay.com|
|6.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699||ebay.com|
|7.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699||ebay.com|
|8.||Olympus E-510||136 mm||92 mm||68 mm||538 g||750||n||Mar 2007||799||ebay.com|
|9.||Olympus E-330||140 mm||87 mm||72 mm||637 g||750||n||Jan 2006||999||ebay.com|
|10.||Olympus E-400||130 mm||91 mm||53 mm||435 g||500||n||Sep 2006||699||ebay.com|
|11.||Olympus E-500||130 mm||95 mm||66 mm||479 g||750||n||Sep 2005||599||ebay.com|
|12.||Panasonic L1||146 mm||87 mm||64 mm||606 g||750||n||Feb 2006||999||ebay.com|
|13.||Sony NEX-5R||111 mm||59 mm||39 mm||276 g||330||n||Aug 2012||749||ebay.com|
|14.||Sony NEX-F3||117 mm||67 mm||42 mm||314 g||470||n||May 2012||599||ebay.com|
|15.||Sony NEX-C3||110 mm||60 mm||33 mm||225 g||400||n||Jun 2011||599||ebay.com|
|16.||Sony NEX-3||117 mm||62 mm||33 mm||297 g||330||n||May 2010||599||ebay.com|
|17.||Sony NEX-5||111 mm||59 mm||38 mm||287 g||330||n||May 2010||699||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The NEX-5N was launched at a somewhat lower price (by 13 percent) than the E-300, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

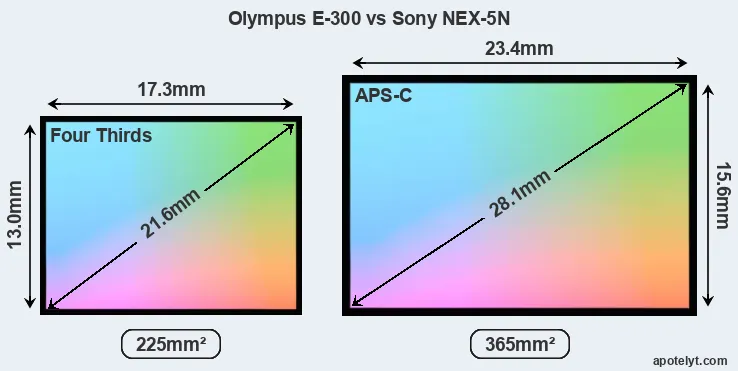

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Olympus E-300 features a Four Thirds sensor and the Sony NEX-5N an APS-C sensor. The sensor area in the NEX-5N is 62 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-300 has a native 4:3 aspect ratio, while the one in the NEX-5N offers a 3:2 aspect.
With 16MP, the NEX-5N offers a higher resolution than the E-300 (8MP), but the NEX-5N has smaller individual pixels (pixel pitch of 4.78μm versus 5.30μm for the E-300). Yet, the NEX-5N is a much more recent model (by 6 years and 10 months) than the E-300, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.
The resolution advantage of the Sony NEX-5N implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NEX-5N for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.4 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.9 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.6 x 27.6 cm. The corresponding values for the Olympus E-300 are 16.3 x 12.2 inches or 41.5 x 31.1 cm for good quality, 13.1 x 9.8 inches or 33.2 x 24.9 cm for very good quality, and 10.9 x 8.2 inches or 27.6 x 20.7 cm for excellent quality prints.
The Olympus Evolt E-300 has a native sensitivity range from ISO 100 to ISO 400, which can be extended to ISO 100-1600. The corresponding ISO settings for the Sony Alpha NEX-5N are ISO 100 to ISO 25600 (no boost).
In terms of underlying technology, the E-300 is build around a CCD sensor, while the NEX-5N uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|1.||Olympus E-300||Four Thirds||8.0||3264||2448||none||20.4||10.1||-40||48|
|4.||Leica Digilux 3||Four Thirds||7.4||3136||2352||none||21.0||10.6||127||53|
|5.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|6.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|7.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|8.||Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|9.||Olympus E-330||Four Thirds||7.4||3136||2352||none||20.8||10.4||73||52|
|10.||Olympus E-400||Four Thirds||10.0||3648||2736||none||21.0||10.6||127||53|
|11.||Olympus E-500||Four Thirds||8.0||3264||2448||none||20.7||10.3||45||51|
|12.||Panasonic L1||Four Thirds||7.4||3136||2352||none||20.8||10.4||80||52|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The NEX-5N indeed provides for movie recording, while the E-300 does not. The highest resolution format that the NEX-5N can use is 1080/60i.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-300 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-5N relies on live view and the rear LCD for framing. That said, the NEX-5N can be equipped with an optional viewfinder – the FDA-EV1S. The following table reports on some other key feature differences and similarities of the Olympus E-300, the Sony NEX-5N, and comparable cameras.
|1.||Olympus E-300||optical||n||1.8 / 134||fixed||n||1/4000s||2.5/s||Y||n|
|2.||Sony NEX-5N||optional||n||3.0 / 920||tilting||Y||1/4000s||10.0/s||n||n|
|3.||Canon 350D||optical||n||1.8 / 115||fixed||n||1/4000s||3.0/s||Y||n|
|4.||Leica Digilux 3||optical||n||2.5 / 207||fixed||n||1/4000s||3.0/s||Y||n|
|5.||Olympus E-620||optical||n||2.7 / 230||swivel||n||1/4000s||4.0/s||Y||Y|
|6.||Olympus E-520||optical||n||2.7 / 215||fixed||n||1/4000s||3.5/s||Y||Y|
|7.||Olympus E-410||optical||n||2.5 / 215||fixed||n||1/4000s||3.0/s||Y||n|
|8.||Olympus E-510||optical||n||2.5 / 215||fixed||n||1/4000s||3.0/s||Y||Y|
|9.||Olympus E-330||optical||n||2.5 / 215||tilting||n||1/4000s||3.0/s||Y||n|
|10.||Olympus E-400||optical||n||2.5 / 215||fixed||n||1/4000s||3.0/s||Y||n|
|11.||Olympus E-500||optical||n||2.5 / 215||fixed||n||1/4000s||2.5/s||Y||n|
|12.||Panasonic L1||optical||n||2.5 / 207||fixed||n||1/4000s||3.0/s||Y||n|
|13.||Sony NEX-5R||optional||n||3.0 / 920||tilting||Y||1/4000s||10.0/s||n||n|
|14.||Sony NEX-F3||optional||n||3.0 / 920||tilting||n||1/4000s||5.5/s||Y||n|
|15.||Sony NEX-C3||optional||n||3.0 / 920||tilting||n||1/4000s||5.5/s||n||n|
|16.||Sony NEX-3||optional||n||3.0 / 920||tilting||n||1/4000s||7.0/s||n||n|
|17.||Sony NEX-5||optional||n||3.0 / 920||tilting||n||1/4000s||7.0/s||n||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The E-300 has one, while the NEX-5N does not. While the built-in flash of the E-300 is not very powerful, it can at times be useful as a fill-in light.The NEX-5N has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the E-300 does not have a selfie-screen.
The E-300 writes its imaging data to Compact Flash or xD Picture cards, while the NEX-5N uses SDXC or Memory Stick PRO Duo cards. The E-300 features dual card slots, which can be very useful in case a memory card fails. In contrast, the NEX-5N only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Evolt E-300 and Sony Alpha NEX-5N and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Olympus E-300||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Sony NEX-5N||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|3.||Canon 350D||Y||- / -||-||-||-||2.0||-||-||-|
|4.||Leica Digilux 3||Y||stereo / mono||-||-||-||2.0||-||-||-|
|5.||Olympus E-620||Y||- / -||-||-||-||2.0||-||-||-|
|6.||Olympus E-520||Y||- / -||-||-||-||2.0||-||-||-|
|7.||Olympus E-410||Y||- / -||-||-||-||2.0||-||-||-|
|8.||Olympus E-510||Y||- / -||-||-||-||2.0||-||-||-|
|9.||Olympus E-330||Y||- / -||-||-||-||2.0||-||-||-|
|10.||Olympus E-400||Y||- / -||-||-||-||2.0||-||-||-|
|11.||Olympus E-500||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Panasonic L1||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Sony NEX-5R||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|14.||Sony NEX-F3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|15.||Sony NEX-C3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|16.||Sony NEX-3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|17.||Sony NEX-5||Y||stereo / mono||-||-||mini||2.0||-||-||-|
Both the E-300 and the NEX-5N have been discontinued, but can regularly be found used on ebay. The E-300 was replaced by the Olympus E-330, while the NEX-5N was followed by the Sony NEX-5R. Further information on the features and operation of the E-300 and NEX-5N can be found, respectively, in the Olympus E-300 Manual (free pdf) or the online Sony NEX-5N Manual.
So how do things add up? Is the Olympus E-300 better than the Sony NEX-5N or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Olympus Evolt E-300:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Can take more shots (750 versus 460) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in September 2004).
Arguments in favor of the Sony Alpha NEX-5N:
- More detail: Has more megapixels (16 vs 8MP), which boosts linear resolution by 45%.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can capture not only stills but also 1080/60i video.
- Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (920k vs 134k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (10 vs 2.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (111x59mm vs 147x85mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 355g or 57 percent) and is thus easier to take along.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- More affordable: Was released into a lower priced segment (13 percent cheaper at launch).
- More modern: Reflects 6 years and 10 months of technical progress since the E-300 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the NEX-5N is the clear winner of the contest (17 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus E-300 and the Sony NEX-5N place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the E-300 and the NEX-5N in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Olympus E-300||..||..||..||+||o||4.5/5||Sep 2004||799||ebay.com|
|2.||Sony NEX-5N||3/5||+ +||..||79/100||4.5/5||4.5/5||Aug 2011||699||ebay.com|
|3.||Canon 350D||..||80/100||..||+ +||o||..||Feb 2005||899||ebay.com|
|4.||Leica Digilux 3||..||..||..||..||..||..||Sep 2006||1,499||ebay.com|
|5.||Olympus E-620||3/5||88/100||..||72/100||4.5/5||5/5||Feb 2009||699||ebay.com|
|6.||Olympus E-520||..||87/100||..||+ +||4.5/5||4.5/5||May 2008||699||ebay.com|
|7.||Olympus E-410||..||86/100||..||+ +||4/5||4.5/5||Mar 2007||699||ebay.com|
|8.||Olympus E-510||..||89/100||..||+ +||3.5/5||4.5/5||Mar 2007||799||ebay.com|
|9.||Olympus E-330||..||..||..||+||o||..||Jan 2006||999||ebay.com|
|10.||Olympus E-400||..||85/100||..||..||4/5||4/5||Sep 2006||699||ebay.com|
|11.||Olympus E-500||..||76/100||..||+ +||..||..||Sep 2005||599||ebay.com|
|12.||Panasonic L1||..||85/100||..||+||..||3.5/5||Feb 2006||999||ebay.com|
|13.||Sony NEX-5R||..||..||..||..||4.5/5||4.5/5||Aug 2012||749||ebay.com|
|14.||Sony NEX-F3||4/5||..||..||74/100||4.5/5||4.5/5||May 2012||599||ebay.com|
|15.||Sony NEX-C3||3/5||+ +||..||74/100||4.5/5||4/5||Jun 2011||599||ebay.com|
|16.||Sony NEX-3||..||..||..||70/100||4.5/5||4/5||May 2010||599||ebay.com|
|17.||Sony NEX-5||3/5||+ +||..||71/100||4.5/5||4/5||May 2010||699||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1Ds Mark II vs Olympus E-300
- Canon 550D vs Sony NEX-5N
- Canon G12 vs Sony NEX-5N
- Leica X Typ 113 vs Olympus E-300
- Nikon D40 vs Sony NEX-5N
- Olympus E-300 vs Panasonic GX800
- Olympus E-300 vs Samsung NX30
- Olympus E-300 vs Sony A7R II
- Olympus E-300 vs Sony NEX-7
- Olympus E-PL6 vs Sony NEX-5N
- Olympus E-PM1 vs Sony NEX-5N
- Panasonic G7 vs Sony NEX-5N
Specifications: Olympus E-300 vs Sony NEX-5N
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus E-300||Sony NEX-5N|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Four Thirds lenses||Sony E mount lenses|
|Launch Date||September 2004||August 2011|
|Launch Price||USD 799||USD 699|
|Sensor Specs||Olympus E-300||Sony NEX-5N|
|Sensor Format||Four Thirds Sensor||APS-C Sensor|
|Sensor Size||17.3 x 13.0 mm||23.4 x 15.6 mm|
|Sensor Area||224.9 mm2||365.04 mm2|
|Sensor Diagonal||21.6 mm||28.1 mm|
|Sensor Resolution||8 Megapixels||16 Megapixels|
|Image Resolution||3264 x 2448 pixels||4912 x 3264 pixels|
|Pixel Pitch||5.30 μm||4.78 μm|
|Pixel Density||3.55 MP/cm2||4.39 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||1080/60i Video|
|ISO Setting||100 - 400 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 1,600 ISO||no Enhancement|
|DXO Sensor Quality (score)||..||77|
|DXO Color Depth (bits)||..||23.6|
|DXO Dynamic Range (EV)||..||12.7|
|DXO Low Light (ISO)||..||1079|
|Screen Specs||Olympus E-300||Sony NEX-5N|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View|
|Rear LCD Size||1.8inch||3.0inch|
|LCD Resolution||134k dots||920k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Olympus E-300||Sony NEX-5N|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||2.5 shutter flaps/s||10 shutter flaps/s|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||CF or XD cards||MS or SDXC cards|
|Single or Dual Card Slots||Dual card slots||Single card slot|
|Connectivity Specs||Olympus E-300||Sony NEX-5N|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Olympus E-300||Sony NEX-5N|
|Battery Life (CIPA)||750 shots per charge||460 shots per charge|
147 x 85 x 64 mm
(5.8 x 3.3 x 2.5 in)
111 x 59 x 38 mm
(4.4 x 2.3 x 1.5 in)
|Camera Weight||624 g (22.0 oz)||269 g (9.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
