Olympus E-1 vs XZ-2

The Olympus E-1 and the Olympus XZ-2 are two digital cameras that were revealed to the public, respectively, in June 2003 and September 2012. The E-1 is a DSLR, while the XZ-2 is a fixed lens compact. The cameras are based on a Four Thirds (E-1) and a 1/1.7-inch (XZ-2) sensor. The E-1 has a resolution of 4.9 megapixels, whereas the XZ-2 provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-1		Olympus XZ-2
Digital single lens reflex		Fixed lens compact camera
Four Thirds lenses		28-112mm f/1.8-2.5
4.9 MP – Four Thirds sensor		11.8 MP – 1/1.7" sensor
no Video		1080/30p Video
ISO 100-800 (100 - 3,200)		ISO 100-12,800
Optical viewfinder		Viewfinder optional
1.8" LCD – 134k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		5 shutter flaps per second
Lens stabilization only		In-body stabilization
Weathersealed body		not weather sealed
750 shots per battery charge		340 shots per battery charge
141 x 104 x 81 mm, 738 g		113 x 65 x 48 mm, 346 g

Check E-1 offers at
ebay.com
Check XZ-2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-1 and the Olympus XZ-2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

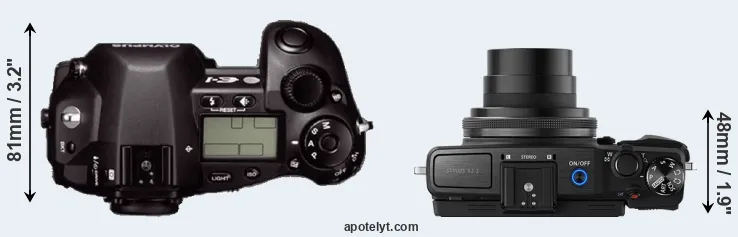

The side-by-side display below illustrates the physical size and weight of the Olympus E-1 and the Olympus XZ-2. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-2 is considerably smaller (50 percent) than the Olympus E-1. It is worth mentioning in this context that the E-1 is splash and dust resistant, while the XZ-2 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-2 has a lens built in, whereas the E-1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-1 and their specifications in the Four Thirds Lens Catalog.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	US$ 1 699	ebay.com
2.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
3.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
4.		Canon 7D	148 mm	111 mm	74 mm	860 g	800	Y	Sep 2009	US$ 1 699	ebay.com
5.		Leica Digilux 3	146 mm	87 mm	77 mm	606 g	750	n	Sep 2006	US$ 1 499	ebay.com
6.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	US$ 1 999	ebay.com
7.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	US$ 1 999	ebay.com
8.		Nikon D7000	132 mm	105 mm	77 mm	780 g	1050	Y	Sep 2010	US$ 1 499	ebay.com
9.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	US$ 1 699	ebay.com
10.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	US$ 1 699	ebay.com
11.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
12.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	US$ 999	ebay.com
13.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
14.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
15.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
16.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
17.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XZ-2 was launched at a lower price than the E-1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-1 features a Four Thirds sensor and the Olympus XZ-2 a 1/1.7-inch sensor. The sensor area in the XZ-2 is 81 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 4.4. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the XZ-2 uses a more advanced image processing engine (TruePic VI) than the E-1 (TruePic), with benefits for noise reduction, color accuracy, and processing speed.

Despite having a smaller sensor, the XZ-2 offers a higher resolution of 11.8 megapixels, compared with 4.9 MP of the E-1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.91μm versus 6.78μm for the E-1). However, it should be noted that the XZ-2 is much more recent (by 9 years and 2 months) than the E-1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Olympus XZ-2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the XZ-2 for good quality output (200 dots per inch) amounts to 19.8 x 14.9 inches or 50.4 x 37.8 cm, for very good quality (250 dpi) 15.9 x 11.9 inches or 40.3 x 30.2 cm, and for excellent quality (300 dpi) 13.2 x 9.9 inches or 33.6 x 25.2 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.

The Olympus E-1 has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-3200. The corresponding ISO settings for the Olympus XZ-2 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the E-1 is build around a CCD sensor, while the XZ-2 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
2.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
3.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
4.		Canon 7D	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	854	66
5.		Leica Digilux 3	Four Thirds	7.4	3136	2352	none	21.0	10.6	127	53
6.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
7.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
8.		Nikon D7000	APS-C	16.1	4928	3264	1080/24p	23.5	13.9	1167	80
9.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
10.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
11.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
12.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
13.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
14.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
15.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
16.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
17.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The XZ-2 indeed provides for movie recording, while the E-1 does not. The highest resolution format that the XZ-2 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-1 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the XZ-2 relies on live view and the rear LCD for framing. That said, the XZ-2 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Olympus E-1, the Olympus XZ-2, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
2.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
3.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
4.		Canon 7D	optical	Y	3.0 / 920	fixed	n	1/8000s	8.0/s	Y	n
5.		Leica Digilux 3	optical	n	2.5 / 207	fixed	n	1/4000s	3.0/s	Y	n
6.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
7.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
8.		Nikon D7000	optical	Y	3.0 / 921	fixed	n	1/8000s	6.0/s	Y	n
9.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
10.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
11.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
12.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
13.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
14.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
15.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
16.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
17.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the E-1, but is missing on the XZ-2 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Olympus XZ-2 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-1 writes its imaging data to Compact Flash or xD Picture cards, while the XZ-2 uses SDXC cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the XZ-2 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-1 and Olympus XZ-2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-
2.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 7D	Y	mono / -	Y	-	mini	2.0	-	-	-
5.		Leica Digilux 3	Y	stereo / mono	-	-	-	2.0	-	-	-
6.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
7.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
8.		Nikon D7000	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-
13.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
17.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Olympus E-1 (unlike the XZ-2) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the E-1 and the XZ-2 have been discontinued, but can regularly be found used on ebay. The E-1 was replaced by the Olympus E-3, while the XZ-2 does not have a direct successor. Further information on the features and operation of the E-1 and XZ-2 can be found, respectively, in the Olympus E-1 Manual (free pdf) or the online Olympus XZ-2 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Olympus E-1 and the Olympus XZ-2? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Olympus E-1:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (750 versus 340) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in June 2003).

Reasons to prefer the Olympus XZ-2:

• More detail: Has more megapixels (11.8 vs 4.9MP), which boosts linear resolution by 55%.
• Better jpgs: Has a more modern image processing engine (TruePic VI vs TruePic).
• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 134k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Comes with an integrated lens, while the E-1 requires a separate lens.
• More compact: Is smaller (113x65mm vs 141x104mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the E-1).
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 9 years and 2 months of technical progress since the E-1 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the XZ-2 emerges as the winner of the match-up (16 : 13 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-1 and the Olympus XZ-2 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-1 or the XZ-2. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-1	..	..	..	+	o	..	Jun 2003	US$ 1 699	ebay.com
2.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
3.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
4.		Canon 7D	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2009	US$ 1 699	ebay.com
5.		Leica Digilux 3	..	..	..	..	..	..	Sep 2006	US$ 1 499	ebay.com
6.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	US$ 1 999	ebay.com
7.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	US$ 1 999	ebay.com
8.		Nikon D7000	4/5	..	..	80/100	4.5/5	4.5/5	Sep 2010	US$ 1 499	ebay.com
9.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	US$ 1 699	ebay.com
10.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	US$ 1 699	ebay.com
11.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
12.		Olympus E-330	..	..	..	+	o	..	Jan 2006	US$ 999	ebay.com
13.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
14.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
15.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
16.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
17.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check E-1 offers at
ebay.com
Check XZ-2 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check E-1 offers at
ebay.com
Check XZ-2 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
