Nikon D800 vs Olympus E-510
The Nikon D800 and the Olympus E-510 are two digital cameras that were revealed to the public, respectively, in February 2012 and March 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a full frame (D800) and a Four Thirds (E-510) sensor. The Nikon has a resolution of 36.2 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D800 and the Olympus E-510? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

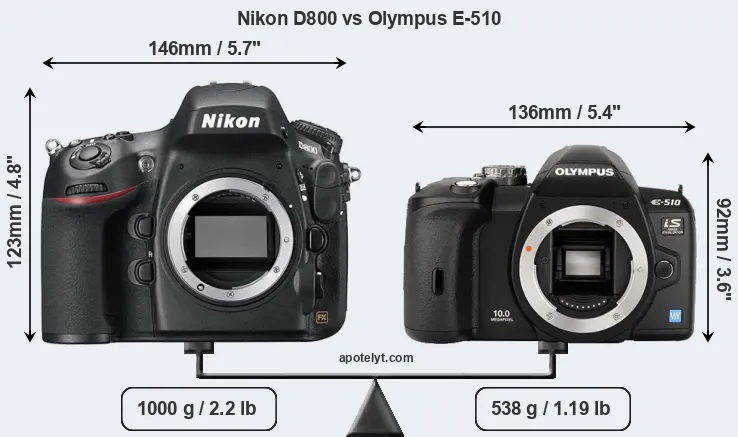

The physical size and weight of the Nikon D800 and the Olympus E-510 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-510 is considerably smaller (30 percent) than the Nikon D800. Moreover, the E-510 is substantially lighter (46 percent) than the D800. It is worth mentioning in this context that the D800 is splash and dust resistant, while the E-510 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D800) and the Four Thirds Lens Catalog (E-510).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Nikon D800||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||2,999|
|2.||Olympus E-510||136 mm||92 mm||68 mm||538 g||750||n||Mar 2007||799|
|3.||Canon 5D Mark IV||151 mm||116 mm||76 mm||890 g||900||Y||Aug 2016||3,499|
|4.||Canon 5D Mark III||152 mm||116 mm||76 mm||950 g||950||Y||Mar 2012||3,499|
|5.||Nikon D850||146 mm||124 mm||79 mm||1005 g||1840||Y||Jul 2017||3,299|
|6.||Nikon D810||146 mm||123 mm||82 mm||980 g||1200||Y||Jun 2014||3,299|
|7.||Nikon Df||144 mm||110 mm||67 mm||760 g||1400||Y||Nov 2013||2,749|
|8.||Nikon D610||141 mm||113 mm||82 mm||850 g||900||Y||Oct 2013||1,999|
|9.||Nikon D4||160 mm||157 mm||91 mm||1340 g||2600||Y||Jan 2012||5,999|
|10.||Nikon D600||141 mm||113 mm||82 mm||850 g||900||Y||Sep 2012||2,099|
|11.||Nikon D800E||146 mm||123 mm||82 mm||1000 g||900||Y||Feb 2012||3,299|
|12.||Nikon D700||147 mm||123 mm||77 mm||1074 g||1000||Y||Jul 2008||2,999|
|13.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699|
|14.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699|
|15.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699|
|16.||Olympus E-400||130 mm||91 mm||53 mm||435 g||500||n||Sep 2006||699|
|17.||Olympus E-500||130 mm||95 mm||66 mm||479 g||750||n||Sep 2005||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-510 was launched at a markedly lower price (by 73 percent) than the D800, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D800 features a full frame sensor and the Olympus E-510 a Four Thirds sensor. The sensor area in the E-510 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the D800 has a native 3:2 aspect ratio, while the one in the E-510 offers a 4:3 aspect.
With 36.2MP, the D800 offers a higher resolution than the E-510 (10MP), but the D800 nevertheless has larger individual pixels (pixel pitch of 4.88μm versus 4.74μm for the E-510) due to its larger sensor. Moreover, the D800 is a much more recent model (by 4 years and 11 months) than the E-510, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.
The resolution advantage of the Nikon D800 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D800 for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Olympus E-510 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The Nikon D800 has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 50-25600. The corresponding ISO settings for the Olympus E-510 are ISO 100 to ISO 1600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the D800 provides substantially higher image quality than the E-510, with an overall score that is 43 points higher. This advantage is based on 4.1 bits higher color depth, 4.4 EV in additional dynamic range, and 2.7 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|1.||Nikon D800||Full Frame||36.2||7360||4912||1080/30p||25.3||14.4||2853||95|
|2.||Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|3.||Canon 5D Mark IV||Full Frame||30.1||6720||4480||4K/30p||24.8||13.6||2995||91|
|4.||Canon 5D Mark III||Full Frame||22.1||5760||3840||1080/30p||24.0||11.7||2293||81|
|5.||Nikon D850||Full Frame||45.4||8256||5504||4K/30p||26.4||14.8||2660||100|
|6.||Nikon D810||Full Frame||36.2||7360||4912||1080/60p||25.7||14.8||2853||97|
|7.||Nikon Df||Full Frame||16.2||4928||3280||none||24.6||13.1||3279||89|
|8.||Nikon D610||Full Frame||24.2||6016||4016||1080/30p||25.1||14.4||2925||94|
|9.||Nikon D4||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89|
|10.||Nikon D600||Full Frame||24.2||6016||4016||1080/30p||25.1||14.2||2980||94|
|11.||Nikon D800E||Full Frame||36.2||7360||4912||1080/30p||25.6||14.3||2979||96|
|12.||Nikon D700||Full Frame||12.1||4256||2832||none||23.5||12.2||2303||80|
|13.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|14.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|15.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|16.||Olympus E-400||Four Thirds||10.0||3648||2736||none||21.0||10.6||127||53|
|17.||Olympus E-500||Four Thirds||8.0||3264||2448||none||20.7||10.3||45||51|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The D800 indeed provides movie recording capabilities, while the E-510 does not. The highest resolution format that the D800 can use is 1080/30p.
Beyond body and sensor, cameras can and do differ across a range of features. The D800 and the E-510 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D800 offers a wider field of view (100%) than the one in the E-510 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D800 has a higher magnification (0.70x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D800 and Olympus E-510 along with similar information for a selection of comparators.
|1.||Nikon D800||optical||Y||3.2 / 921||fixed||n||1/8000s||4.0||Y||n|
|2.||Olympus E-510||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||Y|
|3.||Canon 5D Mark IV||optical||Y||3.2 / 1620||fixed||Y||1/8000s||7.0||n||n|
|4.||Canon 5D Mark III||optical||Y||3.2 / 1040||fixed||n||1/8000s||6.0||n||n|
|5.||Nikon D850||optical||Y||3.2 / 2359||tilting||Y||1/8000s||9.0||n||n|
|6.||Nikon D810||optical||Y||3.2 / 1229||fixed||n||1/8000s||5.0||Y||n|
|7.||Nikon Df||optical||Y||3.2 / 921||fixed||n||1/4000s||5.5||n||n|
|8.||Nikon D610||optical||Y||3.2 / 921||fixed||n||1/4000s||6.0||Y||n|
|9.||Nikon D4||optical||Y||3.2 / 921||fixed||n||1/8000s||11.0||n||n|
|10.||Nikon D600||optical||Y||3.0 / 921||fixed||n||1/4000s||5.5||Y||n|
|11.||Nikon D800E||optical||Y||3.2 / 921||fixed||n||1/8000s||4.0||Y||n|
|12.||Nikon D700||optical||Y||3.0 / 922||fixed||n||1/8000s||8.0||Y||n|
|13.||Olympus E-620||optical||n||2.7 / 230||swivel||n||1/4000s||4.0||Y||Y|
|14.||Olympus E-520||optical||n||2.7 / 215||fixed||n||1/4000s||3.5||Y||Y|
|15.||Olympus E-410||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||n|
|16.||Olympus E-400||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||n|
|17.||Olympus E-500||optical||n||2.5 / 215||fixed||n||1/4000s||2.5||Y||n|
One feature that is present on the D800, but is missing on the E-510 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Nikon D800 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D800 writes its imaging data to Compact Flash or SDXC cards, while the E-510 uses Compact Flash or xD Picture cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D800 and Olympus E-510 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Nikon D800||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|2.||Olympus E-510||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Canon 5D Mark IV||Y||mono / mono||Y||Y||mini||3.0||Y||Y||-|
|4.||Canon 5D Mark III||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|5.||Nikon D850||Y||stereo / mono||Y||Y||mini||3.0||Y||Y||Y|
|6.||Nikon D810||Y||stereo / mono||Y||Y||mini||3.0||Y||-||-|
|7.||Nikon Df||Y||- / -||-||-||mini||2.0||-||-||-|
|8.||Nikon D610||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|9.||Nikon D4||Y||mono / mono||Y||Y||micro||2.0||-||-||-|
|10.||Nikon D600||Y||mono / mono||Y||Y||mini||2.0||-||-||-|
|11.||Nikon D800E||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|12.||Nikon D700||Y||- / -||-||-||mini||2.0||-||-||-|
|13.||Olympus E-620||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Olympus E-520||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Olympus E-410||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Olympus E-400||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Olympus E-500||Y||- / -||-||-||-||2.0||-||-||-|
Studio photographers will appreciate that the Nikon D800 (unlike the E-510) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Both the D800 and the E-510 have been discontinued, but can regularly be found used on eBay. The E-510 was replaced by the Olympus E-520, while the D800 was followed by the Nikon D810. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what conclusions can be drawn? Is the Nikon D800 better than the Olympus E-510 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Nikon D800:
- More detail: Offers more megapixels (36.2 vs 10MP) with a 94% higher linear resolution.
- Better image quality: Scores substantially higher (43 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (4.1 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (4.4 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (2.7 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.46x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 215k dots).
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (4 vs 3 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Longer lasting: Can take more shots (900 versus 750) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More modern: Reflects 4 years and 11 months of technical progress since the E-510 launch.
Arguments in favor of the Olympus E-510:
- More compact: Is smaller (136x92mm vs 146x123mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 462g or 46 percent) and is thus easier to take along.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More affordable: Was introduced into a lower priced category (73 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in March 2007).
If the count of relative strengths (bullet points above) is taken as a measure, the D800 is the clear winner of the match-up (19 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D800 and the Olympus E-510 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the D800 or the E-510 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Nikon D800||5/5||+ +||..||82/100||5/5||5/5||Feb 2012||2,999|
|2.||Olympus E-510||..||89/100||..||+ +||3.5/5||4.5/5||Mar 2007||799|
|3.||Canon 5D Mark IV||4.5/5||+ +||4/5||87/100||4.5/5||4.5/5||Aug 2016||3,499|
|4.||Canon 5D Mark III||..||+ +||..||82/100||4.5/5||4.5/5||Mar 2012||3,499|
|5.||Nikon D850||4.5/5||+ +||5/5||89/100||4.5/5||5/5||Jul 2017||3,299|
|6.||Nikon D810||5/5||..||5/5||86/100||5/5||4.5/5||Jun 2014||3,299|
|7.||Nikon Df||4/5||..||..||81/100||4/5||4/5||Nov 2013||2,749|
|8.||Nikon D610||4/5||+ +||..||87/100||4.5/5||4.5/5||Oct 2013||1,999|
|9.||Nikon D4||..||..||..||..||4.5/5||4.5/5||Jan 2012||5,999|
|10.||Nikon D600||4/5||+ +||..||87/100||5/5||4.5/5||Sep 2012||2,099|
|11.||Nikon D800E||..||..||..||84/100||5/5||5/5||Feb 2012||3,299|
|12.||Nikon D700||..||89/100||..||+ +||4.5/5||4.5/5||Jul 2008||2,999|
|13.||Olympus E-620||3/5||88/100||..||72/100||4.5/5||5/5||Feb 2009||699|
|14.||Olympus E-520||..||87/100||..||+ +||4.5/5||4.5/5||May 2008||699|
|15.||Olympus E-410||..||86/100||..||+ +||4/5||4.5/5||Mar 2007||699|
|16.||Olympus E-400||..||85/100||..||..||4/5||4/5||Sep 2006||699|
|17.||Olympus E-500||..||76/100||..||+ +||..||..||Sep 2005||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 1300D vs Olympus E-510
- Canon 5D Mark IV vs Nikon D800
- Canon G1 X Mark III vs Nikon D800
- Fujifilm X-E3 vs Nikon D800
- Leica Digilux 3 vs Olympus E-510
- Nikon D3300 vs Olympus E-510
- Nikon D800 vs Panasonic GM1
- Nikon D800 vs Sony A77
- Nikon D800 vs Sony A7S III
- Olympus E-510 vs Ricoh GR III
- Olympus E-510 vs Sony RX0
- Olympus E-510 vs Zeiss ZX1
Specifications: Nikon D800 vs Olympus E-510
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D800||Olympus E-510|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Nikon F mount lenses||Four Thirds lenses|
|Launch Date||February 2012||March 2007|
|Launch Price||USD 2,999||USD 799|
|Sensor Specs||Nikon D800||Olympus E-510|
|Sensor Format||Full Frame Sensor||Four Thirds Sensor|
|Sensor Size||35.9 x 24.0 mm||17.3 x 13.0 mm|
|Sensor Area||861.6 mm2||224.9 mm2|
|Sensor Diagonal||43.2 mm||21.6 mm|
|Sensor Resolution||36.2 Megapixels||10 Megapixels|
|Image Resolution||7360 x 4912 pixels||3648 x 2736 pixels|
|Pixel Pitch||4.88 μm||4.74 μm|
|Pixel Density||4.20 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 6,400 ISO||100 - 1,600 ISO|
|ISO Boost||50 - 25,600 ISO||no Enhancement|
|Image Processor||EXPEED 3||TruePic III|
|DXO Sensor Quality (score)||95||52|
|DXO Color Depth (bits)||25.3||21.2|
|DXO Dynamic Range (EV)||14.4||10.0|
|DXO Low Light (ISO)||2853||442|
|Screen Specs||Nikon D800||Olympus E-510|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||95%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||2.5inch|
|LCD Resolution||921k dots||215k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Nikon D800||Olympus E-510|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||4 shutter flaps/s||3 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||CF or SDXC cards||CF or XD cards|
|Second Storage Option||Dual card slots||Dual card slots|
|Connectivity Specs||Nikon D800||Olympus E-510|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Nikon D800||Olympus E-510|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||900 shots per charge||750 shots per charge|
146 x 123 x 82 mm
(5.7 x 4.8 x 3.2 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||1000 g (35.3 oz)||538 g (19.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
