Nikon D80 vs Olympus XZ-1
The Nikon D80 and the Olympus XZ-1 are two digital cameras that were revealed to the public, respectively, in August 2006 and January 2011. The D80 is a DSLR, while the XZ-1 is a fixed lens compact. The cameras are based on an APS-C (D80) and a 1/1.7-inch (XZ-1) sensor. The Nikon has a resolution of 10 megapixels, whereas the Olympus provides 10.1 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Nikon D80||Olympus XZ-1|
|Digital single lens reflex||Fixed lens compact camera|
|Nikon F mount lenses||28-112mm f/1.8-2.5|
|10 MP, APS-C Sensor||10.1 MP, 1/1.7" Sensor|
|no Video||720/30p Video|
|ISO 100-1600 (100-3200)||ISO 100-6400|
|Optical viewfinder||Viewfinder optional|
|2.5" LCD, 230k dots||3.0" LCD, 614k dots|
|Fixed screen (not touch-sensitive)||Fixed screen (not touch-sensitive)|
|3 shutter flaps per second||2 shutter flaps per second|
|Lens stabilization only||In-body stabilization|
|600 shots per battery charge||320 shots per battery charge|
|132 x 103 x 77 mm, 668 g||111 x 65 x 42 mm, 275 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D80 and the Olympus XZ-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

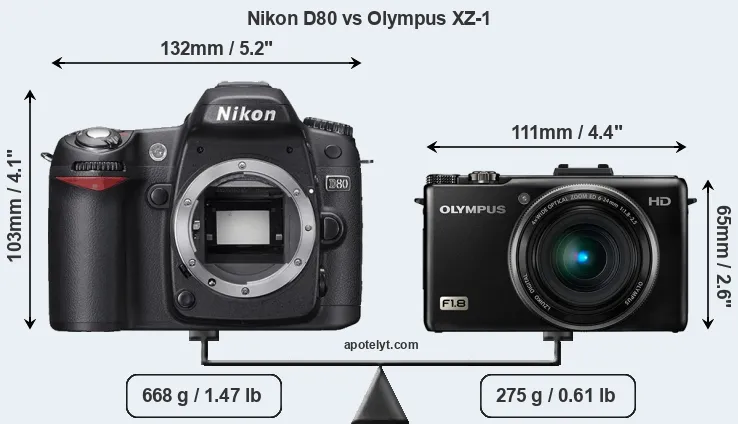

The side-by-side display below illustrates the physical size and weight of the Nikon D80 and the Olympus XZ-1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The XZ-1 can be obtained in two different colors (black, white), while the D80 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-1 is considerably smaller (47 percent) than the Nikon D80. In this context, it is worth noting that neither the D80 nor the XZ-1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-1 has a lens built in, whereas the D80 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D80 and their specifications in the Nikon Lens Catalog.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Nikon D80»||5.2 in||4.1 in||3.0 in||23.6 oz||600||n||Aug 2006||999||Nikon D80|
|Olympus XZ-1«||4.4 in||2.6 in||1.7 in||9.7 oz||320||n||Jan 2011||499||Olympus XZ-1|
|Nikon D3000« »||5.0 in||3.8 in||2.5 in||18.9 oz||500||n||Jul 2009||599||Nikon D3000|
|Nikon D5000« »||5.0 in||4.1 in||3.1 in||20.8 oz||510||n||Apr 2009||749||Nikon D5000|
|Nikon D60« »||5.0 in||3.7 in||2.5 in||18.4 oz||500||n||Jan 2008||629||Nikon D60|
|Nikon D90« »||5.2 in||4.1 in||3.0 in||24.8 oz||850||n||Aug 2008||1,299||Nikon D90|
|Nikon D40X« »||4.9 in||3.7 in||2.5 in||18.4 oz||520||n||Mar 2007||729||Nikon D40X|
|Nikon D300« »||5.8 in||4.5 in||2.9 in||32.6 oz||1000||Y||Aug 2007||1,799||Nikon D300|
|Nikon D2Xs« »||6.2 in||5.9 in||3.4 in||44.2 oz||3800||Y||Jun 2006||4,699||Nikon D2Xs|
|Nikon D50« »||5.2 in||4.0 in||3.0 in||21.9 oz||400||n||Apr 2005||749||Nikon D50|
|Nikon D70s« »||5.5 in||4.4 in||3.1 in||24.0 oz||500||n||Apr 2005||899||Nikon D70s|
|Nikon D70« »||5.5 in||4.4 in||3.1 in||24.0 oz||400||n||Jan 2004||999||Nikon D70|
|Olympus XZ-2« »||4.4 in||2.6 in||1.9 in||12.2 oz||340||n||Sep 2012||599||Olympus XZ-2|
|Olympus E-PL3« »||4.3 in||2.5 in||1.5 in||11.0 oz||300||n||Jun 2011||599||Olympus E-PL3|
|Olympus E-PM1« »||4.3 in||2.5 in||1.3 in||9.3 oz||330||n||Jun 2011||499||Olympus E-PM1|
|Olympus E-PL1« »||4.5 in||2.8 in||1.7 in||11.8 oz||290||n||Feb 2010||599||Olympus E-PL1|
|Panasonic LX5« »||4.3 in||2.6 in||1.7 in||9.6 oz||400||n||Jul 2010||499||Panasonic LX5|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XZ-1 was launched at a lower price than the D80, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Nikon D80 features an APS-C sensor and the Olympus XZ-1 a 1/1.7-inch sensor. The sensor area in the XZ-1 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 4.4. The sensor in the D80 has a native 3:2 aspect ratio, while the one in the XZ-1 offers a 4:3 aspect.

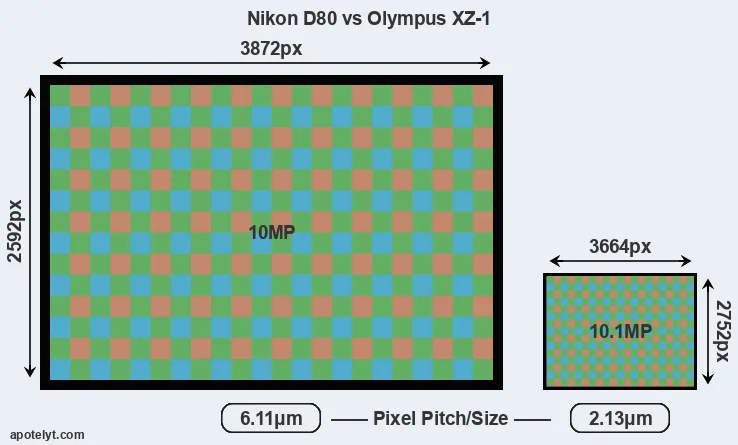

Despite having a smaller sensor, the XZ-1 offers a slightly higher resolution of 10.1 megapixels, compared with 10 MP of the D80. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.13μm versus 6.11μm for the D80). However, it should be noted that the XZ-1 is much more recent (by 4 years and 4 months) than the D80, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The Nikon D80 has a native sensitivity range from ISO 100 to ISO 1600, which can be extended to ISO 100-3200. The corresponding ISO settings for the Olympus XZ-1 are ISO 100 to ISO 6400 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the D80 provides substantially higher image quality than the XZ-1, with an overall score that is 27 points higher. This advantage is based on 3.3 bits higher color depth, 0.8 EV in additional dynamic range, and 2.2 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Nikon D80||APS-C||10.0||3872||2592||none||22.1||11.2||524||61||Nikon D80|
|Olympus XZ-1||1/1.7||10.1||3664||2752||720/30p||18.8||10.4||117||34||Olympus XZ-1|
|Nikon D3000||APS-C||10.0||3872||2592||none||22.3||11.1||563||62||Nikon D3000|
|Nikon D5000||APS-C||12.2||4288||2848||720/24p||22.7||12.5||868||72||Nikon D5000|
|Nikon D60||APS-C||10.0||3872||2592||none||22.5||11.4||562||65||Nikon D60|
|Nikon D90||APS-C||12.2||4288||2848||720/24p||22.7||12.5||977||73||Nikon D90|
|Nikon D40X||APS-C||10.0||3872||2592||none||22.4||11.4||516||63||Nikon D40X|
|Nikon D300||APS-C||12.2||4288||2848||none||22.1||12.0||679||67||Nikon D300|
|Nikon D2Xs||APS-C||12.2||4288||2848||none||22.2||10.9||489||59||Nikon D2Xs|
|Nikon D50||APS-C||6.0||3008||2000||none||20.9||10.8||560||55||Nikon D50|
|Nikon D70s||APS-C||6.0||3008||2000||none||20.4||10.3||529||50||Nikon D70s|
|Nikon D70||APS-C||6.0||3008||2000||none||20.4||10.3||529||50||Nikon D70|
|Olympus XZ-2||1/1.7||11.8||3968||2976||1080/30p||20.4||11.3||216||49||Olympus XZ-2|
|Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52||Olympus E-PL3|
|Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52||Olympus E-PM1|
|Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54||Olympus E-PL1|
|Panasonic LX5||1/1.7||10.0||3648||2736||720/60p||19.6||10.8||132||41||Panasonic LX5|
Many modern cameras cannot only take still pictures, but also record videos. The XZ-1 indeed provides for movie recording, while the D80 does not. The highest resolution format that the XZ-1 can use is 720/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D80 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the XZ-1 relies on live view and the rear LCD for framing. That said, the XZ-1 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Nikon D80, the Olympus XZ-1, and comparable cameras.
|Nikon D80||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Nikon D80|
|Olympus XZ-1||optional||n||3.0||614||fixed||n||1/2000s||2.0||Y||Y||Olympus XZ-1|
|Nikon D3000||optical||n||3.0||230||fixed||n||1/4000s||3.0||Y||n||Nikon D3000|
|Nikon D5000||optical||n||2.7||230||full-flex||n||1/4000s||4.0||Y||n||Nikon D5000|
|Nikon D60||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Nikon D60|
|Nikon D90||optical||Y||3.0||920||fixed||n||1/4000s||4.5||Y||n||Nikon D90|
|Nikon D40X||optical||n||2.5||230||fixed||n||1/4000s||3.0||Y||n||Nikon D40X|
|Nikon D300||optical||Y||3.0||922||fixed||n||1/8000s||6.0||Y||n||Nikon D300|
|Nikon D2Xs||optical||Y||2.5||230||fixed||n||1/8000s||5.0||n||n||Nikon D2Xs|
|Nikon D50||optical||n||2.0||130||fixed||n||1/4000s||2.5||Y||n||Nikon D50|
|Nikon D70s||optical||n||2.0||130||fixed||n||1/8000s||3.0||Y||n||Nikon D70s|
|Nikon D70||optical||n||1.8||130||fixed||n||1/8000s||3.0||Y||n||Nikon D70|
|Olympus XZ-2||optional||n||3.0||920||tilting||Y||1/2000s||5.0||Y||Y||Olympus XZ-2|
|Olympus E-PL3||optional||n||3.0||460||tilting||n||1/4000s||5.5||n||Y||Olympus E-PL3|
|Olympus E-PM1||optional||n||3.0||460||fixed||n||1/4000s||5.5||n||Y||Olympus E-PM1|
|Olympus E-PL1||optional||n||2.7||230||fixed||n||1/2000s||3.0||Y||Y||Olympus E-PL1|
|Panasonic LX5||optional||n||3.0||460||fixed||n||1/4000s||2.5||Y||Y||Panasonic LX5|
The Olympus XZ-1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D80 writes its imaging data to SDHC cards, while the XZ-1 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D80 and Olympus XZ-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Nikon D80||Y||none||none||-||-||none||2.0||-||-||-||Nikon D80|
|Olympus XZ-1||Y||mono||none||-||-||mini||2.0||-||-||-||Olympus XZ-1|
|Nikon D3000||Y||none||none||-||-||none||2.0||-||-||-||Nikon D3000|
|Nikon D5000||Y||mono||mono||-||-||mini||2.0||-||-||-||Nikon D5000|
|Nikon D60||Y||none||none||-||-||none||2.0||-||-||-||Nikon D60|
|Nikon D90||Y||mono||mono||-||-||mini||2.0||-||-||-||Nikon D90|
|Nikon D40X||Y||none||none||-||-||none||2.0||-||-||-||Nikon D40X|
|Nikon D300||Y||none||none||-||-||mini||2.0||-||-||-||Nikon D300|
|Nikon D2Xs||Y||none||none||-||-||none||2.0||-||-||-||Nikon D2Xs|
|Nikon D50||Y||none||none||-||-||none||2.0||-||-||-||Nikon D50|
|Nikon D70s||Y||none||none||-||-||none||2.0||-||-||-||Nikon D70s|
|Nikon D70||Y||none||none||-||-||none||1.0||-||-||-||Nikon D70|
|Olympus XZ-2||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus XZ-2|
|Olympus E-PL3||Y||stereo||none||-||-||mini||2.0||-||-||-||Olympus E-PL3|
|Olympus E-PM1||Y||stereo||mono||-||-||mini||2.0||-||-||-||Olympus E-PM1|
|Olympus E-PL1||Y||stereo||none||-||-||mini||2.0||-||-||-||Olympus E-PL1|
|Panasonic LX5||Y||mono||mono||-||-||mini||2.0||-||-||-||Panasonic LX5|
Both the D80 and the XZ-1 have been discontinued, but can regularly be found used on eBay. The D80 was replaced by the Nikon D90, while the XZ-1 was followed by the Olympus XZ-2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Olympus websites.
So what is the bottom line? Is the Nikon D80 better than the Olympus XZ-1 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Nikon D80:
- Better image quality: Scores substantially higher (27 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (3.3 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (0.8 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (2.2 stops ISO advantage).
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (3 vs 2 flaps/sec) to capture the decisive moment.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (600 versus 320) on a single battery charge.
- More heavily discounted: Has been available for much longer (launched in August 2006).
Arguments in favor of the Olympus XZ-1:
- Broader imaging potential: Can capture not only stills but also 720/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (614k vs 230k dots).
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Comes with an integrated lens, while the D80 requires a separate lens.
- More compact: Is smaller (111x65mm vs 132x103mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the D80).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More modern: Reflects 4 years and 4 months of technical progress since the D80 launch.
If the count of relative strengths (bullet points above) is taken as a measure, the match-up finishes in a tie (10 points each). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D80 and the Olympus XZ-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D80 and the XZ-1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 5D Mark IV vs Olympus XZ-1
- Canon 800D vs Nikon D80
- Fujifilm X-A7 vs Olympus XZ-1
- Leica D-LUX 6 vs Nikon D80
- Leica S-E Typ 006 vs Nikon D80
- Nikon D3 vs Nikon D80
- Nikon D3X vs Olympus XZ-1
- Nikon D80 vs Nikon L840
- Nikon D80 vs Panasonic TZ90
- Nikon D80 vs Sigma fp
- Nikon D80 vs Sony RX10 IV
- Olympus XZ-1 vs Sony RX10 III
Specifications: Nikon D80 vs Olympus XZ-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D80||Olympus XZ-1|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Nikon F mount lenses||28-112mm f/1.8-2.5|
|Launch Date||August 2006||January 2011|
|Launch Price||USD 999||USD 499|
|Sensor Specs||Nikon D80||Olympus XZ-1|
|Sensor Format||APS-C Sensor||1/1.7" Sensor|
|Sensor Size||23.6 x 15.8 mm||7.85 x 5.89 mm|
|Sensor Area||372.88 mm2||46.2365 mm2|
|Sensor Diagonal||28.4 mm||9.8 mm|
|Sensor Resolution||10 Megapixels||10.1 Megapixels|
|Image Resolution||3872 x 2592 pixels||3664 x 2752 pixels|
|Pixel Pitch||6.11 μm||2.13 μm|
|Pixel Density||2.69 MP/cm2||21.81 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||720/30p Video|
|ISO Setting||100-1600 ISO||100-6400 ISO|
|ISO Boost||100-3200 ISO||no Enhancement|
|DXO Sensor Quality (score)||61||34|
|DXO Color Depth (bits)||22.1||18.8|
|DXO Dynamic Range (EV)||11.2||10.4|
|DXO Low Light (ISO)||524||117|
|Screen Specs||Nikon D80||Olympus XZ-1|
|Viewfinder Type||Optical viewfinder||Viewfinder optional|
|Viewfinder Field of View||95%|
|LCD Framing||Live View|
|Rear LCD Size||2.5 inch||3.0 inch|
|LCD Resolution||230k dots||614k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Nikon D80||Olympus XZ-1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||3 shutter flaps/s||2 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDHC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||no||no|
|Connectivity Specs||Nikon D80||Olympus XZ-1|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||mini HDMI|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Nikon D80||Olympus XZ-1|
|Battery Life (CIPA)||600 shots per charge||320 shots per charge|
132 x 103 x 77 mm
(5.2 x 4.1 x 3.0 in)
111 x 65 x 42 mm
(4.4 x 2.6 x 1.7 in)
|Camera Weight||668 g (23.6 oz)||275 g (9.7 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
