Olympus XZ-1 vs Pentax K-1 II
The Olympus XZ-1 and the Pentax K-1 II are two digital cameras that were officially introduced, respectively, in January 2011 and February 2018. The XZ-1 is a fixed lens compact, while the K-1 II is a DSLR. The cameras are based on a 1/1.7-inch (XZ-1) and a full frame (K-1 II) sensor. The Olympus has a resolution of 10.1 megapixels, whereas the Pentax provides 36.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Olympus XZ-1||Pentax K-1 II|
|Fixed lens compact camera||Digital single lens reflex|
|28-112mm f/1.8-2.5||Pentax K mount lenses|
|10.1 MP, 1/1.7" Sensor||36.2 MP, Full Frame Sensor|
|720/30p Video||1080/60i Video|
|ISO 100-6,400||ISO 100-819,200|
|Viewfinder optional||Optical viewfinder|
|3.0 LCD, 614k dots||3.2 LCD, 1037k dots|
|Fixed screen (not touch-sensitive)||Fully flexible screen (no touchscreen)|
|2 shutter flaps per second||4.4 shutter flaps per second|
|In-body stabilization||In-body stabilization|
|not weather sealed||Weathersealed body|
|320 shots per battery charge||670 shots per battery charge|
|111 x 65 x 42 mm, 275 g||137 x 110 x 86 mm, 1010 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus XZ-1 and the Pentax K-1 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

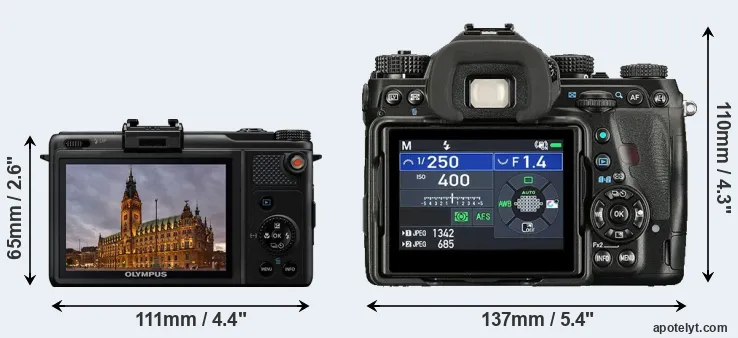

The physical size and weight of the Olympus XZ-1 and the Pentax K-1 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The XZ-1 can be obtained in two different colors (black, white), while the K-1 II is also available in two color-versions, but different ones (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-1 II is considerably larger (109 percent) than the Olympus XZ-1. It is noteworthy in this context that the K-1 II is splash and dust-proof, while the XZ-1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-1 has a lens built in, whereas the K-1 II is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Olympus XZ-1||111 mm||65 mm||42 mm||275 g||320||n||Jan 2011||499|
|Pentax K-1 II||137 mm||110 mm||86 mm||1010 g||670||Y||Feb 2018||1,999|
|Olympus TG-5||113 mm||66 mm||32 mm||250 g||340||Y||May 2017||449|
|Olympus E-PM2||110 mm||64 mm||34 mm||269 g||360||n||Sep 2012||499|
|Olympus XZ-2||113 mm||65 mm||48 mm||346 g||340||n||Sep 2012||599|
|Olympus E-PL3||110 mm||64 mm||37 mm||313 g||300||n||Jun 2011||599|
|Olympus E-PM1||110 mm||64 mm||34 mm||265 g||330||n||Jun 2011||499|
|Olympus E-5||142 mm||117 mm||75 mm||873 g||750||Y||Sep 2010||1,699|
|Olympus E-PL1||115 mm||72 mm||42 mm||334 g||290||n||Feb 2010||599|
|Panasonic S1R||149 mm||110 mm||97 mm||1016 g||380||Y||Feb 2019||3,699|
|Panasonic GH5||139 mm||98 mm||87 mm||725 g||410||Y||Jan 2017||1,999|
|Panasonic FZ200||125 mm||87 mm||110 mm||588 g||540||n||Jul 2012||599|
|Panasonic LX7||111 mm||68 mm||46 mm||298 g||330||n||Jul 2012||499|
|Panasonic FZ150||124 mm||82 mm||92 mm||528 g||410||n||Aug 2011||499|
|Panasonic LX5||110 mm||65 mm||43 mm||271 g||400||n||Jul 2010||499|
|Pentax K-1||137 mm||110 mm||86 mm||1010 g||760||Y||Feb 2016||1,799|
|Sony A99 II||143 mm||104 mm||76 mm||849 g||490||Y||Sep 2016||3,199|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XZ-1 was launched at a lower price than the K-1 II, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Olympus XZ-1 features a 1/1.7-inch sensor and the Pentax K-1 II a full frame sensor. The sensor area in the K-1 II is 1774 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.4 and 1.0. The sensor in the XZ-1 has a native 4:3 aspect ratio, while the one in the K-1 II offers a 3:2 aspect.

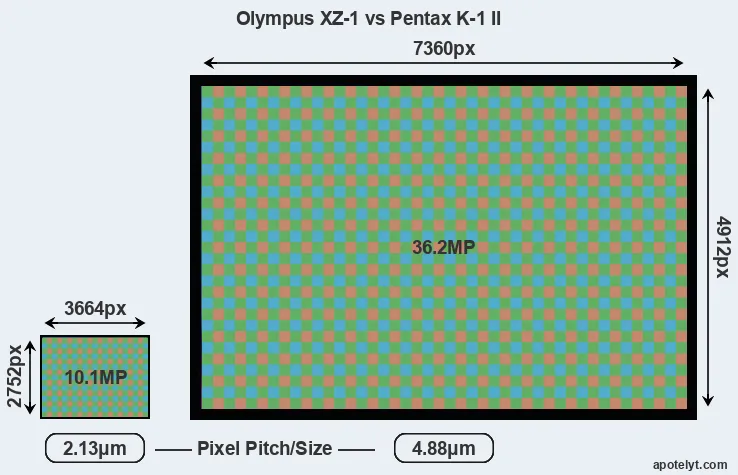

With 36.2MP, the K-1 II offers a higher resolution than the XZ-1 (10.1MP), but the K-1 II nevertheless has larger individual pixels (pixel pitch of 4.88μm versus 2.13μm for the XZ-1) due to its larger sensor. Moreover, the K-1 II is a much more recent model (by 7 years and 1 month) than the XZ-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the K-1 II has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Pentax K-1 II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-1 II for good quality output (200 dots per inch) amounts to 36.8 x 24.6 inches or 93.5 x 62.4 cm, for very good quality (250 dpi) 29.4 x 19.6 inches or 74.8 x 49.9 cm, and for excellent quality (300 dpi) 24.5 x 16.4 inches or 62.3 x 41.6 cm. The corresponding values for the Olympus XZ-1 are 18.3 x 13.8 inches or 46.5 x 35 cm for good quality, 14.7 x 11 inches or 37.2 x 28 cm for very good quality, and 12.2 x 9.2 inches or 31 x 23.3 cm for excellent quality prints.
Unlike the XZ-1, the K-1 II has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Olympus XZ-1 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Pentax K-1 II are ISO 100 to ISO 819200 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Pentax K-1 II||Full Frame||36.2||7360||4912||1080/60i||..||..||..||..|
|Olympus E-PM2||Four Thirds||15.9||4608||3456||1080/30p||22.7||12.2||932||72|
|Olympus E-PL3||Four Thirds||12.2||4032||3024||1080/60i||20.9||10.3||499||52|
|Olympus E-PM1||Four Thirds||12.2||4032||3024||1080/60i||21.0||10.3||499||52|
|Olympus E-5||Four Thirds||12.2||4032||3024||720/30p||21.6||10.5||519||56|
|Olympus E-PL1||Four Thirds||12.2||4032||3024||720/30p||21.5||10.1||487||54|
|Panasonic S1R||Full Frame||46.7||8368||5584||4K/60p||26.4||14.1||3525||100|
|Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|Pentax K-1||Full Frame||36.2||7360||4912||1080/60i||25.4||14.6||3280||96|
|Sony A99 II||Full Frame||42.2||7952||5304||4K/30p||25.4||13.4||2317||92|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the K-1 II provides a better video resolution than the XZ-1. It can shoot movie footage at 1080/60i, while the Olympus is limited to 720/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the K-1 II has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the XZ-1 relies on live view and the rear LCD for framing. That said, the XZ-1 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Olympus XZ-1 and Pentax K-1 II in connection with corresponding information for a sample of similar cameras.
|Pentax K-1 II||optical||Y||3.2||1037||full-flex||n||1/8000s||4.4||n||Y|
|Sony A99 II||2400||Y||3.0||1229||full-flex||n||1/8000s||12.0||n||Y|
One difference between the cameras concerns the presence of an on-board flash. The XZ-1 has one, while the K-1 II does not. While the built-in flash of the XZ-1 is not very powerful, it can at times be useful as a fill-in light.
The Olympus XZ-1 and the Pentax K-1 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the XZ-1 and the K-1 II write their files to SDXC cards. The K-1 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the XZ-1 only has one slot. The K-1 II supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XZ-1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus XZ-1 and Pentax K-1 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Pentax K-1 II||Y||stereo||mono||Y||Y||micro||2.0||Y||-||-|
|Sony A99 II||Y||stereo||mono||Y||Y||micro||2.0||Y||Y||Y|
It is notable that the K-1 II offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the XZ-1 does not provide wifi capability.
Studio photographers will appreciate that the Pentax K-1 II (unlike the XZ-1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the K-1 II has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
The K-1 II is a recent model that features in the current product line-up of Pentax. In contrast, the XZ-1 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the XZ-1 was succeeded by the Olympus XZ-2. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Pentax websites.
So how do things add up? Is there a clear favorite between the Olympus XZ-1 and the Pentax K-1 II? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Advantages of the Olympus XZ-1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Ready to shoot: Comes with a built-in lens, while the K-1 II requires a separate lens.
- More compact: Is smaller (111x65mm vs 137x110mm) and thus needs less room in the bag.
- Less heavy: Is lighter even though it comes with a built-in lens (unlike the K-1 II).
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been available for much longer (launched in January 2011).
Reasons to prefer the Pentax K-1 II:
- More detail: Has more megapixels (36.2 vs 10.1MP), which boosts linear resolution by 93%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better video: Provides higher definition movie capture (1080/60i vs 720/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features a control panel on top to check shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 614k dots).
- More flexible LCD: Has a full-flex screen for odd-angle shots in portrait or landscape orientation.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
- Faster burst: Shoots at higher frequency (4.4 vs 2 flaps/sec) to capture the decisive moment.
- More flexible: Makes it possible to change lenses and thus to use specialty optics.
- Longer lasting: Gets more shots (670 versus 320) out of a single battery charge.
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 7 years and 1 month of technical progress since the XZ-1 launch.
If the count of individual advantages (bullet points above) is taken as a guide, the K-1 II is the clear winner of the contest (26 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Olympus XZ-1 and the Pentax K-1 II place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the XZ-1 or the K-1 II perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Olympus XZ-1||..||74/100||4.5/5||4.5/5||4.5/5||Jan 2011||499|
|Pentax K-1 II||..||79/100||4.5/5||4.5/5||4.5/5||Feb 2018||1,999|
|Olympus TG-5||+ +||..||4/5||o||4/5||May 2017||449|
|Olympus E-PM2||..||77/100||5/5||4.5/5||4.5/5||Sep 2012||499|
|Olympus XZ-2||+||..||4.5/5||4/5||4.5/5||Sep 2012||599|
|Olympus E-PL3||+ +||72/100||4.5/5||..||4/5||Jun 2011||599|
|Olympus E-PM1||86/100||71/100||4.5/5||..||4.5/5||Jun 2011||499|
|Olympus E-5||..||75/100||4/5||..||4.5/5||Sep 2010||1,699|
|Olympus E-PL1||86/100||69/100||4/5||4.5/5||4.5/5||Feb 2010||599|
|Panasonic S1R||..||89/100||4.5/5||5/5||4.5/5||Feb 2019||3,699|
|Panasonic GH5||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999|
|Panasonic FZ200||+ +||80/100||4.5/5||4.5/5||4.5/5||Jul 2012||599|
|Panasonic LX7||+ +||75/100||4/5||5/5||4.5/5||Jul 2012||499|
|Panasonic FZ150||+ +||76/100||4/5||5/5||4.5/5||Aug 2011||499|
|Panasonic LX5||+||73/100||4.5/5||5/5||4.5/5||Jul 2010||499|
|Pentax K-1||..||84/100||5/5||4.5/5||5/5||Feb 2016||1,799|
|Sony A99 II||..||85/100||4.5/5||4.5/5||4.5/5||Sep 2016||3,199|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 350D vs Pentax K-1 II
- Canon M6 Mark II vs Olympus XZ-1
- Canon SX420 vs Pentax K-1 II
- Canon SX530 vs Olympus XZ-1
- Fujifilm GFX 50S vs Olympus XZ-1
- Fujifilm X100 vs Pentax K-1 II
- Nikon D3400 vs Pentax K-1 II
- Nikon P900 vs Pentax K-1 II
- Nikon P950 vs Pentax K-1 II
- Panasonic G5 vs Pentax K-1 II
- Panasonic ZS100 vs Pentax K-1 II
- Pentax K-1 II vs Ricoh GR
Specifications: Olympus XZ-1 vs Pentax K-1 II
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Olympus XZ-1||Pentax K-1 II|
|Camera Type||Fixed lens compact camera||Digital single lens reflex|
|Camera Lens||28-112mm f/1.8-2.5||Pentax K mount lenses|
|Launch Date||January 2011||February 2018|
|Launch Price||USD 499||USD 1,999|
|Sensor Specs||Olympus XZ-1||Pentax K-1 II|
|Sensor Format||1/1.7" Sensor||Full Frame Sensor|
|Sensor Size||7.85 x 5.89 mm||35.9 x 24.0 mm|
|Sensor Area||46.2365 mm2||861.6 mm2|
|Sensor Diagonal||9.8 mm||43.2 mm|
|Sensor Resolution||10.1 Megapixels||36.2 Megapixels|
|Image Resolution||3664 x 2752 pixels||7360 x 4912 pixels|
|Pixel Pitch||2.13 μm||4.88 μm|
|Pixel Density||21.81 MP/cm2||4.20 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||720/30p Video||1080/60i Video|
|ISO Setting||100 - 6,400 ISO||100 - 819,200 ISO|
|Image Processor||TruePic V||PRIME IV|
|DXO Sensor Quality (score)||34||..|
|DXO Color Depth (bits)||18.8||..|
|DXO Dynamic Range (EV)||10.4||..|
|DXO Low Light (ISO)||117||..|
|Screen Specs||Olympus XZ-1||Pentax K-1 II|
|Viewfinder Type||Viewfinder optional||Optical viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||no Top Display||Control Panel|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||614k dots||1037k dots|
|LCD Attachment||Fixed screen||Fully flexible screen|
|Shooting Specs||Olympus XZ-1||Pentax K-1 II|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/2000s||1/8000s|
|Continuous Shooting||2 shutter flaps/s||4.4 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||Build-in Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|UHS card support||no||UHS-I|
|Connectivity Specs||Olympus XZ-1||Pentax K-1 II|
|Studio Flash||no PC Sync||PC Sync socket|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||micro HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||no Wifi||Wifi built-in|
|Geotagging||no internal GPS||GPS built-in|
|Body Specs||Olympus XZ-1||Pentax K-1 II|
|Environmental Sealing||not weather sealed||Weathersealed body|
|Battery Life (CIPA)||320 shots per charge||670 shots per charge|
111 x 65 x 42 mm
(4.4 x 2.6 x 1.7 in)
137 x 110 x 86 mm
(5.4 x 4.3 x 3.4 in)
|Camera Weight||275 g (9.7 oz)||1010 g (35.6 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
