Nikon D7200 vs Pentax MX-1
The Nikon D7200 and the Pentax MX-1 are two digital cameras that were announced, respectively, in March 2015 and January 2013. The D7200 is a DSLR, while the MX-1 is a fixed lens compact. The cameras are based on an APS-C (D7200) and a 1/1.7-inch (MX-1) sensor. The Nikon has a resolution of 24 megapixels, whereas the Pentax provides 12 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D7200 and the Pentax MX-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Nikon D7200 and the Pentax MX-1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax MX-1 is considerably smaller (49 percent) than the Nikon D7200. It is worth mentioning in this context that the D7200 is splash and dust resistant, while the MX-1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the MX-1 has a lens built in, whereas the D7200 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D7200 and their specifications in the Nikon Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|Nikon D7200||136 mm||107 mm||76 mm||765 g||1110||Y||Mar 2015||1,199|
|Pentax MX-1||122 mm||61 mm||51 mm||391 g||290||n||Jan 2013||499|
|Canon 80D||139 mm||105 mm||79 mm||730 g||960||Y||Feb 2016||1,199|
|Canon G3 X||123 mm||77 mm||105 mm||733 g||300||Y||Jun 2015||999|
|Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|Canon G15||107 mm||76 mm||40 mm||352 g||350||n||Sep 2012||499|
|Fujifilm X20||117 mm||70 mm||57 mm||353 g||270||n||Jan 2013||599|
|Nikon D7500||136 mm||104 mm||73 mm||720 g||950||Y||Apr 2017||1,299|
|Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699|
|Nikon D5||160 mm||159 mm||92 mm||1415 g||3780||Y||Jan 2016||6,499|
|Nikon D500||147 mm||115 mm||81 mm||860 g||1240||Y||Jan 2016||1,999|
|Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499|
|Nikon D5500||124 mm||97 mm||70 mm||420 g||820||n||Jan 2015||899|
|Nikon D750||141 mm||113 mm||78 mm||750 g||1230||Y||Sep 2014||2,299|
|Nikon D7100||136 mm||107 mm||76 mm||765 g||950||Y||Feb 2013||1,199|
|Nikon P7800||119 mm||78 mm||50 mm||399 g||350||n||Sep 2013||549|
|Olympus XZ-2||113 mm||65 mm||48 mm||346 g||340||n||Sep 2012||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The MX-1 was launched at a lower price than the D7200, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D7200 features an APS-C sensor and the Pentax MX-1 a 1/1.7-inch sensor. The sensor area in the MX-1 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 4.5. The sensor in the D7200 has a native 3:2 aspect ratio, while the one in the MX-1 offers a 4:3 aspect.

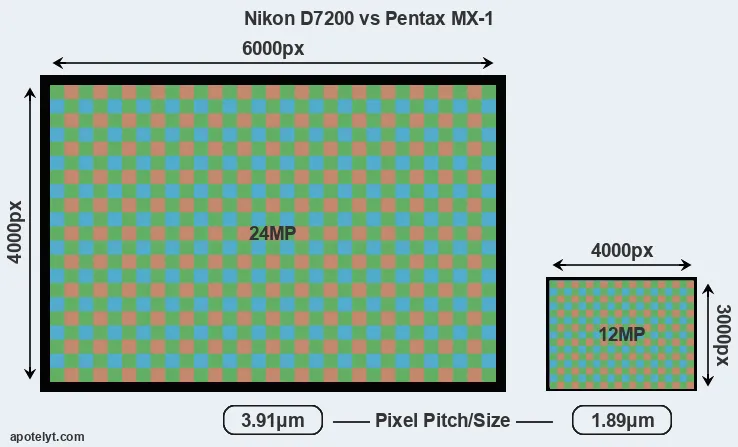

With 24MP, the D7200 offers a higher resolution than the MX-1 (12MP), but the D7200 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 1.89μm for the MX-1) due to its larger sensor. Moreover, the D7200 is a much more recent model (by 2 years and 1 month) than the MX-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D7200 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Nikon D7200 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D7200 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Pentax MX-1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.
The Nikon D7200 has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-102400. The corresponding ISO settings for the Pentax MX-1 are ISO 100 to ISO 12800 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the D7200 provides substantially higher image quality than the MX-1, with an overall score that is 38 points higher. This advantage is based on 4.1 bits higher color depth, 3.3 EV in additional dynamic range, and 2.7 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
| DXO |
|Canon G3 X||1-inch||20.0||5472||3648||1080/60p||21.4||12.3||521||63|
|Nikon D5||Full Frame||20.7||5588||3712||4K/30p||25.1||12.3||2343||88|
|Nikon D750||Full Frame||24.2||6016||4016||1080/60p||24.8||14.5||2956||93|
Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D7200 provides a higher frame rate than the MX-1. It can shoot video footage at 1080/60p, while the Pentax is limited to 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the D7200 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the MX-1 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Nikon D7200, the Pentax MX-1, and comparable cameras.
|Canon G3 X||optional||n||3.2||1620||tilting||Y||1/2000s||5.9||Y||Y|
One feature that is present on the D7200, but is missing on the MX-1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The Nikon D7200 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the D7200 and the MX-1 write their files to SDXC cards. The D7200 features dual card slots, which can be very useful in case a memory card fails. In contrast, the MX-1 only has one slot. The D7200 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the MX-1 cannot take advantage of Ultra High Speed SD cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D7200 and Pentax MX-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
| NFC |
|Canon G3 X||Y||stereo||mono||Y||Y||mini||2.0||Y||Y||-|
It is notable that the D7200 has a hotshoe, while the MX-1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.
Both the D7200 and the MX-1 have been discontinued, but can regularly be found used on eBay. The D7200 was replaced by the Nikon D7500, while the MX-1 does not have a direct successor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Pentax websites.
So what is the bottom line? Is the Nikon D7200 better than the Pentax MX-1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.
Reasons to prefer the Nikon D7200:
- More detail: Offers more megapixels (24 vs 12MP) with a 44% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Scores substantially higher (38 points) in the DXO overall assessment.
- Richer colors: Generates images with noticeably better colors (4.1 bits more color depth).
- More dynamic range: Captures a larger spectrum of light and dark details (3.3 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (2.7 stops ISO advantage).
- Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
- Better sound: Can connect to an external microphone for higher quality sound recording.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1229k vs 920k dots).
- Faster burst: Shoots at higher frequency (6 vs 1 flaps/sec) to capture the decisive moment.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (1110 versus 290) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
- More modern: Reflects 2 years and 1 month of technical progress since the MX-1 launch.
Arguments in favor of the Pentax MX-1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Ready to shoot: Comes with an integrated lens, while the D7200 requires a separate lens.
- More compact: Is smaller (122x61mm vs 136x107mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the D7200).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More affordable: Was introduced at a lower price, despite coming with a built-in lens.
- More heavily discounted: Has been around for much longer (launched in January 2013).
If the count of individual advantages (bullet points above) is taken as a guide, the D7200 is the clear winner of the match-up (24 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D7200 and the Pentax MX-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D7200 or the MX-1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D7200||+ +||84/100||4.5/5||4/5||4.5/5||Mar 2015||1,199|
|Pentax MX-1||..||74/100||4/5||3.5/5||4/5||Jan 2013||499|
|Canon 80D||+ +||84/100||4.5/5||4.5/5||4.5/5||Feb 2016||1,199|
|Canon G3 X||+||..||4.5/5||3.5/5||4/5||Jun 2015||999|
|Canon G16||+||..||4.5/5||4.5/5||4.5/5||Aug 2013||549|
|Canon G15||+||76/100||4.5/5||4.5/5||4.5/5||Sep 2012||499|
|Fujifilm X20||+ +||77/100||4.5/5||..||5/5||Jan 2013||599|
|Nikon D7500||+ +||86/100||5/5||4.5/5||4.5/5||Apr 2017||1,299|
|Nikon D5600||..||79/100||4.5/5||4.5/5||4/5||Nov 2016||699|
|Nikon D5||..||89/100||4.5/5||5/5||5/5||Jan 2016||6,499|
|Nikon D500||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999|
|Nikon D3400||+||76/100||4/5||4.5/5||4.5/5||Aug 2016||499|
|Nikon D5500||+||79/100||4.5/5||5/5||4.5/5||Jan 2015||899|
|Nikon D750||+ +||90/100||4.5/5||5/5||4.5/5||Sep 2014||2,299|
|Nikon D7100||+ +||85/100||4.5/5||5/5||4.5/5||Feb 2013||1,199|
|Nikon P7800||..||..||4/5||3.5/5||4.5/5||Sep 2013||549|
|Olympus XZ-2||+||..||4.5/5||4/5||4.5/5||Sep 2012||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
Specifications: Nikon D7200 vs Pentax MX-1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D7200||Pentax MX-1|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Nikon F mount lenses||28-112mm f/1.8-2.5|
|Launch Date||March 2015||January 2013|
|Launch Price||USD 1,199||USD 499|
|Sensor Specs||Nikon D7200||Pentax MX-1|
|Sensor Format||APS-C Sensor||1/1.7" Sensor|
|Sensor Size||23.5 x 15.6 mm||7.6 x 5.7 mm|
|Sensor Area||366.6 mm2||43.32 mm2|
|Sensor Diagonal||28.2 mm||9.5 mm|
|Sensor Resolution||24 Megapixels||12 Megapixels|
|Image Resolution||6000 x 4000 pixels||4000 x 3000 pixels|
|Pixel Pitch||3.91 μm||1.89 μm|
|Pixel Density||6.55 MP/cm2||27.70 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/60p Video||1080/30p Video|
|ISO Setting||100 - 25,600 ISO||100 - 12,800 ISO|
|ISO Boost||100 - 102,400 ISO||no Enhancement|
|DXO Sensor Quality (score)||87||49|
|DXO Color Depth (bits)||24.5||20.4|
|DXO Dynamic Range (EV)||14.6||11.3|
|DXO Low Light (ISO)||1333||208|
|Screen Specs||Nikon D7200||Pentax MX-1|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.2inch||3.0inch|
|LCD Resolution||1229k dots||920k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Nikon D7200||Pentax MX-1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Continuous Shooting||6 shutter flaps/s||1 shutter flaps/s|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Build-in Flash||Build-in Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Single card slot|
|UHS card support||UHS-I||no|
|Connectivity Specs||Nikon D7200||Pentax MX-1|
|External Flash||Hotshoe||no Hotshoe|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||mini HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Headphone Socket||Headphone port||no Headphone port|
|Wifi Support||Wifi built-in||no Wifi|
|Near-Field Communication||NFC built-in||no NFC|
|Body Specs||Nikon D7200||Pentax MX-1|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||1110 shots per charge||290 shots per charge|
136 x 107 x 76 mm
(5.4 x 4.2 x 3.0 in)
122 x 61 x 51 mm
(4.8 x 2.4 x 2.0 in)
|Camera Weight||765 g (27.0 oz)||391 g (13.8 oz)|
