Nikon D500 vs Sony NEX-5

The Nikon D500 and the Sony Alpha NEX-5 are two digital cameras that were officially introduced, respectively, in January 2016 and May 2010. The D500 is a DSLR, while the NEX-5 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Nikon has a resolution of 20.7 megapixels, whereas the Sony provides 14 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Nikon D500 versus Sony NEX-5
Nikon D500 Sony NEX-5
Digital single lens reflex Mirrorless system camera
Nikon F mount lenses Sony E mount lenses
20.7 MP, APS-C Sensor 14 MP, APS-C Sensor
4K/30p Video 1080/60i Video
ISO 100-51,200 (50 - 1,640,000) ISO 200-12,800
Optical viewfinder Viewfinder optional
3.2 LCD, 2359k dots 3.0 LCD, 920k dots
Tilting touchscreen Tilting screen (not touch-sensitive)
10 shutter flaps per second 7 shutter flaps per second
Weathersealed bodynot weather sealed
1240 shots per battery charge330 shots per battery charge
147 x 115 x 81 mm, 860 g 111 x 59 x 38 mm, 287 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D500 and the Sony Alpha NEX-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

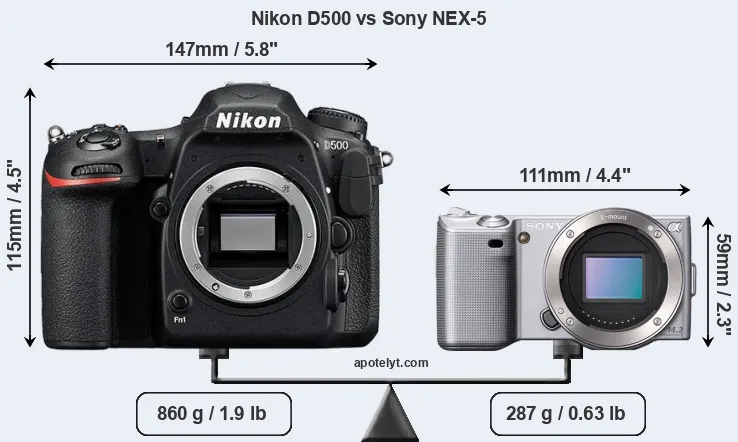

The side-by-side display below illustrates the physical size and weight of the Nikon D500 and the Sony NEX-5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The NEX-5 can be obtained in two different colors (black, silver), while the D500 is only available in black.

Size Nikon D500 vs Sony NEX-5
Compare D500 versus NEX-5 top
Comparison D500 or NEX-5 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5 is considerably smaller (61 percent) than the Nikon D500. Moreover, the NEX-5 is substantially lighter (67 percent) than the D500. It is worth mentioning in this context that the D500 is splash and dust resistant, while the NEX-5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D500) and the Sony E-Mount Lens Catalog (NEX-5). Mirrorless cameras, such as the NEX-5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the D500 gets 1240 shots out of its EN-EL15 battery, while the NEX-5 can take 330 images on a single charge of its NP-FW50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.

scroll hint
Body Specifications
  Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life 1
Weather
Sealing
Camera
Launch 2
Launch
Price (USD)
Street
Price

Nikon D500 5.8 in 4.5 in 3.2 in 30.3 oz 1240 Y Jan 2016 1,999 i

Sony NEX-5 4.4 in 2.3 in 1.5 in 10.1 oz 330 n May 2010 699i

Nikon D7500 5.4 in 4.1 in 2.9 in 25.4 oz 950 Y Apr 2017 1,299 i

Nikon D5600 4.9 in 3.8 in 2.8 in 16.4 oz 970 n Nov 2016 699 i

Nikon D3400 4.9 in 3.9 in 3.0 in 15.7 oz 1200 n Aug 2016 499i

Nikon D5500 4.9 in 3.8 in 2.8 in 14.8 oz 820 n Jan 2015 899i

Nikon D7200 5.4 in 4.2 in 3.0 in 27.0 oz 1110 Y Mar 2015 1,199i

Nikon D750 5.6 in 4.4 in 3.1 in 26.5 oz 1230 Y Sep 2014 2,299i

Nikon D7100 5.4 in 4.2 in 3.0 in 27.0 oz 950 Y Feb 2013 1,199i

Nikon D610 5.6 in 4.4 in 3.2 in 30.0 oz 900 Y Oct 2013 1,999 i

Nikon D600 5.6 in 4.4 in 3.2 in 30.0 oz 900 Y Sep 2012 2,099i

Nikon D300S 5.8 in 4.5 in 3.2 in 33.1 oz 950 Y Jul 2009 1,799i

Sony NEX-5R 4.4 in 2.3 in 1.5 in 9.7 oz 330 n Aug 2012 749i

Sony NEX-F3 4.6 in 2.6 in 1.7 in 11.1 oz 470 n May 2012 599i

Sony NEX-5N 4.4 in 2.3 in 1.5 in 9.5 oz 460 n Aug 2011 699i

Sony NEX-C3 4.3 in 2.4 in 1.3 in 7.9 oz 400 n Jun 2011 599i

Sony NEX-3 4.6 in 2.4 in 1.3 in 10.5 oz 330 n May 2010 599i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The NEX-5 was launched at a markedly lower price (by 65 percent) than the D500, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NEX-5 is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors.

Nikon D500 and Sony NEX-5 sensor measures

With 20.7MP, the D500 offers a higher resolution than the NEX-5 (14MP), but the D500 has smaller individual pixels (pixel pitch of 4.22μm versus 5.11μm for the NEX-5). However, the D500 is a much more recent model (by 5 years and 7 months) than the NEX-5, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the D500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon D500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D500 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Sony NEX-5 are 23 x 15.3 inches or 58.3 x 38.8 cm for good quality, 18.4 x 12.2 inches or 46.7 x 31 cm for very good quality, and 15.3 x 10.2 inches or 38.9 x 25.9 cm for excellent quality prints.

The Nikon D500 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-1640000. The corresponding ISO settings for the Sony Alpha NEX-5 are ISO 200 to ISO 12800 (no boost).

D500 versus NEX-5 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under review, the D500 provides substantially higher image quality than the NEX-5, with an overall score that is 14 points higher. This advantage is based on 1.8 bits higher color depth, 1.8 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall

Nikon D500 APS-C 20.7 5568 37124K/30p24.014.0132483

Sony NEX-5 APS-C 14.0 4592 30561080/60i22.212.279669

Nikon D7500 APS-C 20.7 5568 37124K/30p24.314.0148386

Nikon D5600 APS-C 24.0 6000 40001080/60p24.114.0130684

Nikon D3400 APS-C 24.0 6000 40001080/60p24.813.9119286

Nikon D5500 APS-C 24.0 6000 40001080/60p24.114.0143884

Nikon D7200 APS-C 24.0 6000 40001080/60p24.514.6133387

Nikon D750 Full Frame 24.2 6016 40161080/60p24.814.5295693

Nikon D7100 APS-C 24.0 6000 40001080/60p24.213.7125683

Nikon D610 Full Frame 24.2 6016 40161080/30p25.114.4292594

Nikon D600 Full Frame 24.2 6016 40161080/30p25.114.2298094

Nikon D300S APS-C 12.2 4288 2848720/24p22.512.278770

Sony NEX-5R APS-C 16.0 4912 32641080/60i23.713.191078

Sony NEX-F3 APS-C 16.0 4912 32641080/60i22.712.3111473

Sony NEX-5N APS-C 16.0 4912 32641080/60i23.612.7107977

Sony NEX-C3 APS-C 16.0 4912 3264720/30p22.712.2108373

Sony NEX-3 APS-C 14.0 4592 3056720/30p22.112.083068

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D500 provides a higher video resolution than the NEX-5. It can shoot video footage at 4K/30p, while the Sony is limited to 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the D500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-5 relies on live view and the rear LCD for framing. That said, the NEX-5 can be equipped with an optional viewfinder – the FDA-SV1. The following table reports on some other key feature differences and similarities of the Nikon D500, the Sony NEX-5, and comparable cameras.

scroll hint
Core Features
  Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab

Nikon D500optical Y 3.2 2359 tilting Y 1/8000s 10.0 n n

Sony NEX-5optional n 3.0 920 tilting n 1/4000s 7.0 n n

Nikon D7500optical Y 3.2 922 tilting Y 1/8000s 8.0 Y n

Nikon D5600optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n

Nikon D3400optical n 3.0 921 fixed n 1/4000s 5.0 Y n

Nikon D5500optical n 3.2 1037 swivel Y 1/4000s 5.0 Y n

Nikon D7200optical Y 3.2 1229 fixed n 1/8000s 6.0 Y n

Nikon D750optical Y 3.2 1229 tilting n 1/4000s 6.0 Y n

Nikon D7100optical Y 3.2 1229 fixed n 1/8000s 6.0 Y n

Nikon D610optical Y 3.2 921 fixed n 1/4000s 6.0 Y n

Nikon D600optical Y 3.0 921 fixed n 1/4000s 5.5 Y n

Nikon D300Soptical Y 3.0 920 fixed n 1/8000s 7.0 Y n

Sony NEX-5Roptional n 3.0 920 tilting Y 1/4000s 10.0 n n

Sony NEX-F3optional n 3.0 920 tilting n 1/4000s 5.5 Y n

Sony NEX-5Noptional n 3.0 920 tilting Y 1/4000s 10.0 n n

Sony NEX-C3optional n 3.0 920 tilting n 1/4000s 5.5 n n

Sony NEX-3optional n 3.0 920 tilting n 1/4000s 7.0 n n

One feature that is present on the D500, but is missing on the NEX-5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The NEX-5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the D500 does not have a selfie-screen.

The Nikon D500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D500 writes its imaging data to SDHC or XQD cards, while the NEX-5 uses SDXC or Memory Stick PRO Duo cards. The D500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the NEX-5 only has one slot. The D500 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the NEX-5 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D500 and Sony Alpha NEX-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support

Nikon D500YstereomonoYYmini3.0YYY

Sony NEX-5Ystereomono--mini2.0---

Nikon D7500YstereomonoYYmini2.0Y-Y

Nikon D5600YstereomonoY-mini2.0YYY

Nikon D3400Ymonomono--mini2.0--Y

Nikon D5500YstereomonoY-mini2.0Y--

Nikon D7200YstereomonoYYmini2.0YY-

Nikon D750YstereomonoYYmini2.0Y--

Nikon D7100YstereomonoYYmini2.0---

Nikon D610YmonomonoYYmini2.0---

Nikon D600YmonomonoYYmini2.0---

Nikon D300SYstereomonoY-mini2.0---

Sony NEX-5RYstereomono--mini2.0Y--

Sony NEX-F3Ystereomono--mini2.0---

Sony NEX-5NYstereomono--mini2.0---

Sony NEX-C3Ystereomono--mini2.0---

Sony NEX-3Ystereomono--mini2.0---

It is notable that the D500 has a microphone port, which is missing on the NEX-5. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Studio photographers will appreciate that the Nikon D500 (unlike the NEX-5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The D500 is a recent model that features in the current product line-up of Nikon. In contrast, the NEX-5 has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the NEX-5 was succeeded by the Sony NEX-5N. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and Sony websites.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Nikon D500 and the Sony NEX-5? Which camera is better? The listing below highlights the relative strengths of the two models.

ilogo

Arguments in favor of the Nikon D500:

  • More detail: Offers more megapixels (20.7 vs 14MP) with a 21% higher linear resolution.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores substantially higher (14 points) in the DXO overall assessment.
  • Richer colors: Generates images with noticeably better colors (1.8 bits more color depth).
  • More dynamic range: Captures a larger spectrum of light and dark details (1.8 EV of extra DR).
  • Better low-light sensitivity: Requires less light for good images (0.7 stops ISO advantage).
  • Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an optical viewfinder for image composition and settings control.
  • Easier setting verification: Features an LCD display on top to control shooting parameters.
  • Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (2359k vs 920k dots).
  • Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (10 vs 7 flaps/sec) to capture the decisive moment.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Can take more shots (1240 versus 330) on a single battery charge.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
  • Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
  • Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
  • More modern: Reflects 5 years and 7 months of technical progress since the NEX-5 launch.

ilogo

Reasons to prefer the Sony Alpha NEX-5:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
  • More compact: Is smaller (111x59mm vs 147x115mm) and will fit more readily into a bag.
  • Less heavy: Has a lower weight (by 573g or 67 percent) and is thus easier to take along.
  • More legacy lens friendly: Can use many non-native lenses via adapters.
  • More affordable: Was introduced into a lower priced category (65 percent cheaper at launch).
  • More heavily discounted: Has been around for much longer (launched in May 2010).

If the count of relative strengths (bullet points above) is taken as a measure, the D500 is the clear winner of the match-up (27 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

D500 27:07 NEX-5

How about other alternatives? Do the specifications of the Nikon D500 and the Sony NEX-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the D500 and the NEX-5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Review Scores
  Camera
Model
camera
  labs
dp
review
ephoto
  zine
imaging
resource
photography
  blog
Camera
Launch
Launch
Price (USD)
Street
Price

Nikon D500+ +91/1004.5/55/55/5 Jan 2016 1,999 i

Sony NEX-5+ +71/1004.5/54/54/5 May 2010 699i

Nikon D7500+ +86/1005/54.5/54.5/5 Apr 2017 1,299 i

Nikon D5600..79/1004.5/54.5/54/5 Nov 2016 699 i

Nikon D3400+76/1004/54.5/54.5/5 Aug 2016 499i

Nikon D5500+79/1004.5/55/54.5/5 Jan 2015 899i

Nikon D7200+ +84/1004.5/54/54.5/5 Mar 2015 1,199i

Nikon D750+ +90/1004.5/55/54.5/5 Sep 2014 2,299i

Nikon D7100+ +85/1004.5/55/54.5/5 Feb 2013 1,199i

Nikon D610+ +87/1004.5/54.5/54.5/5 Oct 2013 1,999 i

Nikon D600+ +87/1005/54.5/54.5/5 Sep 2012 2,099i

Nikon D300S+ +82/1004/55/54.5/5 Jul 2009 1,799i

Sony NEX-5R....4.5/5..4.5/5 Aug 2012 749i

Sony NEX-F3..74/1004.5/54.5/54.5/5 May 2012 599i

Sony NEX-5N+ +79/1004.5/55/54.5/5 Aug 2011 699i

Sony NEX-C3+ +74/1004.5/54.5/54/5 Jun 2011 599i

Sony NEX-3..70/1004.5/55/54/5 May 2010 599i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Nikon D500:
Check Amazon price
Sony NEX-5:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

    Specifications: Nikon D500 vs Sony NEX-5

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Nikon D500 Sony NEX-5
    Camera Type Digital single lens reflex Mirrorless system camera
    Camera Lens Nikon F mount lenses Sony E mount lenses
    Launch Date January 2016 May 2010
    Launch Price USD 1,999 USD 699
    Sensor Specs Nikon D500 Sony NEX-5
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 23.5 x 15.7 mm 23.4 x 15.6 mm
    Sensor Area 368.95 mm2 365.04 mm2
    Sensor Diagonal 28.3 mm 28.1 mm
    Crop Factor 1.5x 1.5x
    Sensor Resolution 20.7 Megapixels 14 Megapixels
    Image Resolution 5568 x 3712 pixels 4592 x 3056 pixels
    Pixel Pitch 4.22 μm 5.11 μm
    Pixel Density 5.60 MP/cm2 3.84 MP/cm2
    Moiré control no AA filter Anti-Alias filter
    Movie Capability 4K/30p Video 1080/60i Video
    ISO Setting 100 - 51,200 ISO 200 - 12,800 ISO
    ISO Boost 50 - 1,640,000 ISO no Enhancement
    Image Processor EXPEED 5 BIONZ
    DXO Sensor Quality (score) 83 69
    DXO Color Depth (bits) 24.0 22.2
    DXO Dynamic Range (EV) 14.0 12.2
    DXO Low Light (ISO) 1324 796
    Screen Specs Nikon D500 Sony NEX-5
    Viewfinder Type Optical viewfinder Viewfinder optional
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.67x
    Top-Level Screen Control Panel no Top Display
    LCD Framing Live View Live View
    Rear LCD Size 3.2inch 3.0inch
    LCD Resolution 2359k dots 920k dots
    LCD Attachment Tilting screen Tilting screen
    Touch Input Touchscreen no Touchscreen
    Shooting Specs Nikon D500 Sony NEX-5
    Focus System Phase-detect AF Contrast-detect AF
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/8000s 1/4000s
    Continuous Shooting 10 shutter flaps/s 7 shutter flaps/s
    Time-Lapse PhotographyIntervalometer built-inno Intervalometer
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC or XQD cards MS or SDXC cards
    Second Storage Option Dual card slots Single card slot
    UHS card support UHS-II no
    Connectivity Specs Nikon D500 Sony NEX-5
    External Flash Hotshoe Hotshoe
    Studio Flash PC Sync socket no PC Sync
    USB Connector USB 3.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port no MIC socket
    Headphone Socket Headphone port no Headphone port
    Wifi Support Wifi built-in no Wifi
    Near-Field Communication NFC built-in no NFC
    Bluetooth Support Bluetooth built-in no Bluetooth
    Body Specs Nikon D500 Sony NEX-5
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type EN-EL15 NP-FW50
    Battery Life (CIPA)1240 shots per charge330 shots per charge
    Body Dimensions 147 x 115 x 81 mm
    (5.8 x 4.5 x 3.2 in)
    111 x 59 x 38 mm
    (4.4 x 2.3 x 1.5 in)
    Camera Weight 860 g (30.3 oz) 287 g (10.1 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Nikon D500 vs Sony NEX-5

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.



    If you like it, make sure you share it.

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback.
