Nikon D2X vs YI M1
The Nikon D2X and the YI M1 are two digital cameras that were announced, respectively, in September 2004 and September 2016. The D2X is a DSLR, while the M1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D2X) and a Four Thirds (M1) sensor. The Nikon has a resolution of 12.2 megapixels, whereas the YI provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D2X and the YI M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
The side-by-side display below illustrates the physical size and weight of the Nikon D2X and the YI M1. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The M1 can be obtained in two different colors (black, silver), while the D2X is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the YI M1 is considerably smaller (69 percent) than the Nikon D2X. Moreover, the M1 is substantially lighter (78 percent) than the D2X. It is worth mentioning in this context that the D2X is splash and dust resistant, while the M1 does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D2X) and the Micro Four Thirds Lens Catalog (M1). Mirrorless cameras, such as the M1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
As can be seen in the images above, the D2X has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. The power pack in the M1 can be charged via the USB port, which can be very convenient when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Nikon D2X||6.2 in||5.9 in||3.4 in||44.2 oz||3800||Y||Sep 2004||4,999|
|YI M1||4.5 in||2.5 in||1.3 in||9.9 oz||450||n||Sep 2016||349|
|Canon SX730||4.3 in||2.5 in||1.6 in||10.6 oz||250||n||Apr 2017||399|
|Fujifilm X-A3||4.6 in||2.6 in||1.6 in||12.0 oz||410||n||Aug 2016||399|
|Nikon 1 J5||3.9 in||2.4 in||1.3 in||8.1 oz||250||n||Apr 2015||399|
|Nikon D3S||6.3 in||6.2 in||3.5 in||43.7 oz||4200||Y||Oct 2009||5,199|
|Nikon D300S||5.8 in||4.5 in||3.2 in||33.1 oz||950||Y||Jul 2009||1,799|
|Nikon D3||6.3 in||6.2 in||3.5 in||45.9 oz||4300||Y||Aug 2007||4,999|
|Nikon D300||5.8 in||4.5 in||2.9 in||32.6 oz||1000||Y||Aug 2007||1,799|
|Nikon D2Xs||6.2 in||5.9 in||3.4 in||44.2 oz||3800||Y||Jun 2006||4,699|
|Nikon D200||5.8 in||4.4 in||2.9 in||32.5 oz||400||Y||Nov 2005||1,699|
|Nikon D2H||6.2 in||5.9 in||3.4 in||37.7 oz||2900||Y||Jul 2003||3,499|
|Nikon D1H||6.2 in||6.0 in||3.3 in||38.8 oz||1200||Y||Feb 2001||4,499|
|Nikon D1X||6.2 in||6.0 in||3.3 in||38.8 oz||1200||Y||Feb 2001||5,999|
|Nikon D1||6.2 in||6.0 in||3.3 in||38.8 oz||..||Y||Jun 1999||5,499|
|Panasonic GX850||4.2 in||2.6 in||1.3 in||9.5 oz||210||n||Jan 2017||549|
|Panasonic GF7||4.2 in||2.6 in||1.3 in||9.4 oz||230||n||Jan 2015||499|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M1 was launched at a markedly lower price (by 93 percent) than the D2X, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

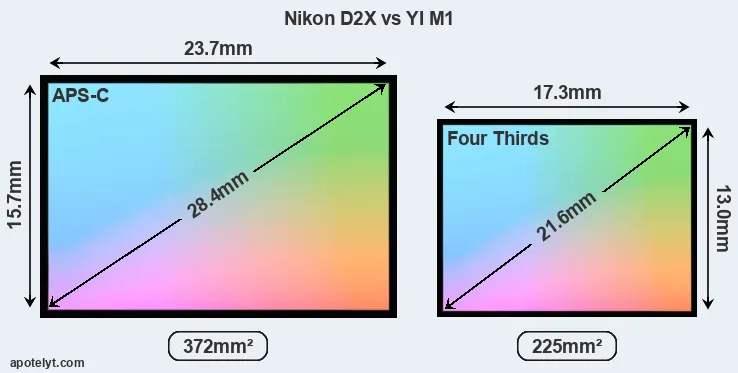

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Nikon D2X features an APS-C sensor and the YI M1 a Four Thirds sensor. The sensor area in the M1 is 40 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D2X has a native 3:2 aspect ratio, while the one in the M1 offers a 4:3 aspect.

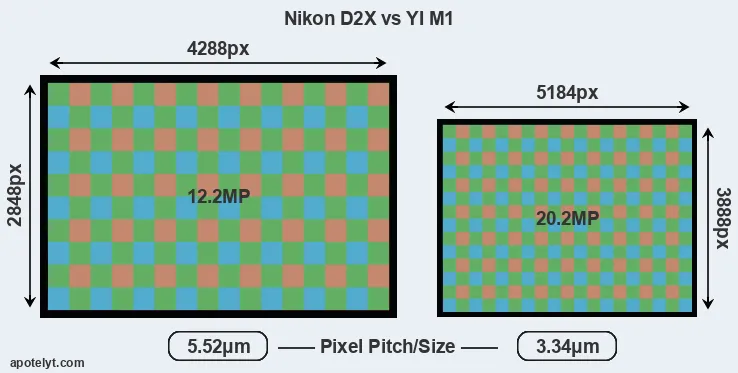

Despite having a smaller sensor, the M1 offers a higher resolution of 20.2 megapixels, compared with 12.2 MP of the D2X. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.34μm versus 5.52μm for the D2X). However, it should be noted that the M1 is much more recent (by 12 years) than the D2X, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the YI M1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M1 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Nikon D2X are 21.4 x 14.2 inches or 54.5 x 36.2 cm for good quality, 17.2 x 11.4 inches or 43.6 x 28.9 cm for very good quality, and 14.3 x 9.5 inches or 36.3 x 24.1 cm for excellent quality prints.
The Nikon D2X has a native sensitivity range from ISO 100 to ISO 800, which can be extended to ISO 100-3200. The corresponding ISO settings for the YI M1 are ISO 100 to ISO 25600 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|YI M1||Four Thirds||20.2||5184||3888||4K/30p||..||..||..||..|
|Nikon 1 J5||1-inch||20.7||5568||3712||4K/15p||21.1||12.0||479||65|
|Nikon D3S||Full Frame||12.1||4256||2832||720/24p||23.5||12.0||3253||82|
|Nikon D3||Full Frame||12.1||4256||2832||none||23.5||12.2||2290||81|
|Panasonic GX850||Four Thirds||15.8||4592||3448||4K/30p||23.2||13.3||586||73|
|Panasonic GF7||Four Thirds||15.8||4592||3448||1080/60p||..||..||..||..|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The M1 indeed provides for movie recording, while the D2X does not. The highest resolution format that the M1 can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D2X has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M1 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Nikon D2X, the YI M1, and comparable cameras.
|Nikon 1 J5||none||n||3.0||1037||tilting||Y||1/4000s||60.0||Y||n|
One feature that is present on the D2X, but is missing on the M1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The YI M1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The D2X writes its imaging data to Compact Flash cards, while the M1 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D2X and YI M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Nikon 1 J5||-||stereo||mono||-||-||micro||2.0||Y||Y||-|
It is notable that the M1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D2X does not provide wifi capability.
Studio photographers will appreciate that the Nikon D2X (unlike the M1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
The M1 is a recent model that features in the current product line-up of YI. In contrast, the D2X has been discontinued (but can be found pre-owned on eBay). As a replacement in the same line of cameras, the D2X was succeeded by the Nikon D2Xs. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Nikon and YI websites.
So how do things add up? Is the Nikon D2X better than the YI M1 or vice versa? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Nikon D2X:
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- Longer lasting: Can take more shots (3800 versus 450) on a single battery charge.
- Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- More heavily discounted: Has been available for much longer (launched in September 2004).
Arguments in favor of the YI M1:
- More detail: Has more megapixels (20.2 vs 12.2MP), which boosts linear resolution by 26%.
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 235k dots).
- Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (114x64mm vs 158x150mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 971g or 78 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (93 percent cheaper at launch).
- More modern: Reflects 12 years of technical progress since the D2X launch.
If the count of relative strengths (bullet points above) is taken as a measure, the M1 is the clear winner of the contest (14 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Nikon D2X and the YI M1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the D2X or the M1. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Nikon D2X||..||+ +||..||o||..||Sep 2004||4,999|
|YI M1||..||69/100||..||2.5/5||..||Sep 2016||349|
|Canon SX730||+||..||4/5||..||4/5||Apr 2017||399|
|Fujifilm X-A3||..||74/100||4.5/5||..||4/5||Aug 2016||399|
|Nikon 1 J5||..||..||4.5/5||4/5||4.5/5||Apr 2015||399|
|Nikon D3S||..||89/100||4.5/5||5/5||5/5||Oct 2009||5,199|
|Nikon D300S||+ +||82/100||4/5||5/5||4.5/5||Jul 2009||1,799|
|Nikon D3||..||+ +||5/5||o||4.5/5||Aug 2007||4,999|
|Nikon D300||+ +||+ +||5/5||o||4.5/5||Aug 2007||1,799|
|Nikon D2Xs||..||..||..||o||..||Jun 2006||4,699|
|Nikon D200||+ +||+ +||o||5/5||..||Nov 2005||1,699|
|Nikon D2H||..||+ +||..||o||..||Jul 2003||3,499|
|Nikon D1H||..||+ +||..||o||..||Feb 2001||4,499|
|Nikon D1X||..||+ +||..||o||..||Feb 2001||5,999|
|Nikon D1||..||+ +||..||..||..||Jun 1999||5,499|
|Panasonic GX850||+||76/100||4.5/5||4/5||4.5/5||Jan 2017||549|
|Panasonic GF7||+||..||4.5/5||4.5/5||4.5/5||Jan 2015||499|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Nikon D2X vs YI M1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Nikon D2X||YI M1|
|Camera Type||Digital single lens reflex||Mirrorless system camera|
|Camera Lens||Nikon F mount lenses||Micro Four Thirds lenses|
|Launch Date||September 2004||September 2016|
|Launch Price||USD 4,999||USD 349|
|Sensor Specs||Nikon D2X||YI M1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.7 x 15.7 mm||17.3 x 13.0 mm|
|Sensor Area||372.09 mm2||224.9 mm2|
|Sensor Diagonal||28.4 mm||21.6 mm|
|Sensor Resolution||12.2 Megapixels||20.2 Megapixels|
|Image Resolution||4288 x 2848 pixels||5184 x 3888 pixels|
|Pixel Pitch||5.52 μm||3.34 μm|
|Pixel Density||3.28 MP/cm2||8.96 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 800 ISO||100 - 25,600 ISO|
|ISO Boost||100 - 3,200 ISO||no Enhancement|
|DXO Sensor Quality (score)||59||..|
|DXO Color Depth (bits)||22.1||..|
|DXO Dynamic Range (EV)||10.9||..|
|DXO Low Light (ISO)||476||..|
|Screen Specs||Nikon D2X||YI M1|
|Viewfinder Type||Optical viewfinder||no viewfinder|
|Viewfinder Field of View||100%|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||2.5inch||3.0inch|
|LCD Resolution||235k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||no Touchscreen||Touchscreen|
|Shooting Specs||Nikon D2X||YI M1|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||5 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Nikon D2X||YI M1|
|Studio Flash||PC Sync socket||no PC Sync|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Nikon D2X||YI M1|
|Environmental Sealing||Weathersealed body||not weather sealed|
|Battery Life (CIPA)||3800 shots per charge||450 shots per charge|
|In-Camera Charging||no USB charging||USB charging|
158 x 150 x 86 mm
(6.2 x 5.9 x 3.4 in)
114 x 64 x 34 mm
(4.5 x 2.5 x 1.3 in)
|Camera Weight||1252 g (44.2 oz)||281 g (9.9 oz)|
