Nikon D1 vs Pentax 645Z
The Nikon D1 and the Pentax 645Z are two professional cameras that were announced, respectively, in June 1999 and April 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D1) and a medium format (645Z) sensor. The Nikon has a resolution of 2.6 megapixels, whereas the Pentax provides 51.1 MP. Read on to find out how these two cameras compare with respect to their body size, their sensors, their features, their input-output connections, and their reception by expert reviewers.
|Nikon D1||Pentax 645Z|
|Digital single lens reflex||Digital single lens reflex|
|Nikon F mount lenses||Pentax 645 mount lenses|
|2.6 MP, APS-C Sensor||51.1 MP, Medium Format Sensor|
|no Video||1080/60i Video|
|ISO 200-1600 (200-6400)||ISO 100-204800|
|Optical viewfinder||Optical viewfinder|
|2.0" LCD, 120k dots||3.2" LCD, 1037k dots|
|Fixed screen (not touch-sensitive)||Tilting screen (not touch-sensitive)|
|1.5 shutter flaps per second||3 shutter flaps per second|
|Weathersealed body||Weathersealed body|
|157 x 153 x 85 mm, 1100 g||156 x 117 x 123 mm, 1550 g|
Body comparison: Nikon D1 vs Pentax 645Z
The physical size and weight of the Nikon D1 and the Pentax 645Z are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax 645Z is notably smaller (24 percent) than the Nikon D1. However, the 645Z is substantially heavier (41 percent) than the D1. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
As can be seen in the images above, the D1 has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, just select a new right or left comparator from among the camera models in the table. Alternatively, you can also move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|Nikon D1»||6.2 in||6.0 in||3.3 in||38.8 oz||..||Y||Jun 1999||5,499||-||Nikon D1|
|Pentax 645Z«||6.1 in||4.6 in||4.8 in||54.7 oz||650||Y||Apr 2014||8,499||Pentax 645Z|
|Canon 5DS« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||6.0 in||4.6 in||3.0 in||32.8 oz||700||Y||Feb 2015||3,699||Canon 5DS R|
|Hasselblad X1D« »||5.9 in||3.9 in||2.8 in||25.6 oz||..||Y||Jun 2016||8,995||Hasselblad X1D|
|Leica SL« »||5.8 in||4.1 in||1.5 in||29.9 oz||400||Y||Oct 2015||7,450||Leica SL|
|Nikon D4« »||6.3 in||6.2 in||3.6 in||47.3 oz||2600||Y||Jan 2012||5,999||-||Nikon D4|
|Nikon D300S« »||5.8 in||4.5 in||3.2 in||33.1 oz||950||Y||Jul 2009||1,799||-||Nikon D300S|
|Nikon D3« »||6.3 in||6.2 in||3.5 in||45.9 oz||4300||Y||Aug 2007||4,999||-||Nikon D3|
|Nikon D300« »||5.8 in||4.5 in||2.9 in||32.6 oz||1000||Y||Aug 2007||1,799||-||Nikon D300|
|Nikon D2Xs« »||6.2 in||5.9 in||3.4 in||44.2 oz||3800||Y||Jun 2006||4,699||-||Nikon D2Xs|
|Nikon D200« »||5.8 in||4.4 in||2.9 in||32.5 oz||400||Y||Nov 2005||1,699||-||Nikon D200|
|Nikon D2X« »||6.2 in||5.9 in||3.4 in||44.2 oz||3800||Y||Sep 2004||4,999||-||Nikon D2X|
|Nikon D2H« »||6.2 in||5.9 in||3.4 in||37.7 oz||2900||Y||Jul 2003||3,499||-||Nikon D2H|
|Nikon D1H« »||6.2 in||6.0 in||3.3 in||38.8 oz||1200||Y||Feb 2001||4,499||-||Nikon D1H|
|Nikon D1X« »||6.2 in||6.0 in||3.3 in||38.8 oz||1200||Y||Feb 2001||5,999||-||Nikon D1X|
|Pentax 645D« »||6.1 in||4.6 in||4.7 in||52.2 oz||800||Y||Mar 2010||9,995||-||Pentax 645D|
Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D1 was launched at a markedly lower price (by 35 percent) than the 645Z, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
Sensor comparison: Nikon D1 vs Pentax 645Z
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

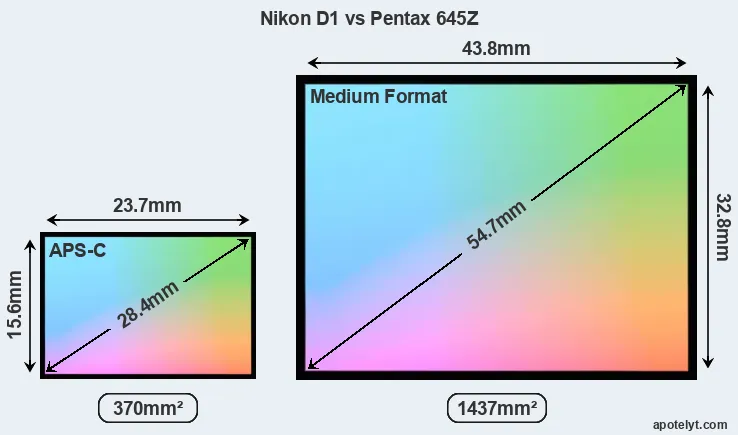

Of the two cameras under consideration, the Nikon D1 features an APS-C sensor and the Pentax 645Z a medium format sensor. The sensor area in the 645Z is 288 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 0.79. The sensor in the D1 has a native 3:2 aspect ratio, while the one in the 645Z offers a 4:3 aspect.
With 51.1MP, the 645Z offers a higher resolution than the D1 (2.6MP), but the 645Z has smaller individual pixels (pixel pitch of 5.30μm versus 11.93μm for the D1). Yet, the 645Z is a much more recent model (by 14 years and 10 months) than the D1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the 645Z has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The Nikon D1 has a native sensitivity range from ISO 200 to ISO 1600, which can be extended to ISO 200-6400. The corresponding ISO settings for the Pentax 645Z are ISO 100 to ISO 204800 (no boost).
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|Nikon D1»||APS-C||2.6||2000||1312||-||-||-||-||-||Nikon D1|
|Pentax 645Z«||Medium Format||51.1||8256||6192||1080/60i||26.0||14.7||4505||101||Pentax 645Z|
|Canon 5DS« »||Full Frame||50.3||8688||5792||1080/60p||24.7||12.4||2381||87||Canon 5DS|
|Canon 5DS R« »||Full Frame||50.3||8688||5792||1080/60p||24.6||12.4||2308||86||Canon 5DS R|
|Hasselblad X1D« »||Medium Format||51.3||8272||6200||1080/25p||26.2||14.8||4489||102||Hasselblad X1D|
|Leica SL« »||Full Frame||24.0||6000||4000||4K/30p||25.0||13.4||1821||88||Leica SL|
|Nikon D4« »||Full Frame||16.2||4928||3280||1080/30p||24.7||13.1||2965||89||Nikon D4|
|Nikon D300S« »||APS-C||12.2||4288||2848||720/24p||22.5||12.2||787||70||Nikon D300S|
|Nikon D3« »||Full Frame||12.1||4256||2832||-||23.5||12.2||2290||81||Nikon D3|
|Nikon D300« »||APS-C||12.2||4288||2848||-||22.1||12.0||679||67||Nikon D300|
|Nikon D2Xs« »||APS-C||12.2||4288||2848||-||22.2||10.9||489||59||Nikon D2Xs|
|Nikon D200« »||APS-C||10.0||3872||2592||-||22.3||11.5||583||64||Nikon D200|
|Nikon D2X« »||APS-C||12.2||4288||2848||-||22.1||10.9||476||59||Nikon D2X|
|Nikon D2H« »||APS-C||4.0||2464||1632||-||18.9||10.0||352||40||Nikon D2H|
|Nikon D1H« »||APS-C||2.6||2000||1312||-||-||-||-||-||Nikon D1H|
|Nikon D1X« »||APS-C||5.9||3008||1960||-||-||-||-||-||Nikon D1X|
|Pentax 645D« »||Medium Format||39.5||7264||5440||-||24.6||12.6||1262||82||Pentax 645D|
Many modern cameras are not only capable of taking still images, but can also record movies. The 645Z indeed provides for movie recording, while the D1 does not. The highest resolution format that the 645Z can use is 1080/60i.
Feature comparison: Nikon D1 vs Pentax 645Z
Beyond body and sensor, cameras can and do differ across a range of features. The D1 and the 645Z are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the 645Z offers a wider field of view (98%) than the one in the D1 (96%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the 645Z has a higher magnification (0.78x vs 0.53x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Nikon D1 and Pentax 645Z in connection with corresponding information for a sample of similar cameras.
|Nikon D1»||optical||Y||2.0||120||fixed||n||16000||1.5||n||n||Nikon D1|
|Pentax 645Z«||optical||Y||3.2||1037||tilting||n||4000||3.0||n||n||Pentax 645Z|
|Canon 5DS« »||optical||Y||3.2||1040||fixed||n||8000||5.0||n||n||Canon 5DS|
|Canon 5DS R« »||optical||Y||3.2||1040||fixed||n||8000||5.0||n||n||Canon 5DS R|
|Hasselblad X1D« »||2360||n||3.0||920||fixed||Y||2000||2.3||n||n||Hasselblad X1D|
|Leica SL« »||4400||Y||3.0||1040||fixed||Y||8000||11.0||n||n||Leica SL|
|Nikon D4« »||optical||Y||3.2||921||fixed||n||8000||11.0||n||n||Nikon D4|
|Nikon D300S« »||optical||Y||3.0||920||fixed||n||8000||7.0||Y||n||Nikon D300S|
|Nikon D3« »||optical||Y||3.0||922||fixed||n||8000||11.0||n||n||Nikon D3|
|Nikon D300« »||optical||Y||3.0||922||fixed||n||8000||6.0||Y||n||Nikon D300|
|Nikon D2Xs« »||optical||Y||2.5||230||fixed||n||8000||5.0||n||n||Nikon D2Xs|
|Nikon D200« »||optical||Y||2.5||230||fixed||n||8000||5.0||Y||n||Nikon D200|
|Nikon D2X« »||optical||Y||2.5||235||fixed||n||8000||5.0||n||n||Nikon D2X|
|Nikon D2H« »||optical||Y||2.5||211||fixed||n||8000||8.0||n||n||Nikon D2H|
|Nikon D1H« »||optical||Y||2.0||120||fixed||n||16000||5.0||n||n||Nikon D1H|
|Nikon D1X« »||optical||Y||2.0||120||fixed||n||16000||3.0||n||n||Nikon D1X|
|Pentax 645D« »||optical||Y||3.0||921||fixed||n||4000||1.1||n||n||Pentax 645D|
The D1 writes its imaging data to Compact Flash cards, while the 645Z uses SDXC cards. The 645Z features dual card slots, which can be very useful in case a memory card fails. In contrast, the D1 only has one slot.
Connectivity comparison: Nikon D1 vs Pentax 645Z
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D1 and Pentax 645Z and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Nikon D1»||Y||-||-||-||-||-||FW||-||-||-||Nikon D1|
|Pentax 645Z«||Y||stereo||mono||Y||-||mini||3.0||-||-||-||Pentax 645Z|
|Canon 5DS« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS|
|Canon 5DS R« »||Y||mono||mono||Y||-||mini||3.0||-||-||-||Canon 5DS R|
|Hasselblad X1D« »||Y||stereo||mono||Y||Y||mini||3.0||Y||-||-||Hasselblad X1D|
|Leica SL« »||Y||stereo||mono||Y||Y||full||3.0||Y||-||-||Leica SL|
|Nikon D4« »||Y||mono||mono||-||-||micro||2.0||-||-||-||Nikon D4|
|Nikon D300S« »||Y||stereo||mono||Y||-||mini||2.0||-||-||-||Nikon D300S|
|Nikon D3« »||Y||-||-||-||-||mini||2.0||-||-||-||Nikon D3|
|Nikon D300« »||Y||-||-||-||-||mini||2.0||-||-||-||Nikon D300|
|Nikon D2Xs« »||Y||-||-||-||-||-||2.0||-||-||-||Nikon D2Xs|
|Nikon D200« »||Y||-||-||-||-||-||2.0||-||-||-||Nikon D200|
|Nikon D2X« »||Y||-||-||-||-||-||2.0||-||-||-||Nikon D2X|
|Nikon D2H« »||Y||-||-||-||-||-||2.0||-||-||-||Nikon D2H|
|Nikon D1H« »||Y||-||-||-||-||-||FW||-||-||-||Nikon D1H|
|Nikon D1X« »||Y||-||-||-||-||-||FW||-||-||-||Nikon D1X|
|Pentax 645D« »||Y||stereo||-||-||-||-||2.0||-||-||-||Pentax 645D|
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
The 645Z is a recent model that features in the current product line-up of Pentax. In contrast, the D1 has been discontinued (but it can be found pre-owned on eBay). As a replacement in the same line of cameras, the D1 was succeeded by the Nikon D1X. Further information on the two cameras, as well as related accessories, can be found on the Nikon and Pentax websites.
Review summary: Nikon D1 vs Pentax 645Z
So what conclusions can be drawn? Which of the two cameras – the Nikon D1 or the Pentax 645Z – has the upper hand? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Nikon D1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Faster shutter: Has higher mechanical shutter speed (16000/sec vs 4000/sec) to freeze action.
- Less heavy: Is lighter (by 450g or 29 percent) and hence easier to carry around.
- More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
- More affordable: Was introduced into a lower priced category (35 percent cheaper at launch).
- More heavily discounted: Has been available for much longer (launched in June 1999).
Reasons to prefer the Pentax 645Z:
- More detail: Has more megapixels (51.1 vs 2.6MP), which boosts linear resolution by 331%.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Is equipped with a larger and more technologically advanced sensor.
- Richer colors: Larger sensor generates images with better, more accurate colors.
- More dynamic range: Capable of capturing a wider spectrum of light and dark details.
- Better low-light sensitivity: Can be used in poorly lit environments and still produce good images.
- Broader imaging potential: Can capture not only stills but also 1080/60i video.
- More complete view: Has a viewfinder with a larger field of view (98% vs 96%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.78x vs 0.53x).
- Larger screen: Has a bigger rear LCD (3.2" vs 2.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1037k vs 120k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster burst: Shoots at higher frequency (3 vs 1.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (156x117mm vs 157x153mm) and will fit more readily into a bag.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More modern: Reflects 14 years and 10 months of technical progress since the D1 launch.
If the number of relative strengths (bullet points above) is taken as a guide, the 645Z is the clear winner of the contest (16 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the D1 and the 645Z in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
Expert reviews: Nikon D1 vs Pentax 645Z
This is why expert reviews are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, photographyblog).
|Nikon D1»||-||++||-||-||-||Jun 1999||5,499||-||Nikon D1|
|Pentax 645Z«||-||-||4.5/5||5/5||5/5||Apr 2014||8,499||Pentax 645Z|
|Canon 5DS« »||+||83/100||4.5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS|
|Canon 5DS R« »||+||83/100||5/5||5/5||4.5/5||Feb 2015||3,699||Canon 5DS R|
|Hasselblad X1D« »||o||81/100||-||-||4/5||Jun 2016||8,995||Hasselblad X1D|
|Leica SL« »||-||84/100||4.5/5||4/5||4/5||Oct 2015||7,450||Leica SL|
|Nikon D4« »||-||-||4.5/5||-||4.5/5||Jan 2012||5,999||-||Nikon D4|
|Nikon D300S« »||++||82/100||4/5||5/5||4.5/5||Jul 2009||1,799||-||Nikon D300S|
|Nikon D3« »||-||++||5/5||o||4.5/5||Aug 2007||4,999||-||Nikon D3|
|Nikon D300« »||++||++||5/5||o||4.5/5||Aug 2007||1,799||-||Nikon D300|
|Nikon D2Xs« »||-||-||-||o||-||Jun 2006||4,699||-||Nikon D2Xs|
|Nikon D200« »||++||++||o||5/5||-||Nov 2005||1,699||-||Nikon D200|
|Nikon D2X« »||-||++||-||o||-||Sep 2004||4,999||-||Nikon D2X|
|Nikon D2H« »||-||++||-||o||-||Jul 2003||3,499||-||Nikon D2H|
|Nikon D1H« »||-||++||-||o||-||Feb 2001||4,499||-||Nikon D1H|
|Nikon D1X« »||-||++||-||o||-||Feb 2001||5,999||-||Nikon D1X|
|Pentax 645D« »||-||-||-||4.5/5||-||Mar 2010||9,995||-||Pentax 645D|
|Notes: ++) highly recommended; +) recommended; o) reviewed; -) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon 2000D vs Leica S Typ 007
- Canon G1 X Mark III vs Nikon D7100
- Canon T3 vs Fujifilm X-T3
- Leica X-U Typ 113 vs Pentax K-1 II
- Nikon D300 vs Nikon D800
- Nikon D3400 vs Nikon D60
- Nikon D40 vs Nikon D7100
- Panasonic GX8 vs Nikon D5
- Panasonic GX9 vs Canon T7
- Panasonic ZS200 vs Panasonic GF7
- Sony A7S II vs Panasonic GX850
- Sony A850 vs Sony A6500
Specifications: Nikon D1 vs Pentax 645Z
|Camera Model||Nikon D1||Pentax 645Z|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Nikon F mount lenses||Pentax 645 mount lenses|
|Launch Date||June 1999||April 2014|
|Launch Price||USD 5499||USD 8499|
|Sensor Specs||Nikon D1||Pentax 645Z|
|Sensor Format||APS-C Sensor||Medium Format Sensor|
|Sensor Size||23.7 x 15.6 mm||43.8 x 15.6 mm|
|Sensor Area||369.72 mm2||1436.64 mm2|
|Sensor Diagonal||28.4 mm||54.7 mm|
|Sensor Resolution||2.6 Megapixels||51.1 Megapixels|
|Image Resolution||2000 x 1312 pixels||8256 x 6192 pixels|
|Pixel Pitch||11.93 μm||5.30 μm|
|Pixel Density||0.71 MP/cm2||3.56 MP/cm2|
|Moiré control||Anti-Alias filter||no AA filter|
|Movie Capability||no Video||1080/60i Video|
|ISO Setting||200-1600 ISO||100-204800 ISO|
|ISO Boost||200-6400 ISO||no Enhancement|
|DXO Sensor Quality (score)||..||101|
|DXO Color Depth (bits)||..||26.0|
|DXO Dynamic Range (EV)||..||14.7|
|DXO Low Light (ISO)||..||4505|
|Screen Specs||Nikon D1||Pentax 645Z|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||96%||98%|
|Top-Level Screen||Control Panel||Control Panel|
|LCD Framing||Live View|
|Rear LCD Size||2.0 inch||3.2 inch|
|LCD Resolution||120k dots||1037k dots|
|LCD Attachment||Fixed screen||Tilting screen|
|Shooting Specs||Nikon D1||Pentax 645Z|
|Autofocus System||Phase-detect AF||Phase-detect AF|
|Maximum Shutter Speed||1/16000s||1/4000s|
|Continuous Shooting||1.5 shutter flaps/s||3 shutter flaps/s|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Nikon D1||Pentax 645Z|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||Firewire||USB 3.0|
|HDMI Port||no HDMI||mini HDMI|
|Microphone Port||no MIC socket||External MIC port|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Nikon D1||Pentax 645Z|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Type||EN-4 power pack||D-LI90 power pack|
157 x 153 x 85 mm
(6.2 x 6.0 x 3.3 in)
156 x 117 x 123 mm
(6.1 x 4.6 x 4.8 in)
|Camera Weight||1100 g (38.8 oz)||1550 g (54.7 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
