Nikon B500 vs Olympus XZ-2

The Nikon Coolpix B500 and the Olympus XZ-2 are two digital cameras that were officially introduced, respectively, in January 2016 and September 2012. Both the B500 and the XZ-2 are fixed lens compact cameras that are based on a 1/2.3-inch (B500) and a 1/1.7-inch (XZ-2) sensor. The Nikon has a resolution of 15.9 megapixels, whereas the Olympus provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon B500		Olympus XZ-2
Fixed lens compact camera		Fixed lens compact camera
22.5-900mm f/3.0-6.5		28-112mm f/1.8-2.5
15.9 MP – 1/2.3" sensor		11.8 MP – 1/1.7" sensor
1080/60i Video		1080/30p Video
ISO 80-6,400		ISO 100-12,800
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 921k dots		3.0" LCD – 920k dots
Tilting screen (no touchscreen)		Tilting touchscreen
7.4 shutter flaps per second		5 shutter flaps per second
Lens-based stabilization		In-body stabilization
600 shots per battery charge		340 shots per battery charge
114 x 78 x 95 mm, 541 g		113 x 65 x 48 mm, 346 g

Check B500 offers at
ebay.com
Check XZ-2 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon Coolpix B500 and the Olympus XZ-2? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

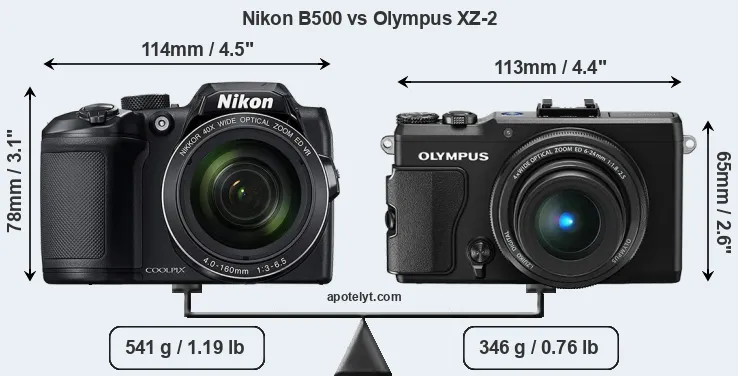

The side-by-side display below illustrates the physical size and weight of the Nikon B500 and the Olympus XZ-2. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The B500 can be obtained in two different colors (black, red), while the XZ-2 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-2 is notably smaller (17 percent) than the Nikon B500. Moreover, the XZ-2 is substantially lighter (36 percent) than the B500. In this context, it is worth noting that neither the B500 nor the XZ-2 are weather-sealed.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon B500	114 mm	78 mm	95 mm	541 g	600	n	Jan 2016	US$ 299	ebay.com
2.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
3.		Nikon A1000	114 mm	72 mm	41 mm	330 g	250	n	Jan 2019	US$ 429	ebay.com
4.		Nikon B600	122 mm	82 mm	99 mm	500 g	280	n	Jan 2019	US$ 349	ebay.com
5.		Nikon B700	125 mm	85 mm	107 mm	565 g	350	n	Feb 2016	US$ 499	ebay.com
6.		Nikon L840	113 mm	78 mm	96 mm	538 g	590	n	Feb 2015	US$ 299	ebay.com
7.		Nikon P900	140 mm	103 mm	137 mm	899 g	360	n	Mar 2015	US$ 599	ebay.com
8.		Nikon P1000	146 mm	119 mm	181 mm	1415 g	250	n	Jul 2018	US$ 999	amazon.com
9.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
10.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
11.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
12.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
13.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
14.		Panasonic FZ80	130 mm	94 mm	119 mm	616 g	330	n	Jan 2017	US$ 399	ebay.com
15.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	US$ 499	ebay.com
16.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	US$ 249	ebay.com
17.		Sony HX80	102 mm	58 mm	36 mm	245 g	390	n	Mar 2016	US$ 349	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The B500 was launched at a markedly lower price (by 50 percent) than the XZ-2, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

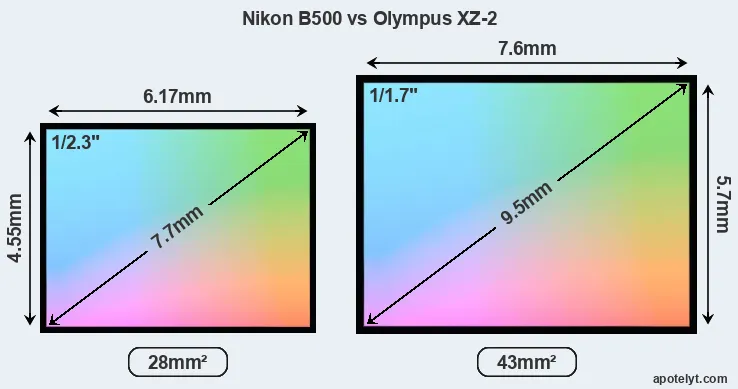

Of the two cameras under consideration, the Nikon B500 features a 1/2.3-inch sensor and the Olympus XZ-2 a 1/1.7-inch sensor. The sensor area in the XZ-2 is 54 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 4.4. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Despite having a smaller sensor, the Nikon B500 offers a higher resolution of 15.9 megapixels, compared with 11.8 MP of the Olympus XZ-2. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 1.91μm for the XZ-2). However, it should be noted that the B500 is much more recent (by 3 years and 4 months) than the XZ-2, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the B500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon B500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the B500 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus XZ-2 are 19.8 x 14.9 inches or 50.4 x 37.8 cm for good quality, 15.9 x 11.9 inches or 40.3 x 30.2 cm for very good quality, and 13.2 x 9.9 inches or 33.6 x 25.2 cm for excellent quality prints.

The Nikon Coolpix B500 has a native sensitivity range from ISO 80 to ISO 6400. The corresponding ISO settings for the Olympus XZ-2 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the B500 is build around a BSI-CMOS sensor, while the XZ-2 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon B500	1/2.3	15.9	4608	3456	1080/60i	20.3	11.7	810	48
2.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
3.		Nikon A1000	1/2.3	15.9	4608	3456	4K/30p	20.7	12.2	1095	52
4.		Nikon B600	1/2.3	15.9	4608	3456	1080/30p	20.7	12.2	1095	52
5.		Nikon B700	1/2.3	20.2	5184	3888	4K/30p	20.4	11.8	818	48
6.		Nikon L840	1/2.3	15.9	4608	3456	1080/60i	20.2	11.6	721	47
7.		Nikon P900	1/2.3	15.9	4608	3456	1080/60p	20.2	11.6	727	47
8.		Nikon P1000	1/2.3	15.9	4608	3456	4K/30p	20.6	12.1	1044	51
9.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
10.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
11.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
12.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
13.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
14.		Panasonic FZ80	1/2.3	18.0	4896	3672	4K/30p	20.5	11.9	900	49
15.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
16.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
17.		Sony HX80	1/2.3	18.0	4896	3672	1080/60p	20.4	11.8	822	48
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the B500 provides a higher frame rate than the XZ-2. It can shoot video footage at 1080/60i, while the Olympus is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The B500 and the XZ-2 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the XZ-2 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Nikon B500 and Olympus XZ-2 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon B500	none	n	3.0 / 921	tilting	n	1/4000s	7.4/s	Y	Y
2.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
3.		Nikon A1000	1166	n	3.0 / 1036	tilting	Y	1/4000s	7.0/s	Y	Y
4.		Nikon B600	none	n	3.0 / 921	fixed	n	1/4000s	7.4/s	Y	Y
5.		Nikon B700	921	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	Y
6.		Nikon L840	none	n	3.0 / 921	tilting	n	1/4000s	7.4/s	Y	Y
7.		Nikon P900	921	n	3.0 / 921	swivel	n	1/4000s	7.0/s	Y	Y
8.		Nikon P1000	2359	n	3.2 / 921	swivel	n	1/4000s	7.0/s	Y	Y
9.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
10.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
11.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
12.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
13.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
14.		Panasonic FZ80	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
15.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
16.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
17.		Sony HX80	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The XZ-2 has a touchscreen, while the B500 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus XZ-2 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the B500 and the XZ-2 have zoom lenses built in. The B500 has a 22.5-900mm f/3.0-6.5 optic and the XZ-2 offers a 28-112mm f/1.8-2.5 (focal lengths in full frame equivalent terms). Hence, the Nikon provides a wider angle of view at the short end, as well as more tele-photo reach at the long end than the Olympus. The XZ-2 offers the faster maximum aperture.

Concerning the storage of imaging data, both the B500 and the XZ-2 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon Coolpix B500 and Olympus XZ-2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon B500	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Nikon A1000	-	stereo / mono	-	-	micro	2.0	Y	-	Y
4.		Nikon B600	-	stereo / mono	-	-	micro	2.0	Y	-	Y
5.		Nikon B700	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
6.		Nikon L840	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Nikon P900	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Nikon P1000	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
9.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
10.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
14.		Panasonic FZ80	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-
16.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-
17.		Sony HX80	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the B500 offers wifi support, while the XZ-2 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the B500 and the XZ-2 have been discontinued, but can regularly be found used on ebay. The B500 was replaced by the Nikon B600, while the XZ-2 does not have a direct successor. Further information on the features and operation of the B500 and XZ-2 can be found, respectively, in the Nikon B500 Manual (free pdf) or the online Olympus XZ-2 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Nikon B500 and the Olympus XZ-2? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Nikon Coolpix B500:

• More detail: Offers more megapixels (15.9 vs 11.8MP) with a 16% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (7.4 vs 5 flaps/sec) to capture the decisive moment.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Longer lasting: Can take more shots (600 versus 340) on a single battery charge.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (50 percent cheaper at launch).
• More modern: Reflects 3 years and 4 months of technical progress since the XZ-2 launch.

Advantages of the Olympus XZ-2:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/1.8 vs f/3.0).
• More compact: Is smaller (113x65mm vs 114x78mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 195g or 36 percent) and is thus easier to take along.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in September 2012).

If the count of individual advantages (bullet points above) is taken as a guide, the match-up finishes in a tie (13 points each). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon B500 and the Olympus XZ-2 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the B500 or the XZ-2 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon B500	..	+	..	..	4/5	3.5/5	Jan 2016	US$ 299	ebay.com
2.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
3.		Nikon A1000	..	+ +	3.5/5	..	3.5/5	3/5	Jan 2019	US$ 429	ebay.com
4.		Nikon B600	..	+	..	..	3.5/5	3/5	Jan 2019	US$ 349	ebay.com
5.		Nikon B700	..	+	..	..	4/5	4/5	Feb 2016	US$ 499	ebay.com
6.		Nikon L840	..	+ +	..	..	3.5/5	4/5	Feb 2015	US$ 299	ebay.com
7.		Nikon P900	..	..	..	77/100	4/5	4/5	Mar 2015	US$ 599	ebay.com
8.		Nikon P1000	..	+	3.5/5	73/100	3.5/5	3.5/5	Jul 2018	US$ 999	amazon.com
9.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
10.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
11.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
12.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
13.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
14.		Panasonic FZ80	..	+ +	..	..	4.5/5	4.5/5	Jan 2017	US$ 399	ebay.com
15.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	US$ 499	ebay.com
16.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	US$ 249	ebay.com
17.		Sony HX80	..	..	..	..	..	..	Mar 2016	US$ 349	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
