Nikon B500 vs D500

The Nikon Coolpix B500 and the Nikon D500 are two digital cameras that were officially introduced in January 2016. The B500 is a fixed lens compact, while the D500 is a DSLR. The cameras are based on a 1/2.3-inch (B500) and an APS-C (D500) sensor. The B500 has a resolution of 15.9 megapixels, whereas the D500 provides 20.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon B500		Nikon D500
Fixed lens compact camera		Digital single lens reflex
22.5-900mm f/3.0-6.5		Nikon F mount lenses
15.9 MP – 1/2.3" sensor		20.7 MP – APS-C sensor
1080/60i Video		4K/30p Video
ISO 80-6,400		ISO 100-51,200 (50 - 1,640,000)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 921k dots		3.2" LCD – 2359k dots
Tilting screen (no touchscreen)		Tilting touchscreen
7.4 shutter flaps per second		10 shutter flaps per second
not weather sealed		Weathersealed body
600 shots per battery charge		1240 shots per battery charge
114 x 78 x 95 mm, 541 g		147 x 115 x 81 mm, 860 g

Check B500 offers at
ebay.com
Check D500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon Coolpix B500 and the Nikon D500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

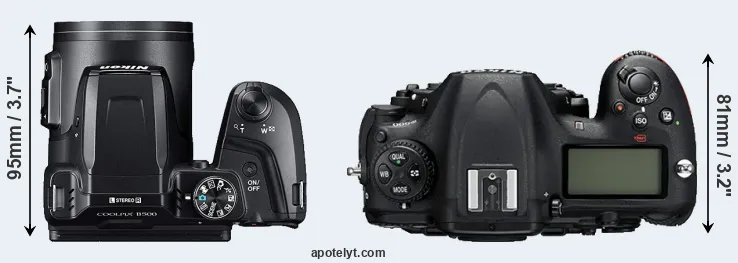

The physical size and weight of the Nikon B500 and the Nikon D500 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The B500 can be obtained in two different colors (black, red), while the D500 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D500 is considerably larger (90 percent) than the Nikon B500. It is noteworthy in this context that the D500 is splash and dust-proof, while the B500 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the B500 has a lens built in, whereas the D500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D500 and their specifications in the Nikon Lens Catalog.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon B500	114 mm	78 mm	95 mm	541 g	600	n	Jan 2016	US$ 299	ebay.com
2.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	US$ 1 999	ebay.com
3.		Fujifilm X70	113 mm	64 mm	44 mm	340 g	330	n	Jan 2016	US$ 799	ebay.com
4.		Fujifilm X100F	127 mm	75 mm	52 mm	469 g	390	n	Jan 2017	US$ 1 299	ebay.com
5.		Nikon B600	122 mm	82 mm	99 mm	500 g	280	n	Jan 2019	US$ 349	ebay.com
6.		Nikon B700	125 mm	85 mm	107 mm	565 g	350	n	Feb 2016	US$ 499	ebay.com
7.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	US$ 1 799	ebay.com
8.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	US$ 1 999	ebay.com
9.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
10.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	US$ 1 199	ebay.com
11.		Nikon D7200	136 mm	107 mm	76 mm	765 g	1110	Y	Mar 2015	US$ 1 199	ebay.com
12.		Nikon D7500	136 mm	104 mm	73 mm	720 g	950	Y	Apr 2017	US$ 1 299	amazon.com
13.		Nikon L840	113 mm	78 mm	96 mm	538 g	590	n	Feb 2015	US$ 299	ebay.com
14.		Nikon P900	140 mm	103 mm	137 mm	899 g	360	n	Mar 2015	US$ 599	ebay.com
15.		Panasonic FZ82	130 mm	94 mm	119 mm	616 g	330	n	Jan 2017	US$ 399	amazon.com
16.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	US$ 249	ebay.com
17.		Sony HX80	102 mm	58 mm	36 mm	245 g	390	n	Mar 2016	US$ 349	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The B500 was launched at a lower price than the D500, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon B500 features a 1/2.3-inch sensor and the Nikon D500 an APS-C sensor. The sensor area in the D500 is 1218 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the B500 has a native 4:3 aspect ratio, while the one in the D500 offers a 3:2 aspect.

With 20.7MP, the D500 offers a higher resolution than the B500 (15.9MP), but the D500 nevertheless has larger individual pixels (pixel pitch of 4.22μm versus 1.33μm for the B500) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Nikon D500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D500 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Nikon B500 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Nikon Coolpix B500 has a native sensitivity range from ISO 80 to ISO 6400. The corresponding ISO settings for the Nikon D500 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-1640000.

In terms of underlying technology, the B500 is build around a BSI-CMOS sensor, while the D500 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon B500	1/2.3	15.9	4608	3456	1080/60i	20.3	11.7	810	48
2.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
3.		Fujifilm X70	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
4.		Fujifilm X100F	APS-C	24.0	6000	4000	1080/60p	23.9	13.2	1704	81
5.		Nikon B600	1/2.3	15.9	4608	3456	1080/30p	20.7	12.2	1095	52
6.		Nikon B700	1/2.3	20.2	5184	3888	4K/30p	20.4	11.8	818	48
7.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
8.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
9.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
10.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
11.		Nikon D7200	APS-C	24.0	6000	4000	1080/60p	24.5	14.6	1333	87
12.		Nikon D7500	APS-C	20.7	5568	3712	4K/30p	24.3	14.0	1483	86
13.		Nikon L840	1/2.3	15.9	4608	3456	1080/60i	20.2	11.6	721	47
14.		Nikon P900	1/2.3	15.9	4608	3456	1080/60p	20.2	11.6	727	47
15.		Panasonic FZ82	1/2.3	18.0	4896	3672	4K/30p	20.5	11.9	900	49
16.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
17.		Sony HX80	1/2.3	18.0	4896	3672	1080/60p	20.4	11.8	822	48
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the D500 provides a better video resolution than the B500. It can shoot movie footage at 4K/30p, while the B500 is limited to 1080/60i.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the B500 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Nikon B500 and Nikon D500 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon B500	none	n	3.0 / 921	tilting	n	1/4000s	7.4/s	Y	Y
2.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
3.		Fujifilm X70	optional	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
4.		Fujifilm X100F	2360	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
5.		Nikon B600	none	n	3.0 / 921	fixed	n	1/4000s	7.4/s	Y	Y
6.		Nikon B700	921	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	Y
7.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
8.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
9.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
10.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
11.		Nikon D7200	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
12.		Nikon D7500	optical	Y	3.2 / 922	tilting	Y	1/8000s	8.0/s	Y	n
13.		Nikon L840	none	n	3.0 / 921	tilting	n	1/4000s	7.4/s	Y	Y
14.		Nikon P900	921	n	3.0 / 921	swivel	n	1/4000s	7.0/s	Y	Y
15.		Panasonic FZ82	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
16.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
17.		Sony HX80	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The B500 has one, while the D500 does not. While the built-in flash of the B500 is not very powerful, it can at times be useful as a fill-in light.

The Nikon D500 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The B500 writes its imaging data to SDXC cards, while the D500 uses SDXC or XQD cards. The D500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the B500 only has one slot. The D500 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the B500 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon Coolpix B500 and Nikon D500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon B500	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
3.		Fujifilm X70	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
4.		Fujifilm X100F	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
5.		Nikon B600	-	stereo / mono	-	-	micro	2.0	Y	-	Y
6.		Nikon B700	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
9.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
11.		Nikon D7200	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
12.		Nikon D7500	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
13.		Nikon L840	-	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Nikon P900	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Panasonic FZ82	Y	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-
17.		Sony HX80	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the D500 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The B500 does not feature such a mic input.

Studio photographers will appreciate that the Nikon D500 (unlike the B500) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the B500 and the D500 have been discontinued, but can regularly be found used on ebay. The B500 was replaced by the Nikon B600, while the D500 does not have a direct successor. Further information on the features and operation of the B500 and D500 can be found, respectively, in the Nikon B500 Manual (free pdf) or the online Nikon D500 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Nikon B500 and the Nikon D500? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Nikon Coolpix B500:

• Ready to shoot: Comes with a built-in lens, while the D500 requires a separate lens.
• More compact: Is smaller (114x78mm vs 147x115mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the D500).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.

Reasons to prefer the Nikon D500:

• More detail: Has more megapixels (20.7 vs 15.9MP), which boosts linear resolution by 16%.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2359k vs 921k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 7.4 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (1240 versus 600) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Has an SD card interface that supports the UHS-II standard.

If the number of relative strengths (bullet points above) is taken as a guide, the D500 is the clear winner of the contest (24 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon B500 and the Nikon D500 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the B500 or the D500. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon B500	..	+	..	..	4/5	3.5/5	Jan 2016	US$ 299	ebay.com
2.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	US$ 1 999	ebay.com
3.		Fujifilm X70	4.5/5	..	..	76/100	4.5/5	4.5/5	Jan 2016	US$ 799	ebay.com
4.		Fujifilm X100F	5/5	+	3.9/5	83/100	4.5/5	4.5/5	Jan 2017	US$ 1 299	ebay.com
5.		Nikon B600	..	+	..	..	3.5/5	3/5	Jan 2019	US$ 349	ebay.com
6.		Nikon B700	..	+	..	..	4/5	4/5	Feb 2016	US$ 499	ebay.com
7.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	US$ 1 799	ebay.com
8.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	US$ 1 999	ebay.com
9.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
10.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	US$ 1 199	ebay.com
11.		Nikon D7200	4/5	+ +	..	84/100	4.5/5	4.5/5	Mar 2015	US$ 1 199	ebay.com
12.		Nikon D7500	4.5/5	+ +	4.5/5	86/100	5/5	4.5/5	Apr 2017	US$ 1 299	amazon.com
13.		Nikon L840	..	+ +	..	..	3.5/5	4/5	Feb 2015	US$ 299	ebay.com
14.		Nikon P900	..	..	..	77/100	4/5	4/5	Mar 2015	US$ 599	ebay.com
15.		Panasonic FZ82	..	+ +	..	..	4.5/5	4.5/5	Jan 2017	US$ 399	amazon.com
16.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	US$ 249	ebay.com
17.		Sony HX80	..	..	..	..	..	..	Mar 2016	US$ 349	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check B500 offers at
ebay.com
Check D500 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check B500 offers at
ebay.com
Check D500 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
