Leica X Vario vs Olympus E-PL3

The Leica X Vario (Typ 107) and the Olympus PEN E-PL3 are two digital cameras that were officially introduced, respectively, in June 2013 and June 2011. The X Vario is a fixed lens compact, while the E-PL3 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (X Vario) and a Four Thirds (E-PL3) sensor. The Leica has a resolution of 16.1 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica X Vario		Olympus E-PL3
Fixed lens compact camera		Mirrorless system camera
28-70mm f/3.5-6.4		Micro Four Thirds lenses
16.1 MP – APS-C sensor		12.2 MP – Four Thirds sensor
1080/30p Video		1080/60i Video
ISO 100-12,500		ISO 200-12,800
Viewfinder optional		Viewfinder optional
3.0" LCD – 920k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
5 shutter flaps per second		5.5 shutter flaps per second
no shake reduction		In-body stabilization
450 shots per battery charge		300 shots per battery charge
133 x 73 x 95 mm, 680 g		110 x 64 x 37 mm, 313 g

Check X Vario offers at
ebay.com
Check E-PL3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica X Vario (Typ 107) and the Olympus PEN E-PL3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Leica X Vario and the Olympus E-PL3. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The X Vario can be obtained in two different colors (black, silver), while the E-PL3 is available in four color-versions (black, silver, red, white).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL3 is notably smaller (27 percent) than the Leica X Vario. In this context, it is worth noting that neither the X Vario nor the E-PL3 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the X Vario has a lens built in, whereas the E-PL3 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL3 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the X Vario gets 450 shots out of its Leica BP-DC8 battery, while the E-PL3 can take 300 images on a single charge of its Olympus BLS-5 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
2.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
3.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
4.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	US$ 1 849	ebay.com
5.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	US$ 1 999	ebay.com
6.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	US$ 2 299	ebay.com
7.		Leica X-U Typ 113	140 mm	79 mm	88 mm	635 g	450	Y	Jan 2016	US$ 2 949	ebay.com
8.		Nikon Coolpix A	111 mm	64 mm	40 mm	299 g	230	n	Mar 2013	US$ 1 099	ebay.com
9.		Nikon Df	144 mm	110 mm	67 mm	760 g	1400	Y	Nov 2013	US$ 2 749	ebay.com
10.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	US$ 799	ebay.com
11.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
12.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
13.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
14.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
15.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	US$ 899	ebay.com
16.		Ricoh GR	117 mm	61 mm	35 mm	245 g	290	n	Apr 2013	US$ 799	ebay.com
17.		Sony RX1R	113 mm	65 mm	70 mm	482 g	270	n	Jun 2013	US$ 2 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica X Vario features an APS-C sensor and the Olympus E-PL3 a Four Thirds sensor. The sensor area in the E-PL3 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X Vario has a native 3:2 aspect ratio, while the one in the E-PL3 offers a 4:3 aspect.

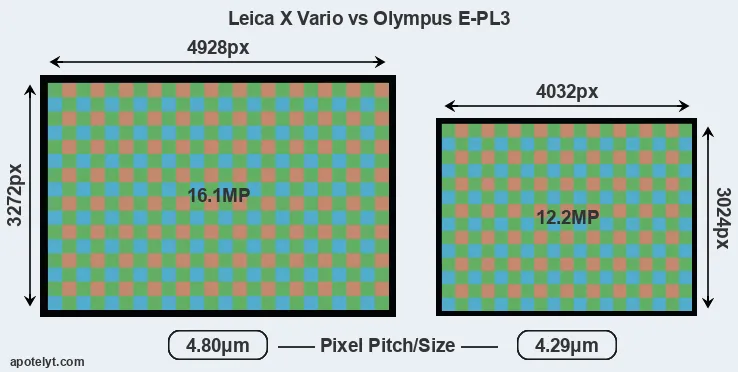

With 16.1MP, the X Vario offers a higher resolution than the E-PL3 (12.2MP), but the X Vario nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 4.29μm for the E-PL3) due to its larger sensor. Moreover, the X Vario is a somewhat more recent model (by 1 year and 11 months) than the E-PL3, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Leica X Vario implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X Vario for good quality output (200 dots per inch) amounts to 24.6 x 16.4 inches or 62.6 x 41.6 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.7 cm. The corresponding values for the Olympus E-PL3 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The Leica X Vario (Typ 107) has a native sensitivity range from ISO 100 to ISO 12500. The corresponding ISO settings for the Olympus PEN E-PL3 are ISO 200 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the X Vario provides substantially higher image quality than the E-PL3, with an overall score that is 26 points higher. This advantage is based on 2.5 bits higher color depth, 2.4 EV in additional dynamic range, and 1.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
2.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
3.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
4.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
5.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
6.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
7.		Leica X-U Typ 113	APS-C	16.1	4928	3264	1080/30p	23.8	13.0	1614	80
8.		Nikon Coolpix A	APS-C	16.1	4928	3264	1080/30p	23.4	13.8	1164	80
9.		Nikon Df	Full Frame	16.2	4928	3280	none	24.6	13.1	3279	89
10.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
11.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
12.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
13.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
14.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
15.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
16.		Ricoh GR	APS-C	16.1	4928	3264	1080/30p	23.6	13.5	972	78
17.		Sony RX1R	Full Frame	24.0	6000	4000	1080/60p	25.0	13.6	2537	91
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-PL3 provides a faster frame rate than the X Vario. It can shoot movie footage at 1080/60i, while the Leica is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The X Vario and the E-PL3 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. However, optional viewfinders – the EVF 2 for the X Vario and the VF-2 for the E-PL3 – are available as accessories. The table below summarizes some of the other core capabilities of the Leica X Vario and Olympus E-PL3 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
2.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
3.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
4.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
5.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
6.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
7.		Leica X-U Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
8.		Nikon Coolpix A	optional	n	3.0 / 921	fixed	n	1/2000s	4.0/s	Y	n
9.		Nikon Df	optical	Y	3.2 / 921	fixed	n	1/4000s	5.5/s	n	n
10.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
11.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
12.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
13.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
14.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
15.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
16.		Ricoh GR	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
17.		Sony RX1R	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The X Vario has one, while the E-PL3 does not. While the built-in flash of the X Vario is not very powerful, it can at times be useful as a fill-in light.

Concerning the storage of imaging data, both the X Vario and the E-PL3 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica X Vario (Typ 107) and Olympus PEN E-PL3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
3.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
5.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
6.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Leica X-U Typ 113	Y	stereo / mono	-	-	-	2.0	-	-	-
8.		Nikon Coolpix A	Y	stereo / mono	-	-	-	2.0	-	-	-
9.		Nikon Df	Y	- / -	-	-	mini	2.0	-	-	-
10.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
16.		Ricoh GR	Y	mono / mono	-	-	micro	2.0	-	-	-
17.		Sony RX1R	Y	stereo / mono	Y	-	mini	2.0	-	-	-

Both the X Vario and the E-PL3 have been discontinued, but can regularly be found used on ebay. The E-PL3 was replaced by the Olympus E-PL5, while the X Vario does not have a direct successor. Further information on the features and operation of the X Vario and E-PL3 can be found, respectively, in the Leica X Vario Manual (free pdf) or the online Olympus E-PL3 Manual.

Review summary

So how do things add up? Is the Leica X Vario better than the Olympus E-PL3 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Leica X Vario (Typ 107):

• More detail: Offers more megapixels (16.1 vs 12.2MP) with a 17% higher linear resolution.
• Better image quality: Scores substantially higher (26 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (2.5 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (2.4 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (1.4 stops ISO advantage).
• More detailed LCD: Has a higher resolution rear screen (920k vs 460k dots).
• Ready to shoot: Has a lens built-in, whereas the E-PL3 requires a separate lens.
• Longer lasting: Can take more shots (450 versus 300) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Is somewhat more recent (announced 1 year and 11 months after the E-PL3).

Reasons to prefer the Olympus PEN E-PL3:

• Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (110x64mm vs 133x73mm) and will fit more readily into a bag.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More heavily discounted: Has been on the market for longer (launched in June 2011).

If the count of relative strengths (bullet points above) is taken as a measure, the X Vario emerges as the winner of the contest (11 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica X Vario and the Olympus E-PL3 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X Vario or the E-PL3. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
2.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
3.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
4.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	US$ 1 849	ebay.com
5.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	US$ 1 999	ebay.com
6.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	US$ 2 299	ebay.com
7.		Leica X-U Typ 113	3.5/5	..	..	..	..	3.5/5	Jan 2016	US$ 2 949	ebay.com
8.		Nikon Coolpix A	4/5	+	..	75/100	4/5	4/5	Mar 2013	US$ 1 099	ebay.com
9.		Nikon Df	4/5	..	..	81/100	4/5	4/5	Nov 2013	US$ 2 749	ebay.com
10.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	US$ 799	ebay.com
11.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
12.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
13.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
14.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
15.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	US$ 899	ebay.com
16.		Ricoh GR	5/5	..	..	79/100	4.5/5	4.5/5	Apr 2013	US$ 799	ebay.com
17.		Sony RX1R	5/5	..	..	..	4/5	4.5/5	Jun 2013	US$ 2 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
