Leica TL2 vs YI M1
The Leica TL2 and the YI M1 are two digital cameras that were officially introduced, respectively, in July 2017 and September 2016. Both the TL2 and the M1 are mirrorless interchangeable lens cameras that are based on an APS-C (TL2) and a Four Thirds (M1) sensor. The Leica has a resolution of 24.1 megapixels, whereas the YI provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Leica TL2||YI M1|
|Mirrorless system camera||Mirrorless system camera|
|Leica T mount lenses||Micro Four Thirds lenses|
|24.1 MP, APS-C Sensor||20.2 MP, Four Thirds Sensor|
|4K/30p Video||4K/30p Video|
|ISO 100-50000||ISO 100-25600|
|Viewfinder optional||No viewfinder, LCD framing|
|3.7" LCD, 1230k dots||3.0" LCD, 1040k dots|
|Fixed touchscreen||Fixed touchscreen|
|7 shutter flaps per second||5 shutter flaps per second|
|250 shots per battery charge||450 shots per battery charge|
|134 x 69 x 33 mm, 399 g||114 x 64 x 34 mm, 281 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica TL2 and the YI M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison: Leica TL2 vs YI M1

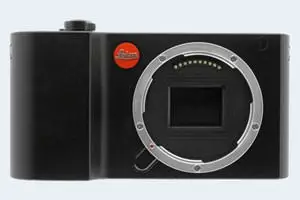

An illustration of the physical size and weight of the Leica TL2 and the YI M1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.
Both cameras are available in two different colors (black, silver).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the YI M1 is notably smaller (21 percent) than the Leica TL2. Moreover, the M1 is markedly lighter (30 percent) than the TL2. In this context, it is worth noting that neither the TL2 nor the M1 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, just click on the right or left arrow next to the camera that you would like to inspect. Alternatively, you can also use the CAM-parator to select your camera combination among a larger number of options.
|Leica TL2»||5.3 in||2.7 in||1.3 in||14.1 oz||250||n||Jul 2017||1,950||Leica TL2|
|YI M1«||4.5 in||2.5 in||1.3 in||9.9 oz||450||n||Sep 2016||349||YI M1|
|Canon M100« »||4.3 in||2.6 in||1.4 in||10.7 oz||295||n||Aug 2017||499||Canon M100|
|Canon SX730« »||4.3 in||2.5 in||1.6 in||10.6 oz||250||n||Apr 2017||399||-||Canon SX730|
|Fujifilm X-T100« »||4.8 in||3.3 in||1.9 in||15.8 oz||430||n||May 2018||599||Fujifilm X-T100|
|Fujifilm X-T20« »||4.6 in||3.3 in||1.6 in||13.5 oz||350||n||Jan 2017||899||Fujifilm X-T20|
|Fujifilm X-A3« »||4.6 in||2.6 in||1.6 in||12.0 oz||410||n||Aug 2016||399||-||Fujifilm X-A3|
|Leica C-LUX« »||4.4 in||2.6 in||1.8 in||12.0 oz||370||n||Jun 2018||1,049||Leica C-LUX|
|Leica CL« »||5.2 in||3.1 in||1.8 in||14.2 oz||220||n||Nov 2017||2,795||Leica CL|
|Leica TL« »||5.3 in||2.7 in||1.3 in||13.5 oz||400||n||Nov 2016||1,695||-||Leica TL|
|Leica T« »||5.3 in||2.7 in||1.3 in||13.5 oz||400||n||Apr 2014||1,850||-||Leica T|
|Nikon D3500« »||4.9 in||3.8 in||2.8 in||12.9 oz||1550||n||Aug 2018||429||Nikon D3500|
|Nikon D5600« »||4.9 in||3.8 in||2.8 in||16.4 oz||970||n||Nov 2016||699||Nikon D5600|
|Nikon D3400« »||4.9 in||3.9 in||3.0 in||15.7 oz||1200||n||Aug 2016||499||-||Nikon D3400|
|Nikon 1 J5« »||3.9 in||2.4 in||1.3 in||8.1 oz||250||n||Apr 2015||399||-||Nikon 1 J5|
|Panasonic GF7« »||4.2 in||2.6 in||1.3 in||9.4 oz||230||n||Jan 2015||499||-||Panasonic GF7|
|Note: Measurements and pricing do not include easily detachable parts, such as interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The M1 was launched at a markedly lower price (by 82 percent) than the TL2, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison: Leica TL2 vs YI M1
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Leica TL2 features an APS-C sensor and the YI M1 a Four Thirds sensor. The sensor area in the M1 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the TL2 has a native 3:2 aspect ratio, while the one in the M1 offers a 4:3 aspect.
With 24.1MP, the TL2 offers a higher resolution than the M1 (20.2MP), but the TL2 nevertheless has larger individual pixels (pixel pitch of 3.92μm versus 3.34μm for the M1) due to its larger sensor. Moreover, the TL2 is a somewhat more recent model (by 9 months) than the M1, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the TL2 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Leica TL2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the TL2 for good quality output (200 dots per inch) amounts to 30.1 x 20.1 inch or 76.4 x 51 cm, for very good quality (250 dpi) 24.1 x 16.1 inch or 61.1 x 40.8 cm, and for excellent quality (300 dpi) 20 x 13.4 inch or 50.9 x 34 cm. The corresponding values for the YI M1 are 25.9 x 19.4 inch or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inch or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inch or 43.9 x 32.9 cm for excellent quality prints.
The Leica TL2 has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the YI M1 are ISO 100 to ISO 25600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Leica TL2»||APS-C||24.1||6014||4014||4K/30p||-||-||-||-||Leica TL2|
|YI M1«||Four Thirds||20.2||5184||3888||4K/30p||-||-||-||-||YI M1|
|Canon M100« »||APS-C||24.0||6000||4000||1080/60p||23.5||12.9||1272||78||Canon M100|
|Canon SX730« »||1/2.3||20.2||5184||3888||1080/60p||-||-||-||-||Canon SX730|
|Fujifilm X-T100« »||APS-C||24.0||6000||4000||4K/15p||-||-||-||-||Fujifilm X-T100|
|Fujifilm X-T20« »||APS-C||24.0||6000||4000||4K/30p||-||-||-||-||Fujifilm X-T20|
|Fujifilm X-A3« »||APS-C||24.0||6000||4000||1080/60p||-||-||-||-||Fujifilm X-A3|
|Leica C-LUX« »||1-inch||20.0||5472||3648||4K/30p||-||-||-||-||Leica C-LUX|
|Leica CL« »||APS-C||24.1||6014||4014||4K/30p||-||-||-||-||Leica CL|
|Leica TL« »||APS-C||16.1||4928||3264||1080/30p||-||-||-||-||Leica TL|
|Leica T« »||APS-C||16.2||4944||3278||1080/30p||23.0||12.7||1082||75||Leica T|
|Nikon D3500« »||APS-C||24.0||6000||4000||1080/60p||-||-||-||-||Nikon D3500|
|Nikon D5600« »||APS-C||24.0||6000||4000||1080/60p||24.1||14.0||1306||84||Nikon D5600|
|Nikon D3400« »||APS-C||24.0||6000||4000||1080/60p||24.8||13.9||1192||86||Nikon D3400|
|Nikon 1 J5« »||1-inch||20.7||5568||3712||4K/15p||21.1||12.0||479||65||Nikon 1 J5|
|Panasonic GF7« »||Four Thirds||15.8||4592||3448||1080/60p||-||-||-||-||Panasonic GF7|
Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).
Feature comparison: Leica TL2 vs YI M1
Apart from body and sensor, cameras can and do differ across a range of features. The TL2 and the M1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the TL2 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The adjacent table lists some of the other core features of the Leica TL2 and YI M1 along with similar information for a selection of comparators.
|Leica TL2»||-||n||3.7||1230||fixed||Y||1/4000s||7.0||n||n||Leica TL2|
|YI M1«||-||n||3.0||1040||fixed||Y||1/4000s||5.0||n||n||YI M1|
|Canon M100« »||-||n||3.0||1040||tilting||Y||1/4000s||6.1||Y||n||Canon M100|
|Canon SX730« »||-||n||3.0||922||tilting||n||1/3200s||5.9||Y||Y||Canon SX730|
|Fujifilm X-T100« »||2360||n||3.0||1040||full-flex||Y||1/4000s||6.0||Y||n||Fujifilm X-T100|
|Fujifilm X-T20« »||2360||n||3.0||1040||tilting||Y||1/4000s||8.0||Y||n||Fujifilm X-T20|
|Fujifilm X-A3« »||-||n||3.0||1040||tilting||Y||1/4000s||6.0||Y||n||Fujifilm X-A3|
|Leica C-LUX« »||2330||n||3.0||1240||fixed||Y||1/2000s||10.0||Y||Y||Leica C-LUX|
|Leica CL« »||2360||Y||3.0||1040||fixed||Y||1/8000s||10.0||n||n||Leica CL|
|Leica TL« »||-||n||3.7||1230||fixed||Y||1/4000s||5.0||Y||n||Leica TL|
|Leica T« »||-||n||3.7||1300||fixed||Y||1/4000s||5.0||Y||n||Leica T|
|Nikon D3500« »||optical||n||3.0||921||fixed||n||1/4000s||5.0||Y||n||Nikon D3500|
|Nikon D5600« »||optical||n||3.2||1037||swivel||Y||1/4000s||5.0||Y||n||Nikon D5600|
|Nikon D3400« »||optical||n||3.0||921||fixed||n||1/4000s||5.0||Y||n||Nikon D3400|
|Nikon 1 J5« »||-||n||3.0||1037||tilting||Y||1/4000s||60.0||Y||n||Nikon 1 J5|
|Panasonic GF7« »||-||n||3.0||1040||tilting||Y||1/500s||5.8||Y||n||Panasonic GF7|
The YI M1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the TL2 and the M1 write their files to SDXC cards. The TL2 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the M1 cannot take advantage of Ultra High Speed SD cards.
Connectivity comparison: Leica TL2 vs YI M1
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica TL2 and YI M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
|Leica TL2»||Y||stereo||mono||-||-||micro||3.0||Y||-||-||Leica TL2|
|YI M1«||Y||stereo||mono||-||-||micro||2.0||Y||-||Y||YI M1|
|Canon M100« »||-||stereo||mono||-||-||mini||2.0||Y||Y||Y||Canon M100|
|Canon SX730« »||-||stereo||mono||-||-||micro||2.0||Y||Y||Y||Canon SX730|
|Fujifilm X-T100« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||Y||Fujifilm X-T100|
|Fujifilm X-T20« »||Y||stereo||mono||Y||-||micro||2.0||Y||-||-||Fujifilm X-T20|
|Fujifilm X-A3« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Fujifilm X-A3|
|Leica C-LUX« »||-||stereo||mono||-||-||micro||2.0||Y||-||-||Leica C-LUX|
|Leica CL« »||Y||stereo||mono||-||-||-||-||Y||-||-||Leica CL|
|Leica TL« »||Y||stereo||mono||-||-||micro||2.0||Y||-||-||Leica TL|
|Leica T« »||Y||stereo||mono||-||-||-||2.0||Y||-||-||Leica T|
|Nikon D3500« »||Y||mono||mono||-||-||mini||2.0||-||-||Y||Nikon D3500|
|Nikon D5600« »||Y||stereo||mono||Y||-||mini||2.0||Y||Y||Y||Nikon D5600|
|Nikon D3400« »||Y||mono||mono||-||-||mini||2.0||-||-||Y||Nikon D3400|
|Nikon 1 J5« »||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Nikon 1 J5|
|Panasonic GF7« »||-||stereo||mono||-||-||micro||2.0||Y||Y||-||Panasonic GF7|
Both the TL2 and the M1 are recent models that are part of the current product line-up. The TL2 replaced the earlier Leica TL, while the M1 does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and YI websites.
Review summary: Leica TL2 vs YI M1
So what is the bottom line? Which of the two cameras – the Leica TL2 or the YI M1 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Advantages of the Leica TL2:
- More detail: Offers more megapixels (24.1 vs 20.2MP) with a 12% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
- Larger screen: Has a bigger rear LCD (3.7" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1230k vs 1040k dots).
- Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
- More modern: Is somewhat more recent (announced 9 months after the M1).
Arguments in favor of the YI M1:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- More compact: Is smaller (114x64mm vs 134x69mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 118g or 30 percent) and is thus easier to take along.
- Longer lasting: Gets more shots (450 versus 250) out of a single battery charge.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More affordable: Was introduced into a lower priced category (82 percent cheaper at launch).
- More heavily discounted: Has been on the market for longer (launched in September 2016).
If the count of relative strengths (bullet points above) is taken as a measure, the TL2 is the clear winner of the match-up (14 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Leica TL2 and the YI M1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the TL2 or the M1. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
Expert reviews: Leica TL2 vs YI M1
This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Leica TL2»||-||-||4/5||-||4/5||Jul 2017||1,950||Leica TL2|
|YI M1«||-||69/100||-||2.5/5||-||Sep 2016||349||YI M1|
|Canon M100« »||+||-||4/5||-||3.5/5||Aug 2017||499||Canon M100|
|Canon SX730« »||+||-||4/5||-||4/5||Apr 2017||399||-||Canon SX730|
|Fujifilm X-T100« »||+||79/100||4/5||-||4.5/5||May 2018||599||Fujifilm X-T100|
|Fujifilm X-T20« »||+ +||82/100||5/5||-||4.5/5||Jan 2017||899||Fujifilm X-T20|
|Fujifilm X-A3« »||-||74/100||4.5/5||-||4/5||Aug 2016||399||-||Fujifilm X-A3|
|Leica C-LUX« »||-||-||4.5/5||-||4/5||Jun 2018||1,049||Leica C-LUX|
|Leica CL« »||-||-||-||-||4/5||Nov 2017||2,795||Leica CL|
|Leica TL« »||-||-||-||-||4/5||Nov 2016||1,695||-||Leica TL|
|Leica T« »||-||-||4/5||-||4/5||Apr 2014||1,850||-||Leica T|
|Nikon D3500« »||-||-||4/5||4.5/5||4.5/5||Aug 2018||429||Nikon D3500|
|Nikon D5600« »||-||79/100||4.5/5||4.5/5||4/5||Nov 2016||699||Nikon D5600|
|Nikon D3400« »||+||76/100||4/5||4.5/5||4.5/5||Aug 2016||499||-||Nikon D3400|
|Nikon 1 J5« »||-||-||4.5/5||4/5||4.5/5||Apr 2015||399||-||Nikon 1 J5|
|Panasonic GF7« »||+||-||4.5/5||4.5/5||4.5/5||Jan 2015||499||-||Panasonic GF7|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (-) not available.|
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
Specifications: Leica TL2 vs YI M1
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica TL2||YI M1|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Leica T mount lenses||Micro Four Thirds lenses|
|Launch Date||July 2017||September 2016|
|Launch Price||USD 1950||USD 349|
|Sensor Specs||Leica TL2||YI M1|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.7 mm||17.3 x 13.0 mm|
|Sensor Area||370.52 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||24.1 Megapixels||20.2 Megapixels|
|Image Resolution||6014 x 4014 pixels||5184 x 3888 pixels|
|Pixel Pitch||3.92 μm||3.34 μm|
|Pixel Density||6.52 MP/cm2||8.96 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||4K/30p Video||4K/30p Video|
|ISO Setting||100-50000 ISO||100-25600 ISO|
|Screen Specs||Leica TL2||YI M1|
|Viewfinder Type||Viewfinder optional||No viewfinder|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.7 inch||3.0 inch|
|LCD Resolution||1230k dots||1040k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Leica TL2||YI M1|
|Autofocus System||Contrast-detect AF||Contrast-detect AF|
|Manual Focusing Aid||No Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000/s||1/4000/s|
|Continuous Shooting||7 shutter flaps/s||5 shutter flaps/s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|UHS card support||UHS-II||no|
|Connectivity Specs||Leica TL2||YI M1|
|USB Connector||USB 3.0||USB 2.0|
|HDMI Port||micro HDMI||micro HDMI|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Leica TL2||YI M1|
|Battery Type||BP-DC13 power pack||BXM-10 power pack|
|Battery Life (CIPA)||250 shots per charge||450 shots per charge|
|In-Camera Charging||USB charging||USB charging|
134 x 69 x 33 mm
(5.3 x 2.7 x 1.3 in)
114 x 64 x 34 mm
(4.5 x 2.5 x 1.3 in)
|Camera Weight||399 g (14.1 oz)||281 g (9.9 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
