Leica TL2 vs Nikon D3400

The Leica TL2 and the Nikon D3400 are two digital cameras that were officially introduced, respectively, in July 2017 and August 2016. The TL2 is a mirrorless interchangeable lens camera, while the D3400 is a DSLR. Both cameras are equipped with an APS-C sensor. The Leica has a resolution of 24.1 megapixels, whereas the Nikon provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica TL2		Nikon D3400
Mirrorless system camera		Digital single lens reflex
Leica T mount lenses		Nikon F mount lenses
24.1 MP – APS-C sensor		24 MP – APS-C sensor
4K/30p Video		1080/60p Video
ISO 100-50,000		ISO 100-25,600
Viewfinder optional		Optical viewfinder
3.7" LCD – 1230k dots		3.0" LCD – 921k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
7 shutter flaps per second		5 shutter flaps per second
250 shots per battery charge		1200 shots per battery charge
134 x 69 x 33 mm, 399 g		124 x 98 x 76 mm, 445 g

Check TL2 offers at
ebay.com
Check D3400 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica TL2 and the Nikon D3400? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

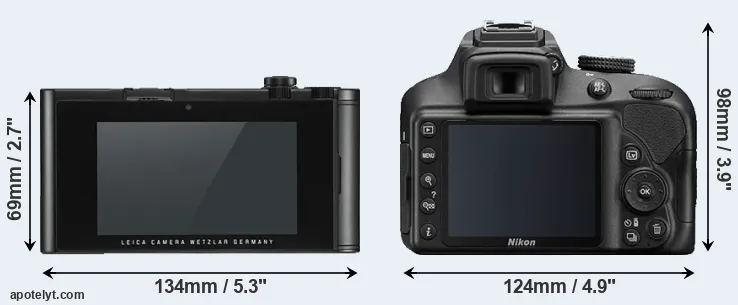

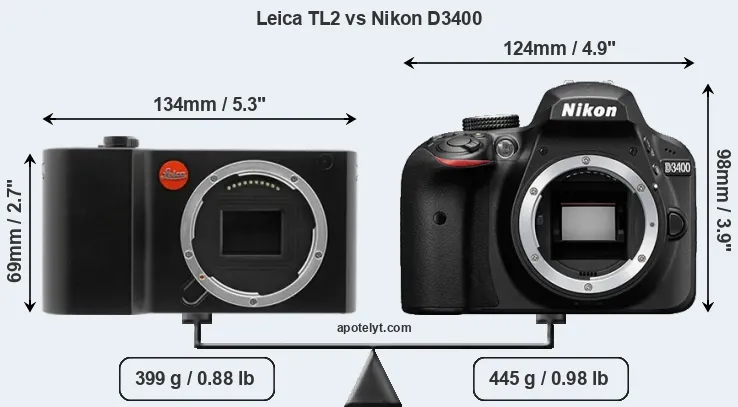

The physical size and weight of the Leica TL2 and the Nikon D3400 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The TL2 can be obtained in two different colors (black, silver), while the D3400 is also available in two color-versions, but different ones (black, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3400 is notably larger (31 percent) than the Leica TL2. Moreover, the D3400 is markedly heavier (12 percent) than the TL2. In this context, it is worth noting that neither the TL2 nor the D3400 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the TL2 gets 250 shots out of its Leica BP-DC13 battery, while the D3400 can take 1200 images on a single charge of its Nikon EN-EL14a power pack. The power pack in the TL2 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	US$ 1 949	ebay.com
2.		Nikon D3400	124 mm	98 mm	76 mm	445 g	1200	n	Aug 2016	US$ 499	ebay.com
3.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
4.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
5.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
6.		Leica C-LUX	113 mm	67 mm	46 mm	340 g	370	n	Jun 2018	US$ 1 049	ebay.com
7.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	US$ 2 795	ebay.com
8.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	US$ 1 849	ebay.com
9.		Leica TL	134 mm	69 mm	33 mm	384 g	400	n	Nov 2016	US$ 1 695	ebay.com
10.		Nikon D3200	125 mm	96 mm	77 mm	505 g	540	n	Apr 2012	US$ 599	ebay.com
11.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	US$ 499	ebay.com
12.		Nikon D3500	124 mm	97 mm	70 mm	415 g	1550	n	Aug 2018	US$ 429	ebay.com
13.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
14.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D3400 was launched at a markedly lower price (by 74 percent) than the TL2, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D3400 is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 24.1MP, the TL2 offers a slightly higher resolution than the D3400 (24MP), but the TL2 nevertheless has marginally larger individual pixels (pixel pitch of 3.92μm versus 3.91μm for the D3400) due to its larger sensor. Moreover, the TL2 is a somewhat more recent model (by 10 months) than the D3400, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Leica TL2 has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Nikon D3400 are ISO 100 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
2.		Nikon D3400	APS-C	24.0	6000	4000	1080/60p	24.8	13.9	1192	86
3.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1664	81
4.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
5.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
6.		Leica C-LUX	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	481	64
7.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
8.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
9.		Leica TL	APS-C	16.1	4928	3264	1080/30p	23.9	13.2	1690	81
10.		Nikon D3200	APS-C	24.1	6016	4000	1080/30p	24.1	13.2	1131	81
11.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
12.		Nikon D3500	APS-C	24.0	6000	4000	1080/60p	24.0	13.4	1851	83
13.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
14.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the TL2 provides a higher video resolution than the D3400. It can shoot video footage at 4K/30p, while the Nikon is limited to 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D3400 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the TL2 relies on live view and the rear LCD for framing. That said, the TL2 can be equipped with an optional viewfinder – the Visoflex (Typ 020). The following table reports on some other key feature differences and similarities of the Leica TL2, the Nikon D3400, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
2.		Nikon D3400	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
3.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
4.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
5.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
6.		Leica C-LUX	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
7.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
8.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
9.		Leica TL	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
10.		Nikon D3200	optical	n	3.0 / 921	fixed	n	1/4000s	4.0/s	Y	n
11.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
12.		Nikon D3500	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
13.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
14.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The TL2 has a touchscreen, while the D3400 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the TL2 and the D3400 write their files to SDXC cards. The TL2 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the D3400 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica TL2 and Nikon D3400 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
2.		Nikon D3400	Y	mono / mono	-	-	mini	2.0	-	-	Y
3.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
4.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
5.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Leica C-LUX	-	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
8.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
9.		Leica TL	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Nikon D3200	Y	mono / mono	Y	-	mini	2.0	-	-	-
11.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
12.		Nikon D3500	Y	mono / mono	-	-	mini	2.0	-	-	Y
13.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y

It is notable that the TL2 offers wifi support, while the D3400 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the TL2 and the D3400 have been discontinued, but can regularly be found used on ebay. The D3400 was replaced by the Nikon D3500, while the TL2 does not have a direct successor. Further information on the features and operation of the TL2 and D3400 can be found, respectively, in the Leica TL2 Manual (free pdf) or the online Nikon D3400 Manual.

Review summary

So what is the bottom line? Is the Leica TL2 better than the Nikon D3400 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Leica TL2:

• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• Larger screen: Has a bigger rear LCD (3.7" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1230k vs 921k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (7 vs 5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (134x69mm vs 124x98mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 46g or 10 percent) and hence easier to carry around.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Is somewhat more recent (announced 10 months after the D3400).

Reasons to prefer the Nikon D3400:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Gets more shots (1200 versus 250) out of a single battery charge.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (74 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in August 2016).

If the count of individual advantages (bullet points above) is taken as a guide, the TL2 is the clear winner of the match-up (14 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica TL2 and the Nikon D3400 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the TL2 and the D3400 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	US$ 1 949	ebay.com
2.		Nikon D3400	4/5	+	4/5	76/100	4/5	4.5/5	Aug 2016	US$ 499	ebay.com
3.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
4.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
5.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
6.		Leica C-LUX	..	..	3.5/5	..	4.5/5	4/5	Jun 2018	US$ 1 049	ebay.com
7.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	US$ 2 795	ebay.com
8.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	US$ 1 849	ebay.com
9.		Leica TL	..	..	..	..	..	4/5	Nov 2016	US$ 1 695	ebay.com
10.		Nikon D3200	5/5	+ +	..	73/100	4.5/5	4.5/5	Apr 2012	US$ 599	ebay.com
11.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	US$ 499	ebay.com
12.		Nikon D3500	4/5	..	4/5	75/100	4/5	4.5/5	Aug 2018	US$ 429	ebay.com
13.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
14.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
