Leica M Typ 262 vs M9

The Leica M (Typ 262) and the Leica M9 are two enthusiast cameras that were announced, respectively, in November 2015 and September 2009. Both the M Typ 262 and the M9 are rangefinder-focusing mirrorless cameras that are equipped with a full frame sensor. The M Typ 262 has a resolution of 23.7 megapixels, whereas the M9 provides 18.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Leica M Typ 262
versus
Leica M9
Leica M Typ 262   Leica M9
Rangefinder camera Rangefinder camera
Leica M mount lenses Leica M mount lenses
23.7 MP – Full Frame sensor 18.1 MP – Full Frame sensor
no Video no Video
ISO 200-6,400 ISO 80-2,500
Optical viewfinder Optical viewfinder
3.0" LCD – 921k dots 2.5" LCD – 230k dots
Fixed screen (not touch-sensitive) Fixed screen (not touch-sensitive)
3 shutter flaps per second 2 shutter flaps per second
Weathersealed bodynot weather sealed
139 x 80 x 42 mm, 680 g 139 x 80 x 37 mm, 585 g
logo
Check M Typ 262 offers at
ebay.com
logo
Check M9 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M (Typ 262) and the Leica M9? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

The side-by-side display below illustrates the physical size and weight of the Leica M Typ 262 and the Leica M9. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

Size Leica M Typ 262 vs Leica M9
Compare M Typ 262 versus M9 top
Comparison M Typ 262 or M9 rear

In this particular case, the Leica M Typ 262 and the Leica M9 have exactly the same width and height, and, thus, have identically-sized bodies. However, the M9 is markedly lighter (14 percent) than the M Typ 262. It is worth mentioning in this context that the M Typ 262 is splash and dust resistant, while the M9 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Leica M Lens Catalog.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
# image Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Leica M Typ 262 139 mm 80 mm 42 mm 680 g .. Y Nov 2015 5,195ebay.com
2.

Leica M9 139 mm 80 mm 37 mm 585 g .. n Sep 2009 7,999ebay.com
3.

Canon 1D X Mark II 158 mm 168 mm 83 mm 1530 g 1210 Y Feb 2016 5,999ebay.com
4.

Canon T2i 129 mm 98 mm 62 mm 530 g 440 n Feb 2010 699ebay.com
5.

Leica M10-R 139 mm 80 mm 39 mm 660 g 210 Y Jul 2020 8,295 amazon.com
6.

Leica Q2 130 mm 80 mm 92 mm 718 g 370 Y Mar 2019 4,995 amazon.com
7.

Leica M-E Typ 240 139 mm 80 mm 42 mm 680 g .. Y Jun 2019 3,999ebay.com
8.

Leica M10-P 139 mm 80 mm 39 mm 660 g 210 Y Aug 2018 7,995 amazon.com
9.

Leica M10 139 mm 80 mm 39 mm 660 g 210 Y Jan 2017 6,595ebay.com
10.

Leica Q Typ 116 130 mm 80 mm 93 mm 640 g 300 n Jun 2015 4,249ebay.com
11.

Leica SL 147 mm 104 mm 39 mm 847 g 400 Y Oct 2015 7,450ebay.com
12.

Leica X Vario 133 mm 73 mm 95 mm 680 g 450 n Jun 2013 2,850ebay.com
13.

Leica M Typ 240 139 mm 80 mm 42 mm 680 g .. Y Sep 2012 6,950ebay.com
14.

Leica M8 139 mm 80 mm 37 mm 591 g .. n Sep 2006 5,499ebay.com
15.

Nikon D750 141 mm 113 mm 78 mm 750 g 1230 Y Sep 2014 2,299ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
padding

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M Typ 262 was launched at a markedly lower price (by 35 percent) than the M9, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the M9 is 1 percent bigger. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

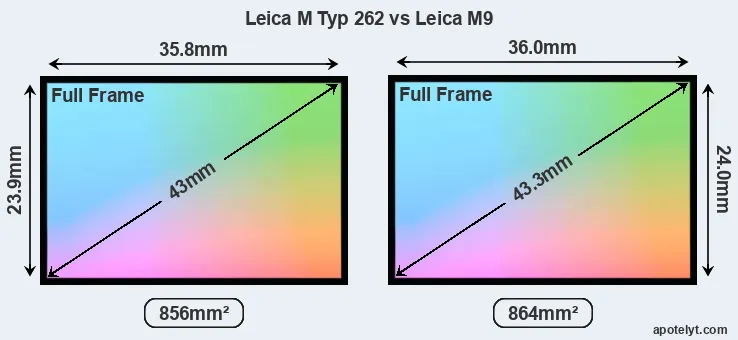

Leica M Typ 262 and Leica M9 sensor measures

Despite having a slightly smaller sensor, the Leica M Typ 262 offers a higher resolution of 23.7 megapixels, compared with 18.1 MP of the Leica M9. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 6.01μm versus 6.91μm for the M9). However, it should be noted that the M Typ 262 is much more recent (by 6 years and 2 months) than the M9, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Leica M Typ 262 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M Typ 262 for good quality output (200 dots per inch) amounts to 29.8 x 19.9 inches or 75.6 x 50.5 cm, for very good quality (250 dpi) 23.8 x 15.9 inches or 60.5 x 40.4 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inches or 50.4 x 33.7 cm. The corresponding values for the Leica M9 are 26.1 x 17.4 inches or 66.2 x 44.1 cm for good quality, 20.8 x 13.9 inches or 53 x 35.3 cm for very good quality, and 17.4 x 11.6 inches or 44.1 x 29.4 cm for excellent quality prints.

The Leica M (Typ 262) has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-6400. The corresponding ISO settings for the Leica M9 are ISO 80 to ISO 2500 (no boost).

In terms of underlying technology, the M Typ 262 is build around a CMOS sensor, while the M9 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

M Typ 262 versus M9 MP

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
# image Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Leica M Typ 262 Full Frame 23.7 5952 3976none24.813.7247890
2.

Leica M9 Full Frame 18.1 5212 3472none22.511.788469
3.

Canon 1D X Mark II Full Frame 20.0 5472 36484K/60p24.113.5320788
4.

Canon T2i APS-C 17.9 5184 34561080/30p22.111.578466
5.

Leica M10-R Full Frame 40.9 7864 5200none25.314.3292495
6.

Leica Q2 Full Frame 46.7 8368 55844K/30p26.413.5249196
7.

Leica M-E Typ 240 Full Frame 23.7 5952 39761080/25p25.214.2282194
8.

Leica M10-P Full Frame 23.8 5952 3992none25.114.1273993
9.

Leica M10 Full Frame 23.8 5952 3992none24.413.2213386
10.

Leica Q Typ 116 Full Frame 24.0 6000 40001080/60p24.312.7222185
11.

Leica SL Full Frame 24.0 6000 40004K/30p25.013.4182188
12.

Leica X Vario APS-C 16.1 4928 32721080/30p23.412.7132078
13.

Leica M Typ 240 Full Frame 23.7 5952 39761080/25p24.013.3186084
14.

Leica M8 APS-H 10.4 3936 2630none21.111.366359
15.

Nikon D750 Full Frame 24.2 6016 40161080/60p24.814.5295693
Note: DXO values in italics represent estimates based on sensor size and age.
padding
Neither the M Typ 262 nor the M9 offer Live View, so that they cannot project the live image that the sensor receives onto the rear screen. Moreover, both cameras are still-image focused and cannot record videos.
ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The M Typ 262 and the M9 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), as well as the same magnification (0.68x). The table below summarizes some of the other core capabilities of the Leica M Typ 262 and Leica M9 in connection with corresponding information for a sample of similar cameras.

scroll hint
Core Features
# image Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Leica M Typ 262optical n3.0 / 921 fixed n 1/4000s 3.0/s n n
2.

Leica M9optical n2.5 / 230 fixed n 1/4000s 2.0/s n n
3.

Canon 1D X Mark IIoptical Y3.2 / 1620 fixed Y 1/8000s 16.0/s n n
4.

Canon T2ioptical n3.0 / 1040 fixed n 1/4000s 3.7/s Y n
5.

Leica M10-Roptical n3.0 / 1037 fixed Y 1/4000s 4.5/s n n
6.

Leica Q23680 n3.0 / 1040 fixed Y 1/2000s 10.0/s n Y
7.

Leica M-E Typ 240optical n3.0 / 920 fixed n 1/4000s 3.0/s n n
8.

Leica M10-Poptical n3.0 / 1037 fixed Y 1/4000s 5.0/s n n
9.

Leica M10optical n3.0 / 1037 fixed n 1/4000s 5.0/s n n
10.

Leica Q Typ 1163680 n3.0 / 1040 fixed Y 1/2000s 10.0/s n Y
11.

Leica SL4400 Y3.0 / 1040 fixed Y 1/8000s 11.0/s n n
12.

Leica X Variooptional n3.0 / 920 fixed n 1/2000s 5.0/s Y n
13.

Leica M Typ 240optical n3.0 / 920 fixed n 1/4000s 3.0/s n n
14.

Leica M8optical n2.5 / 230 fixed n 1/8000s 2.0/s n n
15.

Nikon D750optical Y3.2 / 1229 tilting n 1/4000s 6.0/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.
padding

Concerning the storage of imaging data, both the M Typ 262 and the M9 write their files to SDXC cards. The M Typ 262 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the M9 cannot take advantage of Ultra High Speed SD cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M (Typ 262) and Leica M9 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
# image Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Leica M Typ 262Y- / ----2.0---
2.

Leica M9Y- / ----2.0---
3.

Canon 1D X Mark IIYmono / monoYYmini3.0---
4.

Canon T2iYstereo / -Y-mini2.0---
5.

Leica M10-RY- / -----Y--
6.

Leica Q2Ystereo / mono----Y-Y
7.

Leica M-E Typ 240Ymono / ----2.0---
8.

Leica M10-PY- / -----Y--
9.

Leica M10Y- / -----Y--
10.

Leica Q Typ 116Ystereo / mono--micro2.0YY-
11.

Leica SLYstereo / monoYYfull3.0Y--
12.

Leica X VarioYstereo / mono--mini2.0---
13.

Leica M Typ 240Ystereo / mono---2.0---
14.

Leica M8Y- / ----2.0---
15.

Nikon D750Ystereo / monoYYmini2.0Y--
padding

Both the M Typ 262 and the M9 have been discontinued, but can regularly be found used on ebay. The M9 was replaced by the Leica M Typ 240, while the M Typ 262 was followed by the Leica M10. Further information on the features and operation of the M Typ 262 and M9 can be found, respectively, in the Leica M Typ 262 Manual (free pdf) or the online Leica M9 Manual.

ad

Review summary

So how do things add up? Is there a clear favorite between the Leica M Typ 262 and the Leica M9? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.


Reasons to prefer the Leica M (Typ 262):

  • More detail: Offers more megapixels (23.7 vs 18.1MP) with a 14% higher linear resolution.
  • Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
  • More detailed LCD: Has a higher resolution rear screen (921k vs 230k dots).
  • Faster burst: Shoots at higher frequency (3 vs 2 flaps/sec) to capture the decisive moment.
  • Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
  • Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
  • More affordable: Was introduced into a lower priced category (35 percent cheaper at launch).
  • More modern: Reflects 6 years and 2 months of technical progress since the M9 launch.


Advantages of the Leica M9:

  • Less heavy: Has a lower weight (by 95g or 14 percent) and is thus easier to take along.
  • More heavily discounted: Has been around for much longer (launched in September 2009).

If the count of relative strengths (bullet points above) is taken as a measure, the M Typ 262 is the clear winner of the match-up (8 : 2 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

M Typ 262 08:02 M9

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M Typ 262 or the M9. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
# image  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Leica M Typ 262............ Nov 2015 5,195ebay.com
2.

Leica M9........4.5/5.. Sep 2009 7,999ebay.com
3.

Canon 1D X Mark II....4.5/589/1004.5/54.5/5 Feb 2016 5,999ebay.com
4.

Canon T2i..+ +..77/1004/54.5/5 Feb 2010 699ebay.com
5.

Leica M10-R4.5/5..4/5....4/5 Jul 2020 8,295 amazon.com
6.

Leica Q2....4.5/584/1004.5/54/5 Mar 2019 4,995 amazon.com
7.

Leica M-E Typ 240............ Jun 2019 3,999ebay.com
8.

Leica M10-P....3/5....4/5 Aug 2018 7,995 amazon.com
9.

Leica M104.5/5......4/54.5/5 Jan 2017 6,595ebay.com
10.

Leica Q Typ 1165/5....80/1004.5/54.5/5 Jun 2015 4,249ebay.com
11.

Leica SL4/5..4/584/1004.5/54/5 Oct 2015 7,450ebay.com
12.

Leica X Vario3/5......4/54/5 Jun 2013 2,850ebay.com
13.

Leica M Typ 2404/5......4/5.. Sep 2012 6,950ebay.com
14.

Leica M8......+ +.... Sep 2006 5,499ebay.com
15.

Nikon D7505/5+ +4/590/1004.5/54.5/5 Sep 2014 2,299ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.
padding

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check M Typ 262 offers at
ebay.com
logo
Check M9 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad

    Specifications: Leica M Typ 262 vs Leica M9

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Leica M Typ 262 Leica M9
    Camera Type Rangefinder camera Rangefinder camera
    Camera Lens Leica M mount lenses Leica M mount lenses
    Launch Date November 2015 September 2009
    Launch Price USD 5,195 USD 7,999
    Sensor Specs Leica M Typ 262 Leica M9
    Sensor Technology CMOS CCD
    Sensor Format Full Frame Sensor Full Frame Sensor
    Sensor Size 35.8 x 23.9 mm 36.0 x 24.0 mm
    Sensor Area 855.62 mm2 864 mm2
    Sensor Diagonal 43 mm 43.3 mm
    Crop Factor 1.0x 1.0x
    Sensor Resolution 23.7 Megapixels 18.1 Megapixels
    Image Resolution 5952 x 3976 pixels 5212 x 3472 pixels
    Pixel Pitch 6.01 μm 6.91 μm
    Pixel Density 2.77 MP/cm2 2.09 MP/cm2
    Moiré control no AA filter no AA filter
    Movie Capability no Video no Video
    ISO Setting 200 - 6,400 ISO 80 - 2,500 ISO
    ISO Boost 100 - 6,400 ISO no Enhancement
    DXO Sensor Quality (score) .. 69
    DXO Color Depth (bits) .. 22.5
    DXO Dynamic Range (EV) .. 11.7
    DXO Low Light (ISO) .. 884
    Screen Specs Leica M Typ 262 Leica M9
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 100% 100%
    Viewfinder Magnification 0.68x 0.68x
    Rear LCD Size 3.0inch 2.5inch
    LCD Resolution 921k dots 230k dots
    LCD Attachment Fixed screen Fixed screen
    Shooting Specs Leica M Typ 262 Leica M9
    Focus System Manual Focus Manual Focus
    Manual Focusing AidFocus Peakingno Peaking Feature
    Continuous Shooting 3 shutter flaps/s 2 shutter flaps/s
    Fill Flash no On-Board Flash no On-Board Flash
    Storage Medium SDXC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support UHS-I no
    Connectivity Specs Leica M Typ 262 Leica M9
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port no HDMI no HDMI
    Wifi Support no Wifi no Wifi
    Body Specs Leica M Typ 262 Leica M9
    Environmental SealingWeathersealed bodynot weather sealed
    Battery Type BP-SCL2 BLI-312
    Body Dimensions 139 x 80 x 42 mm
    (5.5 x 3.1 x 1.7 in)
    139 x 80 x 37 mm
    (5.5 x 3.1 x 1.5 in)
    Camera Weight 680 g (24.0 oz) 585 g (20.6 oz)
    logo
    Check M Typ 262 offers at
    ebay.com
    logo
    Check M9 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Leica M Typ 262 vs Leica M9
