Leica D-LUX Typ 109 vs M9

The Leica D-LUX (Typ 109) and the Leica M9 are two enthusiast cameras that were revealed to the public, respectively, in September 2014 and September 2009. The D-LUX Typ 109 is a fixed lens compact, while the M9 is a rangefinder-focusing mirrorless. The cameras are based on a Four Thirds (D-LUX Typ 109) and a full frame (M9) sensor. The D-LUX Typ 109 has a resolution of 12.7 megapixels, whereas the M9 provides 18.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica D-LUX Typ 109		Leica M9
Fixed lens compact camera		Rangefinder camera
24-75mm f/1.7-2.8		Leica M mount lenses
12.7 MP – Four Thirds sensor		18.1 MP – Full Frame sensor
4K/30p Video		no Video
ISO 200-12,500 (100 - 25,600)		ISO 80-2,500
Electronic viewfinder (2764k dots)		Optical viewfinder
3.0" LCD – 921k dots		2.5" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
11 shutter flaps per second		2 shutter flaps per second
300 shots per battery charge		550 shots per battery charge
118 x 66 x 55 mm, 405 g		139 x 80 x 37 mm, 585 g

Check D-LUX Typ 109 offers at
ebay.com
Check M9 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica D-LUX (Typ 109) and the Leica M9? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

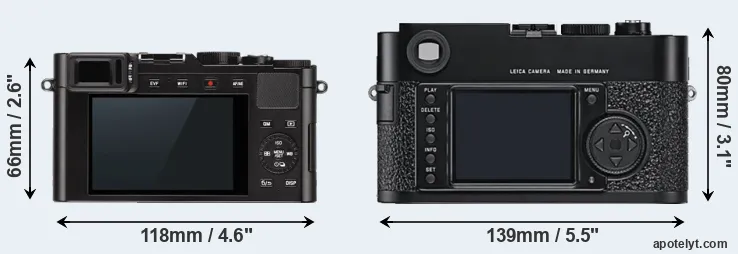

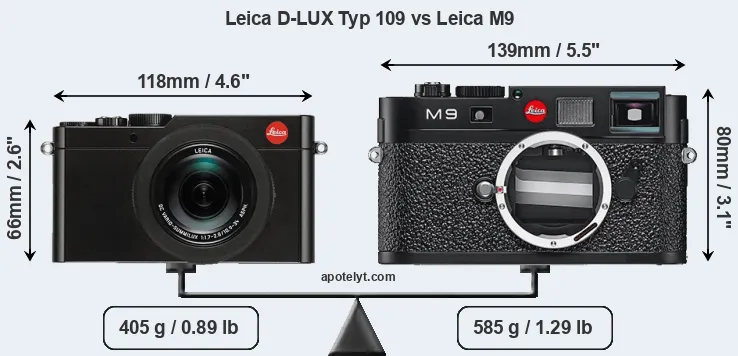

Body comparison

The physical size and weight of the Leica D-LUX Typ 109 and the Leica M9 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The D-LUX Typ 109 can be obtained in two different colors (black, grey), while the M9 is also available in two color-versions, but different ones (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M9 is considerably larger (43 percent) than the Leica D-LUX Typ 109. In this context, it is worth noting that neither the D-LUX Typ 109 nor the M9 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX Typ 109 has a lens built in, whereas the M9 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the M9 and their specifications in the Leica M Lens Catalog.

Concerning battery life, the D-LUX Typ 109 gets 300 shots out of its Leica BP-DC15 battery, while the M9 can take 550 images on a single charge of its Leica BLI-312 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

#		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica D-LUX Typ 109	118 mm	66 mm	55 mm	405 g	300	n	Sep 2014	1,195	ebay.com
2.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	7,999	ebay.com
3.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	549	ebay.com
4.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
5.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	599	ebay.com
6.		Fujifilm X100T	127 mm	74 mm	52 mm	440 g	330	n	Sep 2014	1,299	ebay.com
7.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	599	ebay.com
8.		Fujifilm X100S	127 mm	74 mm	54 mm	445 g	330	n	Jan 2013	1,299	ebay.com
9.		Leica D-LUX 7	115 mm	66 mm	65 mm	392 g	300	n	Nov 2018	1,195	ebay.com
10.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	6,595	ebay.com
11.		Leica V-LUX Typ 114	137 mm	99 mm	131 mm	830 g	360	n	Sep 2014	1,349	ebay.com
12.		Leica X Typ 113	133 mm	73 mm	78 mm	486 g	350	n	Sep 2014	2,295	ebay.com
13.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	2,850	ebay.com
14.		Leica D-LUX 6	111 mm	68 mm	46 mm	298 g	330	n	Sep 2012	699	ebay.com
15.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	6,950	ebay.com
16.		Leica M8	139 mm	80 mm	37 mm	591 g	550	n	Sep 2006	5,499	ebay.com
17.		Panasonic LX100	115 mm	66 mm	55 mm	393 g	300	n	Sep 2014	899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D-LUX Typ 109 was launched at a lower price than the M9, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

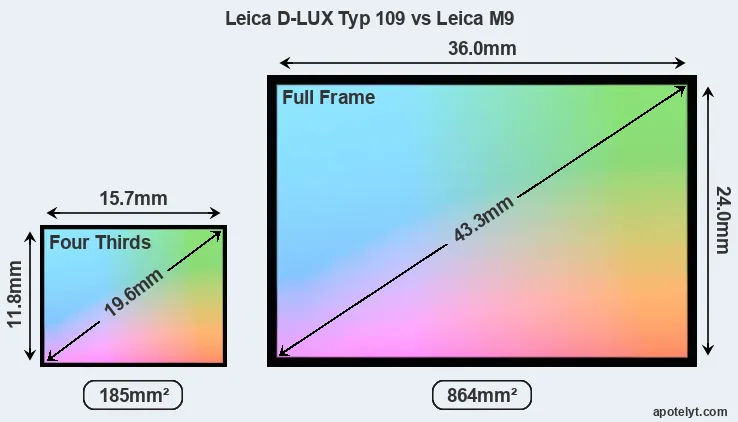

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica D-LUX Typ 109 features a Four Thirds sensor and the Leica M9 a full frame sensor. The sensor area in the M9 is 367 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the D-LUX Typ 109 has a native 4:3 aspect ratio, while the one in the M9 offers a 3:2 aspect. The D-LUX Typ 109 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.

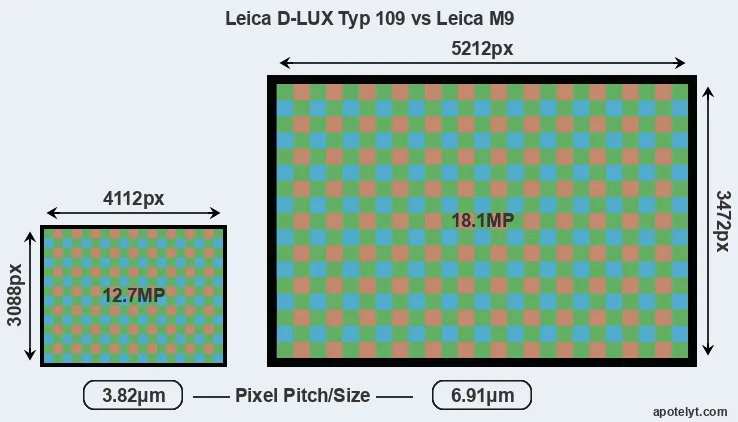

With 18.1MP, the M9 offers a higher resolution than the D-LUX Typ 109 (12.7MP), but the M9 nevertheless has larger individual pixels (pixel pitch of 6.91μm versus 3.82μm for the D-LUX Typ 109) due to its larger sensor. However, the D-LUX Typ 109 is a much more recent model (by 5 years) than the M9, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the M9 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica M9 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M9 for good quality output (200 dots per inch) amounts to 26.1 x 17.4 inches or 66.2 x 44.1 cm, for very good quality (250 dpi) 20.8 x 13.9 inches or 53 x 35.3 cm, and for excellent quality (300 dpi) 17.4 x 11.6 inches or 44.1 x 29.4 cm. The corresponding values for the Leica D-LUX Typ 109 are 20.6 x 15.4 inches or 52.2 x 39.2 cm for good quality, 16.4 x 12.4 inches or 41.8 x 31.4 cm for very good quality, and 13.7 x 10.3 inches or 34.8 x 26.1 cm for excellent quality prints.

The Leica D-LUX (Typ 109) has a native sensitivity range from ISO 200 to ISO 12500, which can be extended to ISO 100-25600. The corresponding ISO settings for the Leica M9 are ISO 80 to ISO 2500 (no boost).

In terms of underlying technology, the D-LUX Typ 109 is build around a CMOS sensor, while the M9 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

#		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica D-LUX Typ 109	Four Thirds	12.7	4112	3088	4K/30p	22.4	12.1	607	67
2.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
3.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
4.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
5.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
6.		Fujifilm X100T	APS-C	16.0	4896	3264	1080/60p	23.6	12.8	1483	78
7.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
8.		Fujifilm X100S	APS-C	16.0	4896	3264	1080/60p	23.3	12.5	1329	75
9.		Leica D-LUX 7	Four Thirds	16.8	4736	3552	4K/30p	22.9	12.8	1002	72
10.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
11.		Leica V-LUX Typ 114	1-inch	20.0	5472	3648	4K/30p	21.6	11.7	127	60
12.		Leica X Typ 113	APS-C	16.1	4928	3264	1080/30p	23.6	12.8	1491	78
13.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
14.		Leica D-LUX 6	1/1.7	10.0	3648	2736	1080/60p	19.8	10.8	-303	43
15.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
16.		Leica M8	APS-H	10.4	3936	2630	none	21.1	11.3	663	59
17.		Panasonic LX100	Four Thirds	12.7	4112	3088	4K/30p	22.3	12.5	553	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The D-LUX Typ 109 indeed provides movie recording capabilities, while the M9 does not. The highest resolution format that the D-LUX Typ 109 can use is 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the D-LUX Typ 109 has an electronic viewfinder (2764k dots), while the M9 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D-LUX Typ 109 has a higher magnification than the one of the M9 (0.70x vs 0.68x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Leica D-LUX Typ 109 and Leica M9 in connection with corresponding information for a sample of similar cameras.

Core Features

#		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica D-LUX Typ 109	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
2.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
3.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
4.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
5.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
6.		Fujifilm X100T	2360	n	3.0 / 1040	fixed	n	1/4000s	6.0/s	Y	n
7.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
8.		Fujifilm X100S	2360	n	2.8 / 460	fixed	n	1/4000s	6.0/s	Y	n
9.		Leica D-LUX 7	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
10.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
11.		Leica V-LUX Typ 114	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
12.		Leica X Typ 113	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
13.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
14.		Leica D-LUX 6	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
15.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
16.		Leica M8	optical	n	2.5 / 230	fixed	n	1/8000s	2.0/s	n	n
17.		Panasonic LX100	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the D-LUX Typ 109 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica D-LUX Typ 109 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the D-LUX Typ 109 and the M9 write their files to SDXC cards. The D-LUX Typ 109 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the M9 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica D-LUX (Typ 109) and Leica M9 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

#		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica D-LUX Typ 109	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
4.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
5.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Fujifilm X100T	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
7.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
8.		Fujifilm X100S	Y	stereo / mono	-	-	micro	2.0	-	-	-
9.		Leica D-LUX 7	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
10.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
11.		Leica V-LUX Typ 114	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
12.		Leica X Typ 113	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Leica D-LUX 6	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
16.		Leica M8	Y	- / -	-	-	-	2.0	-	-	-
17.		Panasonic LX100	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the D-LUX Typ 109 offers wifi support, while the M9 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the D-LUX Typ 109 and the M9 have been discontinued, but can regularly be found used on ebay. The M9 was replaced by the Leica M Typ 240, while the D-LUX Typ 109 was followed by the Leica D-LUX 7. Further information on the features and operation of the D-LUX Typ 109 and M9 can be found, respectively, in the Leica D-LUX Typ 109 Manual (free pdf) or the online Leica M9 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Leica D-LUX Typ 109 and the Leica M9? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Leica D-LUX (Typ 109):

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
• Broader imaging potential: Can record not only still images but also 4K/30p movies.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.68x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 230k dots).
• Faster burst: Shoots at higher frequency (11 vs 2 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has a lens built-in, whereas the M9 requires a separate lens.
• More compact: Is smaller (118x66mm vs 139x80mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the M9).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 5 years of technical progress since the M9 launch.

Reasons to prefer the Leica M9:

• More detail: Has more megapixels (18.1 vs 12.7MP), which boosts linear resolution by 22%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More flexible: Takes interchangeable lenses and can thus be used with different optics.
• Longer lasting: Gets more shots (550 versus 300) out of a single battery charge.
• More heavily discounted: Has been around for much longer (launched in September 2009).

If the count of relative strengths (bullet points above) is taken as a measure, the D-LUX Typ 109 is the clear winner of the match-up (19 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D-LUX Typ 109 and the M9 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

#		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica D-LUX Typ 109	..	..	..	..	4.5/5	4.5/5	Sep 2014	1,195	ebay.com
2.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	7,999	ebay.com
3.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	549	ebay.com
4.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
5.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	599	ebay.com
6.		Fujifilm X100T	5/5	+	..	81/100	4.5/5	5/5	Sep 2014	1,299	ebay.com
7.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	599	ebay.com
8.		Fujifilm X100S	5/5	+ +	..	81/100	4.5/5	5/5	Jan 2013	1,299	ebay.com
9.		Leica D-LUX 7	..	..	..	..	..	4.5/5	Nov 2018	1,195	ebay.com
10.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	6,595	ebay.com
11.		Leica V-LUX Typ 114	..	..	..	..	..	5/5	Sep 2014	1,349	ebay.com
12.		Leica X Typ 113	3.5/5	..	..	..	3.5/5	4/5	Sep 2014	2,295	ebay.com
13.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	2,850	ebay.com
14.		Leica D-LUX 6	..	..	..	..	4/5	4/5	Sep 2012	699	ebay.com
15.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	6,950	ebay.com
16.		Leica M8	..	..	..	+ +	..	..	Sep 2006	5,499	ebay.com
17.		Panasonic LX100	5/5	+ +	..	85/100	5/5	5/5	Sep 2014	899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
