Leica CL vs Pentax KP

The Leica CL (Typ 7323) and the Pentax KP are two digital cameras that were revealed to the public, respectively, in November 2017 and January 2017. The CL is a mirrorless interchangeable lens camera, while the KP is a DSLR. Both cameras are equipped with an APS-C sensor. Both cameras offer a resolution of 24.1 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica CL		Pentax KP
Mirrorless system camera		Digital single lens reflex
Leica T mount lenses		Pentax K mount lenses
24.1 MP – APS-C sensor		24.1 MP – APS-C sensor
4K/30p Video		1080/60i Video
ISO 100-50,000		ISO 100-819,200
Electronic viewfinder (2360k dots)		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 921k dots
Fixed touchscreen		Tilting screen (no touchscreen)
10 shutter flaps per second		7 shutter flaps per second
Lens stabilization only		In-body stabilization
not weather sealed		Weathersealed body
220 shots per battery charge		390 shots per battery charge
131 x 78 x 45 mm, 403 g		132 x 101 x 76 mm, 703 g

Check CL price at
amazon.com
Check KP offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica CL (Typ 7323) and the Pentax KP? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Leica CL and the Pentax KP is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The KP can be obtained in two different colors (black, silver), while the CL is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax KP is notably larger (30 percent) than the Leica CL. Moreover, the KP is substantially heavier (74 percent) than the CL. It is noteworthy in this context that the KP is splash and dust-proof, while the CL does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the CL gets 220 shots out of its BP-DC12 battery, while the KP can take 390 images on a single charge of its D-LI109 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	2,795	amazon.com
2.		Pentax KP	132 mm	101 mm	76 mm	703 g	390	Y	Jan 2017	1,099	ebay.com
3.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	599	ebay.com
4.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	899	ebay.com
5.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	399	ebay.com
6.		Leica C-LUX	113 mm	67 mm	46 mm	340 g	370	n	Jun 2018	1,049	amazon.com
7.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	1,950	amazon.com
8.		Leica TL	134 mm	69 mm	33 mm	384 g	400	n	Nov 2016	1,695	ebay.com
9.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	1,850	ebay.com
10.		Nikon D3500	124 mm	97 mm	70 mm	415 g	1550	n	Aug 2018	429	amazon.com
11.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	699	amazon.com
12.		Nikon D3400	124 mm	98 mm	76 mm	445 g	1200	n	Aug 2016	499	ebay.com
13.		Pentax K-70	126 mm	93 mm	74 mm	688 g	410	Y	Jun 2016	649	amazon.com
14.		Pentax K-S2	123 mm	91 mm	73 mm	678 g	410	Y	Feb 2015	749	ebay.com
15.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	1,099	ebay.com
16.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	1,299	ebay.com
17.		Pentax K-5 II	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2012	1,099	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The KP was launched at a markedly lower price (by 61 percent) than the CL, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

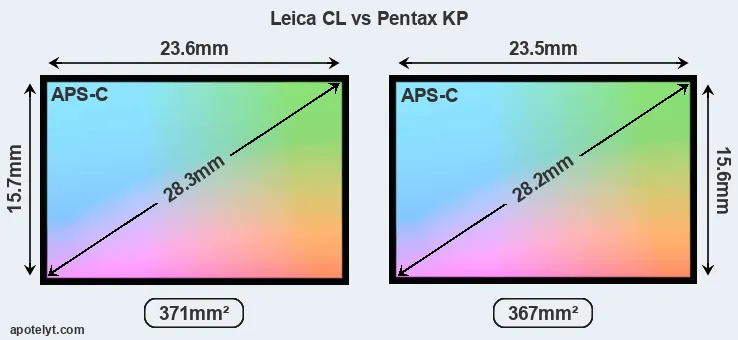

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the KP is 1 percent smaller. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Even though the CL has a slightly larger sensor, both cameras offer the same resolution of 24.1 megapixels. This implies that the CL has a lower pixel density and larger individual pixels (with a pixel pitch of 3.92μm versus 3.90μm for the KP), which gives it a potential advantage in terms of light gathering capacity. In addition, the CL is a somewhat more recent model (by 9 months) than the KP, and its sensor might have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

Unlike the CL, the KP has the capacity to capture high quality composite images by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Leica CL (Typ 7323) has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Pentax KP are ISO 100 to ISO 819200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
2.		Pentax KP	APS-C	24.1	6016	4000	1080/60i	23.9	13.2	1699	81
3.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
4.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
5.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1664	81
6.		Leica C-LUX	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	481	64
7.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
8.		Leica TL	APS-C	16.1	4928	3264	1080/30p	23.9	13.2	1690	81
9.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
10.		Nikon D3500	APS-C	24.0	6000	4000	1080/60p	24.0	13.4	1851	83
11.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
12.		Nikon D3400	APS-C	24.0	6000	4000	1080/60p	24.8	13.9	1192	86
13.		Pentax K-70	APS-C	24.0	6000	4000	1080/60i	23.8	13.1	1639	80
14.		Pentax K-S2	APS-C	20.0	5472	3648	1080/30p	23.6	12.9	1514	79
15.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
16.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
17.		Pentax K-5 II	APS-C	16.1	4928	3264	1080/25p	23.8	14.1	1235	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the CL provides a higher video resolution than the KP. It can shoot video footage at 4K/30p, while the Pentax is limited to 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the CL has an electronic viewfinder (2360k dots), while the KP has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the KP has a higher magnification than the one of the CL (0.63x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Leica CL and Pentax KP in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
2.		Pentax KP	optical	n	3.0 / 921	tilting	n	1/6000s	7.0/s	Y	Y
3.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
5.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
6.		Leica C-LUX	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
7.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
8.		Leica TL	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
9.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
10.		Nikon D3500	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
11.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
12.		Nikon D3400	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
13.		Pentax K-70	optical	n	3.0 / 921	swivel	n	1/6000s	6.0/s	Y	Y
14.		Pentax K-S2	optical	n	3.0 / 921	swivel	n	1/6000s	5.4/s	Y	Y
15.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
16.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
17.		Pentax K-5 II	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the CL, but is missing on the KP is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica CL and the Pentax KP both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the CL and the KP write their files to SDXC cards. The CL supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the KP can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica CL (Typ 7323) and Pentax KP and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
2.		Pentax KP	Y	stereo / mono	Y	-	-	2.0	Y	-	-
3.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
5.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Leica C-LUX	-	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
8.		Leica TL	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
10.		Nikon D3500	Y	mono / mono	-	-	mini	2.0	-	-	Y
11.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
12.		Nikon D3400	Y	mono / mono	-	-	mini	2.0	-	-	Y
13.		Pentax K-70	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Pentax K-S2	Y	mono / mono	Y	-	micro	2.0	Y	Y	-
15.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
16.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
17.		Pentax K-5 II	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the KP has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The CL does not feature such a mic input.

The CL is a recent model that features in the current product line-up of Leica. In contrast, the KP has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the KP from Pentax. Further information on the features and operation of the CL and KP can be found, respectively, in the Leica CL Manual (free pdf) or the online Pentax KP Manual.

Review summary

So how do things add up? Is the Leica CL better than the Pentax KP or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Leica CL (Typ 7323):

• Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
• More framing info: Has an electronic viewfinder that displays shooting data.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/6000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 7 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (131x78mm vs 132x101mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 300g or 43 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Is somewhat more recent (announced 9 months after the KP).

Reasons to prefer the Pentax KP:

• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.49x).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Longer lasting: Gets more shots (390 versus 220) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (61 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in January 2017).

If the number of relative strengths (bullet points above) is taken as a guide, the CL emerges as the winner of the contest (13 : 11 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica CL and the Pentax KP place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the CL or the KP. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	2,795	amazon.com
2.		Pentax KP	4/5	..	3/5	82/100	5/5	4.5/5	Jan 2017	1,099	ebay.com
3.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	599	ebay.com
4.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	899	ebay.com
5.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	399	ebay.com
6.		Leica C-LUX	..	..	3.5/5	..	4.5/5	4/5	Jun 2018	1,049	amazon.com
7.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	1,950	amazon.com
8.		Leica TL	..	..	..	..	..	4/5	Nov 2016	1,695	ebay.com
9.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	1,850	ebay.com
10.		Nikon D3500	4/5	..	4/5	75/100	4/5	4.5/5	Aug 2018	429	amazon.com
11.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	699	amazon.com
12.		Nikon D3400	4/5	+	4/5	76/100	4/5	4.5/5	Aug 2016	499	ebay.com
13.		Pentax K-70	4.5/5	..	4/5	79/100	4.5/5	4.5/5	Jun 2016	649	amazon.com
14.		Pentax K-S2	4.5/5	..	..	..	5/5	4.5/5	Feb 2015	749	ebay.com
15.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	1,099	ebay.com
16.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	1,299	ebay.com
17.		Pentax K-5 II	5/5	..	..	80/100	5/5	4.5/5	Sep 2012	1,099	ebay.com
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
