Leica CL vs Olympus XZ-1

The Leica CL (Typ 7323) and the Olympus XZ-1 are two digital cameras that were officially introduced, respectively, in November 2017 and January 2011. The CL is a mirrorless interchangeable lens camera, while the XZ-1 is a fixed lens compact. The cameras are based on an APS-C (CL) and a 1/1.7-inch (XZ-1) sensor. The Leica has a resolution of 24.1 megapixels, whereas the Olympus provides 10.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica CL		Olympus XZ-1
Mirrorless system camera		Fixed lens compact camera
Leica T mount lenses		28-112mm f/1.8-2.5
24.1 MP – APS-C sensor		10.1 MP – 1/1.7" sensor
4K/30p Video		720/30p Video
ISO 100-50,000		ISO 100-6,400
Electronic viewfinder (2360k dots)		Viewfinder optional
3.0" LCD – 1040k dots		3.0" LCD – 614k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
10 shutter flaps per second		2 shutter flaps per second
Lens stabilization only		In-body stabilization
220 shots per battery charge		320 shots per battery charge
131 x 78 x 45 mm, 403 g		111 x 65 x 42 mm, 275 g

Check CL offers at
ebay.com
Check XZ-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica CL (Typ 7323) and the Olympus XZ-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

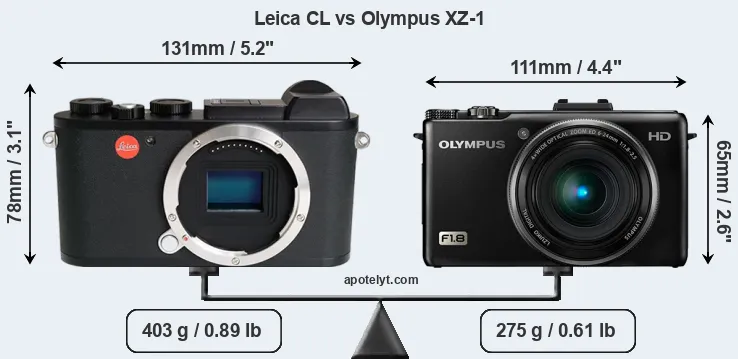

An illustration of the physical size and weight of the Leica CL and the Olympus XZ-1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The XZ-1 can be obtained in two different colors (black, white), while the CL is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus XZ-1 is notably smaller (29 percent) than the Leica CL. In this context, it is worth noting that neither the CL nor the XZ-1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-1 has a lens built in, whereas the CL is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	US$ 2 795	ebay.com
2.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
3.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
4.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
5.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
6.		Leica C-LUX	113 mm	67 mm	46 mm	340 g	370	n	Jun 2018	US$ 1 049	ebay.com
7.		Leica T	134 mm	69 mm	33 mm	384 g	400	n	Apr 2014	US$ 1 849	ebay.com
8.		Leica TL	134 mm	69 mm	33 mm	384 g	400	n	Nov 2016	US$ 1 695	ebay.com
9.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	US$ 1 949	ebay.com
10.		Nikon D3400	124 mm	98 mm	76 mm	445 g	1200	n	Aug 2016	US$ 499	ebay.com
11.		Nikon D3500	124 mm	97 mm	70 mm	415 g	1550	n	Aug 2018	US$ 429	ebay.com
12.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
13.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
14.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
15.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
16.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
17.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The XZ-1 was launched at a lower price than the CL, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Leica CL features an APS-C sensor and the Olympus XZ-1 a 1/1.7-inch sensor. The sensor area in the XZ-1 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 4.4. The sensor in the CL has a native 3:2 aspect ratio, while the one in the XZ-1 offers a 4:3 aspect.

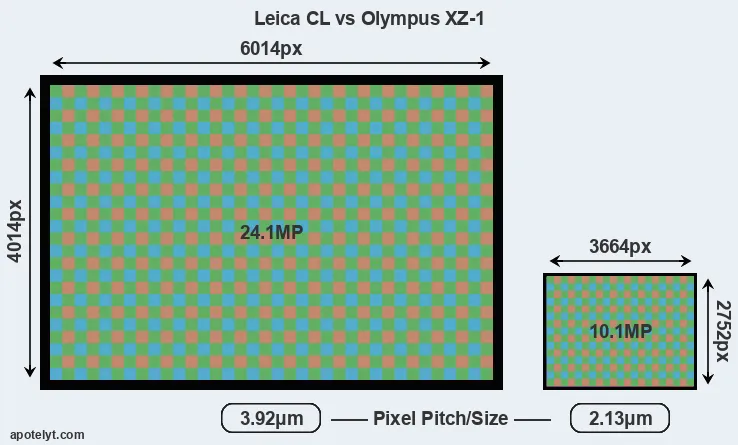

With 24.1MP, the CL offers a higher resolution than the XZ-1 (10.1MP), but the CL nevertheless has larger individual pixels (pixel pitch of 3.92μm versus 2.13μm for the XZ-1) due to its larger sensor. Moreover, the CL is a much more recent model (by 6 years and 10 months) than the XZ-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the CL has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica CL implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the CL for good quality output (200 dots per inch) amounts to 30.1 x 20.1 inches or 76.4 x 51 cm, for very good quality (250 dpi) 24.1 x 16.1 inches or 61.1 x 40.8 cm, and for excellent quality (300 dpi) 20 x 13.4 inches or 50.9 x 34 cm. The corresponding values for the Olympus XZ-1 are 18.3 x 13.8 inches or 46.5 x 35 cm for good quality, 14.7 x 11 inches or 37.2 x 28 cm for very good quality, and 12.2 x 9.2 inches or 31 x 23.3 cm for excellent quality prints.

The Leica CL (Typ 7323) has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Olympus XZ-1 are ISO 100 to ISO 6400 (no boost).

In terms of underlying technology, the CL is build around a CMOS sensor, while the XZ-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
2.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
3.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1664	81
4.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
5.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
6.		Leica C-LUX	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	481	64
7.		Leica T	APS-C	16.2	4944	3278	1080/30p	23.0	12.7	1082	75
8.		Leica TL	APS-C	16.1	4928	3264	1080/30p	23.9	13.2	1690	81
9.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
10.		Nikon D3400	APS-C	24.0	6000	4000	1080/60p	24.8	13.9	1192	86
11.		Nikon D3500	APS-C	24.0	6000	4000	1080/60p	24.0	13.4	1851	83
12.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
13.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
14.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
15.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
16.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
17.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the CL provides a higher video resolution than the XZ-1. It can shoot video footage at 4K/30p, while the Olympus is limited to 720/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the CL has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the XZ-1 relies on live view and the rear LCD for framing. That said, the XZ-1 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Leica CL, the Olympus XZ-1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
2.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
3.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
4.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
5.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
6.		Leica C-LUX	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
7.		Leica T	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
8.		Leica TL	optional	n	3.7 / 1230	fixed	Y	1/4000s	5.0/s	Y	n
9.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
10.		Nikon D3400	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
11.		Nikon D3500	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
12.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
13.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
14.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
15.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
16.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
17.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the CL, but is missing on the XZ-1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the CL is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica CL and the Olympus XZ-1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the CL and the XZ-1 write their files to SDXC cards. The CL supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the XZ-1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica CL (Typ 7323) and Olympus XZ-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
2.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
3.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
4.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
5.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Leica C-LUX	-	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Leica T	Y	stereo / mono	-	-	-	2.0	Y	-	-
8.		Leica TL	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
10.		Nikon D3400	Y	mono / mono	-	-	mini	2.0	-	-	Y
11.		Nikon D3500	Y	mono / mono	-	-	mini	2.0	-	-	Y
12.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
15.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-

It is notable that the CL offers wifi support, while the XZ-1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the CL and the XZ-1 have been discontinued, but can regularly be found used on ebay. The XZ-1 was replaced by the Olympus XZ-2, while the CL does not have a direct successor. Further information on the features and operation of the CL and XZ-1 can be found, respectively, in the Leica CL Manual (free pdf) or the online Olympus XZ-1 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Leica CL and the Olympus XZ-1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Leica CL (Typ 7323):

• More detail: Offers more megapixels (24.1 vs 10.1MP) with a 58% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 614k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 2 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Reflects 6 years and 10 months of technical progress since the XZ-1 launch.

Arguments in favor of the Olympus XZ-1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Ready to shoot: Has an integrated lens, whereas the CL necessitates an extra lens.
• More compact: Is smaller (111x65mm vs 131x78mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the CL).
• Longer lasting: Gets more shots (320 versus 220) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been around for much longer (launched in January 2011).

If the number of relative strengths (bullet points above) is taken as a guide, the CL is the clear winner of the match-up (19 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica CL and the Olympus XZ-1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the CL or the XZ-1 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	US$ 2 795	ebay.com
2.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
3.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
4.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
5.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
6.		Leica C-LUX	..	..	3.5/5	..	4.5/5	4/5	Jun 2018	US$ 1 049	ebay.com
7.		Leica T	3/5	..	..	..	4/5	4/5	Apr 2014	US$ 1 849	ebay.com
8.		Leica TL	..	..	..	..	..	4/5	Nov 2016	US$ 1 695	ebay.com
9.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	US$ 1 949	ebay.com
10.		Nikon D3400	4/5	+	4/5	76/100	4/5	4.5/5	Aug 2016	US$ 499	ebay.com
11.		Nikon D3500	4/5	..	4/5	75/100	4/5	4.5/5	Aug 2018	US$ 429	ebay.com
12.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
13.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
14.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
15.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
16.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
17.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check CL offers at
ebay.com
Check XZ-1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check CL offers at
ebay.com
Check XZ-1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
