Leica CL vs M Typ 262
The Leica CL (Typ 7323) and the Leica M (Typ 262) are two digital cameras that were revealed to the public, respectively, in November 2017 and November 2015. The CL is a mirrorless interchangeable lens camera, while the M Typ 262 is a rangefinder-focusing mirrorless. The cameras are based on an APS-C (CL) and a full frame (M Typ 262) sensor. The CL has a resolution of 24.1 megapixels, whereas the M Typ 262 provides 23.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Leica CL (Typ 7323) and the Leica M (Typ 262)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

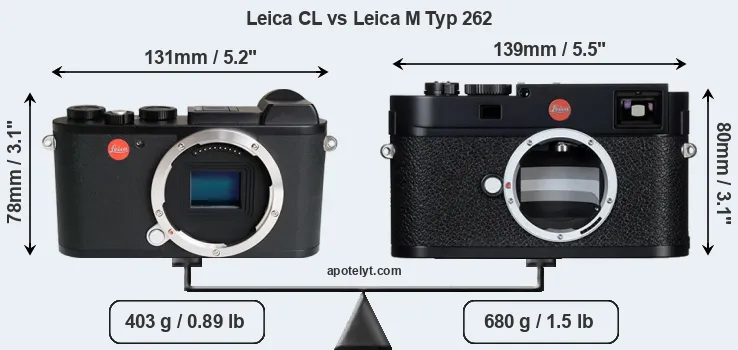

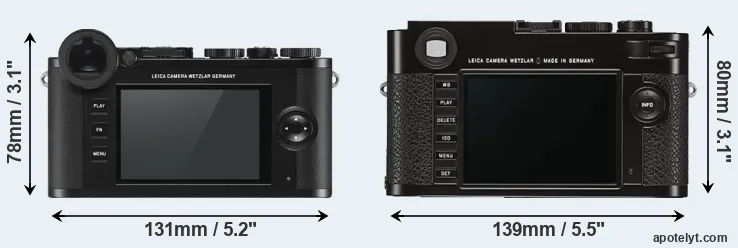

An illustration of the physical size and weight of the Leica CL and the Leica M Typ 262 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.
The M Typ 262 can be obtained in two different colors (black, silver), while the CL is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M Typ 262 is notably larger (9 percent) than the Leica CL. Moreover, the M Typ 262 is substantially heavier (69 percent) than the CL. It is noteworthy in this context that the M Typ 262 is splash and dust-proof, while the CL does not feature any corresponding weather-sealing.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Leica CL||131 mm||78 mm||45 mm||403 g||220||n||Nov 2017||2,795||amazon.com|
|2.||Leica M Typ 262||139 mm||80 mm||42 mm||680 g||..||Y||Nov 2015||5,195||ebay.com|
|3.||Canon 1D X Mark II||158 mm||168 mm||83 mm||1530 g||1210||Y||Feb 2016||5,999||ebay.com|
|4.||Fujifilm X-T100||121 mm||83 mm||47 mm||448 g||430||n||May 2018||599||ebay.com|
|5.||Fujifilm X-T20||118 mm||83 mm||41 mm||383 g||350||n||Jan 2017||899||ebay.com|
|6.||Fujifilm X-A3||117 mm||67 mm||40 mm||339 g||410||n||Aug 2016||399||ebay.com|
|7.||Leica M-E Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Jun 2019||3,999||amazon.com|
|8.||Leica C-LUX||113 mm||67 mm||46 mm||340 g||370||n||Jun 2018||1,049||amazon.com|
|9.||Leica M10||139 mm||80 mm||39 mm||660 g||210||Y||Jan 2017||6,595||ebay.com|
|10.||Leica TL2||134 mm||69 mm||33 mm||399 g||250||n||Jul 2017||1,950||amazon.com|
|11.||Leica TL||134 mm||69 mm||33 mm||384 g||400||n||Nov 2016||1,695||ebay.com|
|12.||Leica Q Typ 116||130 mm||80 mm||93 mm||640 g||300||n||Jun 2015||4,249||ebay.com|
|13.||Leica T||134 mm||69 mm||33 mm||384 g||400||n||Apr 2014||1,850||ebay.com|
|14.||Leica M Typ 240||139 mm||80 mm||42 mm||680 g||..||Y||Sep 2012||6,950||ebay.com|
|15.||Nikon D3500||124 mm||97 mm||70 mm||415 g||1550||n||Aug 2018||429||amazon.com|
|16.||Nikon D5600||124 mm||97 mm||70 mm||465 g||970||n||Nov 2016||699||amazon.com|
|17.||Nikon D3400||124 mm||98 mm||76 mm||445 g||1200||n||Aug 2016||499||ebay.com|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The CL was launched at a markedly lower price (by 46 percent) than the M Typ 262, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

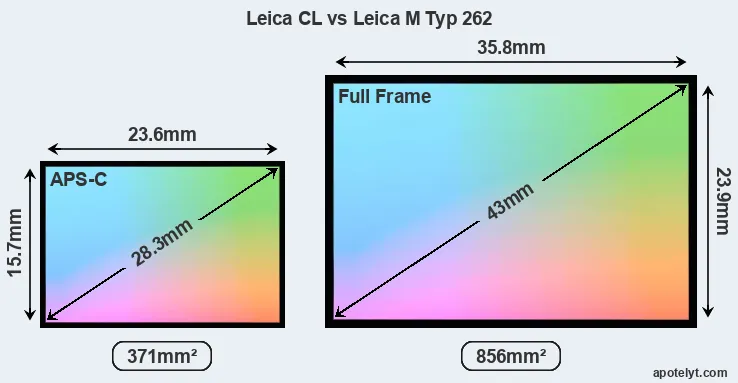

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Leica CL features an APS-C sensor and the Leica M Typ 262 a full frame sensor. The sensor area in the M Typ 262 is 131 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.
In terms of chip-set technology, the CL uses a more advanced image processing engine (Maestro II) than the M Typ 262 (Maestro), with benefits for noise reduction, color accuracy, and processing speed.

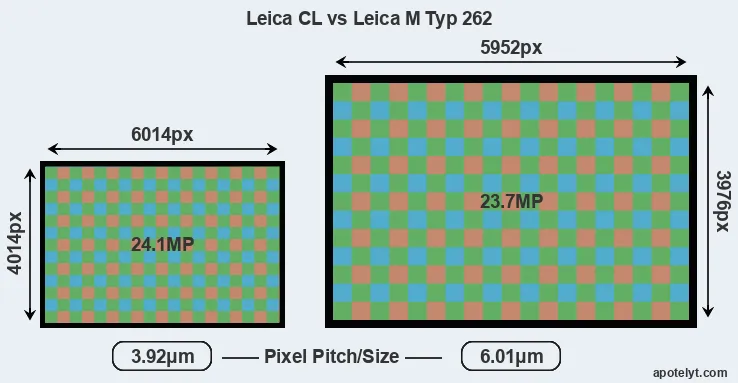

Despite having a smaller sensor, the Leica CL offers a higher resolution of 24.1 megapixels, compared with 23.7 MP of the Leica M Typ 262. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.92μm versus 6.01μm for the M Typ 262). However, it should be noted that the CL is much more recent (by 2 years) than the M Typ 262, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The Leica CL (Typ 7323) has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Leica M (Typ 262) are ISO 200 to ISO 6400, with the possibility to increase the ISO range to 100-6400.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|2.||Leica M Typ 262||Full Frame||23.7||5952||3976||none||24.8||13.7||2478||90|
|3.||Canon 1D X Mark II||Full Frame||20.0||5472||3648||4K/60p||24.1||13.5||3207||88|
|7.||Leica M-E Typ 240||Full Frame||23.7||5952||3976||1080/25p||25.2||14.2||2821||94|
|9.||Leica M10||Full Frame||23.8||5952||3992||none||24.4||13.2||2133||86|
|12.||Leica Q Typ 116||Full Frame||24.0||6000||4000||1080/60p||24.3||12.7||2221||85|
|14.||Leica M Typ 240||Full Frame||23.7||5952||3976||1080/25p||24.0||13.3||1860||84|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but can also record movies. The CL indeed provides movie recording capabilities, while the M Typ 262 does not. The highest resolution format that the CL can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the CL has an electronic viewfinder (2360k dots), while the M Typ 262 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the M Typ 262 has a higher magnification than the one of the CL (0.68x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Leica CL, the Leica M Typ 262, and comparable cameras.
|1.||Leica CL||2360||Y||3.0 / 1040||fixed||Y||1/8000s||10.0/s||n||n|
|2.||Leica M Typ 262||optical||n||3.0 / 921||fixed||n||1/4000s||3.0/s||n||n|
|3.||Canon 1D X Mark II||optical||Y||3.2 / 1620||fixed||Y||1/8000s||16.0/s||n||n|
|4.||Fujifilm X-T100||2360||n||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|5.||Fujifilm X-T20||2360||n||3.0 / 1040||tilting||Y||1/4000s||8.0/s||Y||n|
|6.||Fujifilm X-A3||none||n||3.0 / 1040||tilting||Y||1/4000s||6.0/s||Y||n|
|7.||Leica M-E Typ 240||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||n||n|
|8.||Leica C-LUX||2330||n||3.0 / 1240||fixed||Y||1/2000s||10.0/s||Y||Y|
|9.||Leica M10||optical||n||3.0 / 1037||fixed||n||1/4000s||5.0/s||n||n|
|10.||Leica TL2||optional||n||3.7 / 1230||fixed||Y||1/4000s||7.0/s||n||n|
|11.||Leica TL||optional||n||3.7 / 1230||fixed||Y||1/4000s||5.0/s||Y||n|
|12.||Leica Q Typ 116||3680||n||3.0 / 1040||fixed||Y||1/2000s||10.0/s||n||Y|
|13.||Leica T||optional||n||3.7 / 1230||fixed||Y||1/4000s||5.0/s||Y||n|
|14.||Leica M Typ 240||optical||n||3.0 / 920||fixed||n||1/4000s||3.0/s||n||n|
|15.||Nikon D3500||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|16.||Nikon D5600||optical||n||3.2 / 1037||swivel||Y||1/4000s||5.0/s||Y||n|
|17.||Nikon D3400||optical||n||3.0 / 921||fixed||n||1/4000s||5.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One feature that is present on the CL, but is missing on the M Typ 262 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the CL is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Leica CL has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the CL and the M Typ 262 write their files to SDXC cards. The CL supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the M Typ 262 can use UHS-I cards (up to 104 MB/s).
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica CL (Typ 7323) and Leica M (Typ 262) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Leica CL||Y||stereo / mono||-||-||-||-||Y||-||-|
|2.||Leica M Typ 262||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Canon 1D X Mark II||Y||mono / mono||Y||Y||mini||3.0||-||-||-|
|4.||Fujifilm X-T100||Y||stereo / mono||Y||-||micro||2.0||Y||-||Y|
|5.||Fujifilm X-T20||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|6.||Fujifilm X-A3||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|7.||Leica M-E Typ 240||Y||mono / -||-||-||-||2.0||-||-||-|
|8.||Leica C-LUX||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|9.||Leica M10||Y||- / -||-||-||-||-||Y||-||-|
|10.||Leica TL2||Y||stereo / mono||-||-||micro||3.0||Y||-||-|
|11.||Leica TL||Y||stereo / mono||-||-||micro||2.0||Y||-||-|
|12.||Leica Q Typ 116||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|13.||Leica T||Y||stereo / mono||-||-||-||2.0||Y||-||-|
|14.||Leica M Typ 240||Y||stereo / mono||-||-||-||2.0||-||-||-|
|15.||Nikon D3500||Y||mono / mono||-||-||mini||2.0||-||-||Y|
|16.||Nikon D5600||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|17.||Nikon D3400||Y||mono / mono||-||-||mini||2.0||-||-||Y|
It is notable that the CL offers wifi support, while the M Typ 262 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
The CL is a recent model that features in the current product line-up of Leica. In contrast, the M Typ 262 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the M Typ 262 was succeeded by the Leica M10. Further information on the features and operation of the CL and M Typ 262 can be found, respectively, in the Leica CL Manual (free pdf) or the online Leica M Typ 262 Manual.
So how do things add up? Is the Leica CL better than the Leica M Typ 262 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Arguments in favor of the Leica CL (Typ 7323):
- Better jpgs: Has a more modern image processing engine (Maestro II vs Maestro).
- Broader imaging potential: Can record not only still images but also 4K/30p movies.
- More framing info: Has an electronic viewfinder that displays shooting data.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
- Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
- Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
- Faster burst: Shoots at higher frequency (10 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Less heavy: Is lighter (by 277g or 41 percent) and hence easier to carry around.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More affordable: Was introduced into a lower priced category (46 percent cheaper at launch).
- More modern: Reflects 2 years of technical progress since the M Typ 262 launch.
Reasons to prefer the Leica M (Typ 262):
- Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
- Richer colors: The pixel size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.68x vs 0.49x).
- Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
- More heavily discounted: Has been around for much longer (launched in November 2015).
If the number of relative strengths (bullet points above) is taken as a guide, the CL is the clear winner of the match-up (15 : 8 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the CL and the M Typ 262 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Leica CL||..||..||4.2/5||..||..||4/5||Nov 2017||2,795||amazon.com|
|2.||Leica M Typ 262||..||..||..||..||..||..||Nov 2015||5,195||ebay.com|
|3.||Canon 1D X Mark II||..||..||4.5/5||89/100||4.5/5||4.5/5||Feb 2016||5,999||ebay.com|
|4.||Fujifilm X-T100||4/5||+||4.5/5||79/100||4/5||4.5/5||May 2018||599||ebay.com|
|5.||Fujifilm X-T20||5/5||+ +||5/5||82/100||5/5||4.5/5||Jan 2017||899||ebay.com|
|6.||Fujifilm X-A3||..||..||..||74/100||4.5/5||4/5||Aug 2016||399||ebay.com|
|7.||Leica M-E Typ 240||..||..||..||..||..||..||Jun 2019||3,999||amazon.com|
|8.||Leica C-LUX||..||..||3.5/5||..||4.5/5||4/5||Jun 2018||1,049||amazon.com|
|9.||Leica M10||4.5/5||..||..||..||4/5||4.5/5||Jan 2017||6,595||ebay.com|
|10.||Leica TL2||3.5/5||..||3/5||..||4/5||4/5||Jul 2017||1,950||amazon.com|
|11.||Leica TL||..||..||..||..||..||4/5||Nov 2016||1,695||ebay.com|
|12.||Leica Q Typ 116||5/5||..||..||80/100||4.5/5||4.5/5||Jun 2015||4,249||ebay.com|
|13.||Leica T||3/5||..||..||..||4/5||4/5||Apr 2014||1,850||ebay.com|
|14.||Leica M Typ 240||4/5||..||..||..||4/5||..||Sep 2012||6,950||ebay.com|
|15.||Nikon D3500||4/5||..||4/5||75/100||4/5||4.5/5||Aug 2018||429||amazon.com|
|16.||Nikon D5600||4/5||..||4/5||79/100||4.5/5||4/5||Nov 2016||699||amazon.com|
|17.||Nikon D3400||4/5||+||4/5||76/100||4/5||4.5/5||Aug 2016||499||ebay.com|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 800D vs Leica CL
- Canon XSi vs Leica M Typ 262
- Fujifilm X-Pro3 vs Leica CL
- Fujifilm X100 vs Leica M Typ 262
- Fujifilm XF10 vs Leica CL
- Leica CL vs Nikon D600
- Leica CL vs Nikon D750
- Leica CL vs Sony RX100 VII
- Leica M Typ 262 vs Leica X2
- Leica M Typ 262 vs Nikon D6
- Leica M Typ 262 vs Olympus E-M1X
- Leica M Typ 262 vs Sony RX0
Specifications: Leica CL vs Leica M Typ 262
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Leica CL||Leica M Typ 262|
|Camera Type||Mirrorless system camera||Rangefinder camera|
|Camera Lens||Leica T mount lenses||Leica M mount lenses|
|Launch Date||November 2017||November 2015|
|Launch Price||USD 2,795||USD 5,195|
|Sensor Specs||Leica CL||Leica M Typ 262|
|Sensor Format||APS-C Sensor||Full Frame Sensor|
|Sensor Size||23.6 x 15.7 mm||35.8 x 23.9 mm|
|Sensor Area||370.52 mm2||855.62 mm2|
|Sensor Diagonal||28.3 mm||43 mm|
|Sensor Resolution||24.1 Megapixels||23.7 Megapixels|
|Image Resolution||6014 x 4014 pixels||5952 x 3976 pixels|
|Pixel Pitch||3.92 μm||6.01 μm|
|Pixel Density||6.52 MP/cm2||2.77 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||4K/30p Video||no Video|
|ISO Setting||100 - 50,000 ISO||200 - 6,400 ISO|
|ISO Boost||no Enhancement||100 - 6,400 ISO|
|Image Processor||Maestro II||Maestro|
|Screen Specs||Leica CL||Leica M Typ 262|
|Viewfinder Type||Electronic viewfinder||Optical viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||2360k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View|
|Rear LCD Size||3.0inch||3.0inch|
|LCD Resolution||1040k dots||921k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Touch Input||Touchscreen||no Touchscreen|
|Shooting Specs||Leica CL||Leica M Typ 262|
|Focus System||Contrast-detect AF||Manual Focus|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/4000s|
|Continuous Shooting||10 shutter flaps/s||3 shutter flaps/s|
|Electronic Shutter||up to 1/25000s||no E-Shutter|
|Time-Lapse Photography||Intervalometer built-in||no Intervalometer|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Single or Dual Card Slots||Single card slot||Single card slot|
|UHS card support||UHS-II||UHS-I|
|Connectivity Specs||Leica CL||Leica M Typ 262|
|USB Connector||no USB||USB 2.0|
|HDMI Port||no HDMI||no HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Leica CL||Leica M Typ 262|
|Environmental Sealing||not weather sealed||Weathersealed body|
131 x 78 x 45 mm
(5.2 x 3.1 x 1.8 in)
139 x 80 x 42 mm
(5.5 x 3.1 x 1.7 in)
|Camera Weight||403 g (14.2 oz)||680 g (24.0 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
