Fujifilm X-M1 vs Olympus E-420
The Fujifilm X-M1 and the Olympus E-420 are two digital cameras that were announced, respectively, in June 2013 and March 2008. The X-M1 is a mirrorless interchangeable lens camera, while the E-420 is a DSLR. The cameras are based on an APS-C (X-M1) and a Four Thirds (E-420) sensor. The Fujifilm has a resolution of 16 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-M1 and the Olympus E-420? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
An illustration of the physical size and weight of the Fujifilm X-M1 and the Olympus E-420 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The X-M1 can be obtained in three different colors (black, silver, brown), while the E-420 is only available in black.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-420 is considerably larger (51 percent) than the Fujifilm X-M1. Moreover, the E-420 is markedly heavier (33 percent) than the X-M1. In this context, it is worth noting that neither the X-M1 nor the E-420 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-M1) and the Four Thirds Lens Catalog (E-420). Mirrorless cameras, such as the Fujifilm X-M1, have moreover the advantage that they have a relatively short flange to focal plane distance and can thus use many lenses from other systems via adapters.
The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.
|1.||Fujifilm X-M1||117 mm||67 mm||39 mm||330 g||350||n||Jun 2013||699|
|2.||Olympus E-420||130 mm||91 mm||53 mm||440 g||500||n||Mar 2008||599|
|3.||Fujifilm X-A10||117 mm||67 mm||40 mm||331 g||410||n||Dec 2016||399|
|4.||Fujifilm X-E2S||129 mm||75 mm||37 mm||350 g||350||n||Jan 2016||699|
|5.||Fujifilm X-A2||117 mm||67 mm||40 mm||350 g||410||n||Jan 2015||399|
|6.||Fujifilm X-T10||118 mm||83 mm||41 mm||381 g||350||n||May 2015||799|
|7.||Fujifilm X-A1||117 mm||67 mm||39 mm||330 g||350||n||Sep 2013||399|
|8.||Fujifilm X-E2||129 mm||75 mm||37 mm||350 g||350||n||Oct 2013||999|
|9.||Fujifilm X-E1||129 mm||75 mm||38 mm||350 g||350||n||Sep 2012||999|
|10.||Fujifilm X-Pro1||140 mm||82 mm||43 mm||450 g||300||n||Jan 2012||1,699|
|11.||Olympus E-450||130 mm||91 mm||53 mm||440 g||500||n||Mar 2009||499|
|12.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699|
|13.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699|
|14.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699|
|15.||Olympus E-400||130 mm||91 mm||53 mm||435 g||500||n||Sep 2006||699|
|16.||Sony NEX-5R||111 mm||59 mm||39 mm||276 g||330||n||Aug 2012||749|
|17.||Sony NEX-F3||117 mm||67 mm||42 mm||314 g||470||n||May 2012||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-420 was launched at a somewhat lower price (by 14 percent) than the X-M1, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Fujifilm X-M1 features an APS-C sensor and the Olympus E-420 a Four Thirds sensor. The sensor area in the E-420 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X-M1 has a native 3:2 aspect ratio, while the one in the E-420 offers a 4:3 aspect.
In terms of underlying technology, both cameras are build around CMOS sensors.

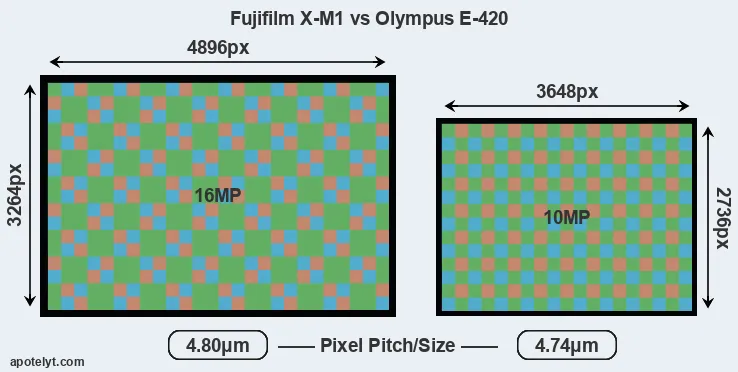

With 16MP, the X-M1 offers a higher resolution than the E-420 (10MP), but the X-M1 nevertheless has marginally larger individual pixels (pixel pitch of 4.80μm versus 4.74μm for the E-420) due to its larger sensor. Moreover, the X-M1 is a much more recent model (by 5 years and 3 months) than the E-420, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the X-M1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Fujifilm X-M1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-M1 for good quality output (200 dots per inch) amounts to 24.5 x 16.3 inches or 62.2 x 41.5 cm, for very good quality (250 dpi) 19.6 x 13.1 inches or 49.7 x 33.2 cm, and for excellent quality (300 dpi) 16.3 x 10.9 inches or 41.5 x 27.6 cm. The corresponding values for the Olympus E-420 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The Fujifilm X-M1 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus E-420 are ISO 100 to ISO 1600 (no boost).
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|2.||Olympus E-420||Four Thirds||10.0||3648||2736||none||21.5||10.4||527||56|
|11.||Olympus E-450||Four Thirds||10.0||3648||2736||none||21.5||10.5||512||56|
|12.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|13.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|14.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|15.||Olympus E-400||Four Thirds||10.0||3648||2736||none||..||..||..||..|
Many modern cameras cannot only take still pictures, but also record videos. The X-M1 indeed provides movie recording capabilities, while the E-420 does not. The highest resolution format that the X-M1 can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the E-420 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X-M1 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Fujifilm X-M1 and Olympus E-420 in connection with corresponding information for a sample of similar cameras.
|1.||Fujifilm X-M1||none||n||3.0 / 920||tilting||n||1/4000s||5.6||Y||n|
|2.||Olympus E-420||optical||n||2.7 / 215||fixed||n||1/4000s||3.5||Y||n|
|3.||Fujifilm X-A10||none||n||3.0 / 1040||tilting||n||1/4000s||6.0||Y||n|
|4.||Fujifilm X-E2S||2360||n||3.0 / 1040||fixed||n||1/4000s||7.0||Y||n|
|5.||Fujifilm X-A2||none||n||3.0 / 920||tilting||n||1/4000s||5.6||Y||n|
|6.||Fujifilm X-T10||2360||n||3.0 / 920||tilting||n||1/4000s||8.0||Y||n|
|7.||Fujifilm X-A1||none||n||3.0 / 920||tilting||n||1/4000s||5.6||Y||n|
|8.||Fujifilm X-E2||2360||n||3.0 / 1040||fixed||n||1/4000s||7.0||Y||n|
|9.||Fujifilm X-E1||2360||n||2.8 / 460||fixed||n||1/4000s||6.0||Y||n|
|10.||Fujifilm X-Pro1||1440||n||3.0 / 1230||fixed||n||1/4000s||6.0||n||n|
|11.||Olympus E-450||optical||n||2.7 / 215||fixed||n||1/4000s||3.5||Y||n|
|12.||Olympus E-620||optical||n||2.7 / 230||swivel||n||1/4000s||4.0||Y||Y|
|13.||Olympus E-520||optical||n||2.7 / 215||fixed||n||1/4000s||3.5||Y||Y|
|14.||Olympus E-410||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||n|
|15.||Olympus E-400||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||n|
|16.||Sony NEX-5R||optional||n||3.0 / 920||tilting||Y||1/4000s||10.0||n||n|
|17.||Sony NEX-F3||optional||n||3.0 / 920||tilting||n||1/4000s||5.5||Y||n|
The X-M1 writes its imaging data to SDXC cards, while the E-420 uses Compact Flash or xD Picture cards. The E-420 features dual card slots, which can be very useful in case a memory card fails. In contrast, the X-M1 only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-M1 and Olympus E-420 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Fujifilm X-M1||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|2.||Olympus E-420||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Fujifilm X-A10||-||stereo / mono||-||-||micro||2.0||Y||-||-|
|4.||Fujifilm X-E2S||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|5.||Fujifilm X-A2||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|6.||Fujifilm X-T10||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|7.||Fujifilm X-A1||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|8.||Fujifilm X-E2||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|9.||Fujifilm X-E1||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Fujifilm X-Pro1||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|11.||Olympus E-450||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Olympus E-620||Y||- / -||-||-||-||2.0||-||-||-|
|13.||Olympus E-520||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Olympus E-410||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Olympus E-400||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Sony NEX-5R||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|17.||Sony NEX-F3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
It is notable that the X-M1 offers wifi support, while the E-420 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.
Both the X-M1 and the E-420 have been discontinued, but can regularly be found used on eBay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Fujifilm and Olympus. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Olympus websites.
So how do things add up? Is there a clear favorite between the Fujifilm X-M1 and the Olympus E-420? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Fujifilm X-M1:
- More detail: Offers more megapixels (16 vs 10MP) with a 29% higher linear resolution.
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (920k vs 215k dots).
- More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
- Faster burst: Shoots at higher frequency (5.6 vs 3.5 flaps/sec) to capture the decisive moment.
- More compact: Is smaller (117x67mm vs 130x91mm) and thus needs less room in the bag.
- Less heavy: Is lighter (by 110g or 25 percent) and hence easier to carry around.
- More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- More modern: Reflects 5 years and 3 months of technical progress since the E-420 launch.
Advantages of the Olympus E-420:
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Easier framing: Has an optical viewfinder for image composition and settings control.
- Longer lasting: Gets more shots (500 versus 350) out of a single battery charge.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More affordable: Was released into a lower priced segment (14 percent cheaper at launch).
- More heavily discounted: Has been around for much longer (launched in March 2008).
If the count of individual advantages (bullet points above) is taken as a guide, the X-M1 is the clear winner of the match-up (16 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Fujifilm X-M1 and the Olympus E-420 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-M1 or the E-420. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Fujifilm X-M1||3/5||+||..||77/100||4.5/5||4.5/5||Jun 2013||699|
|2.||Olympus E-420||..||85/100||..||+ +||4/5||4.5/5||Mar 2008||599|
|3.||Fujifilm X-A10||..||..||..||..||4/5||4/5||Dec 2016||399|
|4.||Fujifilm X-E2S||4.5/5||..||..||77/100||4.5/5||4.5/5||Jan 2016||699|
|5.||Fujifilm X-A2||4/5||..||..||..||4.5/5||4.5/5||Jan 2015||399|
|6.||Fujifilm X-T10||4.5/5||+ +||..||80/100||5/5||5/5||May 2015||799|
|7.||Fujifilm X-A1||..||..||..||..||4.5/5||4.5/5||Sep 2013||399|
|8.||Fujifilm X-E2||4/5||..||..||80/100||4.5/5||5/5||Oct 2013||999|
|9.||Fujifilm X-E1||4/5||+ +||..||79/100||4.5/5||4.5/5||Sep 2012||999|
|10.||Fujifilm X-Pro1||5/5||+ +||..||79/100||4.5/5||4.5/5||Jan 2012||1,699|
|11.||Olympus E-450||..||..||..||..||4/5||4/5||Mar 2009||499|
|12.||Olympus E-620||3/5||88/100||..||72/100||4.5/5||5/5||Feb 2009||699|
|13.||Olympus E-520||..||87/100||..||+ +||4.5/5||4.5/5||May 2008||699|
|14.||Olympus E-410||..||86/100||..||+ +||4/5||4.5/5||Mar 2007||699|
|15.||Olympus E-400||..||85/100||..||..||4/5||4/5||Sep 2006||699|
|16.||Sony NEX-5R||..||..||..||..||4.5/5||4.5/5||Aug 2012||749|
|17.||Sony NEX-F3||4/5||..||..||74/100||4.5/5||4.5/5||May 2012||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1300D vs Olympus E-420
- Canon 1Ds vs Olympus E-420
- Canon T1i vs Fujifilm X-M1
- Canon T5 vs Fujifilm X-M1
- Fujifilm X-A7 vs Fujifilm X-M1
- Fujifilm X-M1 vs Nikon D810
- Fujifilm X-M1 vs Olympus E-300
- Fujifilm X-M1 vs Olympus E-PL6
- Leica D-LUX Typ 109 vs Olympus E-420
- Leica S Typ 007 vs Olympus E-420
- Olympus E-420 vs Ricoh GR
- Olympus E-420 vs Zeiss ZX1
Specifications: Fujifilm X-M1 vs Olympus E-420
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Fujifilm X-M1||Olympus E-420|
|Camera Type||Mirrorless system camera||Digital single lens reflex|
|Camera Lens||Fujifilm X mount lenses||Four Thirds lenses|
|Launch Date||June 2013||March 2008|
|Launch Price||USD 699||USD 599|
|Sensor Specs||Fujifilm X-M1||Olympus E-420|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||368.16 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||16 Megapixels||10 Megapixels|
|Image Resolution||4896 x 3264 pixels||3648 x 2736 pixels|
|Pixel Pitch||4.80 μm||4.74 μm|
|Pixel Density||4.34 MP/cm2||4.44 MP/cm2|
|Moiré control||no AA filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||200 - 6,400 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 25,600 ISO||no Enhancement|
|Image Processor||EXR Processor II||TruePic III|
|DXO Sensor Quality (score)||..||56|
|DXO Color Depth (bits)||..||21.5|
|DXO Dynamic Range (EV)||..||10.4|
|DXO Low Light (ISO)||..||527|
|Screen Specs||Fujifilm X-M1||Olympus E-420|
|Viewfinder Type||no viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.7inch|
|LCD Resolution||920k dots||215k dots|
|LCD Attachment||Tilting screen||Fixed screen|
|Shooting Specs||Fujifilm X-M1||Olympus E-420|
|Focus System||Contrast-detect AF||Phase-detect AF|
|Manual Focusing Aid||Focus Peaking||no Peaking Feature|
|Continuous Shooting||5.6 shutter flaps/s||3.5 shutter flaps/s|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Fujifilm X-M1||Olympus E-420|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Wifi Support||Wifi built-in||no Wifi|
|Body Specs||Fujifilm X-M1||Olympus E-420|
|Battery Life (CIPA)||350 shots per charge||500 shots per charge|
117 x 67 x 39 mm
(4.6 x 2.6 x 1.5 in)
130 x 91 x 53 mm
(5.1 x 3.6 x 2.1 in)
|Camera Weight||330 g (11.6 oz)||440 g (15.5 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
