Fujifilm X-H1 vs Panasonic GH5
The Fujifilm X-H1 and the Panasonic Lumix DC-GH5 are two enthusiast cameras that were officially introduced, respectively, in February 2018 and January 2017. Both the X-H1 and the GH5 are mirrorless interchangeable lens cameras that are based on an APS-C (X-H1) and a Four Thirds (GH5) sensor. The Fujifilm has a resolution of 24 megapixels, whereas the Panasonic provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
|Fujifilm X-H1||Panasonic GH5|
|Mirrorless system camera||Mirrorless system camera|
|Fujifilm X mount lenses||Micro Four Thirds lenses|
|24 MP, APS-C Sensor||20.2 MP, Four Thirds Sensor|
|4K/30p Video||4K/60p Video|
|ISO 200-12,800 (100 - 51,200)||ISO 200-25,600|
|Electronic viewfinder (3690k dots)||Electronic viewfinder (3680k dots)|
|3.0 LCD, 1040k dots||3.2 LCD, 1620k dots|
|Fully flexible touchscreen||Swivel touchscreen|
|14 shutter flaps per second||12 shutter flaps per second|
|In-body stabilization||In-body stabilization|
|Weathersealed body||Weathersealed body|
|310 shots per battery charge||410 shots per battery charge|
|140 x 97 x 86 mm, 673 g||139 x 98 x 87 mm, 725 g|
Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-H1 and the Panasonic Lumix DC-GH5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

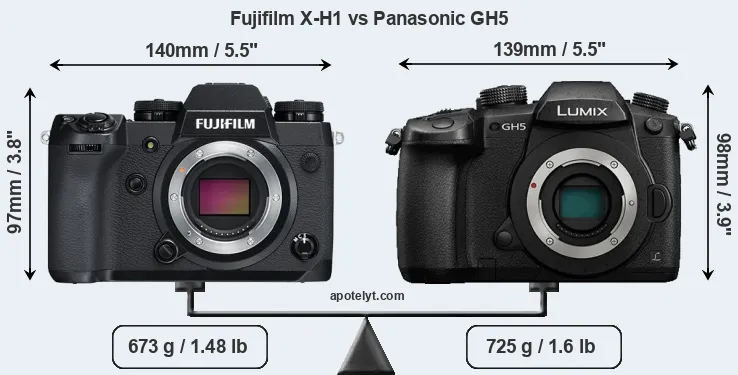

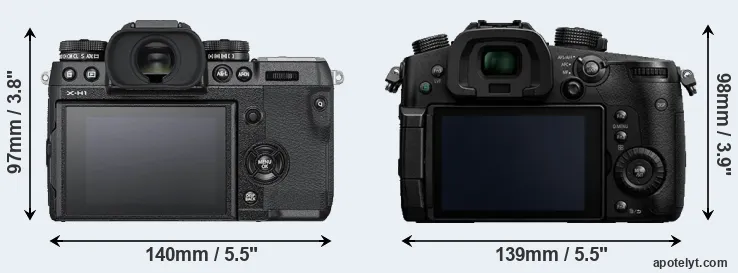

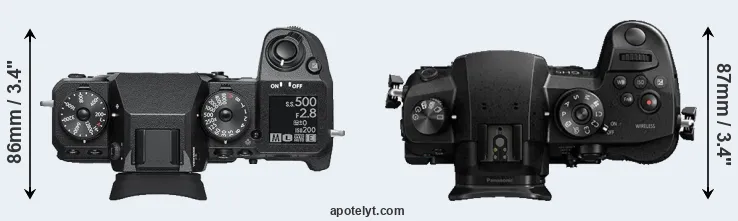

The side-by-side display below illustrates the physical size and weight of the Fujifilm X-H1 and the Panasonic GH5. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-H1 and the Panasonic GH5 are of equal size. However, the GH5 is markedly heavier (8 percent) than the X-H1. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-H1) and the Micro Four Thirds Lens Catalog (GH5). Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.
Concerning battery life, the X-H1 gets 310 shots out of its NP-W126S battery, while the GH5 can take 410 images on a single charge of its DMW-BLF19 power pack. The power pack in the X-H1 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, just use the right or left arrows in the table to switch to the respective camera. Alternatively, you can also navigate to the CAM-parator app and make your selection from the full list of cameras there.
|Fujifilm X-H1||5.5 in||3.8 in||3.4 in||23.7 oz||310||Y||Feb 2018||1,899|
|Panasonic GH5||5.5 in||3.9 in||3.4 in||25.6 oz||410||Y||Jan 2017||1,999|
|Fujifilm X-T4||5.3 in||3.7 in||2.5 in||21.4 oz||500||Y||Feb 2020||1,699|
|Fujifilm X-Pro3||5.6 in||3.3 in||1.8 in||17.5 oz||440||Y||Oct 2019||1,799|
|Fujifilm X-Pro2||5.6 in||3.3 in||1.8 in||17.5 oz||350||Y||Jan 2016||1,699|
|Fujifilm X-T2||5.2 in||3.6 in||1.9 in||17.9 oz||340||Y||Jul 2016||1,599|
|Nikon Z6||5.3 in||4.0 in||2.6 in||23.8 oz||310||Y||Aug 2018||1,999|
|Nikon D500||5.8 in||4.5 in||3.2 in||30.3 oz||1240||Y||Jan 2016||1,999|
|Olympus E-M1 II||5.3 in||3.6 in||2.6 in||20.2 oz||440||Y||Sep 2016||1,999|
|Panasonic G9||5.4 in||3.8 in||3.6 in||23.2 oz||400||Y||Nov 2017||1,699|
|Panasonic G85||5.0 in||3.5 in||2.9 in||17.8 oz||330||Y||Sep 2016||899|
|Panasonic GH4||5.2 in||3.7 in||3.3 in||19.8 oz||500||Y||Feb 2014||1,499|
|Pentax KP||5.2 in||4.0 in||3.0 in||24.8 oz||390||Y||Jan 2017||1,099|
|Sony A7 III||5.0 in||3.8 in||2.9 in||22.9 oz||610||Y||Feb 2018||1,999|
|Sony A77||5.6 in||4.1 in||3.2 in||25.8 oz||470||Y||Aug 2011||1,399|
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
(1) Number of images that can be taken on a full battery charge according to the CIPA-standard; (2) Official announcement.
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X-H1 was somewhat cheaper (by 5 percent) than the GH5 at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

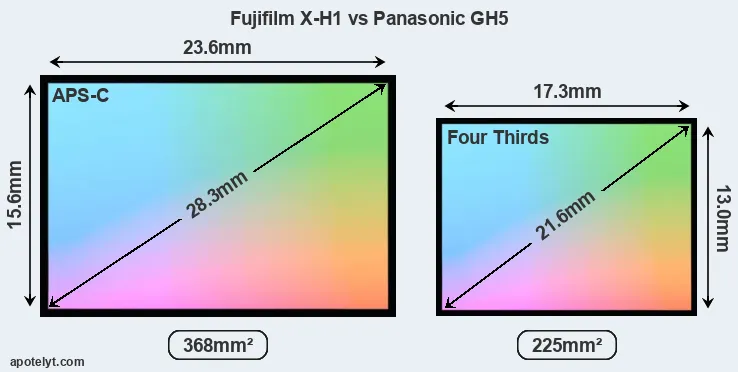

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Fujifilm X-H1 features an APS-C sensor and the Panasonic GH5 a Four Thirds sensor. The sensor area in the GH5 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the X-H1 has a native 3:2 aspect ratio, while the one in the GH5 offers a 4:3 aspect.

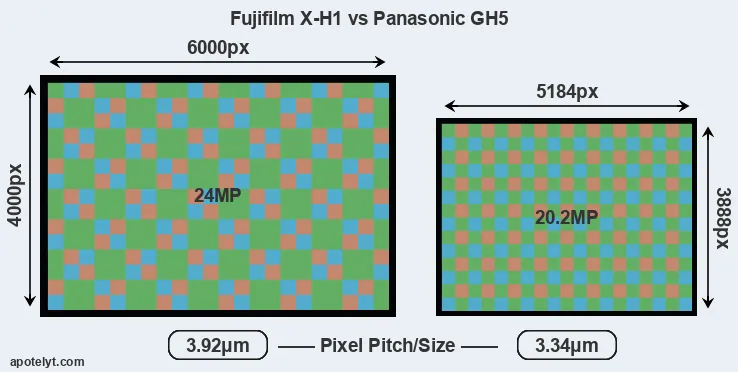

With 24MP, the X-H1 offers a higher resolution than the GH5 (20.2MP), but the X-H1 nevertheless has larger individual pixels (pixel pitch of 3.92μm versus 3.34μm for the GH5) due to its larger sensor. Moreover, the X-H1 is a somewhat more recent model (by 1 year and 1 month) than the GH5, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.
The resolution advantage of the Fujifilm X-H1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-H1 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GH5 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
The X-H1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.
The Fujifilm X-H1 has a native sensitivity range from ISO 200 to ISO 12800, which can be extended to ISO 100-51200. The corresponding ISO settings for the Panasonic Lumix DC-GH5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.
For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.
|Panasonic GH5||Four Thirds||20.2||5184||3888||4K/60p||23.9||13.0||807||77|
|Nikon Z6||Full Frame||24.3||6048||4024||4K/30p||25.3||14.3||3299||95|
|Olympus E-M1 II||Four Thirds||20.2||5184||3888||4K/30p||23.7||12.8||1312||80|
|Panasonic G9||Four Thirds||20.2||5184||3888||4K/60p||..||..||..||..|
|Panasonic G85||Four Thirds||15.8||4592||3448||4K/30p||22.8||12.5||656||71|
|Panasonic GH4||Four Thirds||15.9||4608||3456||4K/30p||23.2||12.8||791||74|
|Sony A7 III||Full Frame||24.0||6000||4000||4K/30p||25.0||14.7||3730||96|
Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the GH5 provides a faster frame rate than the X-H1. It can shoot movie footage at 4K/60p, while the Fujifilm is limited to 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the X-H1 offers a slightly higher resolution than the one in the GH5 (3690k vs 3680k dots). The adjacent table lists some of the other core features of the Fujifilm X-H1 and Panasonic GH5 along with similar information for a selection of comparators.
|Olympus E-M1 II||2360||n||3.0||1037||swivel||Y||1/8000s||18.0||n||Y|
|Sony A7 III||2359||n||3.0||922||tilting||Y||1/8000s||10.0||n||Y|
One feature that is present on the X-H1, but is missing on the GH5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.The GH5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the X-H1 does not have a selfie-screen.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Fujifilm X-H1 and the Panasonic GH5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
Concerning the storage of imaging data, both the X-H1 and the GH5 write their files to SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. Moreover, both the X-H1 and the GH5 support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s, on both slots.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-H1 and Panasonic Lumix DC-GH5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
| WiFi |
|Olympus E-M1 II||Y||stereo||mono||Y||Y||micro||3.0||Y||-||-|
|Sony A7 III||Y||stereo||mono||Y||Y||micro||3.1||Y||Y||Y|
It is notable that the GH5 has a headphone jack, which makes it possible to attach external headphones and monitor the quality of sound during the recording process. The X-H1 lacks such a headphone port.
Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.
Both the X-H1 and the GH5 are recent models that are part of the current product line-up. The GH5 replaced the earlier Panasonic GH4, while the X-H1 does not have a direct predecessor. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Panasonic websites.
So how do things add up? Is there a clear favorite between the Fujifilm X-H1 and the Panasonic GH5? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.
Advantages of the Fujifilm X-H1:
- More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
- Better image quality: Features a larger and more technologically advanced imaging sensor.
- Richer colors: The sensor size advantage translates into images with better, more accurate colors.
- More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
- Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
- Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Faster burst: Shoots at higher frequency (14 vs 12 flaps/sec) to capture the decisive moment.
- Easier travel charging: Can be conveniently charged via its USB port.
- More modern: Is somewhat more recent (announced 1 year and 1 month after the GH5).
Arguments in favor of the Panasonic Lumix DC-GH5:
- Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.75x).
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Longer lasting: Gets more shots (410 versus 310) out of a single battery charge.
- More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- More heavily discounted: Has been on the market for longer (launched in January 2017).
If the count of relative strengths (bullet points above) is taken as a measure, the GH5 comes out slightly ahead of the X-H1 (10 : 9 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Fujifilm X-H1 and the Panasonic GH5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the X-H1 and the GH5 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (cameralabs, dpreview, ephotozine, imaging-resource, and photographyblog). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|Fujifilm X-H1||+||86/100||4.5/5||..||4.5/5||Feb 2018||1,899|
|Panasonic GH5||+ +||85/100||4.5/5||5/5||5/5||Jan 2017||1,999|
|Fujifilm X-T4||+ +||..||5/5||..||5/5||Feb 2020||1,699|
|Fujifilm X-Pro3||+||85/100||4/5||..||..||Oct 2019||1,799|
|Fujifilm X-Pro2||+||83/100||4.5/5||4.5/5||4.5/5||Jan 2016||1,699|
|Fujifilm X-T2||+ +||86/100||4.5/5||5/5||5/5||Jul 2016||1,599|
|Nikon Z6||..||..||4.5/5||4.5/5||5/5||Aug 2018||1,999|
|Nikon D500||+ +||91/100||4.5/5||5/5||5/5||Jan 2016||1,999|
|Olympus E-M1 II||+ +||85/100||4.5/5||5/5||4.5/5||Sep 2016||1,999|
|Panasonic G9||+ +||85/100||5/5||5/5||5/5||Nov 2017||1,699|
|Panasonic G85||+ +||84/100||5/5||4.5/5||4.5/5||Sep 2016||899|
|Panasonic GH4||+ +||85/100||5/5||5/5||5/5||Feb 2014||1,499|
|Pentax KP||..||82/100||5/5||..||4.5/5||Jan 2017||1,099|
|Sony A7 III||+ +||89/100||5/5||5/5||5/5||Feb 2018||1,999|
|Sony A77||91/100||81/100||..||4.5/5||5/5||Aug 2011||1,399|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 30D vs Panasonic GH5
- Canon R5 vs Fujifilm X-H1
- Canon SX530 vs Fujifilm X-H1
- Fujifilm X-H1 vs Fujifilm XP140
- Fujifilm X-H1 vs Nikon D100
- Fujifilm X-H1 vs Nikon D6
- Fujifilm X-H1 vs Nikon D780
- Fujifilm X-H1 vs Samsung NX1
- Fujifilm X-T3 vs Panasonic GH5
- Leica SL2 vs Panasonic GH5
- Nikon D300 vs Panasonic GH5
- Nikon Z6 II vs Panasonic GH5
Specifications: Fujifilm X-H1 vs Panasonic GH5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Fujifilm X-H1||Panasonic GH5|
|Camera Type||Mirrorless system camera||Mirrorless system camera|
|Camera Lens||Fujifilm X mount lenses||Micro Four Thirds lenses|
|Launch Date||February 2018||January 2017|
|Launch Price||USD 1,899||USD 1,999|
|Sensor Specs||Fujifilm X-H1||Panasonic GH5|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||23.6 x 15.6 mm||17.3 x 13.0 mm|
|Sensor Area||368.16 mm2||224.9 mm2|
|Sensor Diagonal||28.3 mm||21.6 mm|
|Sensor Resolution||24 Megapixels||20.2 Megapixels|
|Image Resolution||6000 x 4000 pixels||5184 x 3888 pixels|
|Pixel Pitch||3.92 μm||3.34 μm|
|Pixel Density||6.52 MP/cm2||8.96 MP/cm2|
|Moiré control||no AA filter||no AA filter|
|Movie Capability||4K/30p Video||4K/60p Video|
|ISO Setting||200 - 12,800 ISO||200 - 25,600 ISO|
|ISO Boost||100 - 51,200 ISO||100 - 25,600 ISO|
|Image Processor||X-Processor Pro2||Venus 10|
|DXO Sensor Quality (score)||..||77|
|DXO Color Depth (bits)||..||23.9|
|DXO Dynamic Range (EV)||..||13.0|
|DXO Low Light (ISO)||..||807|
|Screen Specs||Fujifilm X-H1||Panasonic GH5|
|Viewfinder Type||Electronic viewfinder||Electronic viewfinder|
|Viewfinder Field of View||100%||100%|
|Viewfinder Resolution||3690k dots||3680k dots|
|Top-Level Screen||Control Panel||no Top Display|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||3.2inch|
|LCD Resolution||1040k dots||1620k dots|
|LCD Attachment||Fully flexible screen||Swivel screen|
|Shooting Specs||Fujifilm X-H1||Panasonic GH5|
|Focus System||On-Sensor Phase-detect||Contrast-detect AF|
|Manual Focusing Aid||Focus Peaking||Focus Peaking|
|Max Shutter Speed (mechanical)||1/8000s||1/8000s|
|Continuous Shooting||14 shutter flaps/s||12 shutter flaps/s|
|Electronic Shutter||up to 1/32000s||up to 1/16000s|
|Time-Lapse Photography||Intervalometer built-in||Intervalometer built-in|
|Image Stabilization||In-body stabilization||In-body stabilization|
|Fill Flash||no On-Board Flash||no On-Board Flash|
|Storage Medium||SDXC cards||SDXC cards|
|Second Storage Option||Dual card slots||Dual card slots|
|UHS card support||Dual UHS-II||Dual UHS-II|
|Connectivity Specs||Fujifilm X-H1||Panasonic GH5|
|Studio Flash||PC Sync socket||PC Sync socket|
|USB Connector||USB 3.0||USB 3.1|
|HDMI Port||micro HDMI||full HDMI|
|Microphone Port||External MIC port||External MIC port|
|Headphone Socket||no Headphone port||Headphone port|
|Wifi Support||Wifi built-in||Wifi built-in|
|Bluetooth Support||no Bluetooth||Bluetooth built-in|
|Body Specs||Fujifilm X-H1||Panasonic GH5|
|Environmental Sealing||Weathersealed body||Weathersealed body|
|Battery Life (CIPA)||310 shots per charge||410 shots per charge|
|In-Camera Charging||USB charging||no USB charging|
140 x 97 x 86 mm
(5.5 x 3.8 x 3.4 in)
139 x 98 x 87 mm
(5.5 x 3.9 x 3.4 in)
|Camera Weight||673 g (23.7 oz)||725 g (25.6 oz)|
