Canon XT vs Leica D-LUX Typ 109
The Canon EOS Rebel XT (called Canon 350D in some regions) and the Leica D-LUX (Typ 109) are two digital cameras that were officially introduced, respectively, in February 2005 and September 2014. The XT is a DSLR, while the D-LUX Typ 109 is a fixed lens compact. The cameras are based on an APS-C (XT) and a Four Thirds (D-LUX Typ 109) sensor. The Canon has a resolution of 8 megapixels, whereas the Leica provides 12.7 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XT and the Leica D-LUX (Typ 109)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

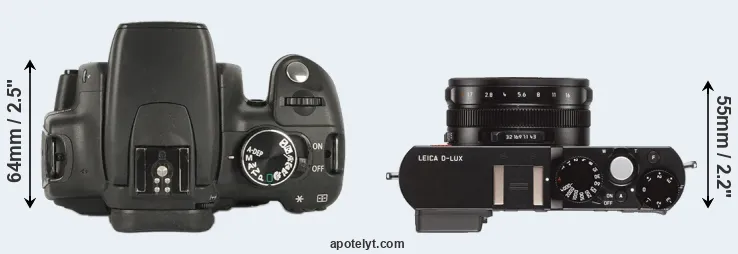

The side-by-side display below illustrates the physical size and weight of the Canon XT and the Leica D-LUX Typ 109. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.
The XT can be obtained in two different colors (black, silver), while the D-LUX Typ 109 is also available in two color-versions, but different ones (black, grey).
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica D-LUX Typ 109 is considerably smaller (35 percent) than the Canon XT. In this context, it is worth noting that neither the XT nor the D-LUX Typ 109 are weather-sealed.
The above size and weight comparisons are to some extent incomplete and possibly misleading, as the D-LUX Typ 109 has a lens built in, whereas the XT is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the XT and their specifications in the Canon EF Lens Catalog.
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.
|1.||Canon XT||127 mm||94 mm||64 mm||540 g||400||n||Feb 2005||899|
|2.||Leica D-LUX Typ 109||118 mm||66 mm||55 mm||405 g||300||n||Sep 2014||1,195|
|3.||Canon 77D||131 mm||100 mm||76 mm||540 g||600||n||Feb 2017||899|
|4.||Canon T6i||132 mm||101 mm||78 mm||555 g||440||n||Feb 2015||749|
|5.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|6.||Canon G16||109 mm||76 mm||40 mm||356 g||360||n||Aug 2013||549|
|7.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|8.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|9.||Canon XSi||129 mm||98 mm||62 mm||524 g||500||n||Jan 2008||799|
|10.||Canon 30D||144 mm||106 mm||74 mm||785 g||750||n||Feb 2006||1,399|
|11.||Canon XTi||127 mm||84 mm||65 mm||556 g||370||n||Aug 2006||799|
|12.||Canon 20D||144 mm||106 mm||72 mm||770 g||700||n||Aug 2004||1,499|
|13.||Canon Rebel||142 mm||99 mm||72 mm||649 g||400||n||Aug 2003||899|
|14.||Fujifilm X100T||127 mm||74 mm||52 mm||440 g||330||n||Sep 2014||1,299|
|15.||Fujifilm X100S||127 mm||74 mm||54 mm||445 g||330||n||Jan 2013||1,299|
|16.||Leica D-LUX 7||115 mm||66 mm||65 mm||392 g||300||n||Nov 2018||1,195|
|17.||Leica X Typ 113||133 mm||73 mm||78 mm||486 g||350||n||Sep 2014||2,295|
|Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.
The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon XT features an APS-C sensor and the Leica D-LUX Typ 109 a Four Thirds sensor. The sensor area in the D-LUX Typ 109 is 44 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the XT has a native 3:2 aspect ratio, while the one in the D-LUX Typ 109 offers a 4:3 aspect. The D-LUX Typ 109 has the particularity of featuring a switch that allows to toggle between multiple aspect ratios, while maintaining the same field of view and full image resolution.
In terms of underlying technology, both cameras are build around CMOS sensors.
Despite having a smaller sensor, the D-LUX Typ 109 offers a higher resolution of 12.7 megapixels, compared with 8 MP of the XT. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.82μm versus 6.41μm for the XT). However, it should be noted that the D-LUX Typ 109 is much more recent (by 9 years and 6 months) than the XT, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.
The resolution advantage of the Leica D-LUX Typ 109 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D-LUX Typ 109 for good quality output (200 dots per inch) amounts to 20.6 x 15.4 inches or 52.2 x 39.2 cm, for very good quality (250 dpi) 16.4 x 12.4 inches or 41.8 x 31.4 cm, and for excellent quality (300 dpi) 13.7 x 10.3 inches or 34.8 x 26.1 cm. The corresponding values for the Canon XT are 17.3 x 11.5 inches or 43.9 x 29.3 cm for good quality, 13.8 x 9.2 inches or 35.1 x 23.4 cm for very good quality, and 11.5 x 7.7 inches or 29.3 x 19.5 cm for excellent quality prints.
The Canon EOS Rebel XT has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Leica D-LUX (Typ 109) are ISO 200 to ISO 12500, with the possibility to increase the ISO range to 100-25600.
Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.
|2.||Leica D-LUX Typ 109||Four Thirds||12.7||4112||3088||4K/30p||22.4||12.1||607||67|
|16.||Leica D-LUX 7||Four Thirds||16.8||4736||3552||4K/30p||22.9||12.8||1002||72|
|17.||Leica X Typ 113||APS-C||16.1||4928||3264||1080/30p||23.6||12.8||1491||78|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The D-LUX Typ 109 indeed provides for movie recording, while the XT does not. The highest resolution format that the D-LUX Typ 109 can use is 4K/30p.
Apart from body and sensor, cameras can and do differ across a range of features. For example, the D-LUX Typ 109 has an electronic viewfinder (2764k dots), while the XT has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the D-LUX Typ 109 offers a wider field of view (100%) than the one in the XT (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the D-LUX Typ 109 has a higher magnification (0.70x vs 0.49x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon XT and Leica D-LUX Typ 109 in connection with corresponding information for a sample of similar cameras.
|1.||Canon XT||optical||n||1.8 / 115||fixed||n||1/4000s||3.0/s||Y||n|
|2.||Leica D-LUX Typ 109||2764||n||3.0 / 921||fixed||n||1/4000s||11.0/s||n||Y|
|3.||Canon 77D||optical||Y||3.0 / 1040||swivel||Y||1/4000s||6.0/s||Y||n|
|4.||Canon T6i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|5.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|6.||Canon G16||optical||n||3.0 / 922||fixed||n||1/4000s||2.2/s||Y||Y|
|7.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0/s||Y||n|
|8.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4/s||Y||n|
|9.||Canon XSi||optical||n||3.0 / 230||fixed||n||1/4000s||3.5/s||Y||n|
|10.||Canon 30D||optical||Y||2.5 / 230||fixed||n||1/8000s||5.0/s||Y||n|
|11.||Canon XTi||optical||n||2.5 / 230||fixed||n||1/4000s||3.0/s||Y||n|
|12.||Canon 20D||optical||Y||1.8 / 118||fixed||n||1/8000s||5.0/s||Y||n|
|13.||Canon Rebel||optical||n||1.8 / 118||fixed||n||1/4000s||2.5/s||Y||n|
|14.||Fujifilm X100T||2360||n||3.0 / 1040||fixed||n||1/4000s||6.0/s||Y||n|
|15.||Fujifilm X100S||2360||n||2.8 / 460||fixed||n||1/4000s||6.0/s||Y||n|
|16.||Leica D-LUX 7||2764||n||3.0 / 1240||fixed||Y||1/4000s||11.0/s||n||Y|
|17.||Leica X Typ 113||optional||n||3.0 / 920||fixed||n||1/2000s||5.0/s||Y||n|
|Notes: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.|
One difference between the cameras concerns the presence of an on-board flash. The XT has one, while the D-LUX Typ 109 does not. While the built-in flash of the XT is not very powerful, it can at times be useful as a fill-in light.
The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the D-LUX Typ 109 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Leica D-LUX Typ 109 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The XT writes its imaging data to Compact Flash cards, while the D-LUX Typ 109 uses SDXC cards.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XT and Leica D-LUX (Typ 109) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon XT||Y||- / -||-||-||-||2.0||-||-||-|
|2.||Leica D-LUX Typ 109||Y||stereo / mono||-||-||micro||2.0||Y||Y||-|
|3.||Canon 77D||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon T6i||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|6.||Canon G16||Y||stereo / mono||-||-||mini||2.0||Y||-||-|
|7.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|9.||Canon XSi||Y||- / -||-||-||mini||2.0||-||-||-|
|10.||Canon 30D||Y||- / -||-||-||-||2.0||-||-||-|
|11.||Canon XTi||Y||- / -||-||-||-||2.0||-||-||-|
|12.||Canon 20D||Y||- / -||-||-||-||1.1||-||-||-|
|13.||Canon Rebel||Y||- / -||-||-||-||1.1||-||-||-|
|14.||Fujifilm X100T||Y||stereo / mono||Y||-||micro||2.0||Y||-||-|
|15.||Fujifilm X100S||Y||stereo / mono||-||-||micro||2.0||-||-||-|
|16.||Leica D-LUX 7||Y||stereo / mono||-||-||micro||2.0||Y||-||Y|
|17.||Leica X Typ 113||Y||stereo / mono||-||-||mini||2.0||-||-||-|
It is notable that the D-LUX Typ 109 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the XT does not provide wifi capability.
Both the XT and the D-LUX Typ 109 have been discontinued, but can regularly be found used on eBay. The XT was replaced by the Canon Xti, while the D-LUX Typ 109 was followed by the Leica D-LUX 7. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Leica websites.
So what conclusions can be drawn? Is the Canon XT better than the Leica D-LUX Typ 109 or vice versa? Below is a summary of the relative strengths of each of the two contestants.
Reasons to prefer the Canon EOS Rebel XT:
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- More flexible: Can take a variety of interchangeable lenses, including specialty optics.
- Longer lasting: Can take more shots (400 versus 300) on a single battery charge.
- Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
- More heavily discounted: Has been available for much longer (launched in February 2005).
Advantages of the Leica D-LUX (Typ 109):
- More detail: Has more megapixels (12.7 vs 8MP), which boosts linear resolution by 24%.
- Flexible image proportions: Has a multi-aspect sensor that allows for alternative image shapes.
- Broader imaging potential: Can capture not only stills but also 4K/30p video.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.49x).
- Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (921k vs 115k dots).
- Faster burst: Shoots at higher frequency (11 vs 3 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
- Ready to shoot: Comes with an integrated lens, while the XT requires a separate lens.
- More compact: Is smaller (118x66mm vs 127x94mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight even though it has a lens built in (unlike the XT).
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
- More modern: Reflects 9 years and 6 months of technical progress since the XT launch.
If the count of individual advantages (bullet points above) is taken as a guide, the D-LUX Typ 109 is the clear winner of the contest (19 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon XT and the Leica D-LUX Typ 109 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the XT and the D-LUX Typ 109 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon XT||..||80/100||..||+ +||o||..||Feb 2005||899|
|2.||Leica D-LUX Typ 109||..||..||..||..||4.5/5||4.5/5||Sep 2014||1,195|
|3.||Canon 77D||4.5/5||..||4/5||82/100||4.5/5||4/5||Feb 2017||899|
|4.||Canon T6i||5/5||..||..||75/100||4.5/5||4.5/5||Feb 2015||749|
|5.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|6.||Canon G16||4/5||+||..||..||4.5/5||4.5/5||Aug 2013||549|
|7.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|8.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799|
|9.||Canon XSi||..||+ +||..||+ +||4/5||4.5/5||Jan 2008||799|
|10.||Canon 30D||..||+ +||..||+ +||o||..||Feb 2006||1,399|
|11.||Canon XTi||..||+ +||..||+ +||o||4/5||Aug 2006||799|
|12.||Canon 20D||..||..||..||+ +||..||..||Aug 2004||1,499|
|13.||Canon Rebel||..||..||..||+ +||..||..||Aug 2003||899|
|14.||Fujifilm X100T||5/5||+||..||81/100||4.5/5||5/5||Sep 2014||1,299|
|15.||Fujifilm X100S||5/5||+ +||..||81/100||4.5/5||5/5||Jan 2013||1,299|
|16.||Leica D-LUX 7||..||..||..||..||..||4.5/5||Nov 2018||1,195|
|17.||Leica X Typ 113||3.5/5||..||..||..||3.5/5||4/5||Sep 2014||2,295|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
Other camera comparisons
Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.
- Canon T6 vs Leica D-LUX Typ 109
- Canon XS vs Canon XT
- Canon XT vs Olympus E-300
- Canon XT vs Olympus E-450
- Canon XT vs Olympus E-P5
- Canon XT vs Pentax K-3
- Canon XT vs Sony NEX-F3
- Leica D-LUX Typ 109 vs Nikon D3100
- Leica D-LUX Typ 109 vs Nikon D3S
- Leica D-LUX Typ 109 vs Panasonic LX100
- Leica D-LUX Typ 109 vs Sony HX99
- Leica D-LUX Typ 109 vs Sony WX800
Specifications: Canon XT vs Leica D-LUX Typ 109
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon XT||Leica D-LUX Typ 109|
|Camera Type||Digital single lens reflex||Fixed lens compact camera|
|Camera Lens||Canon EF mount lenses||24-75mm f/1.7-2.8|
|Launch Date||February 2005||September 2014|
|Launch Price||USD 899||USD 1,195|
|Sensor Specs||Canon XT||Leica D-LUX Typ 109|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.2 x 14.8 mm||15.7 x 11.8 mm|
|Sensor Area||328.56 mm2||185.26 mm2|
|Sensor Diagonal||26.7 mm||19.6 mm|
|Sensor Resolution||8 Megapixels||12.7 Megapixels|
|Image Resolution||3456 x 2304 pixels||4112 x 3088 pixels|
|Pixel Pitch||6.41 μm||3.82 μm|
|Pixel Density||2.42 MP/cm2||6.85 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||no Video||4K/30p Video|
|ISO Setting||100 - 1,600 ISO||200 - 12,500 ISO|
|ISO Boost||no Enhancement||100 - 25,600 ISO|
|DXO Sensor Quality (score)||60||..|
|DXO Color Depth (bits)||21.8||..|
|DXO Dynamic Range (EV)||10.8||..|
|DXO Low Light (ISO)||637||..|
|Screen Specs||Canon XT||Leica D-LUX Typ 109|
|Viewfinder Type||Optical viewfinder||Electronic viewfinder|
|Viewfinder Field of View||95%||100%|
|Viewfinder Resolution||2764k dots|
|LCD Framing||Live View|
|Rear LCD Size||1.8inch||3.0inch|
|LCD Resolution||115k dots||921k dots|
|LCD Attachment||Fixed screen||Fixed screen|
|Shooting Specs||Canon XT||Leica D-LUX Typ 109|
|Focus System||Phase-detect AF||Contrast-detect AF|
|Manual Focusing Aid||no Peaking Feature||Focus Peaking|
|Max Shutter Speed (mechanical)||1/4000s||1/4000s|
|Continuous Shooting||3 shutter flaps/s||11 shutter flaps/s|
|Electronic Shutter||no E-Shutter||up to 1/16000s|
|Time-Lapse Photography||no Intervalometer||Intervalometer built-in|
|Fill Flash||Built-in Flash||no On-Board Flash|
|Storage Medium||CF cards||SDXC cards|
|Second Storage Option||Single card slot||Single card slot|
|Connectivity Specs||Canon XT||Leica D-LUX Typ 109|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||no HDMI||micro HDMI|
|Wifi Support||no Wifi||Wifi built-in|
|Near-Field Communication||no NFC||NFC built-in|
|Body Specs||Canon XT||Leica D-LUX Typ 109|
|Battery Life (CIPA)||400 shots per charge||300 shots per charge|
127 x 94 x 64 mm
(5.0 x 3.7 x 2.5 in)
118 x 66 x 55 mm
(4.6 x 2.6 x 2.2 in)
|Camera Weight||540 g (19.0 oz)||405 g (14.3 oz)|
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
