Canon XSi vs Panasonic G5

The Canon EOS Rebel XSi (called Canon 450D in some regions) and the Panasonic Lumix DMC-G5 are two digital cameras that were revealed to the public, respectively, in January 2008 and July 2012. The XSi is a DSLR, while the G5 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (XSi) and a Four Thirds (G5) sensor. The Canon has a resolution of 12.2 megapixels, whereas the Panasonic provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XSi		Panasonic G5
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Micro Four Thirds lenses
12.2 MP – APS-C sensor		15.9 MP – Four Thirds sensor
no Video		1080/60p Video
ISO 100-1,600		ISO 160-12,800
Optical viewfinder		Electronic viewfinder (1440k dots)
3.0" LCD – 230k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Swivel touchscreen
3.5 shutter flaps per second		6 shutter flaps per second
500 shots per battery charge		320 shots per battery charge
129 x 98 x 62 mm, 524 g		120 x 83 x 71 mm, 396 g

Check XSi offers at
ebay.com
Check G5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel XSi and the Panasonic Lumix DMC-G5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

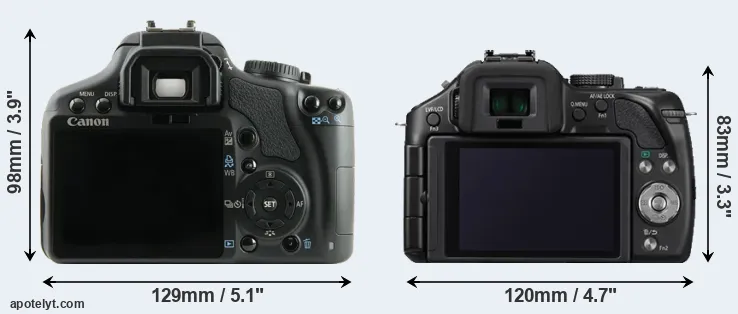

The side-by-side display below illustrates the physical size and weight of the Canon XSi and the Panasonic G5. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The G5 can be obtained in two different colors (black, silver), while the XSi is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G5 is notably smaller (21 percent) than the Canon XSi. Moreover, the G5 is markedly lighter (24 percent) than the XSi. In this context, it is worth noting that neither the XSi nor the G5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (XSi) and the Micro Four Thirds Lens Catalog (G5). Mirrorless cameras, such as the G5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the XSi gets 500 shots out of its Canon LP-E5 battery, while the G5 can take 320 images on a single charge of its Panasonic DMW-BLC12 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon XSi	129 mm	98 mm	62 mm	524 g	500	n	Jan 2008	US$ 799	ebay.com
2.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	US$ 599	ebay.com
3.		Canon 40D	146 mm	108 mm	74 mm	822 g	750	n	Aug 2007	US$ 1 299	ebay.com
4.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	US$ 799	ebay.com
5.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	US$ 699	ebay.com
6.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
7.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
8.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
9.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
10.		Canon XS	126 mm	98 mm	65 mm	502 g	500	n	Jun 2008	US$ 449	ebay.com
11.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
12.		Canon XTi	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	US$ 799	ebay.com
13.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	US$ 599	ebay.com
14.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
15.		Panasonic G7	125 mm	86 mm	77 mm	410 g	350	n	May 2015	US$ 649	ebay.com
16.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
17.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The G5 was launched at a somewhat lower price (by 25 percent) than the XSi, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon XSi features an APS-C sensor and the Panasonic G5 a Four Thirds sensor. The sensor area in the G5 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the XSi has a native 3:2 aspect ratio, while the one in the G5 offers a 4:3 aspect.

Despite having a smaller sensor, the G5 offers a higher resolution of 15.9 megapixels, compared with 12.2 MP of the XSi. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 5.19μm for the XSi). However, it should be noted that the G5 is much more recent (by 4 years and 5 months) than the XSi, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Panasonic G5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Canon XSi are 21.4 x 14.2 inches or 54.3 x 36.2 cm for good quality, 17.1 x 11.4 inches or 43.4 x 28.9 cm for very good quality, and 14.2 x 9.5 inches or 36.2 x 24.1 cm for excellent quality prints.

The Canon EOS Rebel XSi has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DMC-G5 are ISO 160 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XSi	APS-C	12.2	4272	2848	none	21.9	10.8	692	61
2.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
3.		Canon 40D	APS-C	10.1	3888	2592	none	22.1	11.3	703	64
4.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
5.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
6.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
7.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
8.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
9.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
10.		Canon XS	APS-C	10.1	3888	2592	none	22.0	10.9	719	62
11.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
12.		Canon XTi	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
13.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
14.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
15.		Panasonic G7	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.4	904	71
16.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
17.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The G5 indeed provides for movie recording, while the XSi does not. The highest resolution format that the G5 can use is 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the G5 has an electronic viewfinder (1440k dots), while the XSi has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the G5 offers a wider field of view (100%) than the one in the XSi (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the G5 has a higher magnification (0.70x vs 0.54x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon XSi and Panasonic G5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XSi	optical	n	3.0 / 230	fixed	n	1/4000s	3.5/s	Y	n
2.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
3.		Canon 40D	optical	Y	3.0 / 230	fixed	n	1/8000s	6.5/s	Y	n
4.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
5.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
6.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
7.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
10.		Canon XS	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
12.		Canon XTi	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
13.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
14.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
15.		Panasonic G7	2360	n	3.0 / 1040	swivel	Y	1/4000s	7.0/s	Y	n
16.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
17.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G5 has a touchscreen, while the XSi has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The XSi writes its imaging data to SDHC cards, while the G5 uses SDXC cards. The G5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XSi cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel XSi and Panasonic Lumix DMC-G5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XSi	Y	- / -	-	-	mini	2.0	-	-	-
2.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 40D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
5.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
6.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Canon XS	Y	- / -	-	-	-	2.0	-	-	-
11.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-
12.		Canon XTi	Y	- / -	-	-	-	2.0	-	-	-
13.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
15.		Panasonic G7	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
16.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-

Both the XSi and the G5 have been discontinued, but can regularly be found used on ebay. The XSi was replaced by the Canon T1i, while the G5 was followed by the Panasonic G6. Further information on the features and operation of the XSi and G5 can be found, respectively, in the Canon XSi Manual (free pdf) or the online Panasonic G5 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon XSi or the Panasonic G5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Canon EOS Rebel XSi:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Longer lasting: Can take more shots (500 versus 320) on a single battery charge.
• More heavily discounted: Has been available for much longer (launched in January 2008).

Reasons to prefer the Panasonic Lumix DMC-G5:

• More detail: Has more megapixels (15.9 vs 12.2MP), which boosts linear resolution by 12%.
• More dynamic range: Captures a broader range of light and dark details (0.8 EV of extra DR).
• Broader imaging potential: Can capture not only stills but also 1080/60p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.54x).
• More detailed LCD: Has a higher resolution rear screen (920k vs 230k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (6 vs 3.5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (120x83mm vs 129x98mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 128g or 24 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was released into a lower priced segment (25 percent cheaper at launch).
• More modern: Reflects 4 years and 5 months of technical progress since the XSi launch.

If the number of relative strengths (bullet points above) is taken as a guide, the G5 is the clear winner of the contest (17 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XSi and the Panasonic G5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the XSi and the G5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon XSi	..	+ +	..	+ +	4/5	4.5/5	Jan 2008	US$ 799	ebay.com
2.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
3.		Canon 40D	..	+ +	..	+ +	4.5/5	4.5/5	Aug 2007	US$ 1 299	ebay.com
4.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	US$ 799	ebay.com
5.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	US$ 699	ebay.com
6.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
7.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
8.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
9.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
10.		Canon XS	..	82/100	..	+ +	3.5/5	4.5/5	Jun 2008	US$ 449	ebay.com
11.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
12.		Canon XTi	..	+ +	..	+ +	o	4/5	Aug 2006	US$ 799	ebay.com
13.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	US$ 599	ebay.com
14.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
15.		Panasonic G7	4/5	+ +	3.5/5	80/100	5/5	4.5/5	May 2015	US$ 649	ebay.com
16.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
17.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
