Canon T5i vs T7i

The Canon EOS Rebel T5i (called Canon 700D in some regions) and the Canon EOS Rebel T7i (labelled Canon 800D in some countries) are two digital cameras that were announced, respectively, in March 2013 and February 2017. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. The T5i has a resolution of 17.9 megapixels, whereas the T7i provides 24 MP.

As their names suggest, both the Canon EOS Rebel T5i and the Canon EOS Rebel T7i belong to Canon's Rebel line of DSLR cameras. This range of APS-C cameras, which started out with the Canon EOS Digital Rebel in 2003, has been a big commercial success and the backbone of Canon's dominance in the digital camera market. The popularity of the Rebel cameras is the result of them inheriting much of the sensor and shooting technology from earlier released professional DSLRs, while being sold at a much more budget-friendly price point. The strong brand reputation of Canon and the comprehensive EOS system of compatible lenses and accessories further contributes to the appeal of the Rebel cams, including the Canon T5i and Canon T7i. Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Canon T5i
versus
Canon T7i
Canon T5i   Canon T7i
Digital single lens reflex Digital single lens reflex
Canon EF mount lenses Canon EF mount lenses
17.9 MP, APS-C Sensor 24 MP, APS-C Sensor
1080/30p Video 1080/60p Video
ISO 100-12,800 (100 - 25,600) ISO 100-25,600 (100 - 51,200)
Optical viewfinder Optical viewfinder
3.0 LCD, 1040k dots 3.0 LCD, 1040k dots
Swivel touchscreen Swivel touchscreen
5 shutter flaps per second 6 shutter flaps per second
440 shots per battery charge600 shots per battery charge
133 x 100 x 79 mm, 580 g 131 x 100 x 76 mm, 532 g

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T5i and the Canon EOS Rebel T7i? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon T5i and the Canon T7i are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

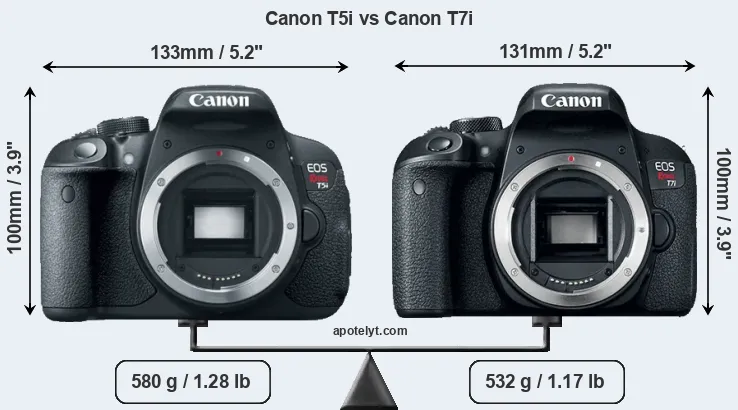

Size Canon T5i vs Canon T7i

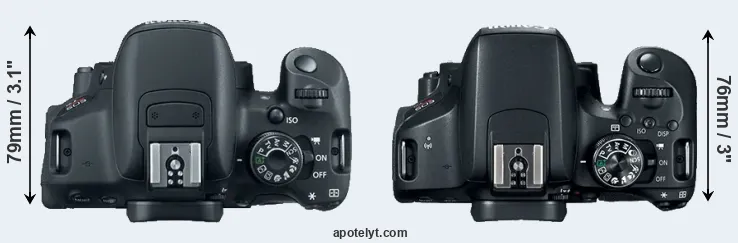

Compare T5i versus T7i top

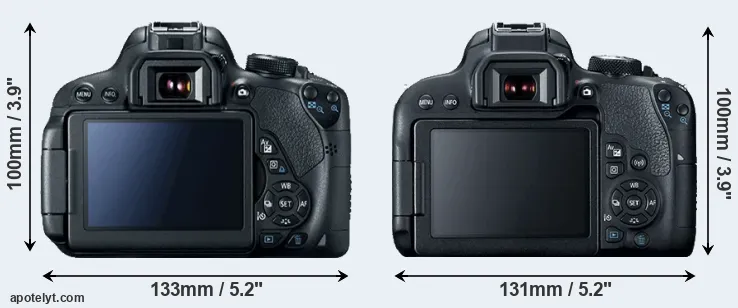

Comparison T5i or T7i rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T7i is somewhat smaller (2 percent) than the Canon T5i. Moreover, the T7i is markedly lighter (8 percent) than the T5i. In this context, it is worth noting that neither the T5i nor the T7i are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the T5i gets 440 shots out of its LP-E8 battery, while the T7i can take 600 images on a single charge of its LP-E17 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon T5i 133 mm 100 mm 79 mm 580 g 440 n Mar 2013 649 i
2.

Canon T7i 131 mm 100 mm 76 mm 532 g 600 n Feb 2017 749 i
3.

Canon T8i 131 mm 103 mm 76 mm 515 g 800 n Feb 2020 749 i
4.

Canon T7 129 mm 101 mm 78 mm 475 g 500 n Feb 2018 449 i
5.

Canon 77D 131 mm 100 mm 76 mm 540 g 600 n Feb 2017 899 i
6.

Canon T6i 132 mm 101 mm 78 mm 555 g 440 n Feb 2015 749 i
7.

Canon T6s 132 mm 101 mm 78 mm 565 g 440 n Feb 2015 649 i
8.

Canon T5 130 mm 100 mm 78 mm 480 g 500 n Feb 2014 449 i
9.

Canon SL1 117 mm 91 mm 69 mm 407 g 380 n Mar 2013 549 i
10.

Canon M 109 mm 66 mm 32 mm 298 g 230 n Jul 2012 599 i
11.

Canon T4i 133 mm 100 mm 79 mm 575 g 440 n Jun 2012 849 i
12.

Canon T3i 133 mm 100 mm 80 mm 570 g 440 n Feb 2011 599 i
13.

Canon T2i 129 mm 98 mm 62 mm 530 g 440 n Feb 2010 699 i
14.

Canon T1i 129 mm 98 mm 62 mm 520 g 400 n Mar 2009 799 i
Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The T5i was launched at a somewhat lower price (by 13 percent) than the T7i, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the T7i uses a more advanced image processing engine (DIGIC 7) than the T5i (DIGIC 5), with benefits for noise reduction, color accuracy, and processing speed.

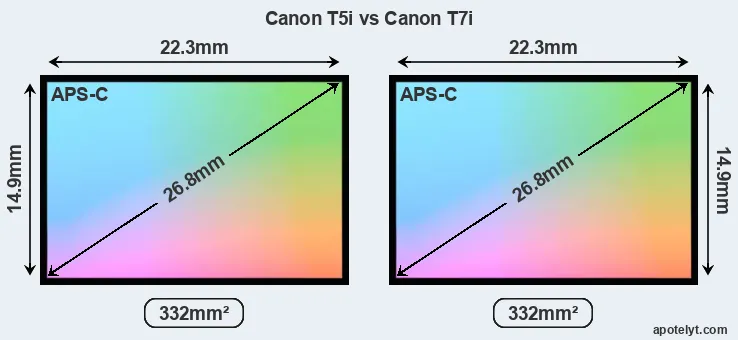

Canon T5i and Canon T7i sensor measures

While the two cameras under review share the same sensor size, the T7i offers a higher resolution of 24 megapixels, compared with 17.9 MP of the T5i. This megapixels advantage translates into a 16 percent gain in linear resolution. On the other hand, these sensor specs imply that the T7i has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.72μm versus 4.31μm for the T5i). However, it should be noted that the T7i is much more recent (by 3 years and 10 months) than the T5i, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.

The resolution advantage of the Canon T7i implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T7i for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon T5i are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.

The Canon EOS Rebel T5i has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS Rebel T7i are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

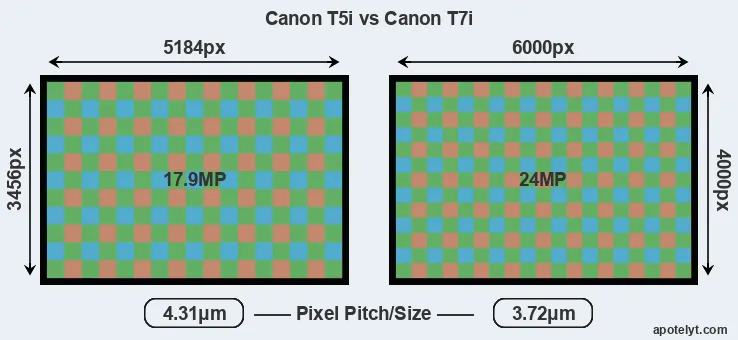

T5i versus T7i MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Canon T5i APS-C 17.9 5184 34561080/30p21.711.2681 61
2.

Canon T7i APS-C 24.0 6000 40001080/60p...... ..
3.

Canon T8i APS-C 24.0 6000 40004K/24p...... ..
4.

Canon T7 APS-C 24.0 6000 40001080/30p...... ..
5.

Canon 77D APS-C 24.0 6000 40001080/60p23.613.3971 78
6.

Canon T6i APS-C 24.0 6000 40001080/30p22.712.0919 71
7.

Canon T6s APS-C 24.0 6000 40001080/30p22.612.0915 70
8.

Canon T5 APS-C 17.9 5184 34561080/30p21.911.3724 63
9.

Canon SL1 APS-C 17.9 5184 34561080/30p21.811.3843 63
10.

Canon M APS-C 17.9 5184 34561080/30p22.111.2827 65
11.

Canon T4i APS-C 17.9 5184 34561080/30p21.711.2722 62
12.

Canon T3i APS-C 17.9 5184 34561080/30p22.111.5793 65
13.

Canon T2i APS-C 17.9 5184 34561080/30p22.111.5784 66
14.

Canon T1i APS-C 15.1 4752 31681080/20p21.711.5663 63

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the T7i provides a faster frame rate than the T5i. It can shoot movie footage at 1080/60p, while the T5i is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The T5i and the T7i are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the T5i has a higher magnification than the one of the T7i (0.53x vs 0.51x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon T5i, the Canon T7i, and comparable cameras.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Size
(inch)
LCD
Resolution
(000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Canon T5ioptical n 3.0 1040 swivel Y 1/4000s 5.0 Y n
2.

Canon T7ioptical n 3.0 1040 swivel Y 1/4000s 6.0 Y n
3.

Canon T8ioptical n 3.0 1040 swivel Y 1/4000s 7.5 Y n
4.

Canon T7optical n 3.0 920 fixed n 1/4000s 3.0 Y n
5.

Canon 77Doptical Y 3.0 1040 swivel Y 1/4000s 6.0 Y n
6.

Canon T6ioptical n 3.0 1040 swivel Y 1/4000s 5.0 Y n
7.

Canon T6soptical Y 3.0 1040 swivel Y 1/4000s 5.0 Y n
8.

Canon T5optical n 3.0 460 fixed n 1/4000s 3.0 Y n
9.

Canon SL1optical n 3.0 1040 fixed Y 1/4000s 4.9 Y n
10.

Canon Mnone n 3.0 1040 fixed Y 1/4000s 4.3 n n
11.

Canon T4ioptical n 3.0 1040 swivel Y 1/4000s 5.0 Y n
12.

Canon T3ioptical n 3.0 1040 swivel n 1/4000s 3.7 Y n
13.

Canon T2ioptical n 3.0 1040 fixed n 1/4000s 3.7 Y n
14.

Canon T1ioptical n 3.0 920 fixed n 1/4000s 3.4 Y n
Both cameras have an articulated rear screen that can be turned to be front-facing. This feature will be particularly appreciated by vloggers and photographers who are interested in taking selfies.

Concerning the storage of imaging data, both the T5i and the T7i write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T5i and Canon EOS Rebel T7i and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Microphone
Internal
Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Canon T5iYstereomonoY-mini2.0---
2.

Canon T7iYstereomonoY-mini2.0YYY
3.

Canon T8iYstereomonoY-mini2.0Y-Y
4.

Canon T7Ymonomono--mini2.0YY-
5.

Canon 77DYstereomonoY-mini2.0YYY
6.

Canon T6iYstereomonoY-mini2.0YY-
7.

Canon T6sYstereomonoY-mini2.0YY-
8.

Canon T5Ymonomono--mini2.0---
9.

Canon SL1YmonomonoY-mini2.0---
10.

Canon MYstereomonoY-mini2.0---
11.

Canon T4iYstereomonoY-mini2.0---
12.

Canon T3iYmonomonoY-mini2.0---
13.

Canon T2iYstereo-Y-mini2.0---
14.

Canon T1iYmonomono--mini2.0---

It is notable that the T7i offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the T5i does not provide wifi capability.

Both the T5i and the T7i have been discontinued, but can regularly be found used on eBay. The T5i was replaced by the Canon T6i, while the T7i was followed by the Canon T8i. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon website.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon T5i and the Canon T7i? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.


Reasons to prefer the Canon EOS Rebel T5i:

  • Larger viewfinder image: Features a viewfinder with a higher magnification (0.53x vs 0.51x).
  • More affordable: Was introduced into a lower priced segment (13 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in March 2013).


Arguments in favor of the Canon EOS Rebel T7i:

  • More detail: Has more megapixels (24 vs 17.9MP), which boosts linear resolution by 16%.
  • Better jpgs: Has a more modern image processing engine (DIGIC 7 vs DIGIC 5).
  • Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
  • Faster burst: Shoots at higher frequency (6 vs 5 flaps/sec) to capture the decisive moment.
  • Longer lasting: Gets more shots (600 versus 440) out of a single battery charge.
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • More modern: Reflects 3 years and 10 months of technical progress since the T5i launch.

If the count of relative strengths (bullet points above) is taken as a measure, the T7i is the clear winner of the contest (9 : 3 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

T5i 03:09 T7i

How about other alternatives? Do the specifications of the Canon T5i and the Canon T7i place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the T5i or the T7i perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
     Camera
 Model
 AP
 score
 CL
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price (USD)
Street
Price
1.

Canon T5i....76/1004.5/54.5/5 Mar 2013 649 i
2.

Canon T7i4.5/5..80/1004.5/54/5 Feb 2017 749 i
3.

Canon T8i4.5/5+80/1004/53.5/5 Feb 2020 749 i
4.

Canon T7..o..3.5/53.5/5 Feb 2018 449 i
5.

Canon 77D4.5/5..82/1004.5/54/5 Feb 2017 899 i
6.

Canon T6i5/5..75/1004.5/54.5/5 Feb 2015 749 i
7.

Canon T6s5/5+77/1004.5/54.5/5 Feb 2015 649 i
8.

Canon T53/5+..4/54.5/5 Feb 2014 449 i
9.

Canon SL14/5+78/1004/54/5 Mar 2013 549 i
10.

Canon M3/5+..4/54/5 Jul 2012 599 i
11.

Canon T4i4/5+ +77/1004.5/54.5/5 Jun 2012 849 i
12.

Canon T3i3/5o77/1004.5/54.5/5 Feb 2011 599 i
13.

Canon T2i..+ +77/1004/54.5/5 Feb 2010 699 i
14.

Canon T1i..+ +74/1004.5/54.5/5 Mar 2009 799 i
Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Canon T5i:
Check Ebay offers
Canon T7i:
Check Ebay offers

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make your choice using the following search menu. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader

    Specifications: Canon T5i vs Canon T7i

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Canon T5i Canon T7i
    Camera Type Digital single lens reflex Digital single lens reflex
    Camera Lens Canon EF mount lenses Canon EF mount lenses
    Launch Date March 2013 February 2017
    Launch Price USD 649 USD 749
    Sensor Specs Canon T5i Canon T7i
    Sensor Technology CMOS CMOS
    Sensor Format APS-C Sensor APS-C Sensor
    Sensor Size 22.3 x 14.9 mm 22.3 x 14.9 mm
    Sensor Area 332.27 mm2 332.27 mm2
    Sensor Diagonal 26.8 mm 26.8 mm
    Crop Factor 1.6x 1.6x
    Sensor Resolution 17.9 Megapixels 24 Megapixels
    Image Resolution 5184 x 3456 pixels 6000 x 4000 pixels
    Pixel Pitch 4.31 μm 3.72 μm
    Pixel Density 5.39 MP/cm2 7.22 MP/cm2
    Moiré control Anti-Alias filter Anti-Alias filter
    Movie Capability 1080/30p Video 1080/60p Video
    ISO Setting 100 - 12,800 ISO 100 - 25,600 ISO
    ISO Boost 100 - 25,600 ISO 100 - 51,200 ISO
    Image Processor DIGIC 5 DIGIC 7
    DXO Sensor Quality (score) 61 ..
    DXO Color Depth (bits) 21.7 ..
    DXO Dynamic Range (EV) 11.2 ..
    DXO Low Light (ISO) 681 ..
    Screen Specs Canon T5i Canon T7i
    Viewfinder Type Optical viewfinder Optical viewfinder
    Viewfinder Field of View 95% 95%
    Viewfinder Magnification 0.53x 0.51x
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 1040k dots 1040k dots
    LCD Attachment Swivel screen Swivel screen
    Touch Input Touchscreen Touchscreen
    Shooting Specs Canon T5i Canon T7i
    Focus System Phase-detect AF Phase-detect AF
    Continuous Shooting 5 shutter flaps/s 6 shutter flaps/s
    Shutter Life Expectancy100 000 actuations100 000 actuations
    Fill Flash Built-in Flash Built-in Flash
    Storage Medium SDXC cards SDXC cards
    Second Storage Option Single card slot Single card slot
    UHS card support UHS-I UHS-I
    Connectivity Specs Canon T5i Canon T7i
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 2.0
    HDMI Port mini HDMI mini HDMI
    Microphone Port External MIC port External MIC port
    Wifi Support no Wifi Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Canon T5i Canon T7i
    Battery Type LP-E8 LP-E17
    Battery Life (CIPA)440 shots per charge600 shots per charge
    Body Dimensions 133 x 100 x 79 mm
    (5.2 x 3.9 x 3.1 in)
    131 x 100 x 76 mm
    (5.2 x 3.9 x 3.0 in)
    Camera Weight 580 g (20.5 oz) 532 g (18.8 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Canon T5i vs Canon T7i

    Thanks for your vote!

    You rated this page 4 out of 5.


    Rating

    Any additional comment or suggestion for improvement would be welcome.


    If you like it, make sure you share it:

    • Mention this page to your Facebook friends and Twitter followers.
    • Bookmark it in your browser for future reference by pressing "Crtl" + "D".
    • Create a hyperlink by copying the text below into your web-project or discussion forum entry.

    Once again, thanks for taking the time to provide feedback. I appreciate it.
