Canon T5i vs T6

The Canon EOS Rebel T5i (called Canon 700D in some regions) and the Canon EOS Rebel T6 (labelled Canon 1300D in some countries) are two digital cameras that were announced, respectively, in March 2013 and March 2016. Both are DSLR (Digital Single Lens Reflex) cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 17.9 megapixels.

As their names suggest, both the Canon EOS Rebel T5i and the Canon EOS Rebel T6 belong to Canon's Rebel line of DSLR cameras. This range of APS-C cameras, which started out with the Canon EOS Digital Rebel in 2003, has been a big commercial success and the backbone of Canon's dominance in the digital camera market. The popularity of the Rebel cameras is the result of them inheriting much of the sensor and shooting technology from earlier released professional DSLRs, while being sold at a much more budget-friendly price point. The strong brand reputation of Canon and the comprehensive EOS system of compatible lenses and accessories further contributes to the appeal of the Rebel cams, including the Canon T5i and Canon T6. Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon T5i		Canon T6
Digital single lens reflex		Digital single lens reflex
Canon EF mount lenses		Canon EF mount lenses
17.9 MP – APS-C sensor		17.9 MP – APS-C sensor
1080/30p Video		1080/30p Video
ISO 100-12,800 (100 - 25,600)		ISO 100-6,400 (100 - 12,800)
Optical viewfinder		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 920k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
5 shutter flaps per second		3 shutter flaps per second
440 shots per battery charge		500 shots per battery charge
133 x 100 x 79 mm, 580 g		129 x 101 x 78 mm, 485 g

Check T5i offers at
ebay.com
Check T6 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T5i and the Canon EOS Rebel T6? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

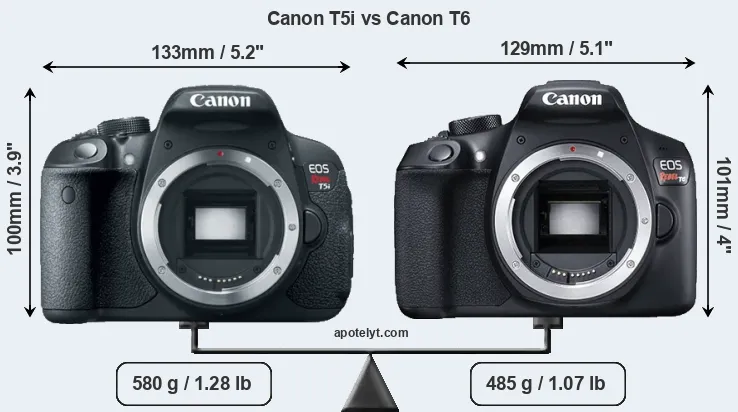

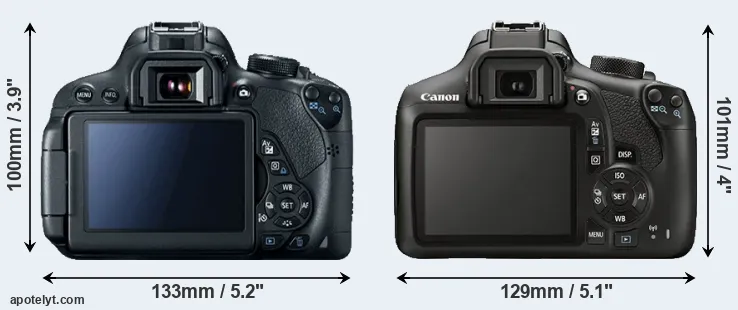

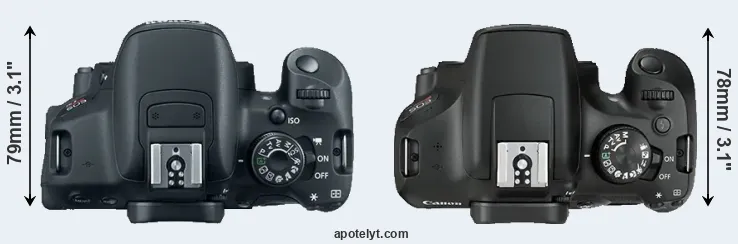

An illustration of the physical size and weight of the Canon T5i and the Canon T6 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T6 is somewhat smaller (2 percent) than the Canon T5i. Moreover, the T6 is markedly lighter (16 percent) than the T5i. In this context, it is worth noting that neither the T5i nor the T6 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Canon EF Lens Catalog.

Concerning battery life, the T5i gets 440 shots out of its Canon LP-E8 battery, while the T6 can take 500 images on a single charge of its Canon LP-E10 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price (USD)	Street Price
1.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	649	ebay.com
2.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	449	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	899	ebay.com
4.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	599	ebay.com
5.		Canon M10	108 mm	67 mm	35 mm	301 g	255	n	Oct 2015	499	ebay.com
6.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	549	ebay.com
7.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	549	ebay.com
8.		Canon T1i	129 mm	98 mm	62 mm	520 g	400	n	Mar 2009	799	ebay.com
9.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	699	ebay.com
10.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	599	ebay.com
11.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	849	ebay.com
12.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	449	ebay.com
13.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	749	ebay.com
14.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	649	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The T6 was launched at a markedly lower price (by 31 percent) than the T5i, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

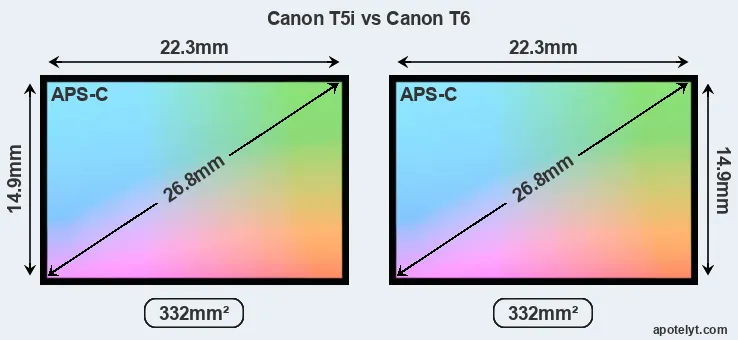

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.6. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the T5i uses a more advanced image processing engine (DIGIC 5) than the T6 (DIGIC 4+), with benefits for noise reduction, color accuracy, and processing speed.

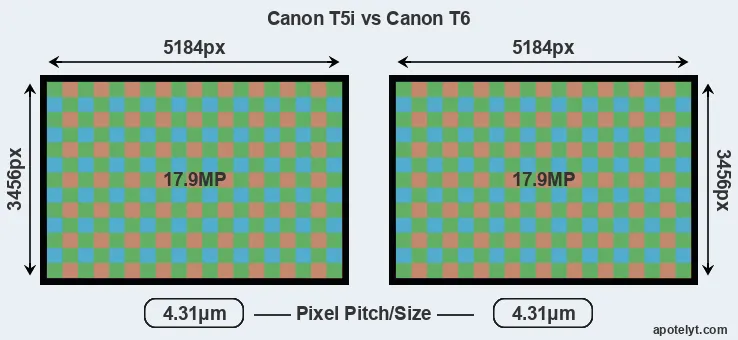

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 17.9 megapixels. This similarity in sensor specs implies that both the T5i and the T6 have the same pixel density, as well as the same pixel size. It should, however, be noted that the T6 is much more recent (by 2 years and 11 months) than the T5i, and its sensor will have benefitted from technological advances during this time.

The T5i has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS Rebel T5i has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Canon EOS Rebel T6 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-12800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the T6 has a markedly higher DXO score than the T5i (overall score 5 points higher), which will translate into better image quality. The advantage is based on 0.3 bits higher color depth, 0.5 EV in additional dynamic range, and 0.2 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
2.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
5.		Canon M10	APS-C	17.9	5184	3456	1080/30p	22.2	11.4	753	65
6.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
7.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
8.		Canon T1i	APS-C	15.1	4752	3168	1080/20p	21.7	11.5	663	63
9.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
10.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
11.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
12.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
13.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
14.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The T5i and the T6 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the T5i has a higher magnification than the one of the T6 (0.53x vs 0.50x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The following table reports on some other key feature differences and similarities of the Canon T5i, the Canon T6, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
2.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
5.		Canon M10	none	n	3.0 / 1040	tilting	Y	1/4000s	4.6/s	Y	n
6.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
7.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon T1i	optical	n	3.0 / 920	fixed	n	1/4000s	3.4/s	Y	n
9.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
10.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
11.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
13.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
14.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The T5i has a touchscreen, while the T6 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the T5i and the T6 write their files to SDXC cards. The T5i supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the T6 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T5i and Canon EOS Rebel T6 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
5.		Canon M10	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
7.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon T1i	Y	mono / mono	-	-	mini	2.0	-	-	-
9.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
10.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
11.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
12.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
13.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
14.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-

It is notable that the T5i has a microphone port, which is missing on the T6. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the T5i and the T6 have been discontinued, but can regularly be found used on ebay. The T5i was replaced by the Canon T6i, while the T6 was followed by the Canon T7. Further information on the features and operation of the T5i and T6 can be found, respectively, in the Canon T5i Manual (free pdf) or the online Canon T6 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon T5i or the Canon T6 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS Rebel T5i:

• Better jpgs: Has a more modern image processing engine (DIGIC 5 vs DIGIC 4+).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.53x vs 0.50x).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 920k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been available for much longer (launched in March 2013).

Arguments in favor of the Canon EOS Rebel T6:

• Better image quality: Scores markedly higher (5 points) in the DXO overall evaluation.
• Less heavy: Has a lower weight (by 95g or 16 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (500 versus 440) out of a single battery charge.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced category (31 percent cheaper at launch).
• More modern: Reflects 2 years and 11 months of technical progress since the T5i launch.

If the count of individual advantages (bullet points above) is taken as a guide, the T5i is the clear winner of the match-up (11 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon T5i and the Canon T6 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the T5i and the T6 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price (USD)	Street Price
1.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	649	ebay.com
2.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	449	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	899	ebay.com
4.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	599	ebay.com
5.		Canon M10	..	..	..	..	..	4/5	Oct 2015	499	ebay.com
6.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	549	ebay.com
7.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	549	ebay.com
8.		Canon T1i	..	+ +	..	74/100	4.5/5	4.5/5	Mar 2009	799	ebay.com
9.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	699	ebay.com
10.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	599	ebay.com
11.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	849	ebay.com
12.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	449	ebay.com
13.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	749	ebay.com
14.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	649	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
