Canon T3i vs Olympus E-510
The Canon EOS Rebel T3i (called Canon 600D in some regions) and the Olympus E-510 are two digital cameras that were revealed to the public, respectively, in February 2011 and March 2007. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (T3i) and a Four Thirds (E-510) sensor. The Canon has a resolution of 17.9 megapixels, whereas the Olympus provides 10 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T3i and the Olympus E-510? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

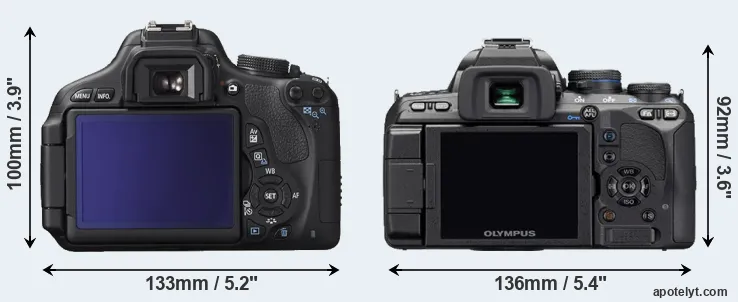

The side-by-side display below illustrates the physical size and weight of the Canon T3i and the Olympus E-510. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.
If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-510 is notably smaller (6 percent) than the Canon T3i. Moreover, the E-510 is markedly lighter (6 percent) than the T3i. In this context, it is worth noting that neither the T3i nor the E-510 are weather-sealed.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (T3i) and the Four Thirds Lens Catalog (E-510).
The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.
|1.||Canon T3i||133 mm||100 mm||80 mm||570 g||440||n||Feb 2011||599|
|2.||Olympus E-510||136 mm||92 mm||68 mm||538 g||750||n||Mar 2007||799|
|3.||Canon SL2||122 mm||93 mm||70 mm||453 g||650||n||Jun 2017||549|
|4.||Canon T6s||132 mm||101 mm||78 mm||565 g||440||n||Feb 2015||649|
|5.||Canon T5||130 mm||100 mm||78 mm||480 g||500||n||Feb 2014||449|
|6.||Canon SL1||117 mm||91 mm||69 mm||407 g||380||n||Mar 2013||549|
|7.||Canon T5i||133 mm||100 mm||79 mm||580 g||440||n||Mar 2013||649|
|8.||Canon M||109 mm||66 mm||32 mm||298 g||230||n||Jul 2012||599|
|9.||Canon T4i||133 mm||100 mm||79 mm||575 g||440||n||Jun 2012||849|
|10.||Canon T3||130 mm||100 mm||78 mm||495 g||700||n||Feb 2011||449|
|11.||Canon T2i||129 mm||98 mm||62 mm||530 g||440||n||Feb 2010||699|
|12.||Canon T1i||129 mm||98 mm||62 mm||520 g||400||n||Mar 2009||799|
|13.||Olympus E-620||130 mm||94 mm||60 mm||521 g||500||n||Feb 2009||699|
|14.||Olympus E-520||136 mm||92 mm||68 mm||535 g||750||n||May 2008||699|
|15.||Olympus E-410||130 mm||91 mm||53 mm||435 g||500||n||Mar 2007||699|
|16.||Olympus E-400||130 mm||91 mm||53 mm||435 g||500||n||Sep 2006||699|
|17.||Olympus E-500||130 mm||95 mm||66 mm||479 g||750||n||Sep 2005||599|
|Notes: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.|
The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The T3i was launched at a somewhat lower price (by 25 percent) than the E-510, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.
Of the two cameras under consideration, the Canon T3i features an APS-C sensor and the Olympus E-510 a Four Thirds sensor. The sensor area in the E-510 is 32 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.6 and 2.0. The sensor in the T3i has a native 3:2 aspect ratio, while the one in the E-510 offers a 4:3 aspect.
With 17.9MP, the T3i offers a higher resolution than the E-510 (10MP), but the T3i has smaller individual pixels (pixel pitch of 4.31μm versus 4.74μm for the E-510). However, the T3i is a much more recent model (by 3 years and 11 months) than the E-510, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.
The resolution advantage of the Canon T3i implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the T3i for good quality output (200 dots per inch) amounts to 25.9 x 17.3 inches or 65.8 x 43.9 cm, for very good quality (250 dpi) 20.7 x 13.8 inches or 52.7 x 35.1 cm, and for excellent quality (300 dpi) 17.3 x 11.5 inches or 43.9 x 29.3 cm. The corresponding values for the Olympus E-510 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.
The Canon EOS Rebel T3i has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Olympus E-510 are ISO 100 to ISO 1600 (no boost).
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under review, the T3i provides substantially higher image quality than the E-510, with an overall score that is 13 points higher. This advantage is based on 0.9 bits higher color depth, 1.5 EV in additional dynamic range, and 0.8 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.
|2.||Olympus E-510||Four Thirds||10.0||3648||2736||none||21.2||10.0||442||52|
|13.||Olympus E-620||Four Thirds||12.2||4032||3024||none||21.3||10.3||536||55|
|14.||Olympus E-520||Four Thirds||10.0||3648||2736||none||21.4||10.4||548||55|
|15.||Olympus E-410||Four Thirds||10.0||3648||2736||none||21.1||10.0||494||51|
|16.||Olympus E-400||Four Thirds||10.0||3648||2736||none||21.0||10.6||127||53|
|17.||Olympus E-500||Four Thirds||8.0||3264||2448||none||20.7||10.3||45||51|
|Note: DXO values in italics represent estimates based on sensor size and age.|
Many modern cameras cannot only take still pictures, but also record videos. The T3i indeed provides movie recording capabilities, while the E-510 does not. The highest resolution format that the T3i can use is 1080/30p.
Apart from body and sensor, cameras can and do differ across a variety of features. The T3i and the E-510 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (95%), but the viewfinder of the T3i has a higher magnification than the one of the E-510 (0.53x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon T3i and Olympus E-510 in connection with corresponding information for a sample of similar cameras.
|1.||Canon T3i||optical||n||3.0 / 1040||swivel||n||1/4000s||3.7||Y||n|
|2.||Olympus E-510||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||Y|
|3.||Canon SL2||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|4.||Canon T6s||optical||Y||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|5.||Canon T5||optical||n||3.0 / 460||fixed||n||1/4000s||3.0||Y||n|
|6.||Canon SL1||optical||n||3.0 / 1040||fixed||Y||1/4000s||4.9||Y||n|
|7.||Canon T5i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|8.||Canon M||none||n||3.0 / 1040||fixed||Y||1/4000s||4.3||n||n|
|9.||Canon T4i||optical||n||3.0 / 1040||swivel||Y||1/4000s||5.0||Y||n|
|10.||Canon T3||optical||n||2.7 / 230||fixed||n||1/4000s||3.0||Y||n|
|11.||Canon T2i||optical||n||3.0 / 1040||fixed||n||1/4000s||3.7||Y||n|
|12.||Canon T1i||optical||n||3.0 / 920||fixed||n||1/4000s||3.4||Y||n|
|13.||Olympus E-620||optical||n||2.7 / 230||swivel||n||1/4000s||4.0||Y||Y|
|14.||Olympus E-520||optical||n||2.7 / 215||fixed||n||1/4000s||3.5||Y||Y|
|15.||Olympus E-410||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||n|
|16.||Olympus E-400||optical||n||2.5 / 215||fixed||n||1/4000s||3.0||Y||n|
|17.||Olympus E-500||optical||n||2.5 / 215||fixed||n||1/4000s||2.5||Y||n|
One feature that differentiates the E-510 and the T3i is in-body image stabilization (IBIS). The E-510 reduces the risk of handshake-induced blur with all attached lenses, while the T3i offers no blur reduction with lenses that themselves do not provide optical image stabilization.The T3i has an articulated LCD that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in snapping selfies. In contrast, the E-510 does not have a selfie-screen.
The T3i writes its imaging data to SDXC cards, while the E-510 uses Compact Flash or xD Picture cards. The E-510 features dual card slots, which can be very useful in case a memory card fails. In contrast, the T3i only has one slot.
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T3i and Olympus E-510 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Mic / Speaker
|1.||Canon T3i||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|2.||Olympus E-510||Y||- / -||-||-||-||2.0||-||-||-|
|3.||Canon SL2||Y||stereo / mono||Y||-||mini||2.0||Y||Y||Y|
|4.||Canon T6s||Y||stereo / mono||Y||-||mini||2.0||Y||Y||-|
|5.||Canon T5||Y||mono / mono||-||-||mini||2.0||-||-||-|
|6.||Canon SL1||Y||mono / mono||Y||-||mini||2.0||-||-||-|
|7.||Canon T5i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|8.||Canon M||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|9.||Canon T4i||Y||stereo / mono||Y||-||mini||2.0||-||-||-|
|10.||Canon T3||Y||stereo / mono||-||-||mini||2.0||-||-||-|
|11.||Canon T2i||Y||stereo / -||Y||-||mini||2.0||-||-||-|
|12.||Canon T1i||Y||mono / mono||-||-||mini||2.0||-||-||-|
|13.||Olympus E-620||Y||- / -||-||-||-||2.0||-||-||-|
|14.||Olympus E-520||Y||- / -||-||-||-||2.0||-||-||-|
|15.||Olympus E-410||Y||- / -||-||-||-||2.0||-||-||-|
|16.||Olympus E-400||Y||- / -||-||-||-||2.0||-||-||-|
|17.||Olympus E-500||Y||- / -||-||-||-||2.0||-||-||-|
Both the T3i and the E-510 have been discontinued, but can regularly be found used on eBay. The E-510 was replaced by the Olympus E-520, while the T3i was followed by the Canon T4i. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Olympus websites.
So what conclusions can be drawn? Which of the two cameras – the Canon T3i or the Olympus E-510 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.
Reasons to prefer the Canon EOS Rebel T3i:
- More detail: Offers more megapixels (17.9 vs 10MP) with a 37% higher linear resolution.
- Better image quality: Scores substantially higher (13 points) in the DXO overall assessment.
- More dynamic range: Captures a larger spectrum of light and dark details (1.5 EV of extra DR).
- Better low-light sensitivity: Requires less light for good images (0.8 stops ISO advantage).
- Broader imaging potential: Can record not only still images but also 1080/30p movies.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.53x vs 0.46x).
- Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1040k vs 215k dots).
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (3.7 vs 3 flaps/sec) to capture the decisive moment.
- More affordable: Was introduced into a lower priced segment (25 percent cheaper at launch).
- More modern: Reflects 3 years and 11 months of technical progress since the E-510 launch.
Advantages of the Olympus E-510:
- Longer lasting: Gets more shots (750 versus 440) out of a single battery charge.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been around for much longer (launched in March 2007).
If the count of individual advantages (bullet points above) is taken as a guide, the T3i is the clear winner of the match-up (13 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon T3i and the Olympus E-510 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the T3i or the E-510 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.
This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.
|1.||Canon T3i||3/5||o||..||77/100||4.5/5||4.5/5||Feb 2011||599|
|2.||Olympus E-510||..||89/100||..||+ +||3.5/5||4.5/5||Mar 2007||799|
|3.||Canon SL2||4/5||+ +||4/5||78/100||4.5/5||4.5/5||Jun 2017||549|
|4.||Canon T6s||5/5||+||..||77/100||4.5/5||4.5/5||Feb 2015||649|
|5.||Canon T5||3/5||+||..||..||4/5||4.5/5||Feb 2014||449|
|6.||Canon SL1||4/5||+||..||78/100||4/5||4/5||Mar 2013||549|
|7.||Canon T5i||..||..||..||76/100||4.5/5||4.5/5||Mar 2013||649|
|8.||Canon M||3/5||+||..||..||4/5||4/5||Jul 2012||599|
|9.||Canon T4i||4/5||+ +||..||77/100||4.5/5||4.5/5||Jun 2012||849|
|10.||Canon T3||..||80/100||..||69/100||4/5||4.5/5||Feb 2011||449|
|11.||Canon T2i||..||+ +||..||77/100||4/5||4.5/5||Feb 2010||699|
|12.||Canon T1i||..||+ +||..||74/100||4.5/5||4.5/5||Mar 2009||799|
|13.||Olympus E-620||3/5||88/100||..||72/100||4.5/5||5/5||Feb 2009||699|
|14.||Olympus E-520||..||87/100||..||+ +||4.5/5||4.5/5||May 2008||699|
|15.||Olympus E-410||..||86/100||..||+ +||4/5||4.5/5||Mar 2007||699|
|16.||Olympus E-400||..||85/100||..||..||4/5||4/5||Sep 2006||699|
|17.||Olympus E-500||..||76/100||..||+ +||..||..||Sep 2005||599|
|Notes: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.|
The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 1100D vs Olympus E-510
- Canon 5DS R vs Canon T3i
- Canon G9 X vs Canon T3i
- Canon T3i vs Canon XTi
- Canon T3i vs Olympus E-M5 II
- Canon T3i vs Panasonic GF2
- Canon T3i vs Pentax MX-1
- Fujifilm X-T2 vs Olympus E-510
- Olympus E-510 vs Pentax MX-1
- Olympus E-510 vs Pentax Q
- Olympus E-510 vs Sony A99
- Olympus E-510 vs Sony RX100 V
Specifications: Canon T3i vs Olympus E-510
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
|Camera Model||Canon T3i||Olympus E-510|
|Camera Type||Digital single lens reflex||Digital single lens reflex|
|Camera Lens||Canon EF mount lenses||Four Thirds lenses|
|Launch Date||February 2011||March 2007|
|Launch Price||USD 599||USD 799|
|Sensor Specs||Canon T3i||Olympus E-510|
|Sensor Format||APS-C Sensor||Four Thirds Sensor|
|Sensor Size||22.3 x 14.9 mm||17.3 x 13.0 mm|
|Sensor Area||332.27 mm2||224.9 mm2|
|Sensor Diagonal||26.8 mm||21.6 mm|
|Sensor Resolution||17.9 Megapixels||10 Megapixels|
|Image Resolution||5184 x 3456 pixels||3648 x 2736 pixels|
|Pixel Pitch||4.31 μm||4.74 μm|
|Pixel Density||5.39 MP/cm2||4.44 MP/cm2|
|Moiré control||Anti-Alias filter||Anti-Alias filter|
|Movie Capability||1080/30p Video||no Video|
|ISO Setting||100 - 6,400 ISO||100 - 1,600 ISO|
|ISO Boost||100 - 12,800 ISO||no Enhancement|
|Image Processor||DIGIC 4||TruePic III|
|DXO Sensor Quality (score)||65||52|
|DXO Color Depth (bits)||22.1||21.2|
|DXO Dynamic Range (EV)||11.5||10.0|
|DXO Low Light (ISO)||793||442|
|Screen Specs||Canon T3i||Olympus E-510|
|Viewfinder Type||Optical viewfinder||Optical viewfinder|
|Viewfinder Field of View||95%||95%|
|LCD Framing||Live View||Live View|
|Rear LCD Size||3.0inch||2.5inch|
|LCD Resolution||1040k dots||215k dots|
|LCD Attachment||Swivel screen||Fixed screen|
|Shooting Specs||Canon T3i||Olympus E-510|
|Focus System||Phase-detect AF||Phase-detect AF|
|Continuous Shooting||3.7 shutter flaps/s||3 shutter flaps/s|
|Image Stabilization||Lens stabilization only||In-body stabilization|
|Fill Flash||Built-in Flash||Built-in Flash|
|Storage Medium||SDXC cards||CF or XD cards|
|Second Storage Option||Single card slot||Dual card slots|
|Connectivity Specs||Canon T3i||Olympus E-510|
|USB Connector||USB 2.0||USB 2.0|
|HDMI Port||mini HDMI||no HDMI|
|Microphone Port||External MIC port||no MIC socket|
|Wifi Support||no Wifi||no Wifi|
|Body Specs||Canon T3i||Olympus E-510|
|Battery Life (CIPA)||440 shots per charge||750 shots per charge|
133 x 100 x 80 mm
(5.2 x 3.9 x 3.1 in)
136 x 92 x 68 mm
(5.4 x 3.6 x 2.7 in)
|Camera Weight||570 g (20.1 oz)||538 g (19.0 oz)|
